If you visit the Lockheed SR-71 on display at the Smithsonian, or the Castle Air Museum, or the National Museum of the United States Air Force, you may notice something odd beneath some of the airframes: a faint film of clear, kerosene-smelling liquid. It is not condensation. It is not a hydraulics leak. It is residual JP-7 jet fuel — some museum Blackbirds have been seeping it for decades. And the aircraft was built that way on purpose.

The most aerodynamically advanced reconnaissance aircraft of the Cold War — an aircraft that could outrun a missile at Mach 3.3 above 80,000 feet — was designed by Kelly Johnson's Skunk Works to leak fuel onto the runway on every single take-off. It is one of the most counterintuitive engineering decisions of the twentieth century, and it was the only way to make the aircraft work.

The problem with titanium at three times the speed of sound

At Mach 3.2, average surface temperatures on the SR-71 ran from about 460°F to 620°F (roughly 240°C to 330°C), according to NASA historian Peter Merlin, and parts of the airframe near the engines reached 1,050°F (about 565°C). The outer surface of the cockpit glass reached about 420°F. Everything on the aircraft, every panel, every rivet, every spar, expanded on a scale that no previous aircraft engineering team had ever had to consider.

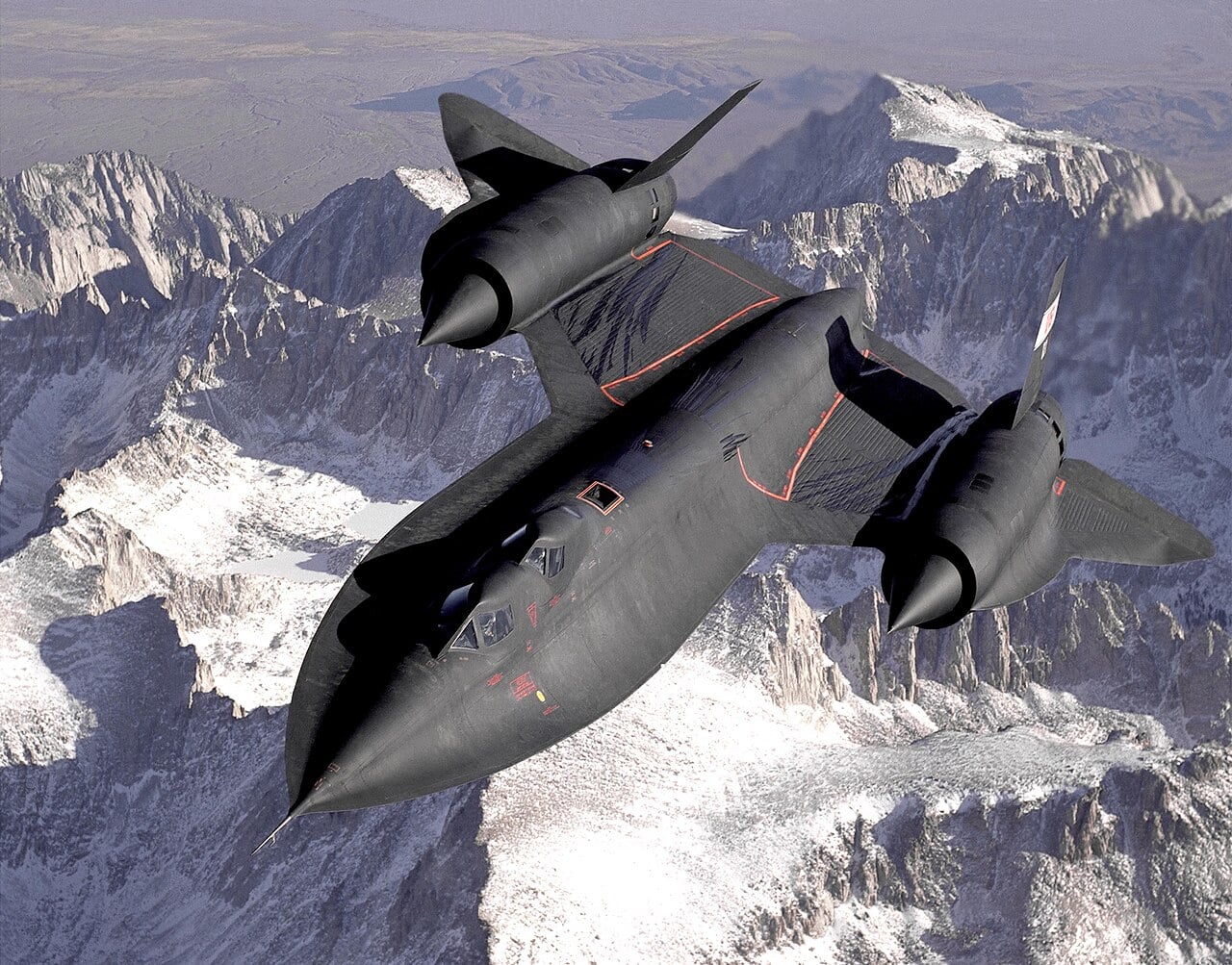

The SR-71's airframe was 93% titanium alloy because aluminium would have melted. Titanium was strong enough and heat-resistant enough — but it expanded. The flat panels of the wing and fuselage at room temperature would, at Mach 3 cruise, be measurably larger. Kelly Johnson's engineers calculated the expansion. They calculated what a tightly-fitted, cold-ground titanium fuselage would do at Mach 3 cruise. It would buckle. It would warp. In the worst case, it would tear itself apart.

The decision: build it loose

The Skunk Works solution was to fit the titanium panels deliberately loose. At ambient temperature on the ground, the panels did not touch each other tightly. Small gaps existed at every seam. The aircraft was, in engineering terms, intentionally unsealed. The six main fuel tanks were not lined with rubber bladders — no tank liner available in the 1960s could have survived the temperatures the airframe reached at cruise. Instead, the titanium skin was the fuel tank wall. Six enormous integral tanks, with the airframe as their hull.

This meant that as long as the airframe was cold, JP-7 inevitably seeped out through the seams. Once the aircraft accelerated past Mach 1, friction heating expanded the titanium and the panels pressed together. Around Mach 2, the seals were tight. By Mach 3 cruise, the SR-71 was effectively a single continuous pressure vessel. There was no fuel leak. There never had been, in flight. There never could be in flight.

Why JP-7 mattered

The other piece of the puzzle was the fuel itself. JP-7 was developed specifically for the A-12 and the SR-71. It was extraordinarily stable at high temperature, and it had to be: at Mach 3 the fuel was the aircraft’s main heat sink. Before it reached the engines, cold fuel pre-cooled hot compressor bleed air for the air conditioning and soaked up heat from the jet’s accessories. Ordinary jet fuels were not stable enough for that job. JP-7 has a flash point of 60°C (140°F) and a very low vapour pressure, which makes it extremely hard to light.

That last fact is what made the leaks operationally safe. Yes, the SR-71 dripped fuel onto the runway every time it sat on the ramp. No, that fuel did not catch fire when a worker tossed a cigarette into the puddle — or so decades of ground-crew lore insist. The fuel was so stable it required a triethylborane (TEB) chemical injection just to ignite the J58 engines on startup. You cannot start an SR-71 with a match. You start one with controlled spontaneous combustion.

Take-off, tank, accelerate

Operational SR-71 missions usually began with a partial fuel load, well under the 80,000-pound maximum. Contrary to legend, the reason was not the leaks — SR-71 pilots such as Col. Richard Graham have stressed that the jet never leaked anywhere near enough fuel to matter. The real reason was tank inerting: the Blackbird was limited to Mach 2.6 unless its six fuel tanks carried an inert nitrogen atmosphere above the fuel, and the only way to guarantee that was to fill the tanks completely in flight, venting the ambient air overboard.

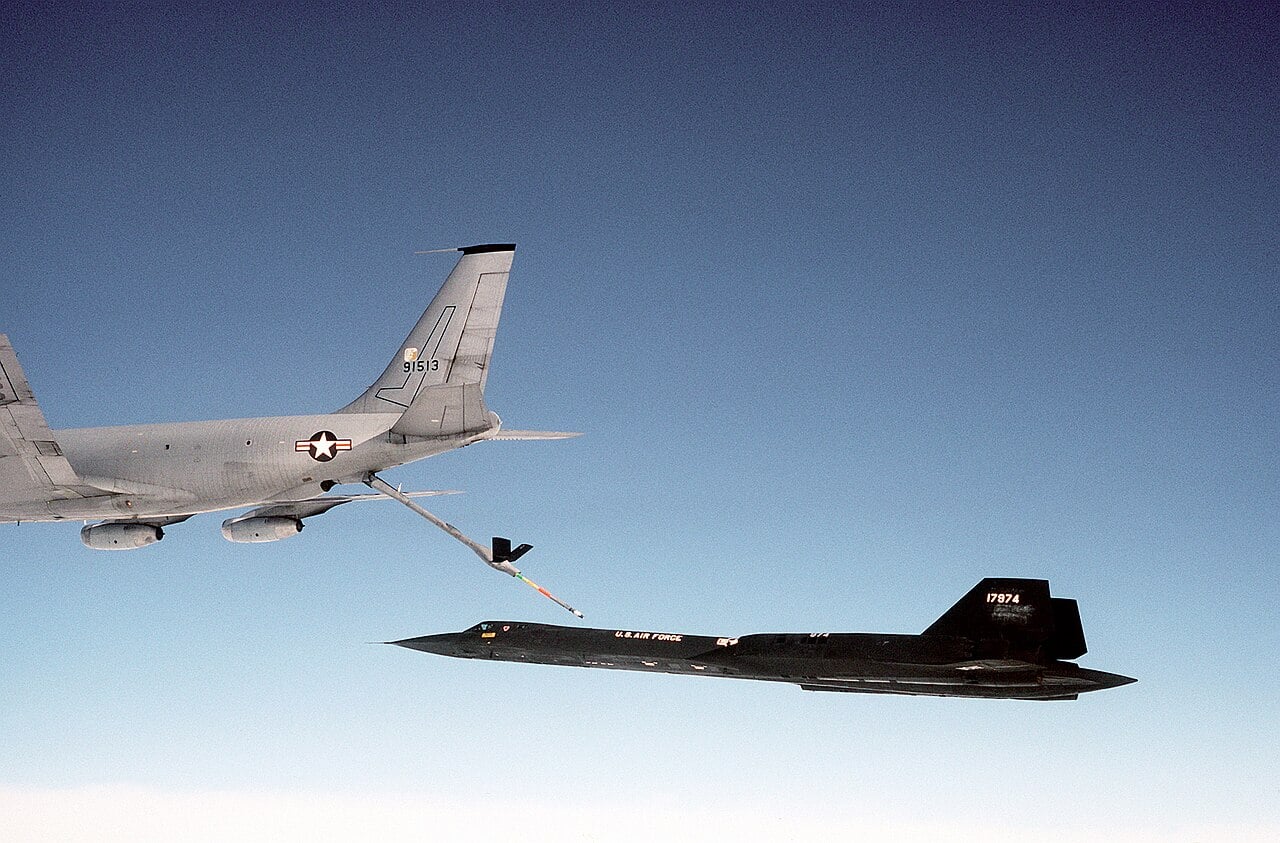

The Blackbird would take off, climb to about 26,000 feet, rendezvous with a KC-135Q tanker — a tanker variant specifically modified to carry JP-7 — and top off to full. Only then would it accelerate to Mach 3 and start the actual mission. Every operational SR-71 sortie included at least one tanker rendezvous, and many included three or four. The 56-strong fleet of KC-135Qs existed almost entirely to keep 32 SR-71s operational.

The Air Force retired the Blackbird in 1990, brought a few back in 1995 and retired them again in 1998, and NASA flew the last Blackbird flight of all in October 1999. The titanium panels never tightened up on the ground. They never will. Some of the aircraft on display in museums still seep traces of JP-7 onto their concrete pads, decades after Kelly Johnson signed off on the design choice that everyone thought was insane. It still works.

What the Flight Manual Says About Fuel

The leaks were the visible part. The rest of the fuel story sits in the SR-71A-1 flight manual and in the memories of the crews who flew the jet, and it explains why a Blackbird could never simply be fuelled up and flown like an ordinary aircraft.

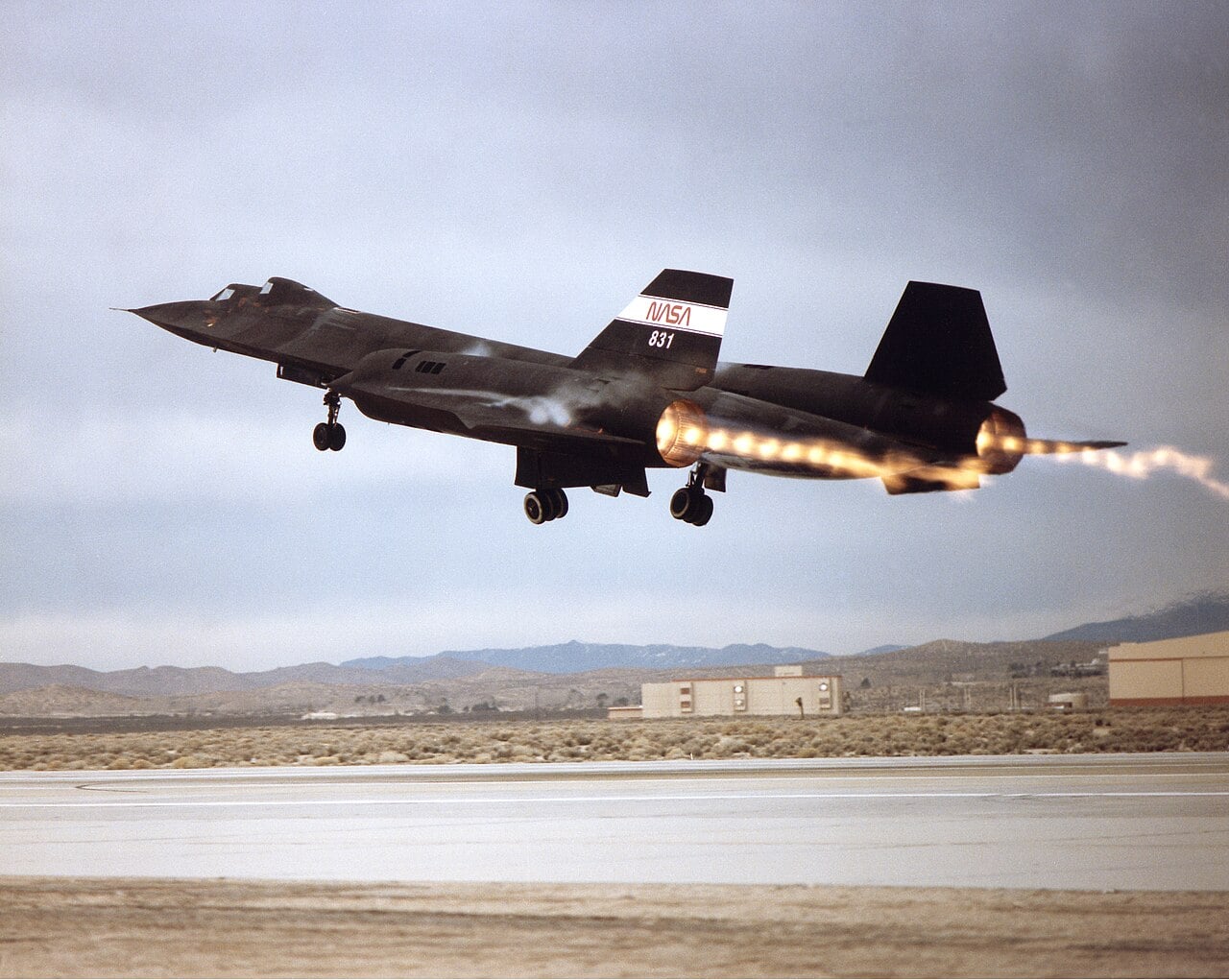

Start with ignition. Because JP-7 would not light easily, each J58 engine had its own tank of triethylborane, or TEB, holding 600 cc. That was good for at least 16 metered shots, and every engine start and every afterburner light used one. TEB is pyrophoric: it bursts into flame the moment it meets air, with a green flash that crews still talk about. On long missions with several refuellings, those shots had to be managed carefully.

Then there was the vapour. Hot fuel gives off vapour, and fuel vapour mixed with air in a heated tank can ignite without any spark at all. The answer was nitrogen. Three dewar flasks in the nose wheel well carried 260 litres of liquid nitrogen, according to SR-71 pilot Col. Richard Graham, and the gas pressurised each tank to 1.5 psi above ambient, filling the space above the fuel so that air could not get in.

The speed limits followed from that. The SR-71’s design speed was Mach 3.2. Without an inert nitrogen atmosphere in its tanks, it was restricted to Mach 2.6. And if a crew ever had to take on ordinary JP-4 or JP-5 in an emergency, the jet was limited to Mach 1.5.

None of it worked without infrastructure. At Beale Air Force Base in California, the Blackbird’s home, JP-7 was stored in five tanks holding between 400,000 and 657,000 gallons each and piped 4.5 miles to the flight line. In 2013 the base demolished three of them, because it no longer needed high-capacity fuel storage. In the air, the fuel came from KC-135Q tankers modified to carry JP-7.

That chain of fuel, igniter, nitrogen and tankers is why the reports from September 2026 that NASA has approached former SR-71 staff about tail 844, the last Blackbird to fly, raise such big questions. We follow that story in NASA 844: The Last SR-71A Has Vanished From Edwards.

Sources: Peter W. Merlin, NASA, “Design and Development of the Blackbird: Challenges and Lessons Learned” (AIAA, 2009); USAF SR-71A-1 flight manual; Col. Richard H. Graham, SR-71 Revealed: The Inside Story; Beale Air Force Base, “Beale removes fuel storage tanks that kept Blackbird soaring” (18 July 2013); Wikipedia; The Aviation Geek Club.
