Handley Page Halifax

Britain’s hard-working four-engine heavy bomber — overshadowed by the Lancaster, yet flown on more kinds of mission than any other RAF heavy of the Second World War.

1940Entered RAF service
6,176Built (all marks)
7Multitud
~454km/h top speed (Mk III)
Role Heavy bomberEra WWII, 1940–1945Engines 4× Rolls-Royce Merlin or Bristol HerculesOrigin Reino UnidoStatus Retired · static survivors onlyCan you fly a Halifax today?

At a Glance

Handley Page Halifax: key facts

First flight25 October 1939 (prototype)
Entered RAF serviceLate 1940 (No. 35 Squadron)
First bomber operation11–12 March 1941, Le Havre
OriginUnited Kingdom — Handley Page Ltd
Design specificationAir Ministry P.13/36
Multitud7
Engines4 × Rolls-Royce Merlin, later 4 × Bristol Hercules
Number built~6,176 (all marks)
Primary roleNight heavy bomber — also tug, patrol, transport
StatusRetired; static survivors only

La historia

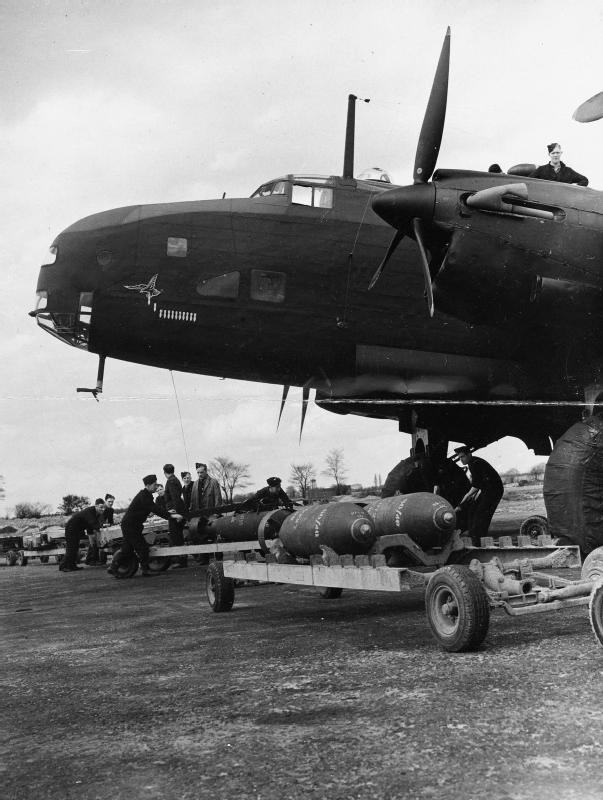

The Handley Page Halifax: Bomber Command’s other heavy

When people picture the RAF’s night bomber offensive, they usually picture the Avro Lancaster. But for much of the war the burden was shared with another four-engine heavy that flew more sorties in more roles than almost any British aircraft of its generation: the Handley Page Halifax. It bombed Germany, hunted U-boats over the Atlantic, towed the gliders that carried airborne troops into Normandy and Arnhem, dropped secret agents and supplies into occupied Europe, and finished its career hauling freight and passengers across a battered postwar continent.

The Halifax began, oddly, as a twin-engine design. Handley Page tendered it against Air Ministry Specification P.13/36, which called for a fast, twin-engine medium-heavy bomber built around the troubled Rolls-Royce Vulture engine. When the Vulture faltered, the design was recast around four of the reliable Rolls-Royce Merlins instead — the same engine that powered the Spitfire and Hurricane. The prototype first flew on 25 October 1939, weeks after war broke out. Deliveries began in late 1940, No. 35 Squadron reformed on the type that November, and the Halifax flew its first Bomber Command operation on the night of 11–12 March 1941 against Le Havre. It was, chronologically, the second of the RAF’s three four-engine heavies to reach the squadrons — after the Short Stirling and before the Lancaster.

Early service was not smooth. The first Merlin-powered marks — the Mk I, Mk II and Mk V — were underpowered for their weight and suffered a dangerous handling flaw: under certain conditions the rudders could over-balance and lock hard over, flicking the aircraft into an unrecoverable spin. A string of losses was eventually traced to this problem, and it was cured by redesigning the tail with larger rectangular fins. The bigger transformation came with the Mk III of 1943, which swapped the Merlins for four Bristol Hercules air-cooled radials. The Hercules Halifax was faster, climbed better, carried its load higher, and was far more popular with crews. From then on the Halifax was a genuine front-rank heavy rather than a compromised one.

What set the Halifax apart was its sheer versatility. Bomber Command was only part of the story. Coastal Command flew Halifaxes on long anti-submarine and maritime-reconnaissance patrols over the Bay of Biscay and the Atlantic. Specialist squadrons used it to tow Airspeed Horsa and General Aircraft Hamilcar gliders, and to drop paratroops — work that put the Halifax over Normandy on D-Day and over Arnhem during Operation Market Garden. Other squadrons flew clandestine Special Operations Executive missions, parachuting agents, weapons and radios to resistance movements across France, Norway, Poland and the Balkans. Few aircraft of the war wore so many different hats.

Around 6,176 Halifaxes were built by a national consortium of factories before production ended in 1946 — a total second only to the Lancaster among British heavies. Its reputation has always suffered by comparison with the Lancaster, which could lift a heavier load higher, and Bomber Command’s chief, Sir Arthur Harris, made no secret of preferring the Avro design. Yet the Halifax was more survivable in some respects: its crews had a better chance of escaping a stricken aircraft, and the type’s adaptability kept it useful long after the bombing campaign ended.

Peace did not retire it. Bomber Halifaxes were converted into the Handley Page Halton airliner and freighter, which flew for BOAC and independent operators and took part in the 1948–49 Berlin Airlift. Military transport and meteorological-reconnaissance versions soldiered on into the early 1950s. Today not one Halifax remains airworthy, and only a handful of restored airframes survive — but the aircraft that carried a third of Bomber Command’s effort deserves to be remembered as far more than the Lancaster’s understudy.

The Halifax also earned a quieter distinction that mattered enormously to the men who flew it. Analysis of the bomber offensive showed that a crew forced to abandon a Halifax stood a better chance of getting out alive than one baling out of a Lancaster, whose narrow fuselage and single main escape hatch could become a death-trap in a spinning, burning aircraft. For an airman weighing the odds of surviving a tour, that difference was not academic.

By the war’s end the Halifax had flown on every front the RAF fought on in Europe and the Mediterranean, from the industrial cities of the Reich to the fjords of Norway, the fields of France and the mountains of the Balkans. It had been a bomber, a tug, a spy-carrier, a submarine-hunter and a transport. If the Lancaster won the fame, the Halifax arguably won the versatility contest — and shared the danger in full measure.

More than a bomber: the Halifax was the RAF’s Swiss-army heavy — bombing Germany one night, towing gliders the next, and dropping agents into the dark in between.An overview of the type’s many wartime roles
01The Handley Page Halifax’s origins: from twin-engine gamble to four-engine heavy+

Specification P.13/36 was one of the most consequential the Air Ministry ever issued. It asked for a twin-engine bomber able to carry a heavy bomb load over long range at high speed, and both Handley Page and Avro answered it. Both intended to use the 24-cylinder Rolls-Royce Vulture, and both were forced to rethink when that engine proved unreliable. Avro re-engined its design with four Merlins to create the Lancaster; Handley Page did the same, arriving at the Halifax. The two great British night bombers were therefore twins separated at birth by the same failed powerplant.

The Halifax that emerged was a big, slab-sided aircraft with a deep fuselage and a capacious bomb bay supplemented by wing cells. Its first flight on 25 October 1939 was followed by a rapid move into production spread across Handley Page, English Electric, Fairey, Rootes and the London Aircraft Production Group — a genuinely national effort that would eventually turn out more than 6,000 machines.

02Why the early Handley Page Halifax struggled — and how the Hercules Mk III fixed it+

The first Halifaxes were tail-heavy performers. Loaded, the Merlin-engined Mk I and Mk II could not reach the altitudes the Lancaster managed, and their triangular fins hid a lethal trap: in a corkscrew or a tight turn the rudders could over-balance, slam to full deflection and hold there, throwing the bomber into a flat spin from which recovery was often impossible. The cure was a redesigned tail with larger, rectangular vertical surfaces, retrofitted and built into later airframes.

The decisive change was the switch to the Bristol Hercules radial for the Mk III of 1943. The air-cooled Hercules gave more power, better high-altitude performance and improved reliability, lifting the Halifax’s top speed to around 454 km/h (282 mph) and its ceiling markedly. Combined with extended, squared wingtips, the Hercules marks — III, VI and VII — turned the Halifax into an aircraft crews trusted.

Design & Engineering

How the Handley Page Halifax was built to fight

A conventional aircraft made exceptional by adaptability: a roomy airframe, two very different engine families, and a layout that let one design bomb, tow, patrol and drop.

01

Two engine families in one airframe

Designed around four Rolls-Royce Merlins after the Vulture failed, the Halifax was later re-engined with four Bristol Hercules air-cooled radials from the Mk III. The radial marks were faster, climbed higher and were far more reliable — a rare mid-war transplant that transformed a whole type, lifting its speed, ceiling and reliability at a stroke.

02

A deep fuselage and a divided bomb bay

The Halifax carried its load in a long fuselage bay supplemented by six cells in the wing centre-section, for a maximum bomb load of about 13,000 lb (5,900 kg). The same voluminous fuselage that swallowed bombs could equally carry paratroops, supply canisters or agents — the single feature that made the Halifax the RAF’s most adaptable heavy.

03

Defended by turrets, built to be escaped

Later marks carried nose, dorsal and tail turrets with up to nine .303 in Browning machine guns. Crucially, the Halifax’s layout gave its seven-man crew a better statistical chance of baling out of a doomed aircraft than the Lancaster — a grim but real measure of merit that endeared the type to the men who trusted their lives to it.

Bristol Hercules radial engine that powered the Handley Page Halifax Mk III onward
The Bristol Hercules sleeve-valve radial. Fitting four of these from the Mk III turned the Halifax into a front-rank heavy. Photo: San Diego Air & Space Museum Archives — public domain, via Wikimedia Commons.
03Beyond bombing: the Handley Page Halifax with Coastal Command, airborne forces and the SOE+

No British heavy bomber was pressed into more secondary roles. Coastal Command’s Halifaxes flew gruelling maritime patrols, hunting U-boats and shadowing shipping far out over the Bay of Biscay and the North Atlantic, some fitted with air-to-surface radar and extra fuel.

Airborne-forces squadrons used the Halifax as a glider tug, hauling the big Hamilcar and Horsa gliders whose loads — jeeps, guns and troops — landed at Normandy on D-Day and at Arnhem during Operation Market Garden. The same squadrons dropped paratroops and, working with the Special Operations Executive, parachuted agents, arms and radio sets to resistance networks in France, Norway, Poland, Italy and the Balkans. It is this breadth — bomber, tug, patrol aircraft and clandestine transport — that makes the Halifax one of the most widely used Allied aircraft of the war.

Full Specifications

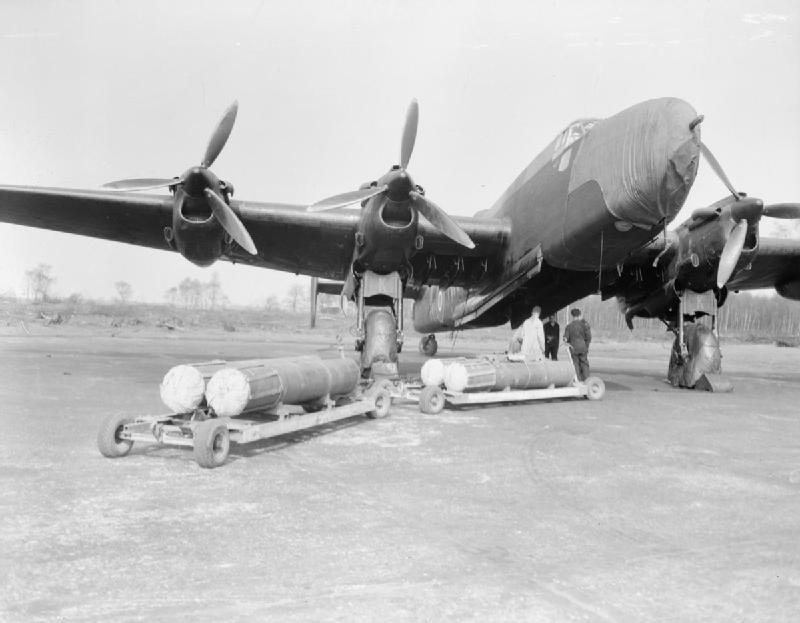

Handley Page Halifax B Mk III — specifications

Figures are for the Bristol Hercules-powered B Mk III, the most-produced variant. Values vary between marks and sources; approximate and disputed figures are flagged. Where marks differed significantly — particularly between the Merlin and Hercules versions — the Hercules-engined figures are used as the definitive standard.

General characteristics
Multitud 7 (pilot, flight engineer, navigator, bomb aimer, wireless operator, two gunners)
Longitud 21.82 m (71 ft 7 in)
Envergadura 31.75 m (104 ft 2 in) — extended-tip marks; early marks ~30.12 m
Altura 6.32 m (20 ft 9 in)
Área del ala ~118.5 m² (1,275 sq ft)
Peso vacío ~17,690 kg (39,000 lb)
Max takeoff weight ~24,675 kg (54,400 lb)
Planta motriz 4 × Bristol Hercules XVI 14-cylinder radial, ~1,615 hp each
First flight 25 October 1939 (prototype)
Performance, armament & cost
Velocidad máxima ~454 km/h (282 mph) at ~4,100 m (est., varies by source)
Velocidad de crucero ~346 km/h (215 mph)
Rango ~3,000 km (1,860 mi) with reduced bomb load
Techo de servicio ~7,315 m (24,000 ft)
Max bomb load ~5,900 kg (13,000 lb)
Defensive armament Up to 9 × 0.303 in Browning MG (nose, dorsal & tail turrets)
Number built ~6,176 (all marks)
Unit cost Not reliably recorded (wartime figures inconsistent)
Cost per flight hour Not applicable — no airworthy Halifax exists (museum survivors are static; any figure would be an estimate)
04The Handley Page Halifax’s variants: from Merlin Mk I to Hercules Mk VII and the Halton airliner+

Merlin marks (Mk I, II, V): the original in-line engined bombers, later fitted with the enlarged rectangular tail that cured the rudder-overbalance problem. The Mk V differed mainly in its undercarriage.

Hercules marks (Mk III, VI, VII): re-engined with Bristol Hercules radials from 1943, with extended wingtips and much improved performance — the definitive bomber versions.

Airborne & special-duties (A Mk III/V/VII): glider tugs and paratroop/SOE aircraft used at Normandy, Arnhem and on clandestine drops.

Coastal Command GR/Met: maritime reconnaissance and meteorological versions with radar and extra fuel.

Transport & civil (Mk VIII/IX, Halton): postwar freight and passenger conversions; the Handley Page Halton airliner flew for BOAC and in the Berlin Airlift.

05The Handley Page Halifax’s operating costs: what a wartime heavy actually cost+

Reliable unit-cost figures for the Halifax are hard to pin down. Wartime aircraft costs were quoted inconsistently — sometimes airframe-only, sometimes with engines and equipment, in shifting 1940s pounds — and no single authoritative figure is widely accepted, so we mark it not reliably recorded rather than repeat a dubious number.

A cost-per-flight-hour figure — a standard field on these pages — simply does not apply to the Halifax today. Unlike a warbird still flying air-show hours, not one Halifax is airworthy anywhere in the world. The survivors are static museum restorations, so any “per hour” number would be pure estimate. The real modern cost of a Halifax is measured instead in the years and volunteer hours poured into recovering and restoring the handful of airframes that remain.

Reference Data

Handley Page Halifax: dimensions, structure and systems

A fuller technical reference for the Halifax, drawn largely from the Hercules-engined B Mk III. Figures vary by mark and source and are approximate; readers comparing marks should treat them as representative rather than exact.

Detailed technical data
Área del ala ~118.5 m² (1,275 sq ft)
Aspect / planform Mid-set wing; extended square tips on Hercules marks
Fuselage Deep slab-sided structure with long internal bomb bay
Tail Twin fins — triangular on early marks, enlarged rectangular after the rudder-stall fix
Undercarriage Retractable tailwheel type; Dowty gear on the Mk V
Fuel capacity ~1,880 imp gal internal (varies by mark)
Powerplant (Mk III) 4 × Bristol Hercules XVI 14-cyl sleeve-valve radial, ~1,615 hp each
Powerplant (early) 4 × Rolls-Royce Merlin XX, ~1,390 hp each
Propellers Three-blade constant-speed
Max bomb load ~5,900 kg (13,000 lb)
Typical range with load ~1,660 km (1,030 mi) with a heavy load; ~3,000 km (1,860 mi) reduced
Rate of climb / ceiling Markedly improved on Hercules marks; ceiling ~7,315 m (24,000 ft)
Defensive guns Up to 9 × 0.303 in Browning in nose, dorsal and tail turrets

Powerplant & Heritage

Engines, and the Halifax’s place in history

25The Handley Page Halifax’s engines: Merlin versus Hercules+

The Halifax’s two engine families define its history. The Rolls-Royce Merlin — the liquid-cooled V12 that powered the Spitfire, Hurricane, Mosquito and Lancaster — drove the early marks. It was a superb engine, but four of them could not lift the heavy Halifax airframe to the altitudes the lighter, cleaner Lancaster reached, and the Merlin Halifaxes suffered for it.

The answer was the Bristol Hercules, a big 14-cylinder air-cooled sleeve-valve radial. Fitted from the Mk III, it gave more power, better high-altitude performance and greater reliability, and it freed up Merlin production for other types. The change was so effective that it is fair to say the Halifax only became a truly first-class heavy bomber once it stopped sharing the Lancaster’s engine and adopted its own.

26The Handley Page Halifax in the Handley Page story+

Handley Page was one of the oldest names in British aviation, a pioneer of large aircraft since before the First World War, when its O/400 was among the first true heavy bombers. The Halifax was the firm’s masterpiece of the Second World War and, by production numbers, the most important aircraft it ever built.

The company went on to the jet-powered Victor, one of Britain’s three V-bombers, before its independent existence ended in 1970. But the Halifax remains the aircraft most associated with Handley Page’s wartime contribution — a design that carried the firm’s tradition of big, capable aircraft through the hardest years of the century.

Variants

Every major Handley Page Halifax mark

From the troubled Merlin-engined first marks to the radial-engined bombers and post-war transports, the Halifax was developed through a dozen major versions across bomber, airborne, maritime, meteorological and transport duties.

Handley Page Halifax variants at a glance
Mark Engines Primary role Notas
B Mk I 4 × Rolls-Royce Merlin X Bomber The first production Halifaxes; triangular fins, later found prone to rudder overbalance.
B Mk II 4 × Merlin XX / 22 Bomber Improved bomber; Series I(Special) and Series IA introduced the enlarged rectangular tail and a streamlined nose.
B Mk V 4 × Merlin Bomber / special duties As Mk II but with Dowty landing gear; many passed to Coastal Command and special-duties work.
B Mk III 4 × Bristol Hercules XVI Bomber The definitive version: radial engines, extended square wingtips, much improved performance.
B Mk VI 4 × Hercules 100 Bomber Higher-altitude engines and tropicalised systems; late-war production.
B Mk VII 4 × Hercules XVI Bomber / airborne Late bomber and airborne-forces airframe with Hercules XVI engines.
A Mk III / V / VII Merlin or Hercules Airborne forces Glider tugs and paratroop aircraft used at Normandy, Arnhem and on SOE drops.
GR Mk II / V Merlin Coastal Command Maritime reconnaissance and anti-submarine versions with radar and extra fuel.
Met Mk III / VI Hercules Meteorological Long-range weather-reconnaissance aircraft.
C Mk VIII Hercules Transport Post-war freighter with a detachable ventral cargo pannier.
A Mk IX Hercules Paratroop / transport Final airborne-forces and transport variant.
Halton Hercules Civil airliner / freighter Civil conversion for BOAC and independent operators; flew in the Berlin Airlift.

Notable Operations

The Handley Page Halifax in action

11–12 Mar 1941

First operation

The Halifax’s combat debut, a raid on the docks at Le Havre by No. 35 Squadron.

Apr 1942

Tirpitz raids

Halifaxes attacked the German battleship in a Norwegian fjord; W1048, now at the RAF Museum, was lost on one such raid.

17–18 Aug 1943

Peenemünde

Halifaxes joined the precision night attack on the German rocket-research establishment on the Baltic coast.

1943–44

Battle of Berlin

The type took part in the long, costly winter campaign against the German capital.

30–31 Mar 1944

Nuremberg

On Bomber Command’s most expensive night of the war, Halifax squadrons were among the heavy losses.

6 Jun 1944

D-Day

Halifaxes towed gliders and dropped paratroops onto the flanks of the Normandy beachhead.

Sep 1944

Arnhem

Airborne squadrons hauled gliders and flew resupply during Operation Market Garden.

Aug–Sep 1944

Warsaw supply drops

Special-duties Halifaxes flew perilous long-range missions to drop supplies to the Warsaw Rising.

In Context

The Handley Page Halifax among the Allied heavies

How the Halifax compared with its British stablemates and the American heavy bombers. Figures are typical/approximate and vary by mark, load and source.

Allied four-engine heavy bombers compared
Aeronave Engines Max bomb load Ceiling Multitud
Handley Page Halifax B III 4 × Bristol Hercules ~13,000 lb ~24,000 ft 7

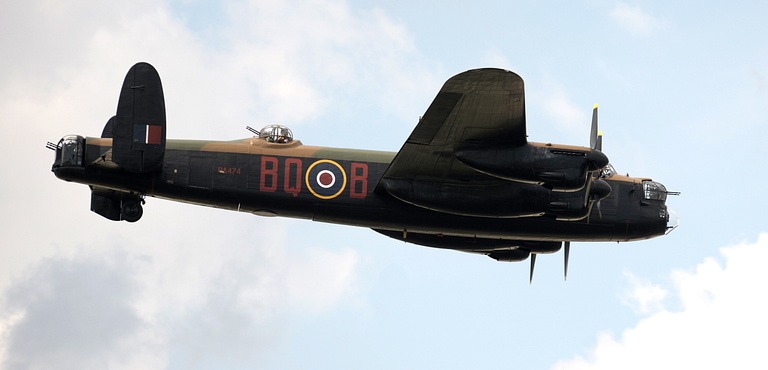

Avro Lancaster B I 4 × Rolls-Royce Merlin ~14,000 lb (up to 22,000 lb special) ~21,400 ft 7
Short Stirling 4 × Bristol Hercules ~14,000 lb ~16,500 ft 7–8
Boeing B-17 Flying Fortress 4 × Wright Cyclone ~4,500–8,000 lb typical ~35,000 ft 10

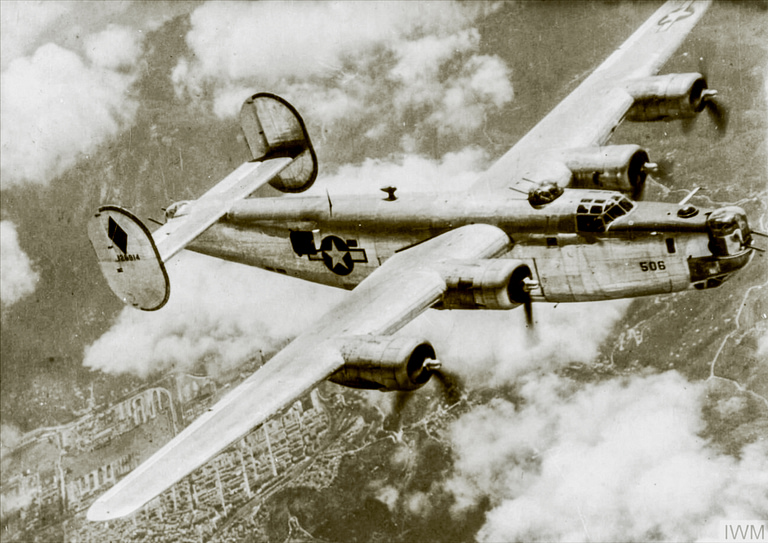

Consolidated B-24 Liberator 4 × Pratt & Whitney ~8,000 lb typical ~28,000 ft 10

The British heavies carried far larger bomb loads at lower altitude by night; the American heavies flew higher and were more heavily gunned for daylight formation defence. The Halifax sat between the Stirling and the Lancaster in capability, and outlasted the Stirling in front-line bomber service. Only the Lancaster carried more of Bomber Command’s weight, and no other Allied heavy matched the Halifax for the sheer range of roles it took on.

Timeline

The Handley Page Halifax: a wartime service record

1936
The Air Ministry issues Specification P.13/36 for a fast twin-engine heavy bomber — the requirement that spawned both the Halifax and the Lancaster.
25 Oct 1939
The Halifax prototype makes its first flight, weeks after the outbreak of war.
Nov 1940
No. 35 Squadron reforms on the type; the Halifax enters RAF service.
11–12 Mar 1941
The Halifax flies its first Bomber Command operation, against Le Havre.
1941–42
A redesigned rectangular tail cures the early Merlin marks’ dangerous rudder-overbalance problem.
1942
Coastal Command anti-submarine patrols and airborne/special-duties roles begin.
1943
The Bristol Hercules-powered Mk III enters service, transforming the type’s performance.
6 Jun 1944
Halifaxes tow gliders and drop paratroops in support of the D-Day landings in Normandy.
Sep 1944
Airborne squadrons support Operation Market Garden at Arnhem.
1945–46
War’s end; production winds down with about 6,176 built across a national consortium.
1948–49
Halton airliner/freighter conversions take part in the Berlin Airlift.
Early 1950s
The last RAF Halifaxes are retired from transport and meteorological duties.

Stories & Eyewitnesses

The Handley Page Halifax in twelve stories

The legend

“Friday the 13th” — the Halifax that mocked bad luck

Defying every superstition, the 158 Squadron Halifax LV907 was named “Friday the 13th” and marked with an inverted horseshoe and a scythe. It completed a remarkable tour of operations and survived the war.

Leer más

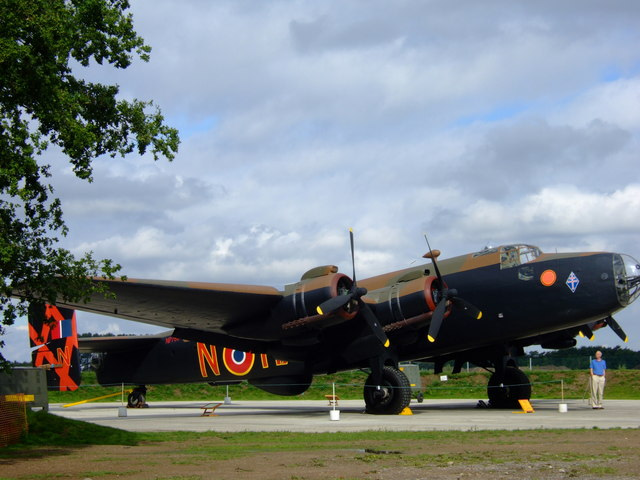

The Yorkshire Air Museum at Elvington displays a full-size Halifax restored in the exact markings of “Friday the 13th,” built from original sections including the fuselage of a genuine wartime airframe — the only complete Halifax in that configuration in Britain.

The survivor

W1048 “S for Sugar,” raised from a frozen lake

A Halifax Mk II of 35 Squadron, W1048 was shot down over Norway in April 1942 during a raid on the battleship Tirpitz and sank through the ice of Lake Hoklingen.

Leer más

Recovered largely intact in 1973, it is displayed unrestored — battle-damaged and corroded — at the Royal Air Force Museum, a deliberately preserved relic rather than a rebuild.

The recovery

NA337, thirty years underwater in Norway

Halifax Mk VII NA337 was lost in a supply drop and lay at the bottom of Lake Mjøsa, Norway, for half a century.

Leer más

Raised in 1995 and painstakingly restored, it is now the centrepiece Halifax of the National Air Force Museum of Canada at Trenton, Ontario.

The flaw

The tail that could kill its own crew

Early Merlin-engined Halifaxes hid a deadly trap: the rudders could over-balance and lock hard over, flicking the bomber into an unrecoverable spin.

Leer más

Test pilots and engineers traced the losses to the fin shape; a redesigned rectangular tail, retrofitted and built into later marks, finally cured it.

The airmen

Leonard Cheshire and 35 Squadron

Before his Victoria Cross and the Dambusters-era Lancaster raids, Leonard Cheshire flew Halifaxes with 35 Squadron, winning early decorations for bringing back badly damaged aircraft.

Leer más

35 Squadron was among the first Halifax units and later joined the Pathfinder Force, marking targets for the main bomber stream.

Airborne

Towing the gliders to Arnhem

Halifax squadrons hauled the heavy Hamilcar and Horsa gliders that delivered jeeps, guns and troops to the airborne battlefields of 1944.

Leer más

Over Normandy on D-Day and over Arnhem during Market Garden, the Halifax was the muscle behind Britain’s airborne assault.

Secret war

Dropping agents into the dark

Special-duties Halifaxes flew low and slow over occupied Europe, parachuting SOE agents, weapons and radios to resistance networks.

Leer más

Missions ran to France, Norway, Poland, Italy and the Balkans — among the most dangerous and least publicised flying of the war.

Maritime

Hunting U-boats over the Atlantic

Coastal Command Halifaxes flew endless patrols over the Bay of Biscay and the North Atlantic, radar-equipped to find and attack surfaced submarines.

Leer más

These long over-water sorties, far from land, were a world away from the night bombing the type is remembered for.

Commonwealth

The Canadian and Australian squadrons

Much of the Halifax force was flown by Commonwealth crews — notably the RCAF’s No. 6 Group, plus Australian and other Allied squadrons within Bomber Command.

Leer más

For thousands of Canadian and Australian airmen, the Halifax, not the Lancaster, was the aircraft they went to war in.

Survivability

A better chance of getting out

Crews and post-war analysis credited the Halifax with a higher chance of successful escape from a stricken aircraft than the Lancaster.

Leer más

Its layout and escape hatches meant that, statistically, a Halifax crewman was more likely to bale out and survive — a grim but genuine advantage.

Peacetime

From bomber to Berlin Airlift

With the war over, hundreds of Halifaxes were converted into Handley Page Halton freighters and airliners.

Leer más

Haltons flew for BOAC and independent operators and hauled vital cargo into the city during the 1948–49 Berlin Airlift.

Industry

Built by a nation

More than 6,000 Halifaxes were produced by a consortium spanning Handley Page, English Electric, Fairey, Rootes and the London Aircraft Production Group.

Leer más

It was one of the great feats of British wartime mass production, drawing in factories and workers with no previous aircraft experience.

Namesake

Named for a Yorkshire town

The Halifax followed Handley Page’s tradition of naming bombers after towns — in this case Halifax, in the West Riding of Yorkshire, close to the county from which many of its squadrons flew.

Leer más

Handley Page had earlier named the Hampden and Hereford after English towns; the Halifax continued the pattern, and the West Yorkshire connection is marked at the Yorkshire Air Museum today.

Record

From twin to four engines

Uniquely among the RAF’s heavies, the Halifax was conceived as a twin-engine bomber and redesigned around four engines before it ever flew — the same story as its rival the Lancaster.

Leer más

The failure of the Rolls-Royce Vulture forced both Handley Page and Avro to rework their P.13/36 designs, and the two great British night bombers emerged from that shared setback.

Endurance

Ten hours in the freezing dark

A deep-penetration raid could keep a Halifax crew airborne for eight, nine or ten hours, much of it at high altitude in temperatures far below freezing, on oxygen, under blackout.

Leer más

Frostbite, oxygen failure and sheer exhaustion were as much a threat as the enemy; the physical demands of a long sortie are easily forgotten beside the danger of flak and fighters.

Numbers

One of the most-built British aircraft

With about 6,176 completed, the Halifax was one of the most-produced British aircraft of the war, second only to the Lancaster and the Spitfire families among combat types.

Leer más

That total, spread across a national consortium of factories, represents an extraordinary concentration of industrial effort in a few short years.

The Halifax in Depth

The Handley Page Halifax, mission by mission

Ten deeper dives into the aircraft’s campaigns, crews, controversies and survivors. Together they tell the fuller story of a bomber that was always more than the sum of its bomb load — expand any topic to read more.

06The Handley Page Halifax over the Ruhr: the heart of the strategic bombing campaign+

For much of 1942 and 1943 the Halifax was one of the two aircraft carrying Bomber Command’s main effort against Germany, and nowhere was that effort more concentrated than the Ruhr — the dense industrial valley the crews grimly nicknamed “Happy Valley” for its ferocious flak and searchlight defences. Halifax squadrons flew night after night against Essen, Duisburg, Dortmund and the other cities of the German armaments heartland, pressing home attacks through some of the most heavily defended airspace on earth.

The Battle of the Ruhr (March–July 1943) saw the Halifax operate alongside the Lancaster and the fast Mosquito Pathfinders, part of the “bomber stream” tactic that funnelled hundreds of aircraft over a target in a matter of minutes to swamp the defences. Losses were heavy, and it was in this period that the shortcomings of the early Merlin marks — their lower ceiling and heavier loss rate compared with the Lancaster — became impossible to ignore, accelerating the switch to the Hercules-engined Mk III.

Yet the Halifax endured, and by the later campaigns of 1944–45 the improved marks were bombing accurately and surviving at rates comparable to their Avro rival. The type’s contribution to the strategic air offensive — measured in tens of thousands of sorties and hundreds of thousands of tons of bombs — was second only to the Lancaster among British aircraft.

07Investigating the Handley Page Halifax rudder stall: the fault that puzzled the RAF+

The early Halifax’s most notorious problem was subtle, intermittent and deadly. Aircraft were being lost in circumstances that suggested loss of control, often during evasive manoeuvres or in cloud, and for a time the cause was a mystery. The answer lay in the shape of the aircraft’s twin triangular fins and the aerodynamic loads on its rudders.

Under a hard bootful of rudder — exactly what a pilot might apply while corkscrewing away from a night fighter — the rudder could over-balance: the airflow would seize it and slam it to full deflection, holding it there against the pilot’s efforts. The aircraft would flick into a spin from which, at night and heavily laden, recovery was frequently impossible. Test pilots reproduced the behaviour in controlled trials, and the cure was a redesign of the vertical tail surfaces to larger rectangular fins that restored positive control feel.

The episode is a reminder that the aircraft of the Second World War were developed under fire, their flaws discovered and corrected in the middle of operations rather than in leisurely peacetime testing. The men who first flew the Halifax operationally were, in a real sense, still test-flying it.

08The Handley Page Halifax on D-Day and at Arnhem: the airborne workhorse+

When the Allies returned to occupied Europe, the Halifax went with them — not as a bomber but as the muscle of the airborne forces. Specially equipped squadrons towed the large gliders that carried the heavy equipment paratroops could not: the General Aircraft Hamilcar, big enough to disgorge a light tank, needed a four-engine tug, and the Halifax was the RAF’s answer.

On the night before D-Day, 6 June 1944, Halifaxes were over Normandy towing gliders and dropping paratroops onto the flanks of the invasion beaches. Three months later, during Operation Market Garden, they were back over the Netherlands hauling gliders to the airborne landings around Arnhem and Nijmegen. The same aircraft also flew resupply missions to the beleaguered troops, braving intense ground fire to drop containers of ammunition and stores.

This airborne role, often overlooked, kept the Halifax central to Allied operations even as the bomber campaign continued. Few aircraft could claim to have dropped bombs on Germany, agents into France and paratroops into the Netherlands, all in the same year.

09The Handley Page Halifax and the SOE: the secret war by moonlight+

Among the most secret uses of the Halifax was its service with the special-duties squadrons that worked for the Special Operations Executive and the resistance movements of occupied Europe. Flying alone, low and slow on moonlit nights, these aircraft parachuted agents, weapons, radios and money to underground networks across the continent.

The missions demanded extraordinary navigation — finding a single field marked by a handful of torches, deep inside enemy territory, with no radio aids — and extraordinary nerve, since a special-duties aircraft caught by a night fighter had little chance. Halifaxes ranged as far as Poland, where they flew long-range supply drops to the resistance, and across France, Norway, Italy and the Balkans.

This clandestine flying rarely features in the popular image of the heavy bomber, but it was some of the war’s most demanding and dangerous work, and the Halifax’s long range and capacious fuselage made it well suited to the task.

10The Handley Page Halifax with Coastal Command: the Bay of Biscay U-boat war+

Not every Halifax served over land. Coastal Command flew the type on long maritime patrols, hunting the U-boats that threatened the Atlantic convoys on which Britain’s survival depended. The Bay of Biscay, through which German submarines transited to and from their French bases, became a killing ground where radar-equipped Halifaxes searched for surfaced boats by day and night.

These sorties were a world away from the concentrated violence of a bombing raid: hours of monotonous flying over grey water, ended in an instant by the sighting of a wake or a conning tower and a diving attack with depth charges. The Halifax’s endurance and load-carrying ability made it a capable ocean patroller, and its maritime and meteorological-reconnaissance variants extended the type’s usefulness well beyond the bombing campaign.

11The Commonwealth crews of the Handley Page Halifax: Canada, Australia and the Free French+

The Halifax was, to an unusual degree, a Commonwealth aircraft. The Royal Canadian Air Force’s No. 6 Group operated large numbers of Halifaxes, and for many thousands of Canadian airmen it — not the Lancaster — was the aircraft in which they went to war. Australian squadrons such as Nos. 462 and 466 flew the type within Bomber Command, as did Free French and other Allied units.

This international character reflected the vast training and manpower effort behind the bomber offensive, drawing young men from across the Commonwealth and occupied Europe into the night skies over Germany. It also explains why Halifax survivors and memorials are scattered so widely — from Yorkshire to Ontario — and why the aircraft is remembered with particular affection in Canada.

12Handley Page Halifax versus Avro Lancaster: the debate that never ends+

No discussion of the Halifax escapes the shadow of the Lancaster, and the comparison has been argued ever since. On paper the Lancaster won: it lifted a heavier bomb load higher and further, and Sir Arthur Harris pressed for Halifax production to be switched to Lancasters wherever possible. The Halifax’s early marks genuinely were inferior, and that reputation stuck even after the Hercules versions closed much of the gap.

But the case for the Halifax rests on more than payload. Its adaptability let one airframe serve as bomber, glider tug, maritime patroller and clandestine transport. Its crews are widely credited with a materially better chance of escaping a stricken aircraft — a difference measured in the survival of men. And the improved marks were, by 1944–45, thoroughly effective front-line bombers.

The honest verdict is that both aircraft were essential and that the RAF was fortunate to have both. The Lancaster was the better bomber; the Halifax was the more versatile aeroplane, and it shouldered a share of the campaign no account of Bomber Command can leave out.

13Recovering the Handley Page Halifax survivors: from lake beds to museums+

That any complete Halifax survives at all is thanks to remarkable acts of recovery. W1048, a Mk II of 35 Squadron, was shot down during a raid on the battleship Tirpitz in April 1942 and came to rest on the bottom of a frozen Norwegian lake. Recovered in 1973, it was deliberately left unrestored — battered, corroded and unmistakably a survivor of combat — and is displayed that way at the Royal Air Force Museum.

NA337, a Mk VII, lay in the depths of Lake Mjøsa in Norway for fifty years before being raised in 1995. Years of painstaking restoration followed, and it is now the centrepiece of the National Air Force Museum of Canada at Trenton, Ontario. In England, the Yorkshire Air Museum’s complete Halifax, wearing the famous markings of “Friday the 13th”, was assembled from original components including a genuine wartime fuselage.

Between them these three aircraft — one preserved as wreckage, one rebuilt to gleaming completeness, one reconstructed from surviving parts — represent the full spectrum of aircraft preservation, and ensure that a type once numbered in thousands is not forgotten.

14From bomber to Handley Page Halton: the Halifax after the war and the Berlin Airlift+

Victory did not mean the scrapyard for every Halifax. With the bombing over, the type found a second career as a transport. Bomber airframes were converted into the Handley Page Halton, a freighter and airliner version with a ventral pannier for cargo and, in some cases, passenger seating.

Haltons and surplus Halifax transports flew for BOAC and a host of independent post-war operators, hauling freight across a Europe rebuilding from the war. When the Soviet Union blockaded Berlin in 1948, Halifax-derived transports joined the great airlift that kept the city supplied, flying coal, food and fuel into Gatow and Tempelhof.

Military transport and meteorological-reconnaissance Halifaxes lingered in RAF and other service into the early 1950s before the type finally bowed out. It was a quiet end for an aircraft that had done so much, but a fitting one for the most versatile of Britain’s wartime heavies.

15Flying the Handley Page Halifax: crew stations and the seven-man team+

A Halifax went to war with a crew of seven, each with a distinct and vital job. In the nose, the bomb aimer lay prone over his sight during the run-in and manned the front turret at other times. Above and behind him sat the two pilots’ position — in RAF heavies a single pilot, with the flight engineer alongside managing the four engines, fuel and systems from a panel of dials and cocks.

Behind them the navigator worked at his chart table in a curtained-off glow, responsible for finding the target and the way home, while the wireless operator handled communications and, later, electronic countermeasures. Far aft, isolated in the cold and dark, the tail gunner kept his lonely watch, joined by the mid-upper gunner in his dorsal turret — the crew’s eyes and defence against the night fighters that were the bomber’s deadliest enemy.

It was cramped, freezing and exhausting work, often lasting eight or nine hours, flown at night and under fire. The teamwork it demanded forged bonds between crew members that lasted a lifetime — for those who survived a tour that, for much of the war, the odds were against completing.

More on the Halifax

The Handley Page Halifax: tactics, technology and cost

16The Handley Page Halifax’s defensive armament: turrets, the corkscrew and the night-fighter threat+

The Halifax defended itself with power-operated turrets mounting rifle-calibre 0.303 in Browning machine guns — typically a nose turret, a mid-upper dorsal turret and a four-gun tail turret. These guns were light against the cannon-armed German night fighters, and their real value was less in shooting down attackers than in spotting them and warning the pilot in time.

The bomber’s standard defence was the “corkscrew”: on the gunner’s call, the pilot would fling the heavy aircraft into a violent diving, weaving descent to spoil the fighter’s aim and break contact. It was exhausting, disorientating work in the dark, and it was precisely this manoeuvre that had exposed the early Halifax’s lethal rudder-overbalance fault. Later in the war the Germans fielded upward-firing Schräge Musik cannon that let a fighter attack unseen from below, a threat the bombers only slowly came to understand.

17Finding the target: the Handley Page Halifax, radar and the Pathfinder Force+

Hitting a blacked-out city at night was one of the hardest problems of the air war. Early raids often missed their targets by miles. The answer was a combination of electronic aids — the Gee and later H2S ground-mapping radar — and the creation of the Pathfinder Force, elite squadrons that flew ahead of the main stream to find and mark the aiming point with coloured flares.

Halifax squadrons served both as main-force bombers following the markers and, in the case of units like No. 35 Squadron, as Pathfinders laying them. The precision of a raid depended on this marking, and the technology and tactics of target-finding evolved continuously through the war, with the Halifax as one of the principal aircraft carrying it into practice.

18Building the Handley Page Halifax: a bomber assembled by a nation+

The scale of Halifax production is easy to overlook. More than 6,000 were built by a consortium that reached far beyond the aircraft industry: Handley Page itself, English Electric, Fairey, Rootes Securities and the London Aircraft Production Group, the last a combine led by the London Passenger Transport Board — the organisation that ran the city’s buses and Underground.

Thousands of workers with no previous aircraft experience, a great many of them women, were trained to build precision components and complete airframes. Bomber production became a genuinely national enterprise, dispersed against bombing and drawing in the whole industrial base. That effort — as much as any raid — was part of the Halifax’s story.

19The Handley Page Halifax in the Mediterranean and Middle East+

The Halifax did not fight only from British bases. Squadrons operated from North Africa and the Middle East, striking Axis targets across the Mediterranean theatre and supporting the campaigns in the desert and Italy. No. 462 Squadron, an Australian unit, was among those that flew Halifaxes from Egyptian and North African airfields.

These detachments extended the type’s reach across southern Europe and the Mediterranean, bombing ports, supporting armies and flying supply missions to partisans in the Balkans. It is a further reminder of how widely the Halifax ranged — a British heavy bomber equally at home over the Ruhr, the Alps or the Sahara.

20The odds of a tour: losses and survival in the Handley Page Halifax+

For much of the war, completing a tour of operations — usually thirty sorties — was a statistical long shot. Bomber Command lost around 8,300 aircraft on operations and more than 55,000 aircrew killed across the whole campaign, and the Halifax squadrons paid a full share of that price; roughly 1,833 Halifaxes were lost on operations.

Behind each of those figures were seven-man crews, many of them very young, flying repeatedly into the most dangerous airspace of the war. The Halifax’s better escape odds meant a few more of them came home from disaster than might otherwise have done. It is why the aircraft, for all the Lancaster’s greater fame, is remembered with deep respect by the families and veterans of Bomber Command and its Commonwealth allies.

Equipment & Operations

The Handley Page Halifax: load, life and the electronic war

21The Handley Page Halifax’s bomb bay: what it carried to Germany+

The Halifax carried its offensive load in a long fuselage bomb bay supplemented by six cells built into the wing centre-section, giving a maximum load of about 13,000 lb (5,900 kg). What went into that space varied enormously with the mission. A typical area-bombing load mixed a large high-capacity blast bomb — the 4,000 lb “cookie” that could level buildings — with clusters of small incendiaries designed to start the fires that did the greatest damage.

Other sorties called for general-purpose bombs, sea mines laid in enemy waters, or, on special-duties flights, supply canisters and parachute containers in place of bombs. The bomb aimer, lying prone in the nose over his sight, released the load on the run-in, calling the corrections that held the shuddering aircraft straight and level through the most dangerous seconds of the whole flight.

22Life on a Handley Page Halifax squadron: the airfield and the ground crew+

Every sortie flown by a seven-man crew rested on the work of far more people on the ground. Fitters, riggers, armourers, electricians and instrument specialists worked in all weathers to keep the big bombers serviceable, bombing-up, refuelling and repairing battle damage between operations. The bond between a crew and their ground team — who watched them take off and counted them back — was one of the war’s quiet institutions.

The airfields themselves, scattered across eastern England and Yorkshire, were small towns of Nissen huts, dispersals and runways carved out of farmland. Life there swung between long stretches of waiting and the concentrated tension of an operational night: the briefing, the ritual of dressing and drawing kit, the take-off at dusk and the anxious wait for the ragged return at dawn, when the gaps told their own story.

23The Handley Page Halifax and the electronic war: Window, jamming and 100 Group+

The bomber offensive was also a war of electronics, and the Halifax was in the thick of it. From 1943 the bombers scattered “Window” — strips of metallised paper that swamped German radar with false echoes — and carried an expanding suite of countermeasures to confuse the enemy’s night-fighter control.

Specialist Halifaxes served with No. 100 (Bomber Support) Group, flying radio-countermeasures and jamming missions to blind and deceive the German defences, and homing on the enemy’s own radar transmissions. This invisible battle, fought with valves and aerials rather than guns, did as much to protect the bomber stream as any turret, and the roomy Halifax was well suited to carrying the bulky equipment it required.

24After the last raid: the Handley Page Halifax’s final years+

When the bombing stopped, the vast Halifax fleet had no obvious peacetime purpose, and most were quickly scrapped — melted down in their thousands as the wartime air force demobilised. A fortunate minority found second lives as Halton transports and freighters, and small numbers soldiered on in RAF service in transport and meteorological roles into the early 1950s.

Foreign operators, including France, Pakistan and Egypt, flew ex-RAF Halifaxes for a few more years. But the type’s day was done, overtaken by more modern designs, and one of the most numerous aircraft of the war all but vanished. That so complete a disappearance was followed, decades later, by the painstaking recovery of a handful of survivors is what makes those few remaining Halifaxes so precious.

Photo Gallery

The Handley Page Halifax in photographs

Handley Page Halifax of RAF Bomber Command
Halifax of RAF Bomber Command. Photo: RAF official photographer (Fg Off Trievnor) — IWM, public domain.
Handley Page Halifax B Mk III
Halifax B Mk III. Photo: RAF official photographer — IWM, public domain.

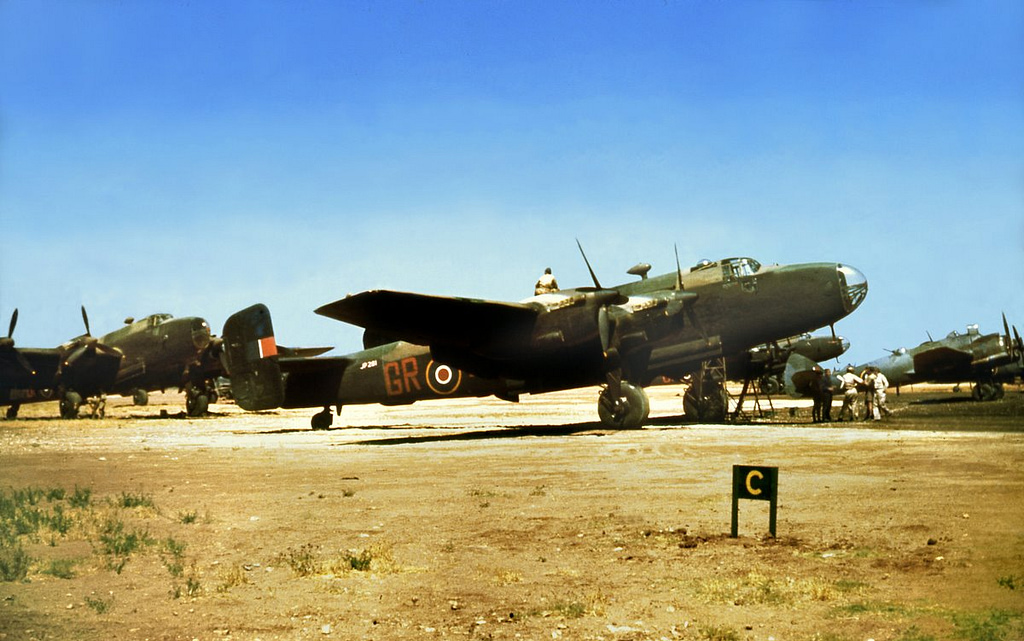

Halifax bombers on dispersal
Halifaxes on dispersal at an RAF bomber station. Photo: RAF official photographer — public domain.
Handley Page Halifax in flight
Halifax airborne. Photo: official wartime photograph — public domain.

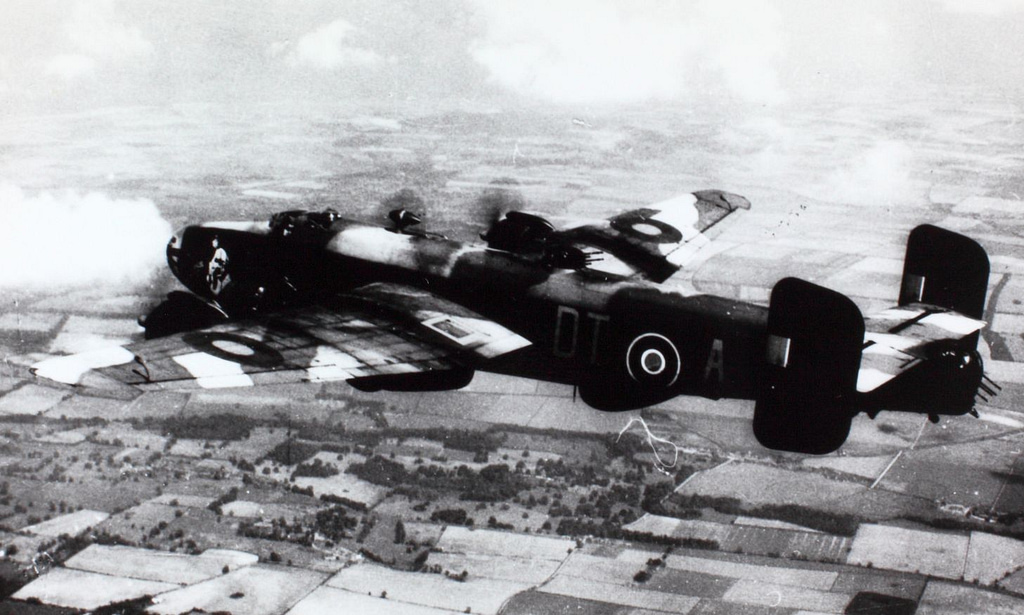

Preserved Handley Page Halifax
Preserved Halifax airframe. Photo: San Diego Air & Space Museum Archives — public domain.
Bristol Hercules engine of the Halifax
The Bristol Hercules radial. Photo: San Diego Air & Space Museum Archives — public domain.
Restored Halifax at the Yorkshire Air Museum
Restored Halifax “Friday the 13th,” Yorkshire Air Museum, Elvington. Photo: Rachel Semlyen — CC BY-SA 2.0.

All images sourced from Wikimedia Commons. Public-domain wartime photographs and openly licensed images, credited individually above.

On Film

Inside the Handley Page Halifax

A detailed walkthrough of the Halifax’s crew stations, turrets and guns from a leading aviation-history channel — a rare chance to see the cramped, complex interior in which seven men fought the night war over Germany.

“Inside a Halifax Heavy Bomber: Crew, Turrets and Guns” — Military Aviation History, an established aviation-history channel (approx. 876,000 views at time of writing).

Operations Map

Where the Handley Page Halifax served

An overview of the Halifax’s world: its home in RAF service, the theatres it fought over, the Allied and post-war air forces that flew it, and where its survivors stand today. The Halifax was overwhelmingly a Royal Air Force aircraft, but it was flown by Commonwealth and Allied crews and ranged across the whole European and Mediterranean theatre. Tap or hover a country for detail.

Combat Record

The Handley Page Halifax by the numbers

Commonly cited figures for the Halifax’s contribution to RAF Bomber Command. Totals vary between sources and are approximate; the Halifax flew roughly a third of Bomber Command’s four-engine sorties over the course of the war.

~82,773Bomber Command sorties flown (est.)
~224,207Tons of bombs dropped (est.)
~1,833Halifaxes lost on operations (est.)
~6,176Built across all marks

Where to See One

Surviving Handley Page Halifaxes on display

No Halifax flies today, but three complete airframes survive in public collections — each recovered or rebuilt against the odds. If you want to stand next to a real one, these are the places to go.

01

Yorkshire Air Museum

Elvington, England

A complete Halifax displayed in the markings of “Friday the 13th”, built from original sections including a genuine wartime fuselage. The museum occupies a former Halifax bomber station, making it the natural home of the type.

02

Royal Air Force Museum

Cosford / London, England

Halifax B Mk II W1048 “S for Sugar”, shot down over Norway in 1942 and recovered from a frozen lake in 1973. It is preserved unrestored — corroded and battle-marked — as a deliberate memorial to the reality of the air war.

03

National Air Force Museum of Canada

Trenton, Ontario, Canada

Halifax Mk VII NA337, raised from Lake Mjøsa in Norway in 1995 after half a century underwater and painstakingly restored. A fitting centrepiece in the country whose airmen flew so many Halifaxes.

Various other collections hold Halifax sections, turrets and recovered relics. Please check each museum’s website for opening times and the current location of aircraft, which occasionally move between sites.

Legacy

Remembering the Handley Page Halifax

For decades after the war the Halifax lived in the Lancaster’s shadow, its contribution quietly understated in the popular memory of Bomber Command. That has slowly changed. The dedicated campaigning of veterans’ associations, the recovery and restoration of survivors, and museums such as the Yorkshire Air Museum — built on the wartime bomber station at Elvington, from which Halifax squadrons flew — have restored the aircraft to its proper place in the story.

In Canada, where so many of the type’s crews came from, the Halifax is remembered with particular pride; the restoration of NA337 at Trenton was a national undertaking. In Britain, the unrestored hulk of W1048 at the RAF Museum speaks more eloquently than any polished exhibit of the reality of the air war. And of the roughly 6,176 Halifaxes built, these few survivors carry the memory of the tens of thousands of airmen who flew and died in the type.

The Halifax deserves to be remembered not as the Lancaster’s understudy but as one of the most versatile and hard-worked Allied aircraft of the Second World War — a bomber that was also a tug, a spy-carrier, a submarine-hunter and, finally, a bringer of relief in the peace it had helped to win.

Questions & Answers

Handley Page Halifax: your questions answered

Can I fly in a Handley Page Halifax?

No. There is no airworthy Handley Page Halifax anywhere in the world — not one of the roughly 6,176 built is in flying condition today. The type survives only as static museum restorations: the Yorkshire Air Museum at Elvington displays a complete Halifax in the markings of “Friday the 13th”; the Royal Air Force Museum holds W1048, recovered unrestored from a Norwegian lake; and the National Air Force Museum of Canada at Trenton, Ontario, displays the restored NA337. All are museum exhibits — you can walk around them, but not fly in one.

If it is the experience of flying in a genuine piece of military aviation history you are after, that is still very much possible. MiGFlug arranges flights in real, airworthy ex-military jets — see migflug.com/flights-prices for what you can actually fly today.

How many Handley Page Halifaxes survive today?

Only a handful of complete airframes survive, all static. The best known are the Yorkshire Air Museum’s “Friday the 13th” restoration in England, the unrestored W1048 at the RAF Museum, and NA337 at the National Air Force Museum of Canada in Trenton — both of the latter recovered from Norwegian lakes decades after being lost. Various other sections, nose turrets and relics are held in collections, but none is airworthy.

Was the Handley Page Halifax better than the Avro Lancaster?

It depends on the measure. The Lancaster could carry a heavier bomb load higher and further, and Bomber Command’s chief Sir Arthur Harris clearly preferred it. But the Halifax was more versatile — flying as bomber, glider tug, maritime patroller and clandestine transport — and crews are widely credited with a better chance of escaping a stricken Halifax. Both were essential; they were, in effect, rivals born from the same specification.

Why did the early Handley Page Halifax have a poor reputation?

The first Merlin-engined marks (I, II and V) were underpowered for their weight and suffered a dangerous rudder-overbalance fault that could throw the aircraft into an unrecoverable spin. A redesigned rectangular tail cured the handling problem, and the switch to Bristol Hercules radial engines in the Mk III of 1943 transformed the type’s performance and its standing with crews.

What roles did the Handley Page Halifax fly besides bombing?

A great many. Beyond the night bombing of Germany, Halifaxes flew Coastal Command anti-submarine and maritime-reconnaissance patrols, towed gliders and dropped paratroops for airborne operations at Normandy and Arnhem, and flew Special Operations Executive missions dropping agents and supplies across occupied Europe. After the war, converted Haltons carried freight and passengers and served in the Berlin Airlift.

How many Handley Page Halifaxes were built, and how many were lost?

About 6,176 Halifaxes were built by a consortium of British factories between 1940 and 1946 — second only to the Lancaster among British heavies. Roughly 1,833 were lost on operations, a figure that reflects the extreme dangers of the night bombing campaign. Exact totals vary by source.

You can’t fly the Handley Page Halifax. These, you can.

No Halifax will ever fly again — the last airworthy example is long gone, and the survivors are static museum pieces. But you can still strap into a genuine, airworthy ex-military jet and feel what it is to fly a real piece of military aviation. MiGFlug makes it real.

Fighter Jet Flights

Take the controls of a real ex-military jet with an experienced fighter pilot.

See flights & prices

L-39 Albatros

The classic jet trainer — aerobatics and low-level fun, in several countries.

See flights & prices

MiG-29 Fulcrum

Ride a genuine air-superiority fighter toward the edge of space.

See flights & prices

Supersonic experiences

Break the sound barrier in a real military jet.

See flights & prices

Sources & Further Reading

Where this page’s facts come from

Royal Air Force Museum — History of Halifax W1048, recovered from Lake Hoklingen and preserved unrestored.
Imperial War Museums (IWM) — Wartime Halifax photographs, films and Bomber Command collections.
Yorkshire Air Museum, Elvington — Home of the restored Halifax in the markings of “Friday the 13th”.
National Air Force Museum of Canada, Trenton — The restored Halifax Mk VII NA337, raised from Lake Mjøsa, Norway.
Canada Aviation and Space Museum — Reference material on RCAF Halifax operations and preservation.
Smithsonian National Air and Space Museum — Reference on RAF four-engine heavy bombers of the Second World War.
C. H. Barnes, “Handley Page Aircraft since 1907” — Standard manufacturer history covering the Halifax’s design and variants.
Middlebrook & Everitt, “The Bomber Command War Diaries” — Operational record of Halifax squadrons and losses night by night.
Rolls-Royce Heritage Trust & Bristol engine references — Background on the Merlin and Bristol Hercules powerplants.
MiGFlug Afterburner — MiGFlug’s own magazine on warbirds, jets and flight experiences.
Royal Aeronautical Society & Flight archives — contemporary technical descriptions of the Halifax and its powerplants.
Aircrew Remembered & Bomber Command veterans’ associations — first-hand accounts and squadron histories of Halifax operations.

Figures for speed, range, weights, sorties and losses are drawn from the museum and reference sources above; where sources differ, values are given as approximate and marked as estimates. Images are from Wikimedia Commons and credited individually in the gallery.
