The B-10’s reputation rests on convergence. Retractable landing gear, an internal bomb bay, enclosed cockpits, a rotating nose gun turret and a cantilever, all-metal monoplane wing had each been tried before in isolation. What the Martin did — and did in a machine ordered in quantity for a major air force — was bring them together, and pair them with enough engine power to turn the package into genuine, war-changing speed.

The result was a bomber that a fighter of 1934 could barely catch. When your bombers outrun the enemy’s interceptors, the entire arithmetic of air defence changes. That single fact — a bomber faster than the fighters — is what made observers describe the B-10 as having made every other bomber obsolete overnight. It is a strong claim, and it should be hedged: the “obsolete overnight” phrasing is the language of contemporaries and later popular histories rather than a precise engineering statement. But the underlying leap in capability was real and dramatic.

The claim: Glenn L. Martin received the Collier Trophy for 1932 in connection with the B-10 design.

The Collier Trophy is awarded annually for the greatest achievement in American aeronautics. The 1932 award recognised the Martin bomber — the private-venture Model 123 and its development — as the outstanding aeronautical achievement of the year, a formal acknowledgement that its blend of speed and modern construction represented a genuine advance. We state this as the historical record reports it; readers who want the primary citation should consult the National Aeronautic Association’s Collier Trophy roll.

The B-10 typically carried three rifle-calibre (0.30 in / 7.62 mm) machine guns: one in the powered/rotating nose turret, one in a dorsal position and one firing through a ventral tunnel. The nose turret is often cited as an early example of a rotating gun turret on a production bomber — an important step toward the heavily turreted heavy bombers of the Second World War.

It should be kept in proportion. Three light machine guns were a modest defensive battery even by the standards of the later 1930s, and against the cannon-armed fighters the export Martins met in 1941–42 they offered limited protection. The turret’s significance is developmental — it pointed the way — rather than a claim that the B-10 was heavily defended.

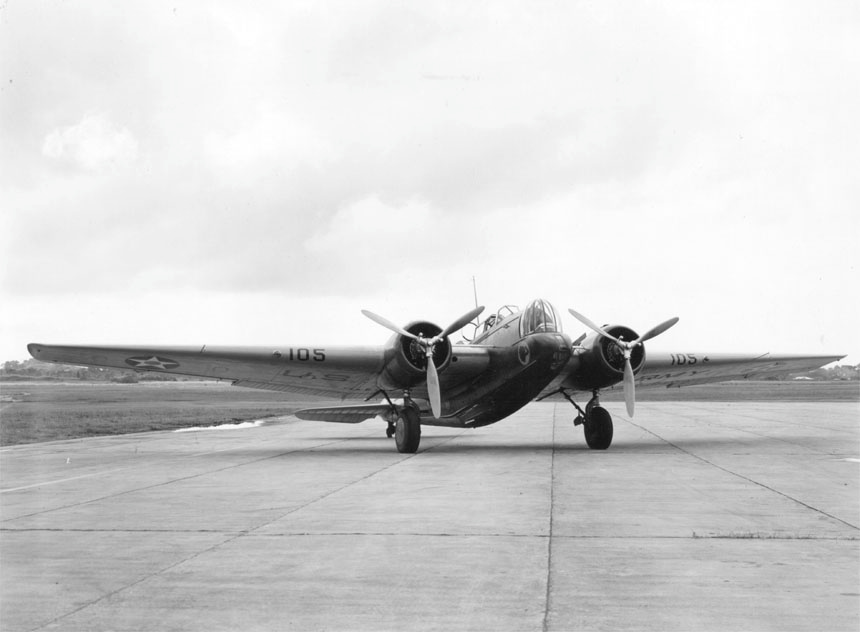

A B-10B’s top speed of roughly 213 mph (about 343 km/h) does not sound remarkable today, but in 1934 it was faster than many of the biplane pursuit aircraft in service. The point was not that no fighter could ever catch a B-10, but that the margin between bomber and interceptor had all but vanished — a shocking state of affairs that helped drive the rapid fighter development of the later 1930s.

All performance figures here are representative of the B-10B and vary between sources and sub-variants; treat them as approximate.

The heart of the B-10’s advance was its wing. Where the biplane bombers it replaced carried two wings braced together with struts and a web of wires — every one of them adding drag — the Martin used a single cantilever wing carrying its loads internally, through a metal structure covered in load-bearing stressed skin.

The payoff was twofold. Aerodynamically, doing away with struts and wires cut drag sharply, which is a large part of why the aircraft was fast. Structurally, the all-metal monoplane was cleaner, stronger for its weight and more durable than fabric-over-wood-or-tube construction. It was also the layout the entire industry was moving toward; the B-10 simply got there first in a quantity-built bomber. Everything that flew in the great bomber fleets of the 1940s was built on this principle.

Speed needs power, and the B-10 had it for its size. Most production aircraft used two Wright R-1820 Cyclone air-cooled radials, of roughly 700 to 775 horsepower each depending on sub-type, enclosed in low-drag cowlings that smoothed airflow over the big radial cylinders. The parallel B-12 series substituted Pratt & Whitney R-1690 Hornet radials of broadly similar output.

Air-cooled radials were rugged, relatively light and well suited to the era’s technology, and mounting them in clean nacelles on the leading edge of the monoplane wing kept drag down. It was this pairing — adequate power in a very clean airframe — rather than brute horsepower alone that gave the B-10 a top speed higher than the biplane fighters of 1934. Exact power ratings vary by engine mark and source.

Fixed landing gear — wheels hanging permanently in the airstream — was one of the biggest sources of drag on 1930s aircraft, which is why so many designs of the era, including some otherwise-modern monoplanes, kept it for simplicity. The B-10’s retractable main gear folded away in flight, removing that penalty and contributing to its clean, fast profile.

Retraction added weight and mechanical complexity, and it demanded reliable actuation — a non-trivial engineering problem at the time. That the Martin made it work in a production bomber is part of what marked the type as genuinely modern rather than merely promising.

How does a bomber defend itself? The B-10’s answer was a spread of three rifle-calibre machine guns — in the rotating nose turret, a dorsal position and a ventral tunnel — giving fire forward, above and below. The powered nose turret in particular is frequently cited as an early production example of the rotating gun turret, a concept that would grow into the multi-turret defensive schemes of the heavy bombers.

By later standards it was light. Three 0.30-inch guns offered thin protection against the cannon fighters of the Second World War, and no amount of clever positioning could change the fundamental firepower gap. The turret’s importance is as a signpost — a first, practical step toward a defensive philosophy that others would develop much further.

Carrying bombs inside the fuselage rather than on external racks was another of the B-10’s quietly important features. An internal bay keeps the ordnance out of the airstream, preserving the clean lines that give speed and range, and it protects the bombs during flight. The B-10 could carry a useful load — on the order of 1,025 kg (about 2,260 lb) — internally.

Like retractable gear, an internal bay is one of those features that seems obvious in hindsight but represented real design discipline at the time, when many contemporaries still hung their bombs beneath the wings. Together, enclosed bombs, retracted wheels and a strut-free wing add up to the aerodynamic cleanliness that defined the type.

It is easy to overlook, but the B-10’s glazed, enclosed crew stations were a meaningful break from the open-cockpit tradition. Enclosing the crew reduced drag, sheltered them from wind and cold at altitude and in poor weather, and made long-range, high-altitude flying — the very missions a modern bomber was meant to fly — far more sustainable.

The change was partly cultural, too. Open cockpits carried a certain romance, and not every airman welcomed being shut behind glass. But for a fast, high-flying bomber the enclosed cockpit was plainly the future, and the B-10 helped normalise it. Within a few years it would be universal.

Guns: nose turret — dorsal — ventral, typically three 0.30 in (7.62 mm) machine guns in all. Bombs: carried internally, up to roughly 1,025 kg (2,260 lb) depending on load and range.

The internal bomb bay was itself a modernising feature: enclosing the bombs cut drag and helped the aircraft’s speed, in contrast to the exposed under-wing racks common on earlier types.

Figures vary between the B-10, B-10B, B-12 and export Model 139/166 sub-variants; the values above are representative rather than definitive.

Model 123 / XB-907: the original 1932 private-venture prototype.

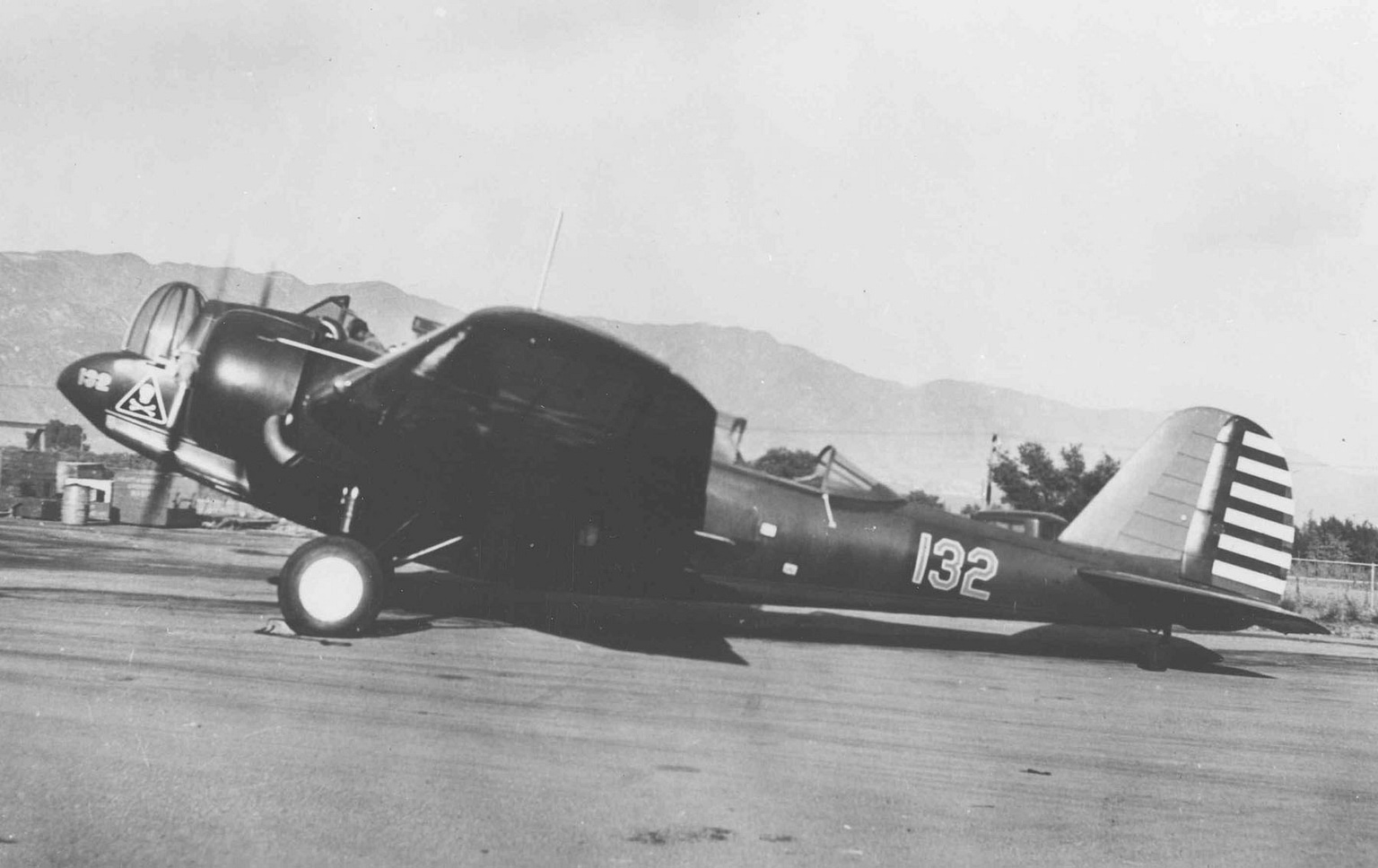

From it flowed the U.S. Army’s YB-10, B-10 and B-10B (Wright Cyclone) and the B-12 / B-12A (Pratt & Whitney Hornet), plus experimental sub-types. Export aircraft were sold as the Model 139 and, later, the more refined Model 166 with a long “greenhouse” canopy. Exact production numbers by sub-type vary between sources.

Roughly 343 km/h (213 mph) is the number that made the B-10 famous. In isolation it is unremarkable — a modern light aircraft can approach it — but in 1934 it sat above the speed of many front-line biplane fighters, and well above the lumbering biplane bombers the type replaced, some of which struggled past 200 km/h.

That is the whole story of the B-10 in one comparison: a bomber that flew half again as fast as the bombers before it, and faster than the fighters meant to stop it. Within five years, monoplane fighters pushing past 480–530 km/h had turned that advantage into a disadvantage. The figure did not change; the world around it did.

A range on the order of 1,995 km (about 1,240 miles), a ceiling near 7,380 m (roughly 24,200 ft) and an internal bomb load of about 1,025 kg (2,260 lb) made the B-10 a credible medium bomber for its day. These were not heavy-bomber numbers — the B-17 to come would dwarf them — but they were a solid, useful package in a fast airframe.

In export service, that combination of reach and speed is what made the Martin attractive to air forces from the Dutch East Indies to Argentina. All these figures vary by sub-variant and loading; treat them as representative of the B-10B rather than fixed values.

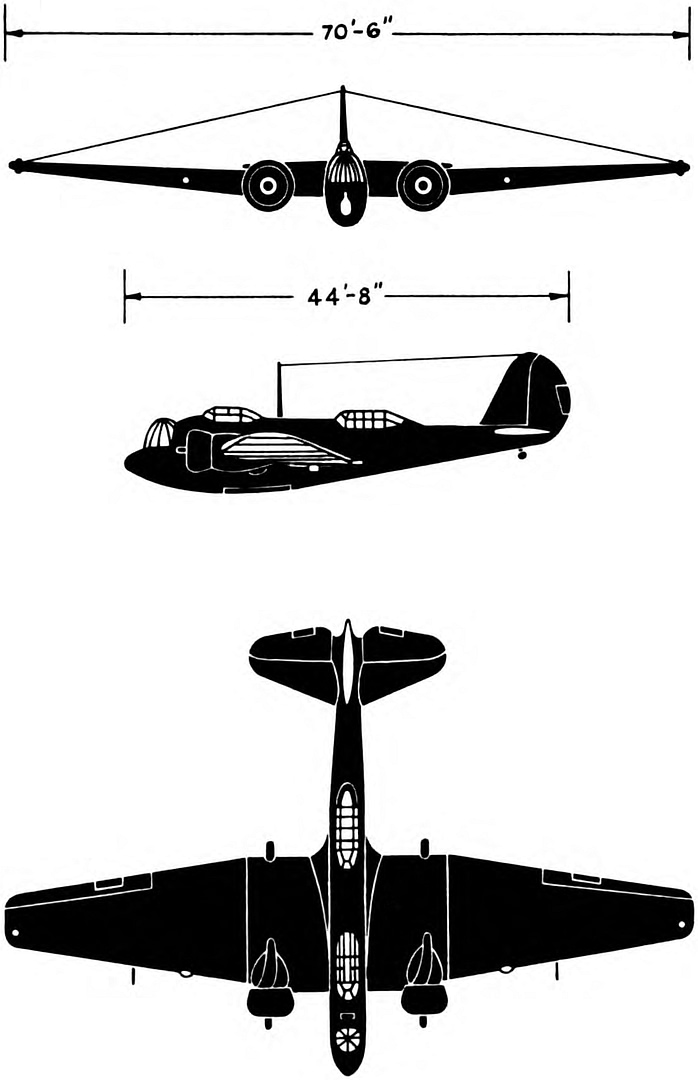

With a wingspan around 21.5 m (70 ft 6 in) and a maximum weight in the region of 7,440 kg (16,400 lb), the B-10 was a substantial twin, but a clean and efficient one. The all-metal cantilever wing carried that weight without external bracing, and the stressed-skin construction gave strength and durability that fabric-and-wire structures could not match.

These are the dimensions of an aircraft built to a modern formula. Compare them with the strut-and-wire biplanes of only a few years earlier and the B-10 looks like a different species — which, in engineering terms, it was.

Modern readers expect a unit price and a cost-per-flight-hour for any aircraft. For a 1930s type sold across many countries, in a very different economic era, those numbers are not reliably or consistently recorded. Currency values, procurement practices and the mix of domestic and export sales all make a single meaningful figure impossible to quote responsibly.

Rather than invent a precise-looking number, this page states plainly that the B-10’s costs are not reliably recorded. That is the honest answer, and it is more useful than a false one. What can be said is that the type was, for its capability, a comparatively economical way for smaller air forces to acquire a genuinely modern bomber — part of why it sold so well abroad.

A typical B-10 carried a crew of three to four: a pilot, a nose gunner who doubled as bombardier, and a rear gunner/radio operator, with a co-pilot position in some configurations. The stations were spread down the fuselage — the bomb-aimer and nose gun forward, the pilot beneath the stepped canopy, the dorsal gunner behind — and connected by the internal structure of the fuselage.

Crew numbers and roles varied between the U.S. B-10/B-12 and the export Model 139/166, and between sub-variants. The essential point is that this was a genuine multi-crew bomber with specialised stations, not a scaled-up single-seater — another way in which it prefigured the bombers to come.

For pilots stepping out of biplanes, the B-10 was a revelation and a challenge in equal measure. The clean monoplane was faster and slipperier than anything they were used to, with retractable gear and enclosed cockpits that changed the whole feel of a flight. It demanded a more modern, systems-minded approach to flying — managing two engines, gear retraction and a heavier, faster machine.

Contemporary accounts treated it as a thoroughly modern aircraft for 1934, if a demanding one by the standards of the fabric biplanes it replaced. As always with a type this old, first-hand pilot testimony is limited and should be read as impression rather than precise data.

Beyond the Alaska flight, the B-10 spent much of its U.S. career as a very public demonstration of American aviation’s new capabilities. Fast, modern and photogenic, it featured in exercises, tours and set-piece flights designed to show the reach and reliability of the Air Corps’ newest bomber.

This showcase role suited an aircraft whose strengths were speed and modernity, and it did much to build the type’s formidable early reputation — the “wonder bomber” image that clung to it even after newer designs had quietly surpassed it.

The B-10’s air-cooled radial engines were, by the standards of the day, relatively rugged and maintainable, and its all-metal structure was more durable than fabric and wood. But it was still a 1930s aircraft, with the limited range, modest payload and demanding upkeep that implies.

In the far-flung export fleets — above all in the tropical conditions of the Netherlands East Indies — keeping ageing Martins serviceable became increasingly difficult as spares dried up and combat attrition mounted. By 1941–42 the wonder of 1934 was a maintenance and supply headache flying against a modern enemy.

In concept the B-10 was a fast medium bomber for level bombing from altitude, using its speed to reach and leave the target before defences could react. In U.S. service that doctrine was exercised but never tested in war. In export service, reality intruded: the ML-KNIL and the Chinese used their Martins for anti-shipping strikes, level bombing and reconnaissance against a fast-moving Japanese advance.

The gap between the doctrine — speed as protection — and the 1941–42 battlefield, where modern fighters could catch and destroy the bombers, is the central tragedy of the type’s combat career. The aircraft was used as designed; the world had simply moved past the design.

The Dutch colonial air arm was the largest combat operator of the export Martin, with well over a hundred aircraft. When Japan invaded in December 1941, these bombers flew repeated strikes against invasion shipping and landings across the archipelago and neighbouring theatres.

The outcome was grim: obsolescent Martins, facing modern Japanese fighters without sufficient escort, suffered heavy losses, and the Indies fell by March 1942. The campaign is a study in courage against hopeless odds. Specific sortie and loss figures vary between sources and should be treated as approximate.

Chinese Nationalist Martins are credited with an early — possibly the first — flight of foreign aircraft over the Japanese home islands, dropping propaganda leaflets over Kyushu in May 1938 rather than bombs. The “paper raid” is widely recounted in histories of the Second Sino-Japanese War, though details of the crews and route differ between accounts. We present it as a well-attested but variously-reported episode.

American aviation moved so fast in the 1930s that the B-10 was overtaken at home before any war reached it. The Douglas B-18 began replacing it from 1936–37, and the four-engine Boeing B-17 pointed to a wholly different scale of bomber. By Pearl Harbor the surviving U.S. B-10s and B-12s were training, utility and target-towing machines, not front-line bombers.

This is the most quoted line about the type, and it captures a real truth — but it is the language of contemporaries and popular history, not a precise engineering fact. The B-10 did represent a dramatic leap over the biplane bombers it replaced, and it was faster than many fighters of its day. In that sense the shock was genuine.

What the phrase glosses over is that the “overnight” obsolescence it caused also caught up with the B-10 itself within a few years. It is best read as vivid shorthand for a real and sudden advance, not as a literal claim. We use it on this page in exactly that spirit.

Not quite. Monoplane bombers and all-metal aircraft existed before the B-10. The careful and defensible claim is that it was the first all-metal monoplane bomber produced in quantity for the U.S. Army Air Corps, and the aircraft that brought the full modern package — monoplane, all-metal, retractable gear, internal bombs, enclosed cockpits, turret — together in quantity service. “First of its kind in mass service” is accurate; “the first monoplane bomber” full stop is not.

You will see totals around 348 including exports, with roughly 151 for the U.S. Army. These are the commonly cited figures, and we use them — but sources genuinely disagree, partly because of the many sub-variants and export batches, and partly because record-keeping across several countries in the 1930s was uneven. Treat any single production number for the B-10 as approximate.

No — the accurate statement is that it was faster than many of the biplane fighters in service around 1934, not that no fighter on earth could catch it. The significance is the near-disappearance of the speed margin between bomber and interceptor, which was startling enough without exaggeration. By the late 1930s monoplane fighters had comfortably restored, and then widened, the gap.

The Chinese leaflet flight over Japan in May 1938 is well attested and genuinely remarkable — among the first overflights of the Japanese home islands by foreign aircraft. But the specifics, including exact crews, aircraft and routing, are variously reported across sources. We present the raid as a real and celebrated event while being candid that its fine details are not uniformly recorded.

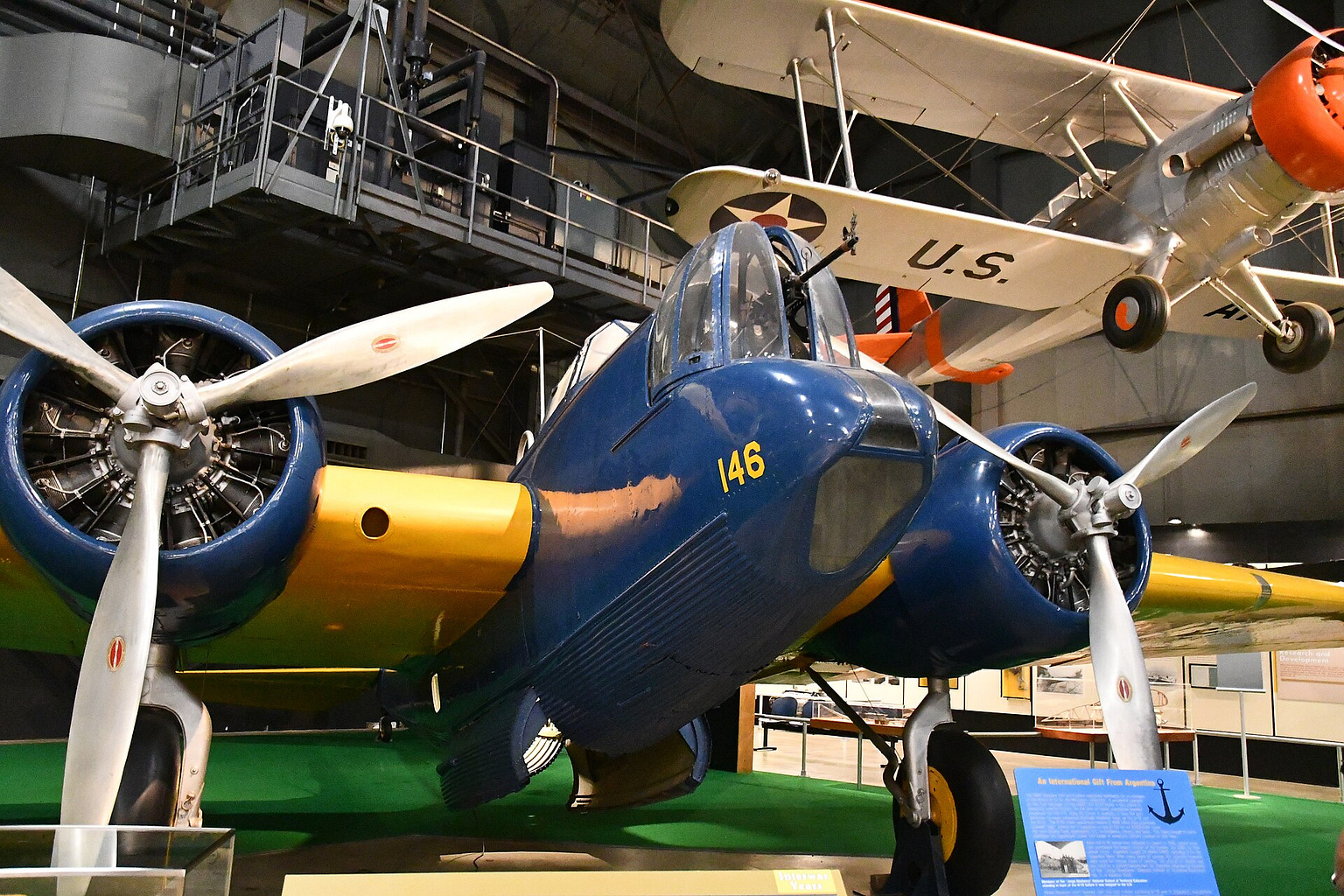

No. There is exactly one Martin B-10 left in the world, a restored static exhibit at the National Museum of the U.S. Air Force, and no airworthy or bookable example exists. Any suggestion that you can ride in a B-10 is simply wrong. If it is the experience of flying a genuine military aircraft you are after, that is possible — just in other types. See MiGFlug’s available fighter-jet flights.

A careful phrasing again. The B-10’s rotating nose position is frequently and reasonably described as an early example of a powered/rotating gun turret on a production bomber. That is not the same as claiming it was the first turret of any kind ever fitted to any aircraft — a claim that is hard to sustain and that we do not make. Its significance is developmental: it was one of the early production steps toward the turreted defensive schemes that defined later heavy bombers.

The Martins were flown not by the Netherlands in Europe but by the military air arm of the Netherlands East Indies (the ML-KNIL), the colonial force in what is now Indonesia. It is a distinction worth keeping straight: the fighting happened in the Indies, Malaya and Borneo, not over the European Netherlands. On the operations map on this page, the aircraft’s combat service is therefore associated with the East Indies region rather than the European Netherlands, with the ordering nation noted alongside.

The B-10 embodied an idea that would dominate 1930s bomber thinking: that a fast, modern monoplane bomber could largely defend itself and outrun interception. When your bomber is faster than the fighters, the logic runs, you need less escort and can strike deeper. The B-10’s speed made that argument concrete.

The doctrine did not survive contact with the cannon-armed monoplane fighters of the Second World War, which comfortably overtook bombers in speed and firepower. But the B-10 helped plant the idea, and its layout — all-metal, twin-engine, internally-stowed bombs, turret defence — pointed straight at the heavy bombers that followed. In that sense the self-defending-bomber concept the B-17 would carry into 1943 was first made plausible by aircraft like the Martin.

Martin’s export bombers came in two main families. The Model 139 broadly mirrored the U.S. B-10/B-12, with separate cockpit canopies for the crew stations. The later Model 166 introduced a long, continuous “greenhouse” canopy running the length of the fuselage spine, along with aerodynamic and equipment refinements.

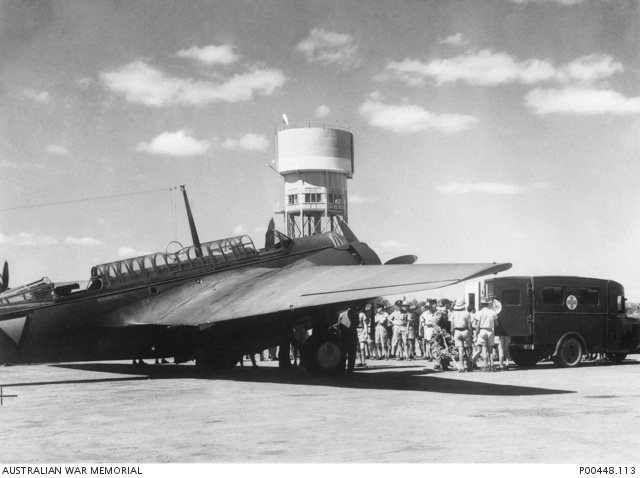

The Netherlands East Indies operated both, and it was the Model 166 that flew hardest in the 1941–42 campaign. To the casual eye the long unbroken canopy is the quickest way to tell a Model 166 from the earlier, stepped Model 139. Sub-variant details and designations vary between sources and export customers.

In the summer of 1934 the Army Air Corps sent ten B-10s on a round-trip flight from Washington, D.C. to Fairbanks, Alaska, and back, under the command of Lt. Col. Henry “Hap” Arnold. The expedition covered thousands of miles of demanding terrain and weather, mapping and photographing en route.

It was a deliberate demonstration — of the new bomber’s reliability and reach, and of American air power in the northern approaches. The flight earned wide acclaim and helped cement the B-10’s reputation as the wonder bomber of its moment. Arnold, of course, would go on to lead the U.S. Army Air Forces to victory a decade later.

The uncomfortable truth is that the B-10 was a victim of the very revolution it led. The 1930s were perhaps the fastest-moving decade in the history of aircraft design: stressed-skin construction, retractable gear, variable-pitch propellers, more powerful engines and cleaner aerodynamics compounded year on year.

An aircraft that was startling in 1932–34 was ordinary by 1938 and obsolescent by 1941. The B-10’s roughly 213 mph, so shocking at first, was soon eclipsed by monoplane fighters approaching and then exceeding 300 mph. Its light defensive armament, adequate for 1934, was dangerously thin against 1941 fighters. None of this reflects badly on the design; it simply marks how quickly the ground moved beneath it.

Not a single U.S.-built Martin B-10 remained intact in American hands by the postwar years — the type had been used up, worn out and scrapped. The aircraft that survives today began life as an export machine sold to Argentina. Retired and stored, it was eventually repatriated to the United States in the 1970s and painstakingly restored.

It now stands in U.S. Army Air Corps markings at the National Museum of the U.S. Air Force in Dayton, Ohio — the sole surviving example of a type of which several hundred were built. There is no airworthy Martin B-10 anywhere in the world, and given its rarity there is unlikely ever to be one.

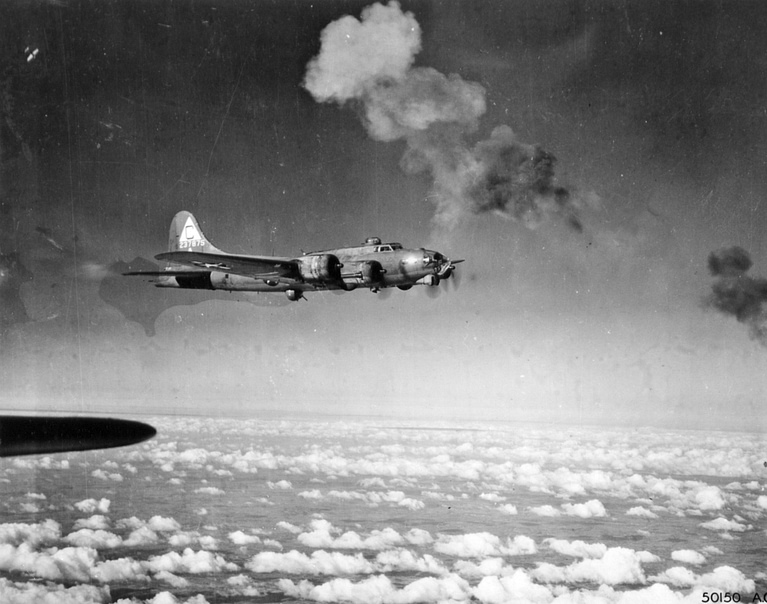

It is tempting, and not entirely wrong, to see a direct line from the Martin B-10 to the Boeing B-17. Both were all-metal monoplane bombers; both stowed bombs internally; both relied on speed and defensive guns. The B-10 proved, in service and in quantity, that such an aircraft was practical — and its success helped shape the Army’s appetite for a still bigger, faster, longer-ranged bomber.

The B-17 that answered that appetite was a generational leap beyond the Martin: four engines, far greater range and bomb load, and heavy defensive armament. But the conceptual groundwork — the modern monoplane bomber as the centrepiece of air power — was laid by aircraft like the B-10. The Martin was the proof of concept; the Fortress was the fulfilment.

For the U.S. Army Air Corps the B-10 was above all a peacetime showpiece — proof that American industry could build a bomber as modern as anything in the world. It equipped bombardment groups from 1934 and starred in set-piece demonstrations, most famously the 1934 mass flight to Alaska led by Henry “Hap” Arnold.

But the Air Corps’ own appetite for progress worked against the type. The Douglas B-18 Bolo, cheaper and roomier, began replacing it within a couple of years, and the Boeing B-17 pointed to an entirely different class of bomber. By the time the United States went to war, the surviving American Martins were second-line machines. It is one of history’s quiet ironies that the bomber that made all others obsolete was itself made obsolete at home without ever seeing combat.

The Dutch colonial air arm, the ML-KNIL, was the Martin bomber’s biggest combat operator, with well over a hundred Model 139 and improved Model 166 aircraft based across the Netherlands East Indies. When Japan struck in December 1941, these bombers flew repeated strikes against invasion convoys and landing forces from the Indies to Malaya and Borneo.

They were, by then, hopelessly outclassed. Facing modern Japanese fighters with little or no escort, the ML-KNIL Martins suffered severe losses, and the Indies fell by March 1942. Yet the campaign is remembered for the determination of its crews, who kept flying an obsolescent aircraft into action long after its front-line day had passed. Precise sortie and loss figures vary widely between sources.

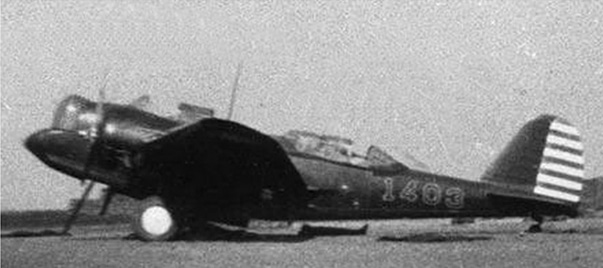

China acquired a small number of Model 139Ws in the mid-1930s and used them against the Japanese from 1937. Their most famous exploit came in May 1938, when a Martin flew over the Japanese home islands and dropped propaganda leaflets over Kyushu rather than bombs — the “paper raid,” widely described as among the first overflights of Japan by foreign aircraft.

The raid was a propaganda coup rather than a military blow, and accounts differ on the crews, aircraft and exact route. We present it as a genuine and celebrated episode whose fine details are variously reported.

Turkey bought Model 139s as part of its 1930s modernisation. Argentina was a major customer, operating a large fleet of Model 139WAA machines — and it was one of these, retired and stored, that would eventually become the sole surviving B-10. Siam (Thailand) flew Model 139s and reportedly used them in the Franco-Thai War of 1940–41. The USSR obtained a single example for evaluation. Exact quantities differ between sources; the Argentine and Dutch East Indies fleets were by far the largest export orders.

Place the B-10 on a timeline of American bombers and its role becomes obvious. Behind it lie the Keystone and Martin biplane bombers — slow, fabric, strut-braced. Ahead of it lie the Douglas B-18, the Boeing B-17, the North American B-25 and the rest of the great monoplane fleets. The B-10 is the aircraft that connects the two eras, the first quantity-service bomber recognisably belonging to the second.

That is a rare distinction. Most aircraft refine an existing idea; a few change the idea itself. The Martin B-10 belongs to the second, smaller group, and that is why it is remembered long after its brief front-line life ended.

If there is a lesson in the B-10’s arc, it is humility about the shelf life of even the most advanced technology. A design can be world-beating and, within the working life of the men who fly it, become dangerously outdated — not because it was flawed, but because progress did not pause.

The airmen who flew obsolescent Martins into battle in 1942 were operating, less than a decade after its triumph, an aircraft the world had already left behind. It is a sobering counterpoint to the “wonder bomber” headlines of 1934, and a reminder that in aviation, being first is not the same as being first for long.
