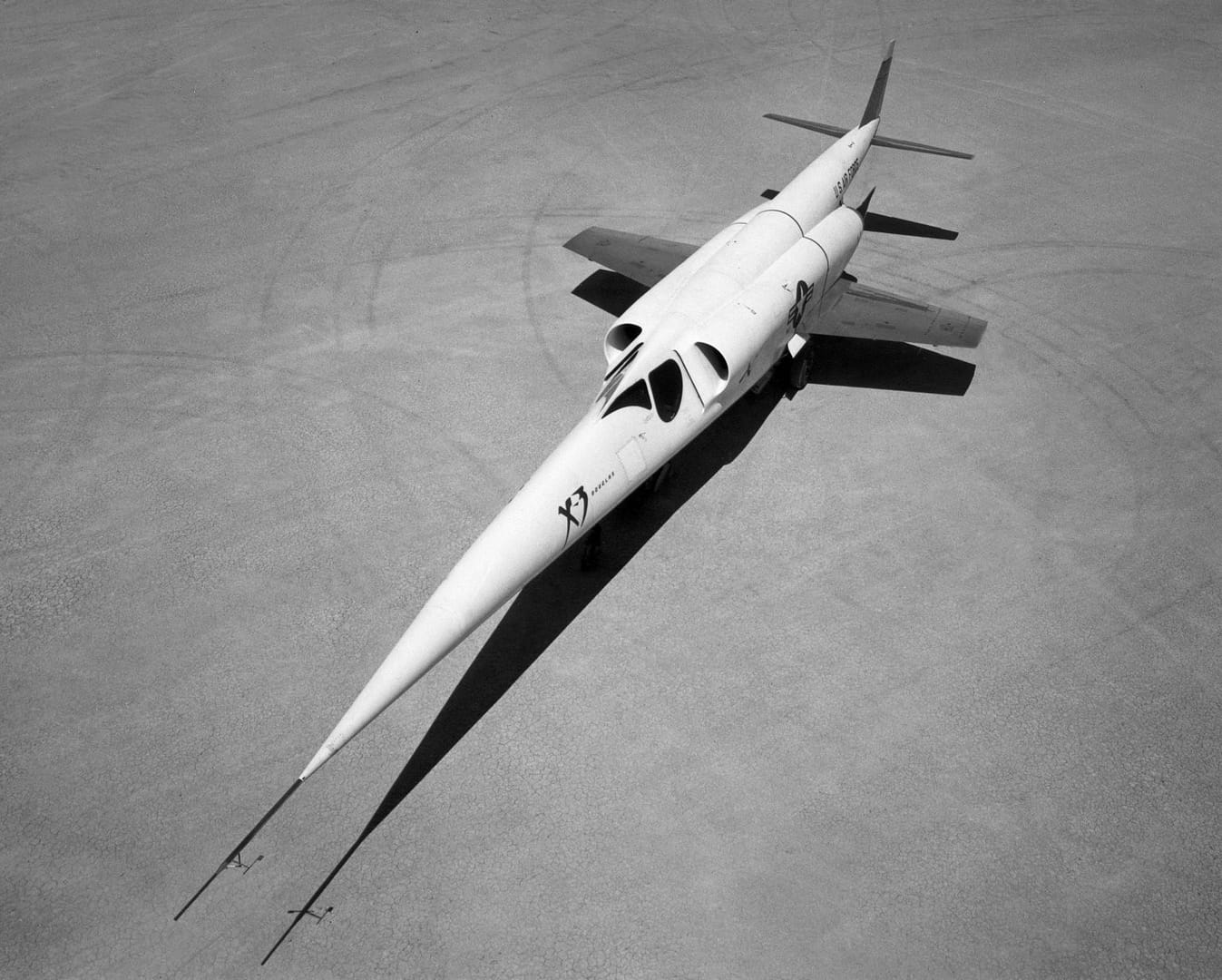

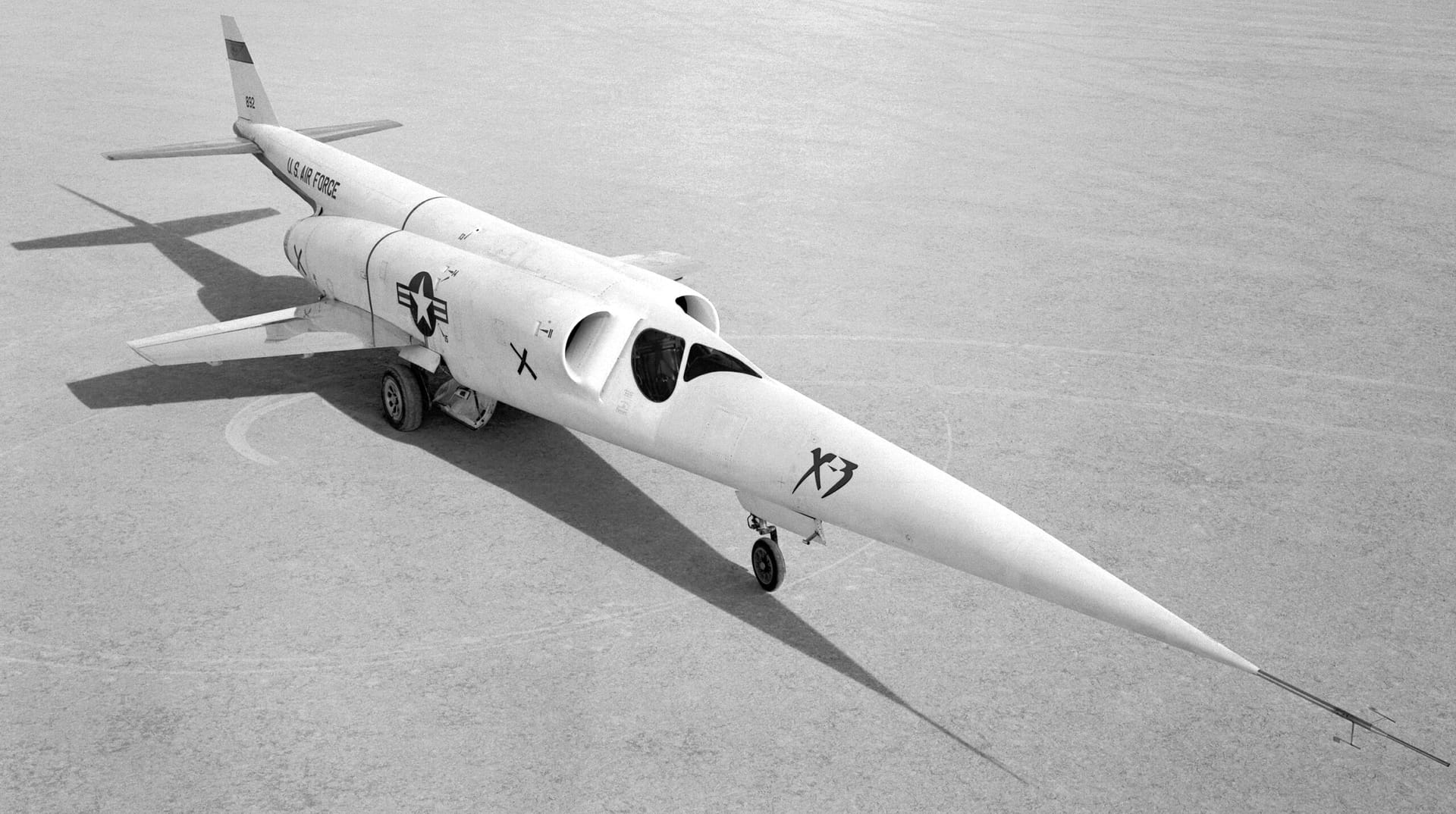

It was the most beautiful failure in the history of experimental aviation. The Douglas X-3 Stiletto — a needle-nosed, razor-winged aircraft that looked like it had been designed to stab a hole through the sound barrier — first flew on October 20, 1952, from Edwards Air Force Base. It was built to sustain Mach 2 in level flight, to pioneer titanium construction, and to prove that extremely thin wings were the future of supersonic design. It could barely break Mach 1 in a dive.

But the X-3’s failure was one of the most productive in aerospace history. Its stumbling, underpowered test program revealed a lethal aerodynamic phenomenon called inertia coupling that no one had predicted — and the thin-wing data it generated was used directly by Kelly Johnson at Lockheed to design the F-104 Starfighter, one of the most iconic fighters of the Cold War. The X-3 never did what it was supposed to do. Instead, it did something far more important.

Designed for Mach 2, Delivered with Mach 0.95 Engines

The X-3 was conceived in 1945 as part of a joint USAF-NACA program to investigate sustained supersonic flight. Douglas Aircraft designed the airframe around two key innovations: a wing with an extraordinarily thin 4.5% thickness-to-chord ratio — making the wing profile thinner than a dining knife relative to its width — and extensive use of titanium in the aircraft’s structure, a first in aviation history. Titanium was used for wing skinning, engine thermal shields, and fuselage joints, anticipating the friction-induced heating that Mach 2 flight would generate.

The problem was engines. The X-3 was designed for two Westinghouse J46 turbojets, each producing approximately 7,000 pounds of thrust with afterburner. When the J46 turned out to be too large to fit inside the slender fuselage, Douglas was forced to substitute the much weaker Westinghouse J34-WE-17, producing only about 4,850 pounds of thrust each. The aircraft that was supposed to cruise at Mach 2 suddenly had engines suited for Mach 0.95.

The Needle That Couldn’t Punch Through

Douglas test pilot Bill Bridgeman made the first official flight on October 20, 1952 — though the aircraft had briefly gone airborne five days earlier during a high-speed taxi test when Bridgeman inadvertently lifted off, flew about a mile, and landed back on the dry lakebed. Over the next several years, both Douglas and NACA pilots flew the X-3 through a comprehensive test program. The fastest it ever went was Mach 1.21, achieved by Bridgeman on July 28, 1953, in a 30-degree dive from 36,000 feet. In level flight, the X-3 could not break the sound barrier at all.

The wing was so thin that it could not contain fuel tanks or landing gear mechanisms — everything was packed into the fuselage. The aircraft had one of the lowest aspect ratio wings in aviation history: short, wide, and trapezoidal, designed to minimize drag at speeds it could never reach. By any conventional measure, the X-3 was a failure. It could not do the one thing it was built to do.

The Discovery That Changed Everything: Inertia Coupling

On October 27, 1954, NACA test pilot Joe Walker took the X-3 up for a routine test of lateral stability. During an abrupt roll at near-sonic speed, something terrifying happened. The aircraft began to pitch and yaw violently and uncontrollably. Walker fought the controls, but the X-3 was gyrating through multiple axes simultaneously, subjecting the airframe to forces that nearly exceeded its structural limits. He recovered, but barely.

What Walker had encountered was inertia coupling — a phenomenon where an aircraft with a long, heavy fuselage and small, light wings could enter uncontrollable oscillations during rapid rolls. The fuselage’s rotational inertia overwhelmed the stabilizing force of the wings and tail surfaces. At high speeds, this could tear an aircraft apart. No one had predicted it. The X-3, with its extreme fuselage-to-wing mass ratio, was the perfect aircraft to reveal it — and it did so in a way that could not be ignored.

From Failure to F-104: Kelly Johnson’s Inheritance

At Lockheed’s Skunk Works in Burbank, California, Kelly Johnson was watching the X-3 program with intense interest. Johnson was already convinced that ultrathin, unswept wings were the key to efficient supersonic flight — an opinion that ran counter to the swept-wing consensus of the early 1950s. The X-3’s flight data confirmed his theory.

Johnson and his team took the X-3’s trapezoidal wing planform, its 4.5% thickness-to-chord ratio data, and the critical lessons about inertia coupling, and applied them directly to the design of the XF-104 Starfighter. The F-104 inherited the X-3’s thin, stubby, trapezoidal wing profile — but Johnson paired it with a General Electric J79 engine producing 15,800 pounds of thrust with afterburner, more than three times what the X-3 had. The result was the first production fighter capable of sustained Mach 2 flight.

Legacy: The Most Important Aircraft That Never Did What It Was Supposed To

The sole X-3 Stiletto was retired from flight testing in 1956 after just 51 flights. It now sits in the National Museum of the United States Air Force at Wright-Patterson AFB in Dayton, Ohio — its needle nose and impossibly thin wings still drawing stares from visitors who can’t quite believe an aircraft that sleek could be considered a failure.

But the X-3’s legacy is written in every F-104 Starfighter that ever flew — and more than 2,500 were built. It pioneered the large-scale use of titanium in aircraft construction, a technique that would become standard in high-performance military and commercial aviation. It discovered inertia coupling, saving the lives of countless test pilots who might otherwise have encountered it without warning. And it proved that a razor-thin trapezoidal wing could generate enough lift at supersonic speeds to make a practical fighter possible.

The Douglas X-3 Stiletto never flew at Mach 2. It never did what it was designed to do. But it taught the aerospace industry things that no other aircraft could have taught — and the fighter that inherited its lessons became one of the most produced Western combat aircraft of the Cold War. Sometimes, the most important thing a research aircraft can do is fail in exactly the right way.
