Shenyang J-8 Finback — History, Specs & Stories

Shenyang J-8 Chinese interceptor, full profile
Aircraft MuseumInterceptorJ-8

Shenyang J-8
“Finback”

China’s first home-designed fighter — a twin-engine, high-altitude interceptor grown from the MiG-21 that ran from a nose-intake original to the side-intake J-8II, and whose name is tied to the 2001 Hainan Island collision.

~Mach 2.2Max speed · commonly cited (J-8II)
~21.4 mLength · J-8II
2 × WP-13Liyang turbojets
1969 / 1984First flights · J-8 / J-8II
Photo: Flavio Mucia · CC BY 2.0 · Wikimedia Commons
RoleHigh-speed interceptorEraCold War & modernMotor2 × Liyang WP-13OriginChina · Shenyang (SAC)StatusActive (limited/recon)Want to fly a real fighter jet yourself?
La historia

The Shenyang J-8: China’s first home-grown interceptor

By the mid-1960s the young Chinese aircraft industry had learned to build the Soviet MiG-21 — the licence-and-reverse-engineered Chengdu J-7 — but it wanted something the little delta could not offer: the speed, ceiling and endurance to catch high-flying reconnaissance aircraft and bombers over a vast country. The answer, launched at Shenyang around 1964, was the J-8: in essence a scaled-up, twin-engine J-7. It kept the MiG-21 family’s tailed-delta layout and its nose air intake with an adjustable centre-body, but stretched the fuselage to swallow two engines and more fuel.

Progress was painfully slow. The prototype flew on a date commonly cited as 5 July 1969, but the Cultural Revolution had gutted China’s design institutes, and the aircraft did not reach operational units until around 1980–1981. Only a small number of the original nose-intake J-8 were built; its biggest limitation was hiding in plain sight. The nose intake left room for only a small ranging radar, so the aircraft was a clear-weather point interceptor armed with cannon and short-range heat-seeking missiles.

The fix reshaped the aircraft. From 1979 engineers proposed moving the engine intakes to the fuselage sides, freeing the entire nose for a solid radome and a far larger radar. The reworked machine — the J-8II, NATO reporting name “Finback” — first flew on 12 June 1984 and shared more than seventy per cent new structure with its predecessor. Where the original J-8 looked like an oversized MiG-21, the J-8II resembled an F-4 Phantom or MiG-23, with twin lateral intakes and a pointed radar nose. It became the definitive form of the type.

For all the airframe work, the J-8’s long struggle was with what sat behind the radome. Fielding a capable interception radar and beyond-visual-range missiles proved genuinely hard for the Chinese industry of the day. In the late 1980s the United States even agreed to help, under a programme nicknamed “Peace Pearl,” in which Grumman would fit the J-8II with F-16-generation avionics — a collaboration frozen after 1989 and formally cancelled in 1990. Only with later variants such as the J-8F, around 2003–04, did the type finally gain a modern pulse-Doppler radar and active-radar missiles.

To much of the world, though, the J-8 is remembered for a single morning. On 1 April 2001 a Chinese Navy J-8II collided with a United States Navy EP-3E surveillance aircraft off Hainan Island in the South China Sea. The two governments told very different stories of how the collision happened; the Chinese pilot, Wang Wei, was lost, and the crippled EP-3 landed on Hainan, its crew held for eleven days. That incident, examined soberly further down this page, is how many people first heard the aircraft’s name.

By the 2000s the J-8 was being overtaken by the J-10 and the Flanker-derived J-11, which offered the all-aspect, beyond-visual-range capability the early J-8s lacked. The interceptor role faded, but some reconnaissance J-8 variants reportedly lingered in limited service into the 2020s — and the programme itself taught China’s industry how to design, build and refine a modern twin-engine fighter.

A stretched, twin-engine MiG-21 that took fifteen years to enter service and two decades to get a proper radar — and became a stepping stone for China’s aerospace rise.The long road — from copy to capability
01The Shenyang J-8’s origins: from the MiG-21 and J-7 to a twin-engine interceptor

The J-8 did not begin with a blank sheet. China had spent the early 1960s absorbing the Soviet MiG-21, which it built as the Chengdu J-7. That aircraft was fast and nimble but short-legged, lightly armed and limited by a single engine and a small nose-intake radar. To reach higher and faster, Shenyang’s engineers took the familiar delta-and-tail layout and enlarged it around two engines and more fuel.

The result was recognisably part of the Soviet fighter family it descended from: the original J-8 kept the MiG-21-style nose intake with its shock-cone centre-body and looked like an oversized J-7. That pragmatic path suited an industry still learning, but it also capped the aircraft’s potential — and set up the far more ambitious redesign that produced the side-intake J-8II a decade and a half later.


Design & Engineering

What makes the J-8 special

01

Two engines instead of one

The defining choice was to twin the powerplant. The original J-8 used two Liyang WP-7B turbojets; the J-8II moved to uprated WP-13-series engines (roughly 65–69 kN each in afterburner), with the WP-13BII on the late J-8F. Two engines gave the thrust and ceiling the interception mission demanded — and the redundancy a single-engine J-7 could never offer over open water.

02

Nose intake to lateral intakes

The single most consequential change in the type’s history was moving the air intakes from the nose to the fuselage sides on the J-8II. That freed the entire nose for a solid radome and a much larger radar, transforming a clear-weather point interceptor into an aircraft with genuine all-weather ambitions — and giving the “Finback” its F-4-like look.

03

Built to fly high and fast

The J-8 family was optimised as a fast-climbing, high-ceiling interceptor — the same niche as the MiG-25, on a smaller airframe. Top speed is commonly cited at about Mach 2.2 with a service ceiling around 18,000–20,000 m. Its job was to climb quickly, run down a high-flying intruder and destroy it with missiles, not to dogfight.

02The J-8’s radar problem: China’s long struggle for a fighter radar

Even after the J-8II gave China room for a proper radar, fielding a capable set proved painfully hard. The original nose-intake J-8 had only a short-range ranging radar reportedly good to barely ten kilometres. The J-8I added a Type 204 monopulse fire-control radar, and early J-8Bs still lacked any beyond-visual-range capability, with detection ranges around forty kilometres.

Progress crawled through successive radars — Type 208A, then the KLJ-1 pulse-Doppler with look-down/shoot-down capability on the J-8H — before the J-8F’s Type 1492 radar finally enabled the active-radar PL-12 missile around 2004. That radar saga, more than any airframe issue, kept the J-8 a step behind its Western and Soviet contemporaries and shaped its entire upgrade history.

03Peace Pearl: when the United States helped upgrade a Chinese fighter

At the height of the 1980s anti-Soviet alignment between Washington and Beijing, the United States agreed to modernise the J-8II’s avionics under a programme nicknamed “Peace Pearl.” In 1987 the U.S. Air Force contracted Grumman to fit roughly 50–55 J-8IIs with the Westinghouse AN/APG-66 radar — the same family as early F-16s — plus U.S. inertial navigation, a head-up display, multifunction cockpit displays and ejection seats, in a deal reportedly worth around 500 million dollars.

Two J-8II airframes were flown to Grumman’s Bethpage, New York plant for integration. Then the June 1989 Tiananmen Square crackdown brought U.S. arms cooperation to a halt; the programme was formally cancelled in 1990, cost overruns adding to its collapse, and the airframes were returned to China, which completed its J-8IIs domestically without the American avionics.


Datos técnicos

Full J-8II specifications

Airframe & Performance

Multitud
1 (two-seat trainers exist)
Longitud
~21.4–21.6 m
Envergadura
~9.3 m
Altura
~5.4 m
Max takeoff weight
~17,800 kg (up to ~18,900 kg cited)
Max speed
~Mach 2.2 · commonly cited
Techo de servicio
~18,000–20,000 m
Radio de combate
~800 km (~1,200 km with refuelling)
Ferry range
~2,000–2,200 km
Tasa de ascenso
~200 m/s

Propulsion & Systems

Engines
2 × Liyang WP-13-series
Thrust (each)
~65–69 kN with afterburner
Radar
Type 204 to Type 1492 across variants
Cannon
1 × 23 mm Type 23-3 twin-barrel
Missiles
PL-2 / PL-5 / PL-8, later PL-11 & PL-12
First flight
1969 (J-8) · 12 Jun 1984 (J-8II)
Introduced
~1980 (J-8) · late 1980s (J-8II)
Operators
China only (PLAAF & PLAN)
Unit cost
No reliable public figure
Cost per flight hour
No reliable public figure
04The J-8’s operating costs: why no reliable price exists

The J-8 was a Chinese state product, built for the PLA and never sold on any open market — an export variant, the F-8IIM, found no buyers. As a result there is no meaningful flyaway unit price y no credible cost-per-flight-hour figure for the type in the public record; a state-run industry did not price military aircraft the way Western procurement did. One reference point survives from the abortive Peace Pearl upgrade, whose avionics package was reportedly costed at roughly 10 million dollars per aircraft in late-1980s money — but that covered the American electronics, not the airframe. Any precise dollar figure attached to a J-8 online is, in practice, an estimate.


Timeline

From drawing board to limited service

1964

Programme launched

Shenyang begins the J-8 as China’s first indigenously designed fighter — a twin-engine enlargement of the MiG-21/J-7 for the high-altitude interception role.

1969

First flight

The original nose-intake J-8 flies on a date commonly cited as 5 July; development then drags through the disruption of the Cultural Revolution.

~1980

Enters service

The original J-8 finally reaches PLA units in small numbers, a clear-weather point interceptor with only a short-range ranging radar.

1984

The redesigned J-8II

The side-intake J-8II “Finback” flies on 12 June, its solid nose freed for a much larger radar — more than seventy per cent new structure.

1987–90

Peace Pearl

The United States contracts Grumman to fit the J-8II with F-16-generation avionics; the programme is frozen after 1989 and formally cancelled in 1990.

2001

Hainan Island incident

On 1 April a Chinese Navy J-8II collides with a U.S. Navy EP-3E off Hainan; pilot Wang Wei is lost and the EP-3 lands on the island with its 24 crew.

~2003–04

The mature J-8F

The J-8F brings a Type 1492 pulse-Doppler radar and the active-radar PL-12 missile — the beyond-visual-range capability the early J-8s had lacked.

2000s–2020s

Superseded, then reconnaissance

The J-10 and J-11 take over frontline duties; some reconnaissance J-8 variants reportedly linger in limited service into the 2020s.


Stories & Eyewitnesses

Twelve J-8 stories

Lineage

The MiG-21’s big brother

China’s first home-designed fighter was really a J-7 stretched to swallow a second engine.

Read the full story
The J-8 began in 1964 as an attempt to out-climb high-flying intruders that the single-engine J-7 — China’s MiG-21 — could not reach. Rather than start from a blank sheet, Shenyang’s engineers enlarged the familiar delta-and-tail MiG-21 layout and gave it two engines and more fuel. The result kept the nose intake with its shock-cone centre-body, so early J-8s looked like an oversized MiG-21. It was a pragmatic path for an industry still learning, and it made the J-8 recognisably part of the Soviet fighter family it descended from.
History

A fighter held hostage by its era

The J-8 took some fifteen years from drawing board to squadron because of the Cultural Revolution.

Read the full story
Design work started in 1964, but the Cultural Revolution gutted China’s aviation institutes, scattered engineers and stalled industry. The prototype flew in 1969, yet the aircraft did not reach operational units until around 1980–1981 — an extraordinarily long gestation. Only a small number of the original configuration were built, many used mainly to teach the air force how to operate a twin-engine interceptor. The saga is often cited as a case study in how political upheaval, not just technology, can hobble a weapons programme for a generation.
Design

The nose that held it back

The first J-8’s biggest limitation was hiding in plain sight — its air intake.

Read the full story
The original Finback-A breathed through a nose intake with an adjustable centre-body, exactly like the MiG-21. That layout capped how large a radar could fit, leaving the aircraft with only a short-range ranging set derived from 1950s Soviet technology — reportedly good to barely ten kilometres. Armed with cannon and short-range heat-seeking missiles, it was a clear-weather point interceptor at best. The nose intake defined both the aircraft’s look and the ceiling of its capability, and it is precisely what the next generation set out to fix.
Engineering

Moving the nose to make room for radar

To give the J-8 a real radar, engineers moved its air intakes to the sides.

Read the full story
From 1979, Shenyang proposed relocating the engine intakes from the nose to the fuselage flanks, freeing the entire nose for a solid radome and a far larger radar dish. The reworked aircraft — the J-8II Finback, first flown 12 June 1984 — shared more than seventy per cent new structure with its predecessor and suddenly resembled an F-4 Phantom rather than a MiG-21. It was the single most consequential redesign in the type’s history, transforming a clear-weather interceptor into an aircraft with genuine all-weather ambitions.
Planta motriz

Two hearts for the high hunt

What separated the J-8 from the J-7 was simple: one more engine.

Read the full story
The interceptor mission — climb fast, fly high, fly fast — demanded thrust a single J-7 engine could not deliver. The J-8 answered with two turbojets, the original WP-7Bs giving way on the J-8II to uprated WP-13s built by Liyang, and later the WP-13BII on the J-8F. Two engines meant the sustained speed and ceiling needed to chase high-altitude reconnaissance aircraft, plus redundancy over open water. The powerplant choice is what makes the J-8 a distinct aircraft rather than just a bigger J-7.
Capability

China’s long struggle for a fighter radar

For two decades the J-8’s Achilles’ heel was the box behind its radome.

Read the full story
Even after the J-8II gave China room for a proper radar, fielding a capable set proved painfully hard. Early J-8Bs still lacked beyond-visual-range capability, with detection ranges around forty kilometres. Progress crawled through successive radars — Type 204, Type 208A, the KLJ-1 pulse-Doppler — before the J-8F’s Type 1492 finally enabled the active-radar PL-12 missile around 2004. The radar saga, more than any airframe issue, kept the J-8 a step behind its Western and Soviet contemporaries and shaped its entire upgrade history.
Cold War

When America armed a Chinese fighter

In the 1980s, Grumman was quietly modernising a Chinese jet with F-16 radar.

Read the full story
At the height of the anti-Soviet thaw, Washington agreed to upgrade the J-8II’s avionics under a programme nicknamed Peace Pearl. In 1987 Grumman was contracted to fit roughly 50 jets with the Westinghouse APG-66 radar — the same set as early F-16s — plus U.S. navigation, displays and ejection seats, reportedly worth around half a billion dollars. Two J-8IIs were flown to Grumman’s Bethpage plant. The Tiananmen crackdown of June 1989 froze everything; the programme was formally cancelled in 1990 and the airframes returned to China.
Incident

Collision over the South China Sea

A routine intercept ended in a fatal mid-air and an eleven-day standoff.

Read the full story
On 1 April 2001, about 110 km off Hainan Island, a Chinese Navy J-8II collided with a U.S. Navy EP-3E surveillance aircraft. The American crew said the fighter closed too fast and struck the EP-3’s propeller and nose; China said the U.S. aircraft veered into the jet. The crippled EP-3 made an emergency landing at Lingshui airfield on Hainan, its 24 crew detained about eleven days before release. The Chinese pilot was lost. Presented from either side, it remains one of the tensest U.S.–China aerial encounters of the era.
People

The pilot who never came home

The J-8’s most famous pilot vanished into the South China Sea at 33.

Read the full story
Lieutenant Commander Wang Wei, a 33-year-old Chinese Navy pilot, was flying the J-8II that collided with the EP-3E on 1 April 2001. He bailed out but was never found despite a search lasting around ten days across a vast area of sea. Declared dead, he was posthumously honoured in China as a guardian of the nation’s airspace and became a national symbol. His fate is inseparable from the aircraft’s story, and his name is the one most often attached to the J-8 outside China.
Reach

Giving the interceptor longer legs

A single probe on the nose turned a short-ranged interceptor into a longer-reach one.

Read the full story
The J-8D, first flown in November 1990, added a fixed in-flight refuelling probe on the starboard side of the cockpit. Engineers had to tame the airflow disturbance the probe created at speed, but the payoff was real: with one refuelling, the aircraft’s combat radius could stretch from roughly 800 to 1,200 kilometres — a meaningful gain for patrols over the vast maritime approaches China increasingly cared about. It marked the J-8’s evolution from a short-legged point-defender toward a longer-reach asset.
Mission

The spy version that outlasted the fighter

Stripped of guns and packed with cameras, recon J-8s may be the last still flying.

Read the full story
Reconnaissance variants — the JZ-8 and later JZ-8F / J-8R — traded weapons for camera bays, using the type’s speed and ceiling to overfly and photograph. The JZ-8F replaced the twin 23 mm cannon with an internal camera compartment carrying daylight and low-light optics. As frontline J-8 interceptors were retired in favour of the J-10 and J-11, these reconnaissance airframes reportedly soldiered on into the 2020s, making the “spy” J-8 arguably the most enduring branch of the whole family.
Industry

The stepping stone to China’s aerospace rise

The J-8’s real value may be everything China learned building it.

Read the full story
By the 2000s the J-8 was outclassed by the J-10 and the Flanker-derived J-11, and its interceptor role faded. But the programme taught China’s industry how to design twin-engine fighters, integrate radars and missiles, and run fly-by-wire testbeds — the J-8 ACT demonstrators fed technology into the J-10 and JH-7. Seen this way, the J-8’s long, difficult life was less a dead end than a training ground: the aircraft that carried Chinese fighter design from copying the MiG-21 toward building genuinely modern combat aircraft.

Gallery

The J-8 in pictures

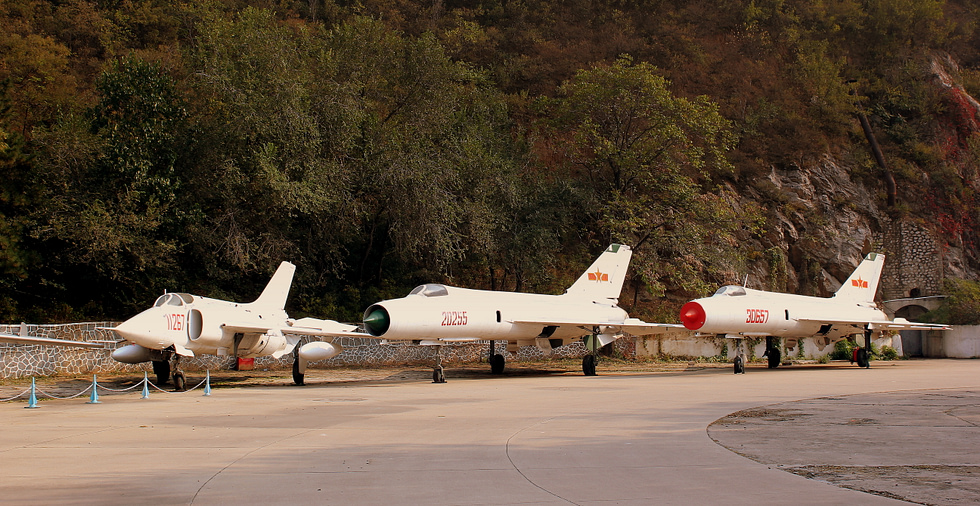

A Shenyang J-8 preserved at the China Aviation Museum, Datangshan  the delta-winged shape of a Chinese high-altitude interceptor.
A Shenyang J-8 preserved at the China Aviation Museum, Datangshan — the delta-winged shape of a Chinese high-altitude interceptor.Photo: calflier001 · CC BY-SA 2.0

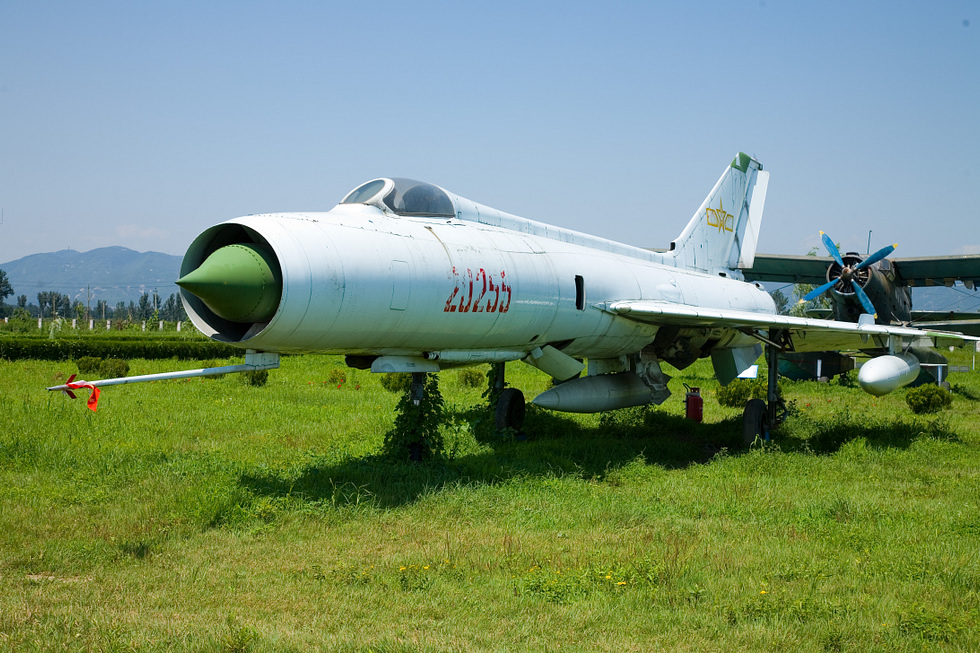

The original nose-intake J-8, its MiG-21-style shock-cone inlet clearly visible  the configuration the J-8II later replaced.
The original nose-intake J-8, its MiG-21-style shock-cone inlet clearly visible — the configuration the J-8II later replaced.Photo: Max Smith · Public domain

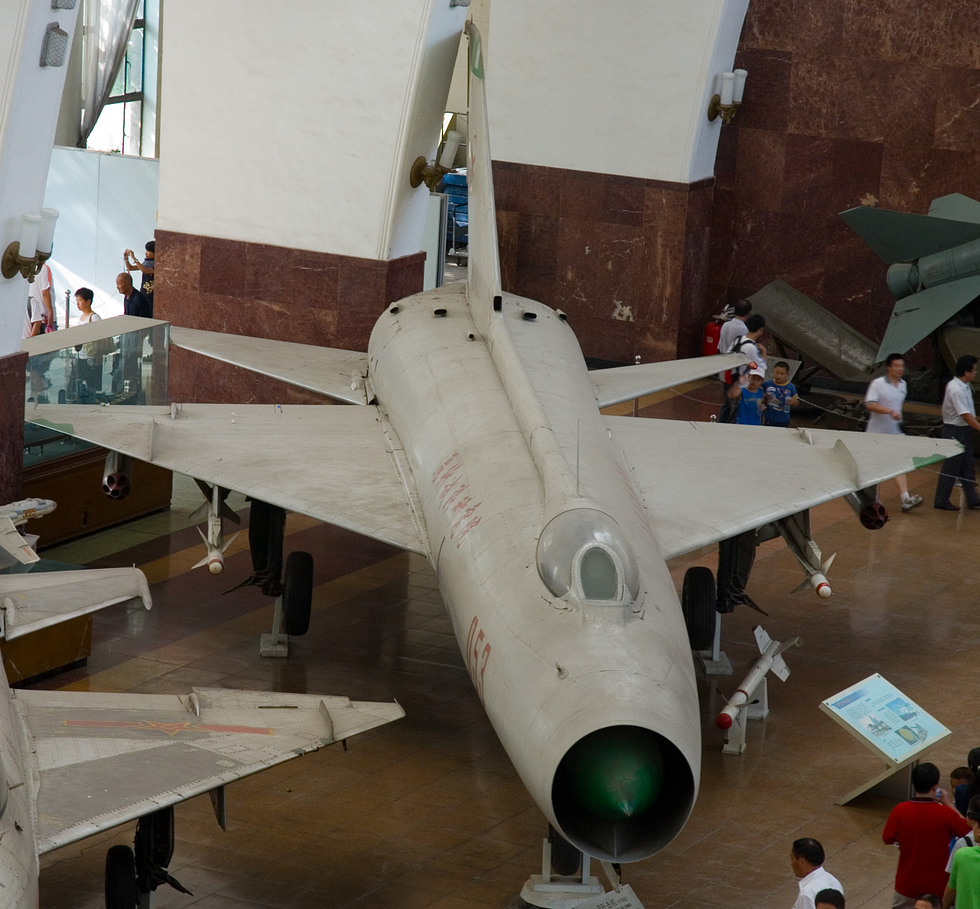

A Shenyang J-8 on display at the Beijing Military Museum  Chinas first indigenously designed fighter.
A Shenyang J-8 on display at the Beijing Military Museum — China’s first indigenously designed fighter.Photo: Max Smith · Public domain

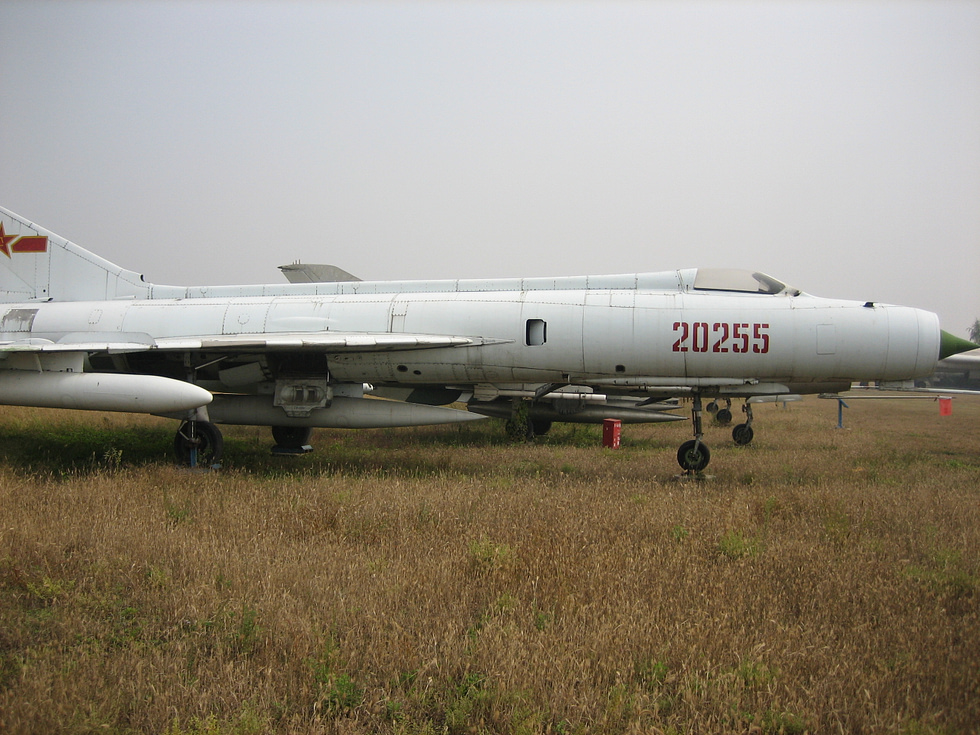

A preserved J-8 in the China Aviation Museum, showing the twin-engine tail of a stretched MiG-21 derivative.
A preserved J-8 in the China Aviation Museum, showing the twin-engine tail of a stretched MiG-21 derivative.Photo: Sam / Olai Ose / Skjaervoy · CC BY-SA 2.0

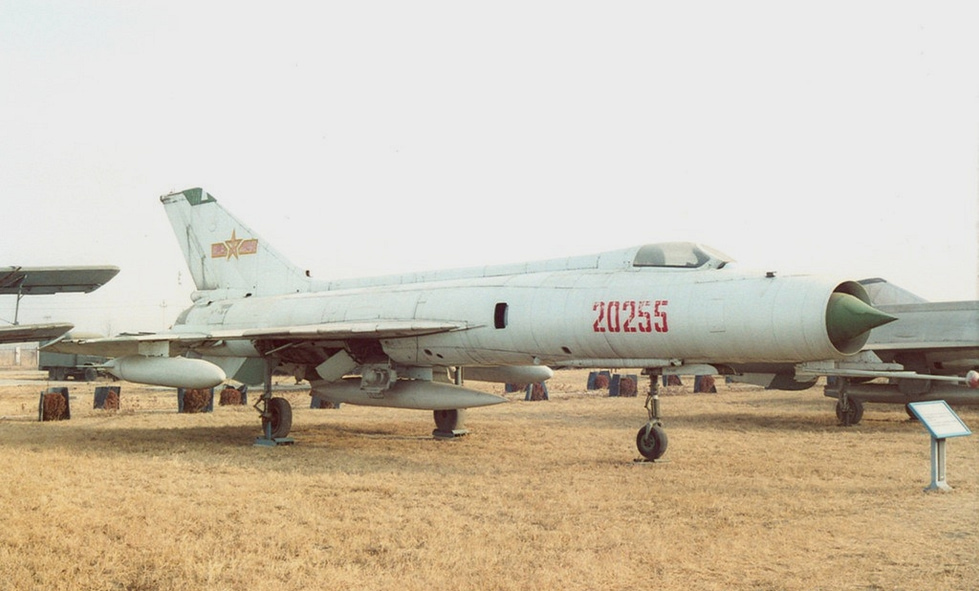

A Shenyang J-8 Finback-A  the early nose-intake variant with only a short-range ranging radar.
A Shenyang J-8 Finback-A — the early nose-intake variant with only a short-range ranging radar.Photo: Flavio Mucia · CC BY 2.0
A Shenyang J-8 Finback interceptor  the type that carried Chinese fighter design toward the modern era.
A Shenyang J-8 Finback interceptor — the type that carried Chinese fighter design toward the modern era.Photo: Wirth.design · CC BY-SA 3.0


Operations

Where the J-8 flew


Operational Record

An interceptor that rarely fired in anger

The J-8 has no confirmed record of air-to-air victories in combat. For four decades its service has been one of vigilance — patrols, scrambles and interceptions along China’s coasts and borders that ended without a shot. The exception the world remembers is not a victory in any ordinary sense: the fatal mid-air collision with a U.S. Navy EP-3E off Hainan Island on 1 April 2001, in which the J-8II’s pilot, Wang Wei, was lost. That incident, described factually in the stories and Q&A on this page, is how many first heard the aircraft’s name.

0Confirmed air-to-air combat victories
~1980–2020sFour decades of Chinese-only service
1 Apr 2001Hainan Island EP-3E collision; pilot Wang Wei lost

See the wider combat record of every military aircraft. The 2001 Hainan Island incident is presented neutrally, from both the U.S. and Chinese accounts, elsewhere on this page.


Questions & Answers

Everything people ask about the J-8

Can I fly in a J-8?
No. The Shenyang J-8 was operated only by China’s air force and navy and was never exported, so there are no civilian, warbird or airworthy examples anywhere in the world — there are no rides in this aircraft. You can, however, fly in several genuine ex-military jets today — see migflug.com/flights-prices/.
How fast is the J-8?
The J-8II is commonly cited at around Mach 2.2 (roughly 2,300 km/h) at altitude, though some secondary sources hedge lower. It was designed as a fast, high-flying interceptor with a service ceiling commonly given at around 18,000–20,000 m.
What is the difference between the J-8 and the J-8II?
The original J-8 has a nose air intake in the MiG-21 style and only a small ranging radar. The redesigned J-8II “Finback” moved the intakes to the fuselage sides, freeing a solid nose for a much larger radar, and added uprated WP-13 engines and a twin-barrel 23 mm cannon. Visually the J-8 looks like a big MiG-21; the J-8II looks more like an F-4 Phantom.
What happened in the 2001 Hainan Island incident?
On 1 April 2001 a Chinese Navy J-8II collided with a U.S. Navy EP-3E surveillance aircraft about 110 km off Hainan Island. The two governments gave differing accounts: the U.S. said the fighter approached too aggressively and struck the EP-3, while China blamed the U.S. aircraft for veering into the jet. The Chinese pilot, Wang Wei, was killed; the EP-3 landed at Lingshui airfield on Hainan and its 24 crew were held about eleven days before release.
Is the J-8 still in service?
Largely no as a frontline fighter — it has been superseded by the J-10 and J-11/Flanker family since the 2000s. Some reconnaissance J-8 variants reportedly remain in limited service into the 2020s, so the overall status is best described as active (limited/reconnaissance). Only China ever operated the type.
What weapons does the J-8 carry?
The J-8II carries a single twin-barrel 23 mm Type 23-3 cannon plus PL-series air-to-air missiles — early infrared PL-2/PL-5, later PL-8, semi-active PL-11 on the J-8H, and active-radar PL-12 on the modernised J-8F. It can also carry rockets and bombs. The original nose-intake J-8 instead carried two 30 mm cannon and PL-2 missiles.
