General Dynamics F-16
“Fighting Falcon”
The fighter that made high technology affordable — the world’s first production fly-by-wire combat jet, built in greater numbers than any other Western fighter of its generation and still the most numerous fixed-wing fighter in service today.
The F-16 that made high technology affordable
The F-16 grew out of the U.S. Air Force’s Lightweight Fighter program, launched in 1972 to test a heretical idea: that a small, cheap, brutally agile dogfighter could beat ever-heavier, ever-costlier interceptors. The General Dynamics YF-16 beat the Northrop YF-17 in a 1975 fly-off on cost, range and turn performance, and the production F-16A entered service in 1978 as the world’s first production fly-by-wire combat aircraft.
Its genius was deliberate instability. Engineers gave the F-16 relaxed static stability so it would turn harder than any self-righting design could, then tamed it with a flight-control computer making hundreds of corrections a second. To let pilots survive the resulting 9-g turns they built a frameless bubble canopy, reclined the seat 30 degrees, and replaced the centre stick with a force-sensing sidestick by the pilot’s right hand.
Through steady block upgrades — A/B to C/D to today’s Block 70/72 “Viper” with AESA radar — one airframe grew from a lightweight day-fighter into a precision bomber, SEAD hunter and nuclear-strike platform. With about 4,604 built, the F-16 is the most-produced Western fighter of its generation and, in 2026, still the most numerous fighter in the world.
01The F-16’s numbers: how a lightweight day-fighter became the West’s best-selling jet
About 4,604 F-16s have been built since 1976 — more than any other Western fighter of its generation. It was manufactured in the United States and under licence in Europe and Asia, becoming the backbone of some 25 air forces. New-build Block 70/72 jets are still rolling off the Greenville, South Carolina line in 2026, half a century after the prototype first flew.
That scale is the whole story. A fighter cheap enough to build by the thousand and flexible enough to bomb, dogfight, hunt radars and stand nuclear alert could be sold to almost anyone — which is exactly why the F-16 spread across every inhabited continent and outlasted rivals that cost far more.
What makes the F-16 special
Relaxed stability + fly-by-wire
The F-16 was deliberately designed to be aerodynamically unstable, trading the self-righting tendency of conventional aircraft for razor-sharp agility. This is only controllable because a fly-by-wire computer makes hundreds of corrections per second — there are no mechanical cables to the control surfaces. The F-16 was the first production combat aircraft built this way, a template every modern fighter now follows.
Bubble canopy, reclined seat, sidestick
The one-piece bubble canopy gives an almost unobstructed 360-degree view — a decisive edge in a dogfight. The seat reclines 30 degrees to help the pilot resist blackout under high-g loading, and a force-sensing sidestick on the right console (barely moving) replaces the central stick, keeping control precise when the pilot is crushed into the seat at 9 g.
Single engine, blended body
A single afterburning turbofan — the GE F110 or Pratt & Whitney F100 — keeps the jet light, simple and cheap to run. The fuselage and wing meet in a blended wing-body fairing with forebody strakes that generate extra lift at high angle of attack, plus a belly intake that keeps feeding air even with the nose pointed steeply up.
02The F-16’s electric jet: why relaxed stability rewrote the rulebook
Conventional aircraft are built to be stable — nudge them and they return to level flight. That self-righting tendency also fights the pilot in a hard turn. The F-16’s designers threw it away: they moved the centre of gravity aft so the jet is naturally unstable and wants to pitch up, then handed control to a computer that constantly restrains it. The pilot no longer moves the surfaces directly; he tells the computer what he wants and it obeys. The pay-off is a turn rate no stable design can match — and every fly-by-wire fighter since has followed the F-16’s lead.
03The F-16’s cockpit: built to keep a pilot conscious at 9 g
Sustained 9-g turns push blood out of the brain and grey a pilot out. The F-16 team fought that with ergonomics: a frameless bubble canopy for visibility, a seat reclined 30 degrees so the heart sits closer to the head, and a sidestick on the right console that senses force rather than travel — so a pilot pinned by g-forces can still fly precisely with tiny hand movements. Together they made the cockpit a genuine leap in both survivability and situational awareness.
Full F-16 specifications
F-16 Fighting Falcon — dimensions & weights
- Crew
- 1 (F-16C; two seats in the F-16D/F trainer and strike variants)
- Length
- 15.06 m (49 ft 5 in)
- Wingspan
- 9.96 m (32 ft 8 in) over wingtip missile rails; 9.45 m / 31 ft 0 in bare wing
- Height
- 5.09 m (16 ft 8 in)
- Wing area
- 27.87 m² (300 ft²)
- Empty weight
- 8,570 kg (18,900 lb) for a typical F-16C Block 50; Block 60 and Block 70 airframes are heavier
- Normal takeoff weight
- 12,000 kg (26,500 lb) clean, full internal fuel, two wingtip air-to-air missiles
- Max takeoff weight
- 19,190 kg (42,300 lb) for later blocks; USAF fact-sheet figures for earlier aircraft quote 17,010 kg / 37,500 lb
- Internal fuel
- ~3,160 kg (~6,970 lb / 1,040 US gal) single-seat; the two-seat D is roughly 17 % lower
F-16 Fighting Falcon — performance
- Max speed (altitude)
- 2,120 km/h (1,320 mph / Mach 2.05) at 12,200 m / 40,000 ft, clean
- Max speed (sea level)
- 1,470 km/h (915 mph / Mach 1.2)
- Cruise speed
- Mach 0.8 (about 850 km/h / 530 mph at altitude — a representative subsonic cruise, not a formally published figure)
- Rate of climb
- 254 m/s (50,000 ft/min) at low weight; a clean F-16 exceeds 1:1 thrust-to-weight
- Service ceiling
- 15,240 m (50,000 ft); the USAF quotes “above 50,000 ft” and some references give up to 18,000 m / 59,000 ft
- Combat radius
- ~550 km (~340 mi / 295 nmi) hi-lo-hi with four 1,000 lb bombs; far greater with tanks or conformal fuel
- Ferry range
- ~4,220 km (~2,620 mi / 2,280 nmi) with drop tanks
- Takeoff run
- 760 m (2,500 ft) at typical training weight; heavy war loads need considerably more
- Landing run
- 820 m (2,700 ft) on a dry runway; most F-16s use aerobraking and wheel brakes rather than a chute
- Load factor
- +9 g (−3 g); sustained 9 g with full internal fuel is a defining F-16 trait, reduced with heavy or asymmetric stores
F-16 Fighting Falcon — propulsion & systems
- Engines
- 1 × Pratt & Whitney F100-PW-220/229 or General Electric F110-GE-100/129 turbofan; the F-16 is flown with both engine families and the choice runs by block and operator — Block 70 uses the F110-GE-129, Block 72 the F100-PW-229
- Thrust each (dry)
- 65–79 kN (14,600–17,800 lbf) military power, depending on engine mark
- Thrust each (afterburner)
- 106–130 kN (23,800–29,200 lbf); F100-PW-220 at the low end, F100-PW-229 and F110-GE-129 at the high end
- Cannon
- 1 × 20 mm M61A1 Vulcan six-barrel rotary, 511 rounds in the F-16C (515 in the A), about 6,000 rounds/min
- Hardpoints
- 9 two wingtip rails, six underwing, one centreline, plus chin/inlet stations for targeting and HARM pods on later blocks
- Max ordnance
- ~7,700 kg (~17,000 lb) external stores; the practical load is set by g-limits, fuel and station clearances well before the paper maximum
- Radar
- AN/APG-68 on the F-16C/D; AN/APG-66 on early A/B; AN/APG-80 AESA on the Block 60; AN/APG-83 SABR AESA on Block 70/72 and F-16V upgrades
- Ejection seat
- McDonnell Douglas ACES II zero-zero; the reclined 30° seat and sidestick are part of the type’s high-g design
- First flight
- 2 February 1974 YF-16 prototype; an unplanned hop during high-speed taxi trials took place on 20 January 1974
- Service entry
- 17 August 1978 USAF, 388th Tactical Fighter Wing, Hill AFB, Utah
- Built
- ~4,600+ delivered since 1976 across all variants; production of Block 70/72 continues at Greenville, South Carolina, so the total keeps rising
- Unit cost
- ~US$63 million flyaway for a new-build Block 70 in recent contracts; early-1980s F-16A deliveries were a small fraction of that in then-year dollars, so cross-era comparisons are not meaningful
- Cost per flight hour
- ~US$8,000–27,000 per hour — there is no single reliable public figure: older USAF reporting gives roughly US$8,000/h on a fuel-and-consumables basis, while recent full-cost accounting has put the F-16C above US$25,000/h. Treat any single number with caution
04The F-16’s cost: the affordable fighter that changed the maths
Affordability was the whole point of the Lightweight Fighter program. Legacy F-16C/D airframes were commonly cited in the region of US $18–27 million — a fraction of the heavyweight interceptors of the day — which is precisely what let some 25 nations buy and sustain fleets of them. New-build Block 70/72 jets, with AESA radar and modern avionics, cost substantially more, but still undercut fifth-generation fighters by a wide margin. Exact per-flight-hour figures vary by operator and are not consistently published; treat any single number as an estimate.
What the F-16 Fighting Falcon carries
The F-16 began as a lightweight day fighter with a gun and two Sidewinders. Four decades of block upgrades turned it into a genuine multirole aircraft that flies air superiority, SEAD, close air support and precision strike from the same nine stations — which is a large part of why it outsold every other Western fighter of its generation.
Gun
- 1 × 20 mm M61A1 Vulcan, internally mounted in the port wing root
- 511 rounds in the F-16C/D (515 in the F-16A/B)
- Selectable rate of roughly 6,000 rounds per minute
- Cued by the radar and displayed through the HUD; the Enhanced Envelope Gunsight is standard on upgraded jets
Air-to-air
- AIM-9 Sidewinder, from the AIM-9L/M to the high-off-boresight AIM-9X
- AIM-120 AMRAAM (AIM-120B/C/D depending on operator and release)
- AIM-7 Sparrow — carried by some early and export fits, now largely historical
- Export-specific missiles: IRIS-T on several European fleets, Python-4/5 and Derby on Israeli aircraft, ASRAAM and MICA on selected users
- Helmet-mounted cueing (JHMCS or equivalent) on most modern fleets
Air-to-surface
- AGM-65 Maverick in TV, IIR and laser-guided versions
- AGM-88 HARM and, on some fleets, AGM-88E AARGM for anti-radiation work
- AGM-154 JSOW glide weapon
- AGM-84 Harpoon and, on Block 70/72 and some upgraded fleets, AGM-84 SLAM-ER for maritime and standoff strike
- Operator-specific standoff types — for example Popeye and Delilah on Israeli jets
Bombs
- GBU-31/32/38 JDAM in 2,000 lb, 1,000 lb and 500 lb classes
- Paveway II and III laser-guided bombs (GBU-10/12/16/24)
- GBU-39 Small Diameter Bomb, four to a BRU-61 rack
- Unguided Mk 82/83/84 general-purpose bombs and BLU-109 penetrators
- Historically the B61 nuclear bomb on nuclear-certified USAF and NATO F-16 units; that role is transferring to the F-35A
Rockets & pods
- 70 mm rocket pods (LAU-68/LAU-131 with Hydra 70, and APKWS laser-guided rockets on some fleets)
- AN/AAQ-33 Sniper and AN/AAQ-28 LITENING targeting pods
- AN/ASQ-213 HARM Targeting System pod on Block 50/52 SEAD aircraft
- ALQ-131, ALQ-184 and podded or internal ECM depending on block; ALQ-211 AIDEWS and similar internal suites on later jets
- Reconnaissance pods on selected operators — historically the Dutch and Belgian recce fits, and DB-110-class pods elsewhere
Other stores
- 370 US gal underwing and 300 US gal centreline drop tanks; 600 US gal tanks used on some ferry configurations
- Conformal fuel tanks on the F-16E/F Block 60, F-16I and Block 70/72, adding range without occupying a pylon
- ALE-47 countermeasures dispensers; towed decoys such as ALE-50/ALE-55 on some fleets
- Buddy refuelling and travel pods on some operators; Israeli and Block 60 aircraft carry additional mission-specific avionics
- AN/APG-83 SABR, Link 16 and modern mission computers are the enabling “stores” behind most new weapon clearances
Representative F-16 mission fits
- Air-to-air CAP
- 2 × AIM-9X on the wingtip rails, 4 × AIM-120C/D underwing, 2 × 370 US gal tanks, ECM pod or internal suite, full gun
- SEAD — Block 50/52 “Wild Weasel”
- 2 × AGM-88 HARM, AN/ASQ-213 HTS pod, 2 × AIM-120, 2 × AIM-9, 2 × 370 US gal tanks
- Precision strike
- 2 × GBU-31 JDAM or 4 × GBU-12 Paveway II, Sniper or LITENING targeting pod, 2 × AIM-120, 2 × AIM-9 for self-escort, 2 × 370 US gal tanks
Weapon fits vary sharply by block, by upgrade standard and by operator. Clearances are certified nation by nation, so two F-16s of the same block in different air forces can carry noticeably different stores. The loadouts above are representative rather than authoritative, and the practical payload on any given sortie is limited by fuel, g-limits and station compatibility long before the airframe’s paper maximum.
F-16 Fighting Falcon variants, block by block

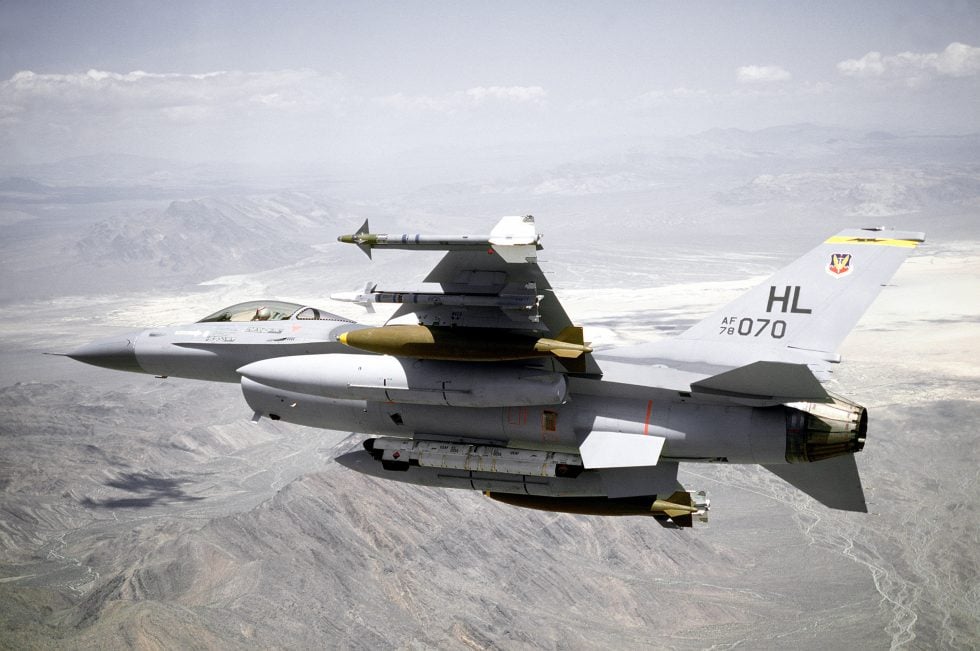

- F-16A / F-16B
- The original single- and two-seat production aircraft with the AN/APG-66 radar and a largely day-fighter weapons fit. Most survivors were rebuilt under the Mid-Life Update, which brought them close to early F-16C capability.
- F-16C / F-16D
- Introduced in 1984 with the AN/APG-68 radar, a wide-angle HUD, better cockpit displays and beyond-visual-range and night-attack capability. This is the airframe that carried the F-16 through every subsequent upgrade.
- Block 25 / 30 / 32
- Early F-16C/D standards. Block 25 introduced the APG-68; Block 30 and 32 split the fleet between the General Electric F110 and the Pratt & Whitney F100 — the “big inlet” and “small inlet” families that persist to this day.
- Block 40 / 42 — Night Falcon
- LANTIRN-capable night and all-weather attack aircraft with a strengthened airframe, larger landing gear and a holographic HUD. These became the USAF’s laser-guided bomb workhorses.
- Block 50 / 52
- Higher-thrust engines, improved avionics and the SEAD role: with the AN/ASQ-213 HARM Targeting System pod these aircraft took over the Wild Weasel mission from the F-4G. Block 52+ added conformal fuel tanks for several export customers.
- F-16E / F Block 60 — Desert Falcon
- Built specifically for the United Arab Emirates: AN/APG-80 AESA radar, conformal fuel tanks, an internal sensor and electronic warfare suite and the F110-GE-132 engine. At the time it was the most capable F-16 flying and remains UAE-unique.
- F-16V / Block 70 / 72
- The current standard, available both as new-build aircraft and as an upgrade of existing jets. AN/APG-83 SABR AESA radar, a new mission computer and cockpit, Link 16, an Auto-GCAS ground-collision avoidance system and a service life extended toward 12,000 flight hours. Block 70 is F110-powered, Block 72 F100-powered.

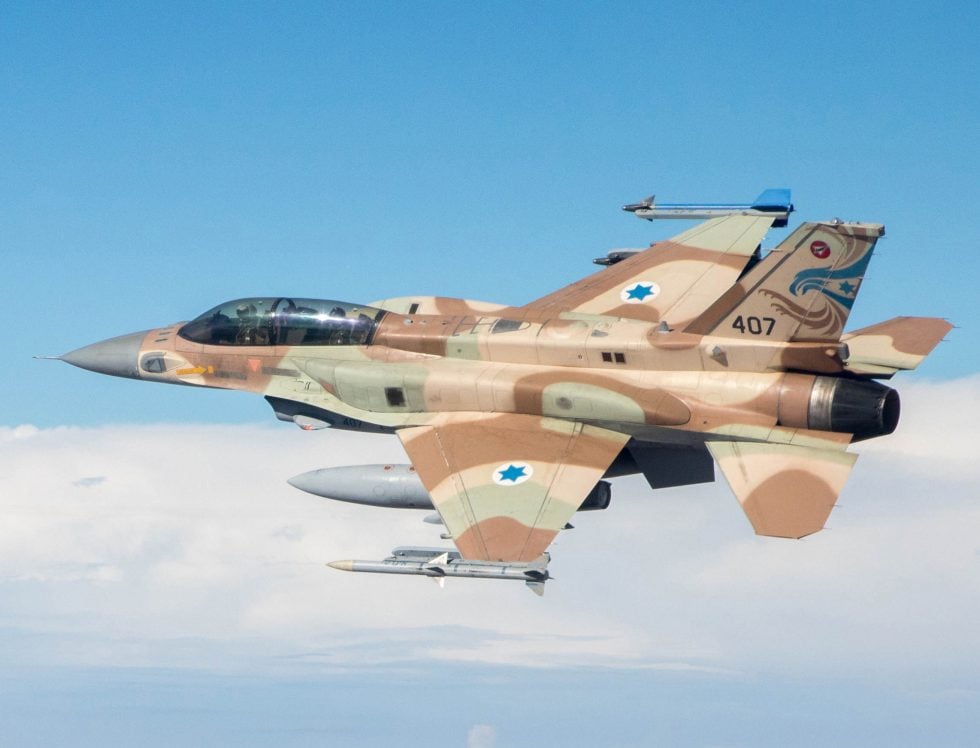

- F-16I Sufa
- Israel’s two-seat Block 52-derived strike aircraft with conformal fuel tanks, a dorsal avionics spine and extensive Israeli-developed electronic warfare, avionics and weapons integration. Optimised for long-range strike rather than air superiority.
- QF-16
- Retired F-16s converted by Boeing into full-scale aerial targets for the USAF, flown either unmanned for live-fire weapons testing or with a safety pilot. It is the closest thing the type has to a retirement plan.
Fifty years of the F-16
Lightweight Fighter program
The USAF launches the LWF program; General Dynamics (YF-16) and Northrop (YF-17) build competing prototypes.
First flight
The YF-16 makes an unplanned hop on 20 January during a taxi test, then its official first flight on 2 February.
Wins the fly-off
The YF-16 beats the YF-17 on cost, range and turn performance and is selected for production.
Enters USAF service
The F-16A joins the 388th Tactical Fighter Wing — the world’s first production fly-by-wire fighter.
Osirak
Israeli F-16s destroy Iraq’s Osirak nuclear reactor in Operation Opera — the first strike on a reactor.
Bekaa Valley
Israeli F-16s claim a large share of the kills in the lopsided air battles over Lebanon.
Gulf War
~249 U.S. F-16s fly more than 13,000 sorties — the most of any coalition aircraft type.
NATO’s first kill
Over Bosnia a USAF F-16 scores the first air-to-air kill in NATO’s history — and the first AMRAAM kill.
The Viper endures
The F-16V / Block 70/72 standard arrives with APG-83 AESA radar and new avionics, keeping the line in production.
Vipers over Ukraine
Ukraine receives its first F-16s, donated by the Netherlands, Denmark, Norway and Belgium.
From the flight line: twelve F-16 stories
Sixty seconds over Osirak
Israel’s F-16s ended Iraq’s bomb program in a minute.
Read the full story
The first fly-by-wire dogfighter
No cables, just computers.
Read the full story
Why it’s really called “Viper”
The official name never stuck.
Read the full story
Vipers over Ukraine
A Cold War lightweight joins a 21st-century war.
Read the full story

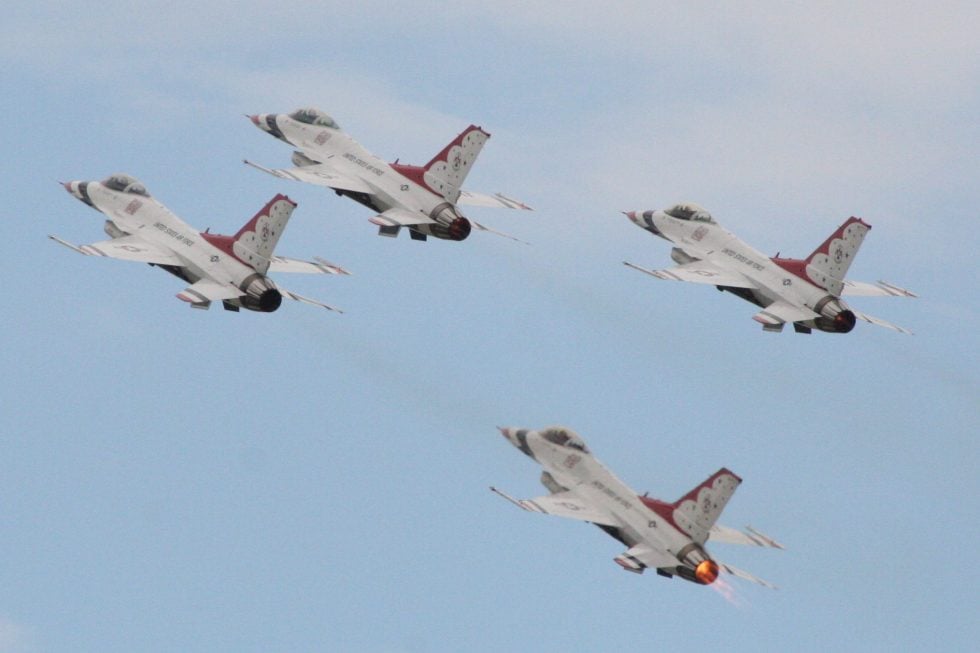

The Thunderbirds’ mount
America’s aerial ambassadors fly the Viper.
Read the full story
The best-selling Western fighter
About 4,604 built and still counting.
Read the full story
NATO’s first-ever kill
An AMRAAM opens the account.
Read the full story
Built to fight at 9 g
A reclined seat and a sidestick you barely move.
Read the full story
The accidental first flight
It flew before it was supposed to.
Read the full story
The mafia’s masterpiece
Cheap, light and lethal by design.
Read the full story
The Bekaa turkey shoot
Dozens of kills, few losses.
Read the full story
Fifth-gen radar in a fourth-gen jet
The Block 70/72 Viper.
Read the full story
The F-16 in pictures
The F-16 in motion
An official F-16 Viper feature video is being selected for this exhibit.
The F-16 Fighting Falcon in motion
Real Engineering — one of the most-watched F-16 Fighting Falcon films on YouTube.
Where the F-16 flies
Who still flies the F-16 Fighting Falcon
The F-16 is the most widely exported Western fighter ever built, and roughly two dozen air forces still operate it. The United States remains by far the largest user; after that the fleet is spread across a handful of substantial operators in Europe, the Middle East and Asia. The figures below are rounded airframes-on-charge estimates, not availability.
These are rounded estimates — to the nearest 10 or 25 — compiled from published order and delivery records and standard world air force surveys, not from any single database. Airframes on charge is not the same as aircraft available to fly: every fleet includes jets in deep maintenance, in upgrade lines or in storage, and serviceability rates vary enormously between operators. Entries marked † are the least certain: Egypt’s fleet includes a substantial number of long-stored early-block aircraft; Belgium and the Netherlands are actively drawing down as F-35s arrive, with airframes transferred onward to other users; and Ukraine’s figure is an active-conflict estimate assembled from donor announcements and is subject to both attrition and further deliveries. Denmark and Norway have retired or are retiring their F-16s entirely, and smaller fleets — Morocco, Iraq, Jordan, Bahrain, Oman, Thailand, Indonesia, Chile, Venezuela, Portugal, Slovakia, Romania, Bulgaria and others — are omitted here for clarity rather than because they do not exist.
The F-16: one of the most combat-tested fighters ever
The F-16 has fought across the Middle East, the Balkans and South Asia, from the 1981 Osirak raid to NATO’s first air-to-air kill and the 2019 India–Pakistan clash. As ever with air-combat records, published kill tallies are contested — cite them as claims, not settled scores.
Compare the combat record of every military aircraft. Figures as of July 2026.
Everything people ask about the F-16
Can I fly in an F-16?
How fast is the F-16?
Is the F-16 still in service?
Does it really have fly-by-wire?
How does the F-16 compare to the MiG-29?
Is it flying in Ukraine?
How many F-16s were built?
What does “Viper” mean?
You can’t fly the F-16.
These, you can.
Some legends only live in museums — others are fuelled and waiting. MiGFlug has put civilians in real military jet cockpits since 2004.
Fly the L-39 AlbatrosThe world’s most-flown jet trainer — aerobatics included
Fly the F-104 Starfighter“The missile with a man in it”
Fly the MiG-21The Cold War’s most-produced jet
Fly the T-33 Shooting StarAmerica’s first jet trainer
Fly the DH VampireA piece of early jet history
Fly the S.211Agile Italian jet trainer
Fly the MB-326The classic Aermacchi jet
Fly the MiG-15The Soviet legend of the Korean WarContinue the tour
Every fact, checked
- GlobalSecurity.org — F-16 SpecificationsDimensions, weights, engines, armament and production figures.
- Lockheed Martin — F-16 product pageBlock 70/72 capabilities, APG-83 AESA radar, 12,000-hour airframe and current production.
- F-16.net — YF-16: The Birth of a FighterLightweight Fighter program, YF-16 vs YF-17 and prototype history.
- F-16.net — The “Electric Jet”Fly-by-wire and relaxed static stability development.
- Aerotime — The F-16’s impromptu maiden flightFirst-flight story and dates.
- Air & Space Forces Magazine — The Viper RevolutionDesign philosophy, cockpit and sidestick, and legacy.
- Simple Flying — How the F-16 Got Its NicknameOrigin of the “Viper” nickname.
- Aerotime — Netherlands completes F-16 transfer to UkraineThe 2024 Ukraine deliveries.
