NATO’s common fighter that almost was

What makes the Fiat G.91 special

Full Fiat G.91 specifications

Baseline note: the figures below describe the G.91R/3, the single-seat ground-attack and tactical-reconnaissance version built for the Luftwaffe around the Bristol Siddeley Orpheus 803 and two 30 mm DEFA cannon. It is the right baseline for three reasons: it is the mark that was actually mass-produced, at 344 aircraft out of roughly 756 G.91s of all types; it is the mark Germany licence-built, which is where most of the type’s industrial history sits; and, handed on second-hand from Luftwaffe stocks, it is the mark that did most of Portugal’s flying. Deltas for the Italian G.91R/1, the export G.91R/4, the two-seat G.91T and the twin-engined G.91Y are in grey. Three cautions before the numbers. First, the G.91Y is not really a variant and should not be read as one. It shares the trainer’s fuselage lines and the family name and almost nothing else: two afterburning General Electric J85s in place of one Orpheus, a new wing with automatic leading-edge slats, more fuel, better avionics and half again the all-up weight. Where its figures appear below they are given as a separate aeroplane, not as a delta. Second, the G.91 did not meet the requirement it won. NBMR-1 asked for a strike fighter of no more than 2,200 kg (4,850 lb) empty and 4,700 kg (10,360 lb) gross; the production G.91R came in at 3,100 kg (6,834 lb) empty and 5,500 kg (12,125 lb) gross, 41 per cent and 17 per cent over. Fiat won by being the least compromised of the entrants, not by hitting the numbers, and every published G.91 weight should be read against that. Third, the service ceiling is genuinely disputed: Western sources commonly print 13,100 m (43,000 ft), Russian and some Italian references 12,190 m (40,000 ft), and no reconciliation is available. Both are given.

Armament & payload

The G.91 carried two cannon, four pylons and no radar, and the interesting question is not what it could lift but how little NATO ever asked it to

The G.91R/3’s armament is two 30 mm DEFA 552 revolver cannon with about 120 rounds a gun in the lower forward fuselage, four underwing pylons carrying up to 680 kg (1,500 lb), and a nose full of cameras where a radar would otherwise be. That is the whole of it. The Italian G.91R/1 and the export R/4 substituted four 12.7 mm Colt-Browning M3 machine guns with 300 rounds each — a lighter, longer-firing, considerably less destructive fit that reflected a 1953 requirement written before 30 mm revolver cannon were universal, and the R/1’s external load was capped lower still at 454 kg (1,000 lb). The stores themselves were conventional for the period: iron bombs up to 250 kg, napalm tanks, Matra and Hispano rocket pods, and provision for Nord AS-20 command-guided missiles and AIM-9B Sidewinders that almost nobody used. The twin-engined G.91Y kept the two DEFA and roughly trebled the external load to about 1,814 kg (4,000 lb), which finally made the airframe a credible attack aeroplane rather than a credible battlefield one. Gun fits, ammunition loads and pylon clearances differ by mark and by operator, and Portuguese aircraft in Africa were re-equipped from three separate German batches over sixteen years, so no single armament description covers the fleet.

What the armament reveals is the doctrine. NBMR-1 asked for a machine that could disperse to a field, be turned round by a small team, strike a target within about 280 km and come back, and it explicitly asked for tactical nuclear capability. The G.91 delivered the first three and never carried the fourth: no G.91 of any air force was ever armed with a nuclear weapon, and the nuclear clause quietly lapsed as the strike role went to aircraft that could actually reach targets in depth. What was left was a close-support and armed-reconnaissance aeroplane with the reach of an artillery duel. Germany bought it in that role and built its whole light attack force around it; Italy bought it in that role and kept it for thirty-four years; and everyone else, offered the winner of a NATO competition, bought something made at home instead.

The only sustained combat use of the type was Portuguese, in colonial wars Portugal lost, and it should be described plainly rather than admiringly. Esquadra 121 Tigres took eight G.91R/4s into Bissalanca in Portuguese Guinea in 1966 and flew them until the 1974 withdrawal, accumulating over 14,000 hours of operational flying; Esquadra 502 Jaguares and later Esquadra 702 Escorpiões operated eight aircraft each in Mozambique from late 1968 and September 1970 respectively, working out of Beira, Tete and Nacala with forward strips at Nampula, Mueda and Vila Cabral. The weapons were rockets, fragmentation bombs and napalm, delivered against guerrilla camps, supply routes and villages, and the cameras were used as much as the guns. Angola saw a token deployment of Esquadra 93 Magníficos to Luanda in late 1974 that flew roughly one combat sortie before the whole colonial structure collapsed. The Portuguese Air Force lost seven G.91s in Guinea and one in Mozambique. Losses to insurgent action were rare until PAIGC and FRELIMO received Soviet 9K32 Strela-2 shoulder-launched missiles — the SA-7 Grail — in 1973, after which the type became acutely vulnerable: 5413 on 25 March 1973, 5419 on 28 March 1973 and 5437 on 31 January 1974 were all brought down by missiles, and Portuguese pilots were forced into higher, less accurate delivery profiles for the rest of the war. That is the honest summary of the G.91 in combat: effective against an enemy with rifles, largely neutralised by an enemy with a man-portable heat-seeker.

Sourcing caveat: gun and ammunition figures are taken from Fiat and Luftwaffe data for the R/3 and from Portuguese Air Force accounts for the R/4; stores clearances are compiled from published specification tables that frequently list capability rather than practice, and the four-Sidewinder figure in particular should be read as a clearance, not a load. Portuguese loss dates, serials and causes follow Portuguese Air Force records as published; the aircraft-by-aircraft attribution of losses between Strela missiles, ground fire and mechanical failure is disputed in some cases and no independent audit of the Guinea campaign exists.

Variants

Fiat won a NATO competition to standardise Western Europe on one strike fighter, and Western Europe responded by buying its own aircraft instead

NBMR-1 was issued in December 1953 and it was, on paper, one of the most sensible documents NATO ever produced. It asked for a lightweight tactical strike fighter that could operate from grass, roads and pierced steel planking with minimal ground support, reach Mach 0.95, strike a target about 280 km away with ten minutes on station, carry four 12.7 mm or two 20–30 mm guns, protect its pilot and its fuel with armour, and be built in quantity by a common European production programme. The logic was that dispersal was the only answer to a Warsaw Pact first strike on NATO’s airfields, and that standardisation was the only answer to European industrial fragmentation. Eight designs were submitted. The finalists were the Breguet Br.1001 Taon, the Fiat G.91 and the Dassault Mystère XXVI, later the Étendard VI — and all three chose the same Bristol Orpheus engine, its development part-funded by the United States.

The competition history is messier than the outcome suggests, and it is routinely told wrong. The initial technical assessment announced on 30 June 1955 placed the Taon first, the G.91 second and the Dassault third; it was on that basis that France expected to win. But it was Fiat that received the development contract for three prototypes and twenty-seven pre-production aircraft, and Italy that ordered the aeroplane before the competition had concluded. The first prototype flew at Turin on 9 August 1956 with Riccardo Bignamini at the controls and was destroyed on 20 February 1957 by a horizontal-tail control failure — a loss France cited when it decided to press on with the Étendard VI regardless of the competition. The comparative flying trials took place at Brétigny-sur-Orge in September 1957, the G.91 was declared the winner in January 1958, and NATO defence ministers endorsed it in April. Then the programme did what NATO procurement programmes do. Britain ignored the whole exercise and went on building Hunters. France built the Étendard IV for its navy, from which the Super Étendard eventually descended, and served with it until 2016 — a better afterlife than the winner had. Greece and Turkey evaluated the G.91R/4 and chose American aircraft. Norway, Austria and Switzerland looked and declined. The United States Army evaluated four aircraft in 1961 for forward air control and the Air Force ten more in 1961–62, and inter-service politics over who was allowed to own fixed-wing close support killed any prospect of an American order.

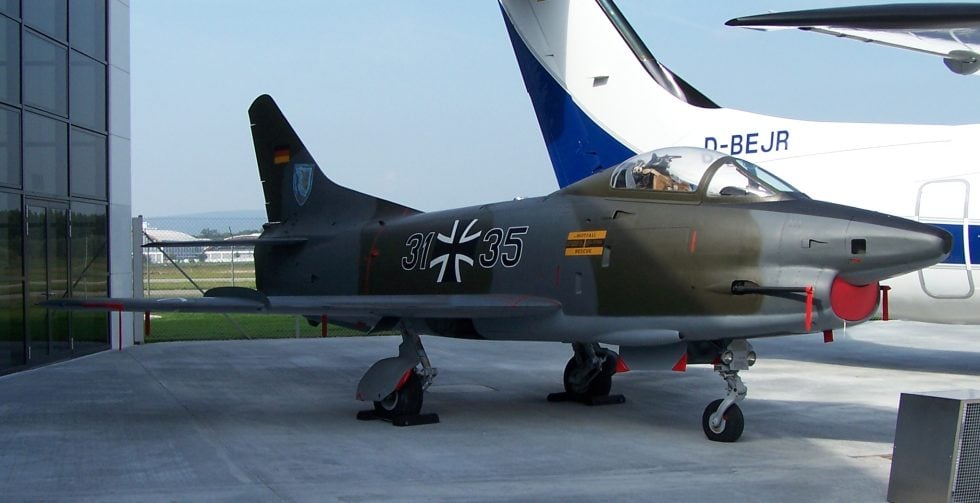

What saved the programme was West Germany, and the reason was industrial rather than tactical. The Luftwaffe ordered the largest G.91 fleet of anyone — 50 Fiat-built R/3s followed by 294 built in Germany, plus 66 two-seaters — and the German aircraft were assembled by a consortium in which Dornier took the centre fuselage, final assembly and flight testing at Oberpfaffenhofen, Messerschmitt the forward fuselage and tail, and Heinkel the wing. The first German-built aircraft flew on 20 July 1961 and production ran to 1966 for the R/3 and into the early 1970s for the trainers. For an aircraft industry rebuilding itself after fifteen years of prohibition, the G.91 was less a weapon than a training programme: it is the aeroplane on which Dornier, Messerschmitt and Heinkel relearned modern series production, and the direct institutional ancestor of the Dornier half of the Alpha Jet that replaced it.

Italy’s G.91 had a second career nobody planned. In 1963–64 sixteen pre-production airframes were stripped of guns, ammunition boxes and cameras, fitted with smoke generators and handed to the Pattuglia Acrobatica Nazionale, which had formed at Rivolto on 1 March 1961 flying F-86Es. The G.91PAN gave the Frecce Tricolori the aeroplane the team is still identified with: nine aircraft plus a soloist, roughly 1,500 flying hours a year, and serviceability in excess of 90 per cent from an airframe designed to be maintained in a field. The team flew it until 1982, when the MB-339A took over. More people have seen a G.91 in a Frecce Tricolori display than have ever seen one carry a weapon, and the 1988 Ramstein disaster — frequently misattributed to the type — happened six years after the team had given up its G.91s.

G.91 prototypes and pre-production (1956–1959, 3 prototypes and 27 pre-production)

First flight 9 August 1956 at Turin. Orpheus 801 of 20.11 kN (4,520 lbf); the first aircraft lost on 20 February 1957 to a horizontal-tail control failure. The pre-production batch first flew on 20 February 1958 and provided the airframes later converted for the Frecce Tricolori.

G.91R/1, R/1A and R/1B (1958–1964, ~100 for Italy)

The Italian production standard: four 12.7 mm Colt-Browning M3, three nose cameras, 454 kg (1,000 lb) external load, Orpheus 803. The R/1A brought revised navigation instrumentation to a partly American standard, the R/1B a strengthened airframe and undercarriage after early fatigue findings. Entered operational service 1961.

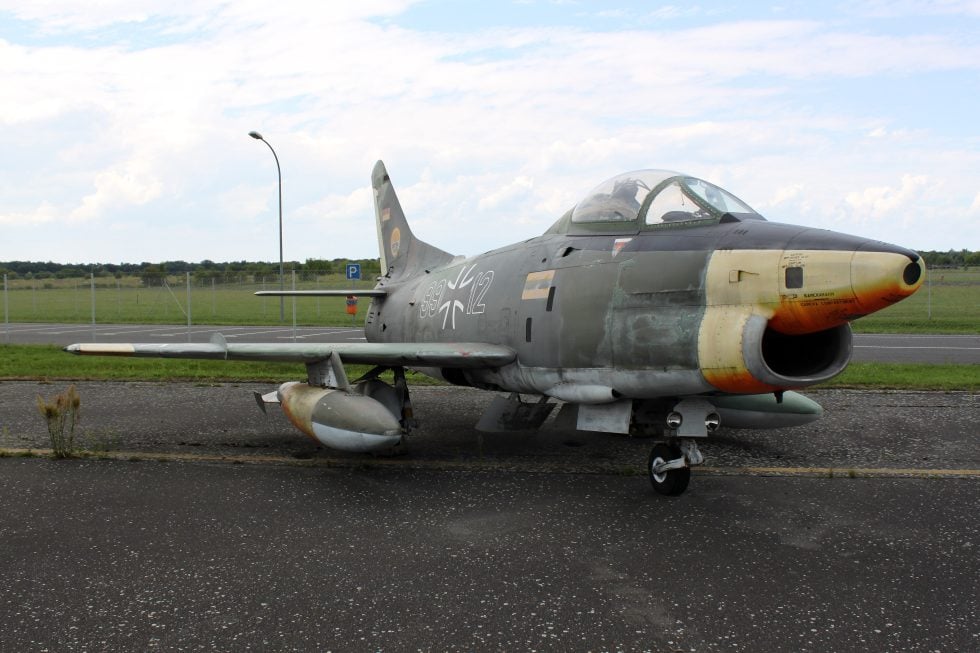

G.91R/3 (1959–1966, 344: 50 Fiat-built plus 294 built in Germany)

The definitive mark and the baseline here. Two 30 mm DEFA 552 in place of the machine guns, 680 kg (1,500 lb) external load, uprated electrics, revised navigation fit and, on some aircraft, an arrester hook. First German-built example flew from Oberpfaffenhofen on 20 July 1961.

G.91R/4 (1961–1962, 50 built)

Built against a Mutual Aid order for Greece and Turkey, who both then chose American aircraft. Four 12.7 mm guns as on the R/1 but the R/3’s 680 kg (1,500 lb) load and structure. Ten went to the Luftwaffe, forty to Portugal in 1965–66 — and it is this orphaned batch, built for two air forces that did not want it, that became the only G.91 to fight.

G.91T/1 and G.91T/3 (1960–1973, ~76 and 66)

The two-seat operational trainer: 1.38 m longer, a taller fin, a larger wing of 18.13 m² and a stepped tandem canopy, with a reduced gun fit and the full pylon set retained for weapons training. T/1 for Italy from 1964, T/3 for the Luftwaffe with 44 built by Fiat and 22 in Germany from 1971 to 1973. It is the T airframe, not the R, that the G.91Y was built from.

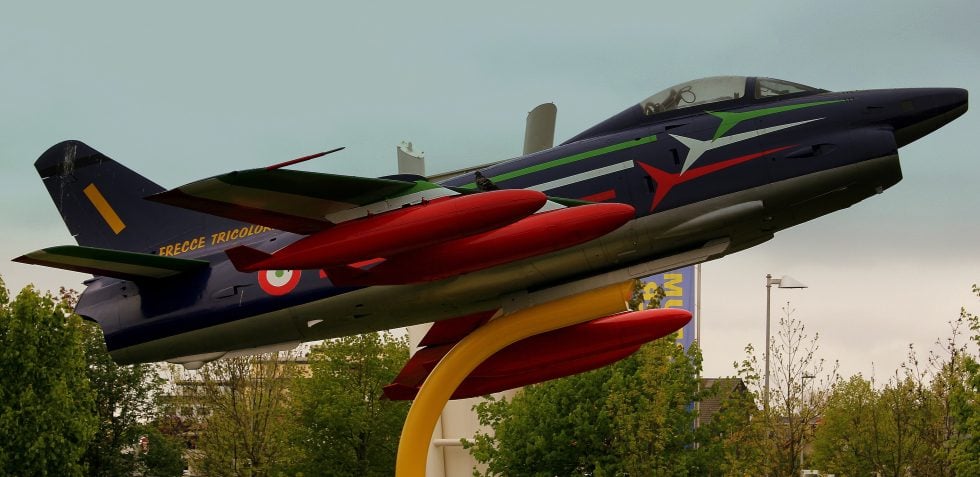

G.91PAN (1963–1964, 16 conversions)

Pre-production airframes stripped of armament, ammunition boxes and camera fit, fitted with a smoke generation system and coloured-dye tanks for the Frecce Tricolori. Flown by the team from 1964 until the MB-339A replaced it in 1982, with availability above 90 per cent and about 1,500 hours a year on the fleet.

G.91Y (1966–1976, 67: 2 prototypes, 20 pre-series, 45 series)

Close to a different aeroplane. The trainer fuselage retained, the single Orpheus replaced by two afterburning General Electric J85-GE-13As for about 60 per cent more thrust, automatic leading-edge slats, more fuel, a lightened structure and a genuinely modern nav-attack fit. First flight 27 May 1966 (widely also given as 12 December 1966 for the second aircraft); in service from July 1968 with 101º Gruppo at Cervia and from 1974 with 13º Gruppo at Brindisi.

G.91YS (1970, prototype only)

Developed against a Swiss requirement, first flown 16 October 1970: a fifth pylon, improved AIM-9 Sidewinder provision and upgraded avionics. Switzerland bought nothing, and neither did anyone else.

Unbuilt projects: G.91R/5, R/6, T/4, G.91YT (1959–1970s, none built)

A long-range R/5 for Norway, an improved R/6 for Italy, a T/4 with F-104G instrumentation to serve as a Starfighter lead-in trainer, and a two-seat conversion trainer version of the twin. Every one of them died for want of an order, which is the story of the type in miniature.

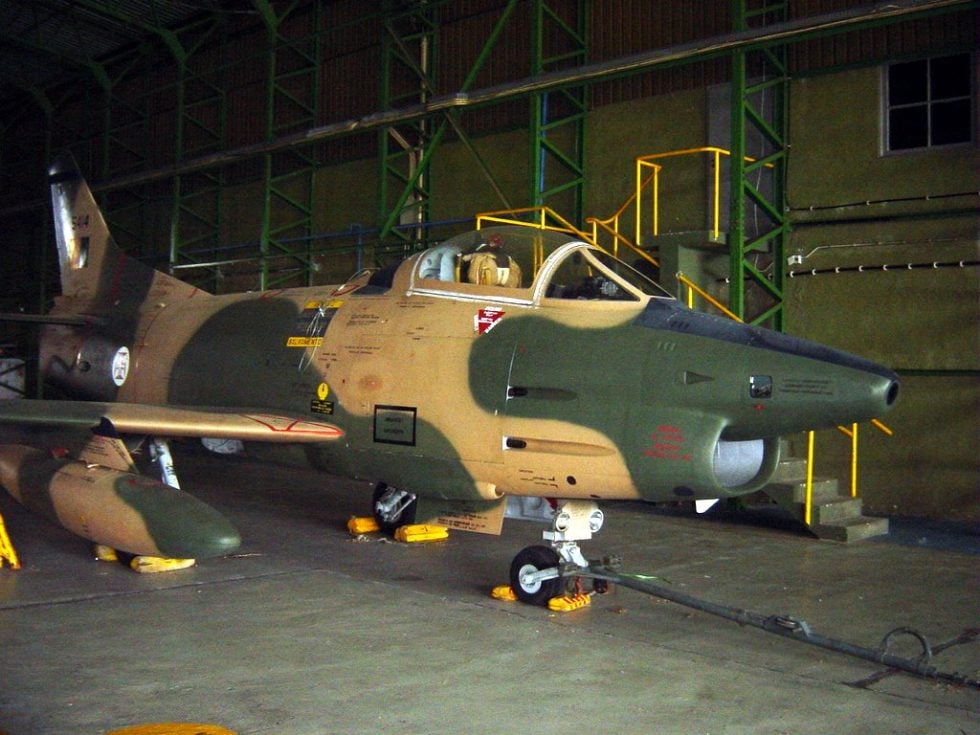

Ex-Luftwaffe transfers to Portugal (1976–1982, 94 aircraft)

Not a variant but the most consequential re-designation in the type’s history. As Germany retired its fleet, Portugal took 94 surplus R/3s and T/3s at nominal cost; only around 44 were made operationally useful and the rest were cannibalised or used for ground instruction. These aircraft equipped Esquadra 301 Jaguares at Montijo and Esquadra 303 Tigres, flew in NATO Tiger Meets in 1980 and 1985, and kept the type in front-line European service for another decade after its combat career had ended.

Closing note on survivors and disposition. Around 756 G.91s of all marks were built between 1956 and 1977, and the surviving population is unusually large for a type of its age because three air forces retired substantial fleets in the same decade rather than losing them piecemeal. Portugal preserves the most: approximately 46 airframes in museums, on air base gate plinths, in public parks and in storage, including examples at Sintra air base, at the Museu do Ar and at Jardim Gil Eanes in Portimão — all of them originals, most of them ex-Luftwaffe R/3s and T/3s that reached Portugal after 1976, and several of them Guinea and Mozambique veterans. Germany holds a large number, notably at the Luftwaffenmuseum der Bundeswehr at Berlin-Gatow, at the Flugwerft Schleissheim of the Deutsches Museum, and on plinths at former Luftwaffe stations; the Bundesluftwaffe wrote off 70 aircraft in twenty-two years of operation, a loss rate that was regarded at the time as good. Italy preserves G.91Rs, G.91Ts, G.91Ys and, most visibly, Frecce Tricolori G.91PANs at the Museo Storico dell’Aeronautica Militare at Vigna di Valle, the Museo Nazionale della Scienza e della Tecnologia in Milan and on gate guardian duty at air force stations across the country. Single aircraft are held further afield, including one at the Malta Aviation Museum at Ta’ Qali. Every survivor is an original airframe: no G.91 replica or reproduction has ever been built, there being neither a market nor a reason. Critically, none of them flies. No G.91 of any mark is known to be maintained in airworthy condition anywhere in the world, and none has been civil-registered and returned to flight in the way that Gnats, Hunters and L-39s routinely are — a consequence of a bespoke Italian-built Orpheus with no civil support chain and an ejection seat and armour fit that make the type awkward to certify. The last flights were, in order: the last Luftwaffe G.91 in 1982; the last Italian G.91R at Treviso on 9 April 1992; the last Portuguese aircraft on 15 June 1993, after twenty-seven years and more than 75,000 flying hours; the last Italian G.91Y in 1994 as the AMX replaced it; and the last Italian G.91T in 1995, closing thirty-four years of Italian service and the operational history of the type.

From NATO contest to Cold-War workhorse

From the flight line: twelve Fiat G.91 stories

The Fiat G.91 in pictures

‹›

The Fiat G.91 in motion

A featured Fiat G.91 video is coming soon. In the meantime, explore the gallery above and the twelve stories for the full picture of NATO’s little strike fighter.

The G.91 in motion

Military Aviation History — one of the most-watched G.91 films on YouTube.

Where the Fiat G.91 flew

The war the Gina actually fought

Italy and West Germany kept the G.91 poised for a NATO war in Europe that never came — neither ever fired it in anger. The type’s only sustained combat was Portuguese: from 1966 the Portuguese Air Force flew the Gina in close-air-support and strike missions during the colonial wars in Guinea, Mozambique and Angola. It is a difficult chapter, recorded here as history — the little jet met heavy ground fire and, in Guinea, some of the first shoulder-launched anti-aircraft missiles ever used in combat.

Compare the combat record of every military aircraft. Figures as of July 2026.
