Lockheed C-141 Starlifter — History, Specs & Stories

C-141
Aircraft Museum · Transport · C-141

Lockheed C-141 Starlifter
The First Jet Airlifter

The first jet designed from the outset as a military transport, the C-141 turned American airlift into a jet-age global network, flew the wounded home from Vietnam and brought the prisoners of war out of Hanoi.

1963First flight
284Aircraft built
43 yearsIn service, 1965–2006
23 ftAdded by the C-141B stretch

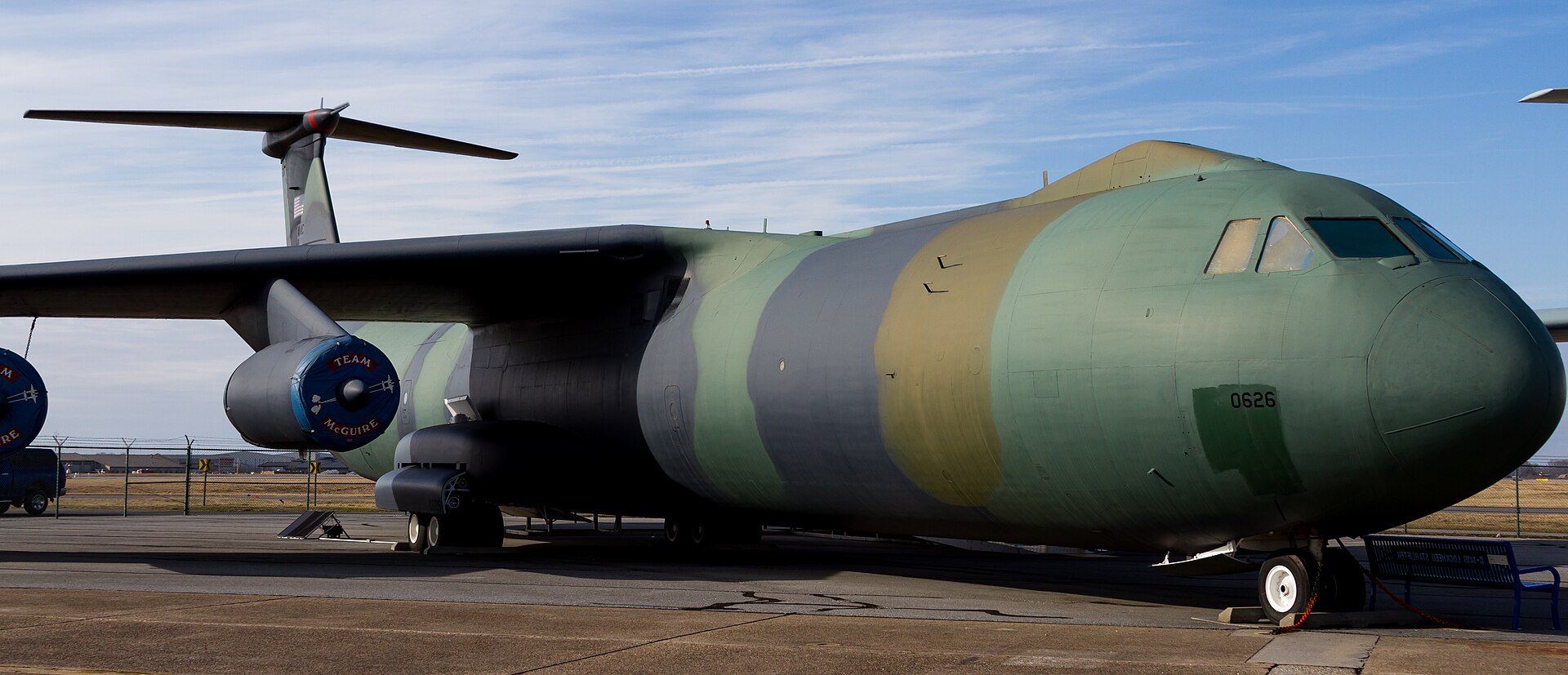

Photo: Balon Greyjoy / CC0 via Wikimedia Commons
RoleStrategic jet transport and aeromedical evacuationEra1965 to 2006Engine4 × Pratt & Whitney TF33-P-7 turbofansOriginUSA · Lockheed, Marietta, GeorgiaStatusRetiredWant to fly a real military jet?

The Story

The C-141 Starlifter: how America’s airlift went jet

At the start of the 1960s, American military airlift still meant piston-engined C-124 Globemasters and C-133 Cargomasters, slow, noisy and unable to keep pace with the jet fighters and bombers they supported. President John F. Kennedy made an all-jet military transport one of the early directives of his administration, and Lockheed’s Marietta, Georgia, plant won the contract with a design that set the pattern for every heavy airlifter since: a high, swept wing, four podded turbofans, a T-tail and a fuselage at truck-bed height with a rear ramp. On 22 August 1963 Kennedy unveiled the first aircraft by remote control from the White House, and it flew on 17 December 1963, the 60th anniversary of the Wright brothers’ first flight.

Lockheed delivered on schedule and under budget, and the Starlifter entered squadron service in 1965, just as the war in Vietnam was escalating. It cut the round trip from California to Saigon from 95 hours by piston transport to about 34, according to Lockheed Martin. Outbound, the C-141s carried troops, ammunition and equipment; on the way home they became flying hospitals, bringing wounded servicemen back to the United States for treatment. In February 1973 a C-141 landed in Hanoi to collect the first American prisoners of war released under the Paris peace accords, and Starlifters went on to bring nearly 600 home in Operation Homecoming.

Its only real weakness was that its cargo floor filled up before the aircraft reached its weight limit. From 1977 to 1982 the fleet was stretched by about 23 ft and given air-to-air refuelling, becoming the C-141B, with roughly a third more capacity. Starlifters flew into Grenada, Panama and the Gulf, where during Desert Shield one landed in Saudi Arabia about every seven minutes. A modernised C-141C served with the Reserve and Air National Guard after active-duty units moved to the C-17. The last Starlifter, the famous “Hanoi Taxi”, made its final flight in May 2006 after 43 years of service by the type.

Kennedy ordered it, Lockheed delivered it early, and it carried the POWs home from Hanoi.The jet-age airlifter — 1963 to 2006
01The C-141 in Vietnam: out with cargo, home with the wounded

The Starlifter arrived just as the American commitment in Vietnam multiplied, and it quickly became the backbone of the Pacific air bridge. Military Airlift Command scheduled C-141s through Hawaii, Guam, Okinawa and the Philippines to bases such as Tan Son Nhut, Cam Ranh Bay and Da Nang, carrying troops, spare parts, ammunition and anything else that needed to arrive fast. Its jet speed shrank the Pacific: Lockheed Martin records that the round trip from California to Saigon fell from 95 hours to 34.

The return flights mattered just as much. C-141s were fitted with litter stanchions and carried flight nurses and medical technicians, turning the cargo hold into an aeromedical evacuation ward. Wounded servicemen who had been stabilised in Vietnam or Japan could be in a hospital in the United States within days. The aircraft also carried the war dead home. For a generation of Americans, the Starlifter was the aircraft that took them to Vietnam and, for many, the one that brought them back.

02The C-141 and Operation Homecoming: the Hanoi Taxi

Under the Paris Peace Accords of January 1973, North Vietnam agreed to release American prisoners of war. On 12 February 1973, the first C-141s landed at Gia Lam airport in Hanoi to collect them, with aircraft 66-0177 among the first to make the flight. Prisoners, some held for more than seven years, walked across the tarmac to the waiting transports, some on crutches or stretchers, to begin the journey home. Over the following weeks Starlifters brought nearly 600 men out of Hanoi and from other release points, via Clark Air Base in the Philippines to the United States.

Aircraft 66-0177 became known as the Hanoi Taxi. It served on into the 2000s, upgraded to C-141C standard, and was kept as a flying memorial with signatures from former POWs inside. On 6 May 2006 it made the last flight of any C-141, to Wright-Patterson Air Force Base, Ohio, where it joined the National Museum of the United States Air Force.


Design & Engineering

What makes the C-141 Starlifter special

01

The template for heavy airlift

The C-141 defined the modern military jet transport. Its high wing kept the engines clear of debris and let the fuselage sit low, so the cargo floor was at the height of a truck bed and vehicles could drive up a short ramp. The T-tail kept the rear clear for loading and airdrops. The Il-76, C-5 and C-17 all follow the same layout, and the C-141 was the first jet aircraft designed from the start to meet military standards as a troop and cargo carrier.

02

Stretched to fit

The C-141A could often fill its hold before reaching its maximum take-off weight. Lockheed’s answer was to insert fuselage plugs ahead of and behind the wing, lengthening it by about 23 ft, and to add an aerial refuelling receptacle above the cockpit. The C-141B’s capacity rose by about a third, and with in-flight refuelling it could fly non-stop around the world. Nearly the whole fleet was converted between 1977 and 1982.

03

A flying observatory

One early C-141A was converted by NASA into the Kuiper Airborne Observatory, carrying a large infrared telescope that looked out through an opening in the fuselage. Flying above most of the water vapour in the atmosphere, it allowed astronomers to observe at wavelengths blocked from the ground. Lockheed Martin credits it with contributing to the discovery of the rings of Uranus, and it served science for about two decades.

03The C-141’s variants: from A to C
  • C-141A: original production version, 284 built for the US Air Force.
  • NC-141A: test and research aircraft, including the Kuiper Airborne Observatory and 61-2775, used to tow a QF-106 in NASA’s Eclipse project in 1997–98.
  • C-141A (SOLL): aircraft modified for special operations low-level missions.
  • C-141B: stretched by about 23 ft with aerial refuelling; nearly the whole fleet converted from 1977 to 1982.
  • C-141C: C-141Bs upgraded in the late 1990s with digital flight systems, GPS and improved defensive systems, flown mainly by Reserve and Guard units.
  • L-300: civil demonstrator; no airline orders followed.

Technical Data

Lockheed C-141B Starlifter specifications

Specifications

Crew
5 to 6 (two pilots, two flight engineers, loadmaster, navigator on many missions); medical crew on medevac flights
Length
51.29 m (168 ft 4 in)
Wingspan
48.74 m (159 ft 11 in)
Height
11.96 m (39 ft 3 in)
Max take-off weight
155,600 kg (343,000 lb)
Powerplant
4 × Pratt & Whitney TF33-P-7 turbofans, 21,000 lbf (93 kN) each
Maximum speed
about 909 km/h (565 mph)
Range
about 5,800 km (3,600 mi) with a 50,000 lb load, per the AMC Museum; air refuellable (C-141B)
Service ceiling
about 12,500 m (41,000 ft)
Capacity
C-141B: about 200 troops, 155 paratroops or 103 litter patients
Cargo hold
93 ft (28.3 m) long on the C-141B

Costs & production

Cost per flight hour
Retired; hedged historical estimate of roughly US$5,000–8,000 an hour in 1990s money, based on fuel burn for four TF33 engines of very roughly 6–7 tonnes an hour plus crew and maintenance; treat as an order of magnitude
Production
284 built at Marietta, Georgia
Programme
Contract 1961; first flight 1963; service 1965–2006; C-141B stretch 1977–1982
04The C-141’s operating costs: a cheap jet for its day

Lockheed delivered the C-141 programme on schedule and under budget, a rarity among major aircraft programmes of the era and a sharp contrast with the C-5 that followed. The Starlifter’s TF33 engines, of the same family as the B-52H’s engines, were well understood, and the aircraft was simple to maintain by later standards.

As the fleet aged, costs rose. By the 1990s the airframes had accumulated very high flying hours, and fatigue cracking in the wings forced restrictions and expensive repairs; this was a key reason for retiring the fleet in favour of the C-17. With the type now retired, any hourly figure is historical. We give a hedged order-of-magnitude estimate of US$5,000 to 8,000 per hour in 1990s money, based on fuel burn plus crew and maintenance; actual Air Force accounting figures varied with year and method.


Timeline

The C-141 Starlifter from Kennedy’s order to the Hanoi Taxi

1961

All-jet airlifter ordered

Kennedy directs the procurement of a jet military transport; Lockheed wins.

1963

Unveiling and first flight

Kennedy unveils the C-141 on 22 August; it flies on 17 December.

1965

Into service

The Starlifter begins operations, quickly flying to Vietnam.

1973

Operation Homecoming

C-141s bring nearly 600 American POWs out of Hanoi and other release points.

1975

Fall of Saigon

C-141s evacuate Americans and Vietnamese refugees.

1977

Stretch begins

Conversion to the longer, air-refuellable C-141B begins, completed in 1982.

1983

Beirut

A C-141 carries 78 wounded from the bombing of the Marine barracks in Beirut.

1990

Desert Shield

C-141s land in Saudi Arabia about every seven minutes at the height of the build-up.

1997

Namibia collision

A C-141B collides with a German Tu-154 off the Namibian coast.

2004

Active duty ends

The last active-duty C-141 retires at McGuire Air Force Base in September.

2006

Last flight

The Hanoi Taxi flies to the National Museum of the USAF on 6 May.


Stories & Eyewitnesses

Stories & eyewitnesses: the C-141 Starlifter

People

Kennedy presses the button

A president unveils a transport by remote control.

Read the full story
On 22 August 1963, President Kennedy, at the White House, pressed a button that opened the hangar doors at Lockheed’s Marietta plant hundreds of miles away to reveal the first C-141. He called it a great moment for the nation. It was the first aircraft to emerge from the jet transport directive he had issued at the start of his presidency, and three months later he was dead. The Starlifter served for more than four decades after his assassination.
Humanitarian

Hanoi, 12 February 1973

The first POWs walk to freedom.

Read the full story
When C-141s landed at Gia Lam airport in Hanoi on 12 February 1973, the first group of American prisoners of war walked across the tarmac in prison-issue clothing to meet them. Among the aircraft was 66-0177, later known as the Hanoi Taxi. Over the following weeks Starlifters carried nearly 600 POWs to freedom, many of whom had been held since the mid-1960s. Signatures of former prisoners were later added inside the aircraft, which became a flying memorial.
Survivor

The Hanoi Taxi at Dayton

The last flight of any C-141.

Read the full story
On 6 May 2006, C-141C 66-0177 flew its final mission and landed at Wright-Patterson Air Force Base in Ohio, ending the type’s service. It was handed to the National Museum of the United States Air Force, where it is displayed today. It is the most visited survivor of the type, and its interior preserves the signatures and memorabilia of the men it brought home from Hanoi more than three decades earlier.
Survivor

The first Starlifter, the glider tug

61-2775 at the AMC Museum.

Read the full story
The first of 284 C-141s, 61-2775, flew on 17 December 1963 and spent its whole life as a test aircraft. In 1997–98 it took part in NASA’s Eclipse project, towing a QF-106 on six flights to prove the idea of a towed reusable launch vehicle, making it, according to the Air Mobility Command Museum, the only known four-engine jet to tow a glider. It is now on display at the museum at Dover, Delaware.
Record

Rings around Uranus

A Starlifter in the history of astronomy.

Read the full story
NASA’s Kuiper Airborne Observatory, a converted C-141A, carried a large telescope above most of the atmosphere’s water vapour. In 1977 astronomers aboard watched a star pass behind Uranus and saw its light flicker repeatedly before and after the planet, revealing a system of rings. Lockheed Martin credits the aircraft with contributing to that discovery. The observatory flew for about two decades and paved the way for NASA’s later SOFIA flying telescope.
Humanitarian

Beirut, 1983

The wounded from the Marine barracks.

Read the full story
After the truck-bomb attack on the US Marine barracks in Beirut on 23 October 1983, which killed 241 American servicemen, C-141s flew aeromedical evacuation missions to bring the wounded to hospitals in Europe. Lockheed Martin records that a C-141 carried 78 wounded. Two years later a C-141 carried 39 freed American hostages of the TWA Flight 847 hijacking to safety, another of the many crisis missions that defined the Starlifter’s career.
Accident

Off Namibia, 1997

A mid-air collision over the South Atlantic.

Read the full story
On 13 September 1997 a US Air Force C-141B, returning from a mission in southern Africa, collided with a German Air Force Tu-154M over the Atlantic off the coast of Namibia. All 33 people aboard the two aircraft were killed: nine on the Starlifter and 24 on the Tupolev. The collision happened in airspace with limited air traffic control coverage, and the investigation found the German aircraft had been flying at an altitude that did not match its flight plan.
Combat

Every seven minutes

The Starlifter in the Gulf build-up.

Read the full story
In August 1990, after Iraq invaded Kuwait, the United States began the largest airlift since the Second World War. C-141s carried a large share of the troops and equipment flown to Saudi Arabia, and Lockheed Martin records that at the height of Operation Desert Shield one landed there about every seven minutes. The effort placed heavy strain on airframes that were already old, accelerating the fatigue problems that later shortened the fleet’s life.

Gallery

The C-141 in pictures

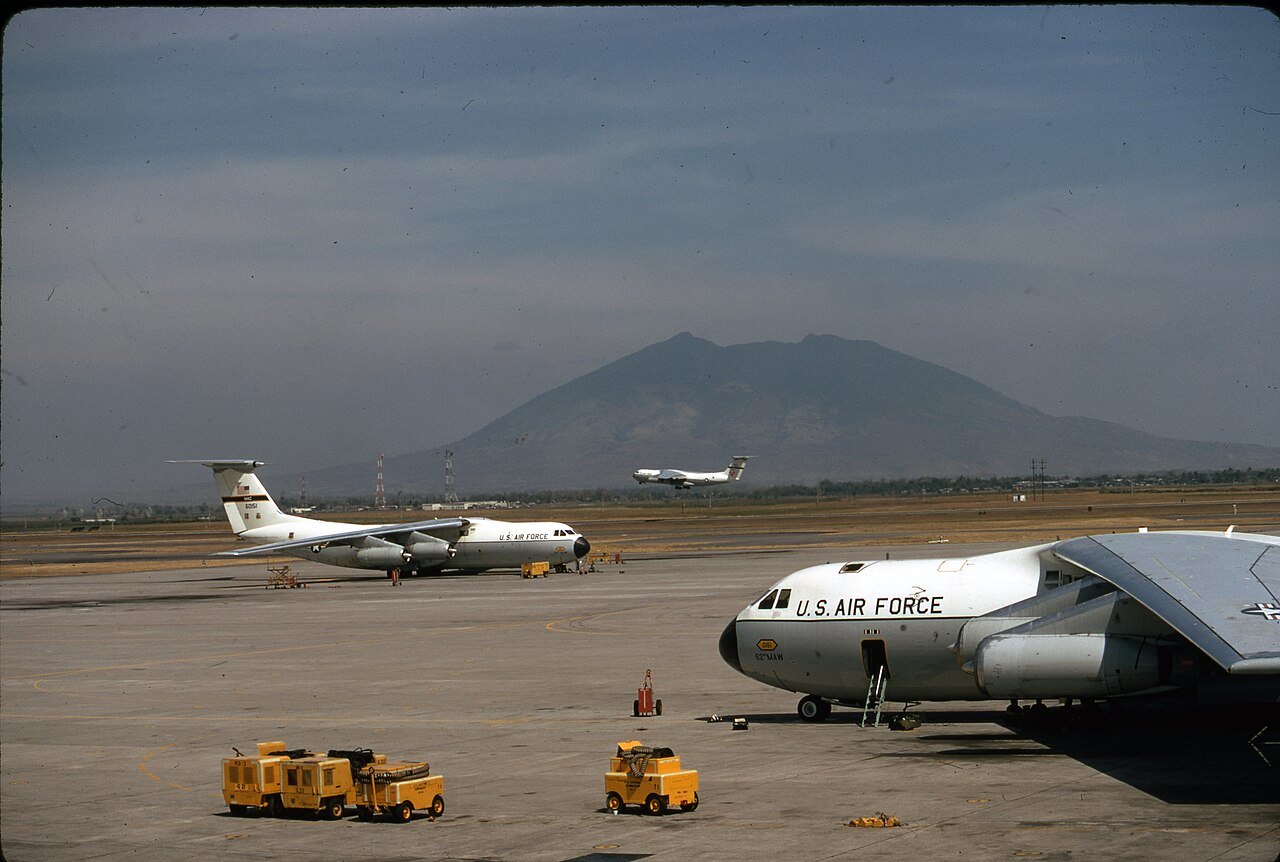

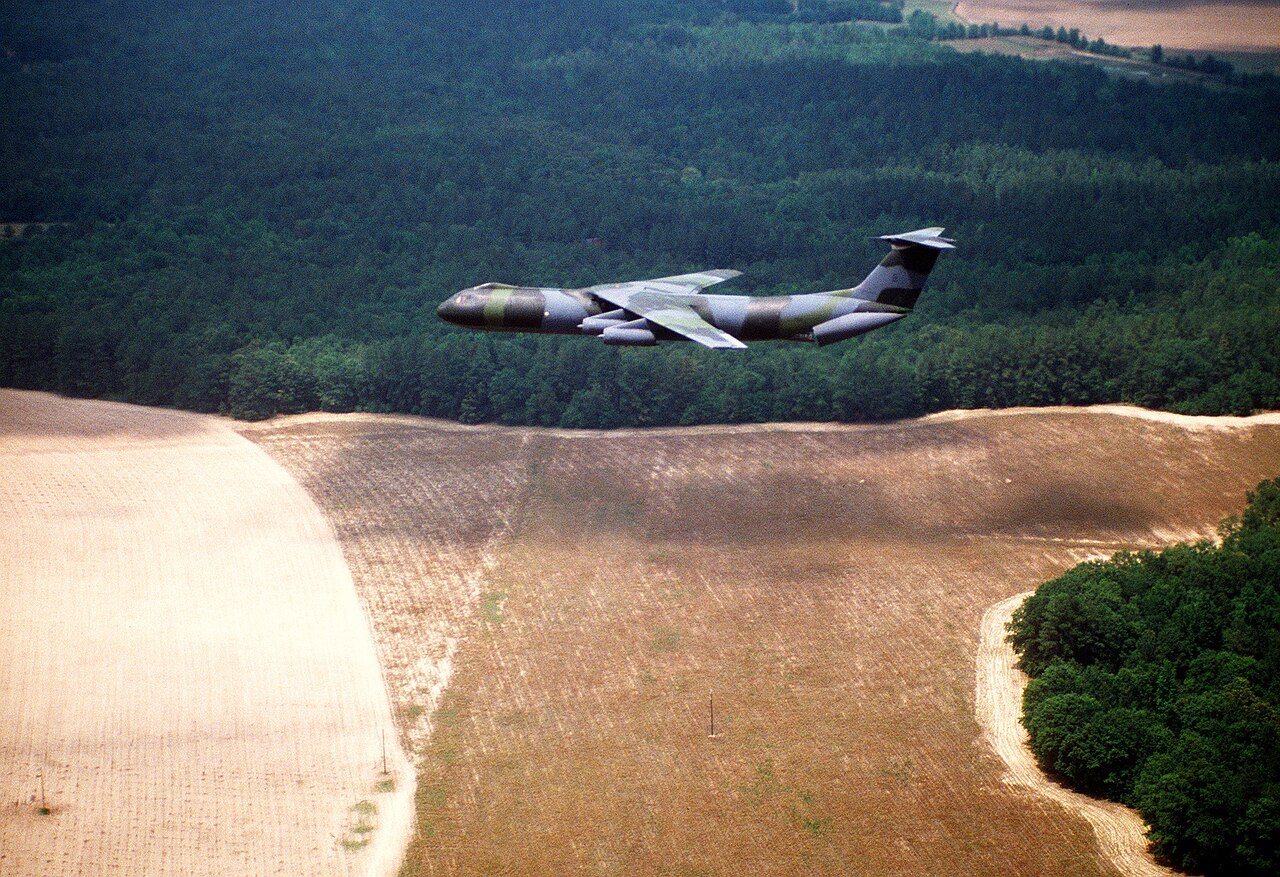

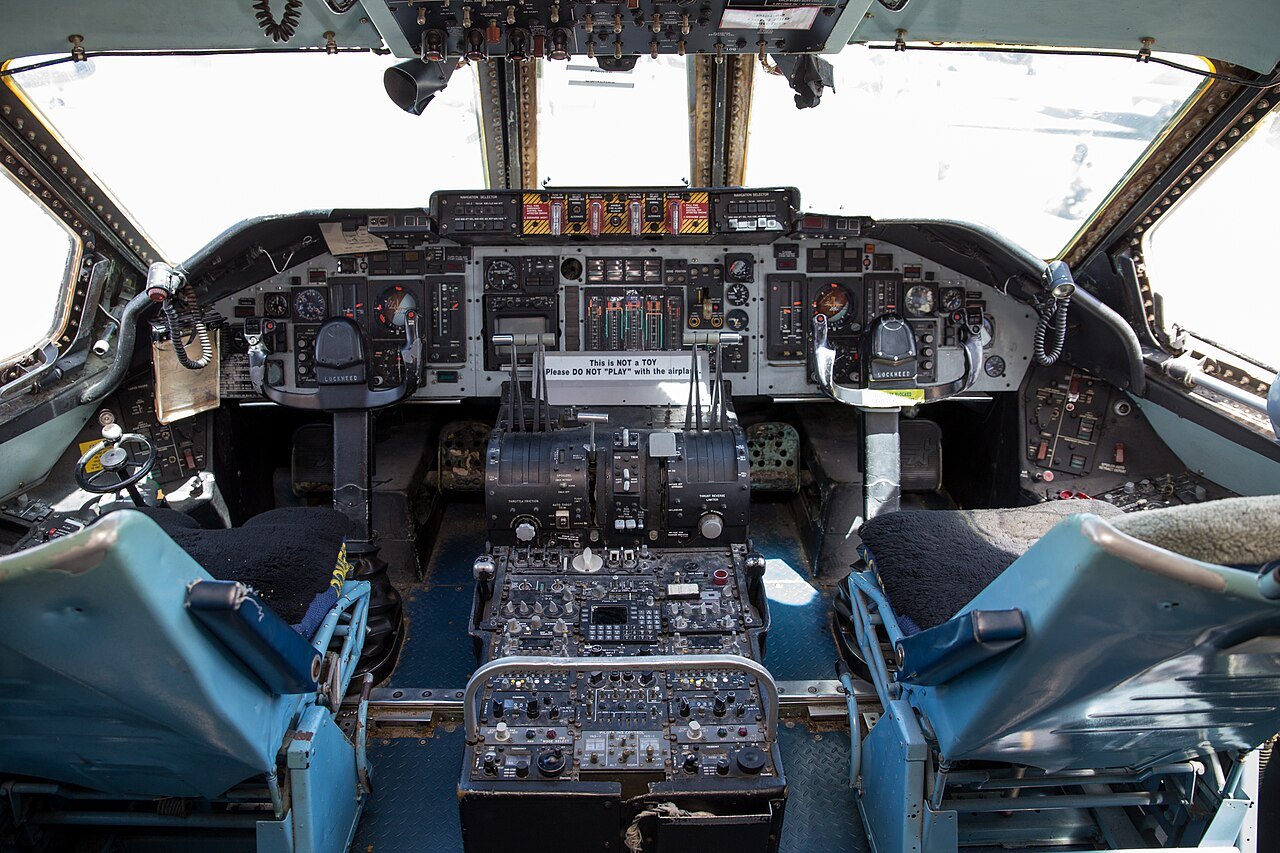

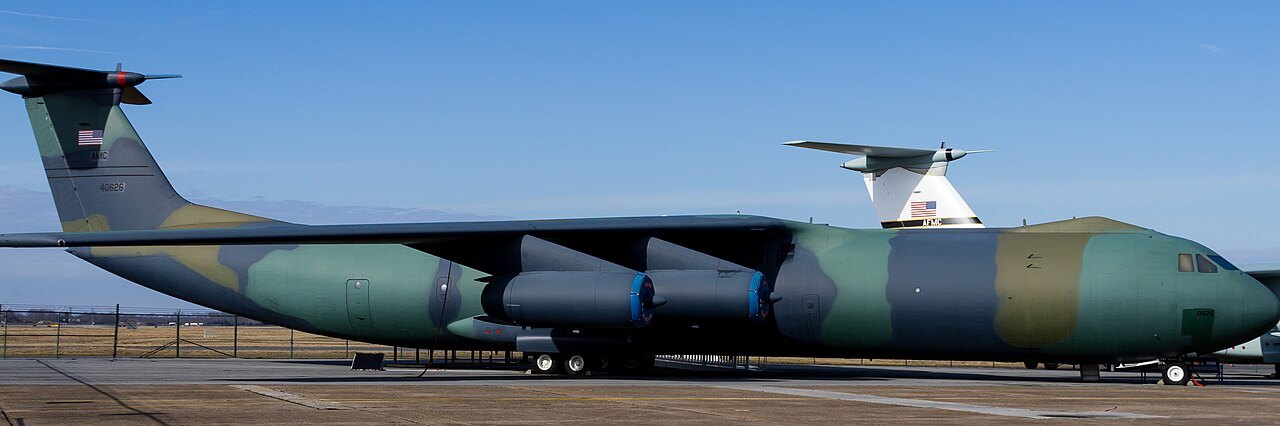

C-141
C-141Photo: Department of Defense. American Forces Information Service. Defense Visual Infor / Public domain via Wikimedia Commons
C-141
C-141Photo: Defense VI Records Center / Public domain via Wikimedia Commons
C-141
C-141Photo: Balon Greyjoy / CC0 via Wikimedia Commons
C-141
C-141Photo: Clemens Vasters from Viersen, Germany, Germany / CC BY 2.0 via Wikimedia Commons

Operations

Where the C-141 flies and flew


Service Record

The C-141 Starlifter’s record

The C-141 was an unarmed transport, but its 43-year career ran from Vietnam through Grenada, Panama and the Gulf War to Kosovo and Iraq. It is remembered above all for aeromedical evacuation and for bringing the prisoners of war home in 1973. Its service record is measured in people and cargo carried rather than combat.

c. 600American POWs flown home in Operation Homecoming
95 h to 34 hCalifornia–Saigon round trip, piston vs C-141
7 minLanding interval in Saudi Arabia at the peak of Desert Shield

See how training and combat types compare in the military aircraft statistics database. Figures are approximate.


Questions & Answers

Everything people ask about the C-141

Can I fly in a Lockheed C-141 Starlifter?
MiGFlug does not offer flights in the Lockheed C-141 Starlifter, but you can fly several genuine military jets today, from the L-39 Albatros to the MiG-21, see MiGFlug’s jet flights.
What was the C-141 used for?
It carried troops, cargo and paratroops worldwide and was the principal US aeromedical evacuation aircraft for decades.
How many C-141s were built?
284 were built for the US Air Force at Lockheed’s Marietta, Georgia, plant.
What is the Hanoi Taxi?
C-141 66-0177, which carried freed American prisoners of war from Hanoi in 1973. It made the type’s last flight in 2006 and is at the National Museum of the US Air Force.
Why was the C-141 stretched?
The original C-141A often filled its cargo hold before reaching its weight limit, so the C-141B was lengthened by about 23 ft and given aerial refuelling.
What replaced the C-141?
The Boeing C-17 Globemaster III replaced it in US Air Force service.
Where can I see a C-141?
The Hanoi Taxi is at the National Museum of the US Air Force in Dayton, Ohio, and the first C-141, 61-2775, is at the Air Mobility Command Museum in Dover, Delaware.
