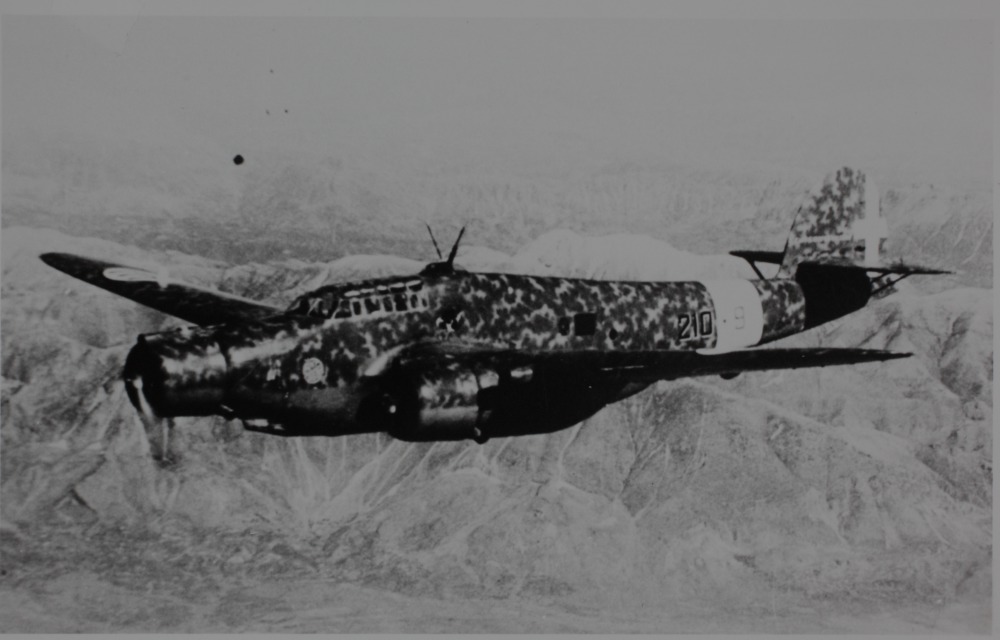

The CANT Z.1007 Alcione: Italy’s wooden trimotor that flew beautifully and aged badly

The CANT Z.1007 Alcione — the name means “kingfisher” — was one of the three bombers on which the Regia Aeronautica leaned hardest during the Second World War, alongside the trimotor Savoia-Marchetti SM.79 and the twin-engine Fiat BR.20. Fast, clean and handsome, it promised a great deal on paper. In service, its all-wooden airframe turned that promise into a running battle with warping, damp and heat. It is an aircraft best understood not as a success or a failure, but as a fascinating, honest illustration of what a talented but under-resourced aviation industry could — and could not — achieve.

The aircraft was the work of Filippo Zappata, one of Italy’s most gifted designers, who had already given the country the graceful Z.506 Airone floatplane. Working for CANT — Cantieri Aeronautici e Navali Triestini, the aircraft arm of the Trieste-based shipbuilder CRDA — Zappata drew a slender, three-engine monoplane whose lines owed as much to the drawing office’s love of clean form as to any rulebook. The prototype first flew in March 1937, powered by three Isotta-Fraschini Asso XI in-line engines of around 830 horsepower each.

Those early inline engines were quickly judged inadequate, and the definitive version, the Z.1007bis, was re-engined with three Piaggio P.XI RC.40 radials of roughly 1,000 horsepower apiece. The “bis” also grew: a longer, wider fuselage, a stronger structure and revised systems. It was this variant, entering service from 1939–40, that most people mean when they say “Alcione.” Around 560 aircraft were built in total, the majority of them the bis — though sources disagree, and figures as high as roughly 660 are sometimes quoted.

What set the Alcione apart from almost every contemporary was its construction. Where Britain, Germany and the United States were racing toward all-metal stressed-skin airframes, the Z.1007 was built almost entirely of wood — wooden wings, wooden fuselage, plywood skinning over a timber frame. In 1937 that was a defensible choice: Italy was short of the light alloys that metal bombers devoured, wood was cheap and available, and a well-made wooden aeroplane could be light, smooth and aerodynamically clean. When new, the Alcione was genuinely quick and pleasant to fly, and reasonably accurate as a bomber.

The Alcione was a fine aeroplane on the day it left the factory — and a maintenance headache six months later in the desert.

The trouble was that wood does not enjoy the Mediterranean and North African climate. In the heat, damp and sun of Sicily, Libya and the Aegean, wooden structures warped, glued joints weakened and skins delaminated. Aircraft left in the open — as they usually were — could go out of true, throwing controls out of rig and, in the worst cases, weakening the airframe itself. Ground crews fought a constant war against the weather, and serviceability suffered. The very material that made the Alcione cheap and elegant also made it fragile in the field.

None of this stopped the Z.1007 from serving hard and serving widely. From 1940 it bombed Malta and hunted the convoys that kept the island alive; it flew over the Western Desert against the British Eighth Army; it took part in the Balkans campaign and the war against Greece; and a small expeditionary force even operated on the Eastern Front against the Soviet Union. Some Alciones flew long-range raids toward Gibraltar and the Nile Delta, feats that showed off the aircraft’s range and clean design even as its defensive weakness left it exposed to modern fighters.

These were not token appearances. For much of 1941 and 1942 the Z.1007 was a genuine workhorse of the Italian bomber arm, flying by day and night, in ones and twos on reconnaissance and in formations on set-piece raids. It carried the ordinary, unglamorous weight of an air war: the repeated sorties against the same targets, the slow attrition of crews and airframes, the constant improvisation of a force that never had quite enough of anything. If the SM.79’s torpedo strikes provided the drama, the Alcione provided a good deal of the daily grind.

The Alcione’s story is, in miniature, the story of the whole Italian air war. Italy had brilliant designers, brave and skilful crews, and a handful of genuinely good aircraft. What it lacked was the industrial depth to build them in quantity, the engines to keep improving them, the fuel to fly them freely, and the raw materials to make them robust. The Z.1007 embodied all of this: an elegant, capable design let down not by any single flaw but by the accumulated weight of a war its country was not equipped to fight.

It is worth resisting the easy caricature of Italian wartime aviation as simply hopeless. The Regia Aeronautica achieved real successes, particularly in the anti-shipping war, and aircraft like the Alcione were respected by their opponents. The problems were structural and strategic rather than a matter of talent or courage. Understanding that is the key to understanding the Alcione — and to giving the men who designed, built and flew it a fair hearing.

Because it was a bomber built for a nation with a small industrial base, the Alcione was always fighting above its weight class. Its defensive armament — a pair of heavy 12.7 mm machine guns and a pair of lighter 7.7 mm weapons — was modest by 1942 standards, and like most Italian bombers it lacked the heavy power-operated turrets that protected its Allied counterparts. Against Hurricanes and Spitfires over Malta, losses could be painful, and crews learned to rely on speed, altitude and tight defensive formations rather than on the guns themselves.

Yet it would be unfair to paint the Alcione only as a victim. In the hands of good crews it was a genuinely effective machine. Its long range and clean aerodynamics let it reach targets other Italian bombers could not, and its accuracy as a level bomber was respected. Italian airmen who flew it generally liked it: it was pleasant on the controls, stable, and forgiving in a way that mattered on long over-water sorties where an engine failure far from land was an ever-present fear. The three engines, for all the drag they added, meant that a crippled Alcione could often limp home on two.

After the Italian armistice of September 1943 the surviving Alciones were split, like the country itself. Some flew on with the Italian Co-Belligerent Air Force on the Allied side; others served the Aeronautica Nazionale Repubblicana (ANR) of Mussolini’s northern rump state, and a handful passed through German hands. By 1945 the type was worn out and obsolete. And here the wood took its final revenge: not one complete CANT Z.1007 survives today. The airframes that were not destroyed in the war simply rotted away. The Alcione lives on only in photographs, drawings and a few relics — an unusually clean-lined reminder of how far ingenuity could stretch a country that never had enough metal, engines or time.

That absence of a survivor is worth dwelling on, because it shapes how we remember the aircraft. The SM.79 has preserved examples; the great Allied bombers fill museums; even many obscure metal types have a single airframe hanging under a roof somewhere. The Alcione has none. Every image on this page is a photograph, because photographs are all that is left. For an aircraft that was, in its day, one of the three pillars of the Italian bomber force, that is a strikingly complete disappearance — and a direct consequence of the design choice that also made it possible.

The CANT Z.1007 Alcione’s war: Malta, the desert, the Balkans and the Eastern Front

From Italy’s entry into the war in June 1940 to the armistice of 1943 and beyond, the Alcione fought across almost every theatre the Regia Aeronautica touched — and paid a steady price for its wooden airframe and light defences.

The Alcione’s war began over the central Mediterranean, where the great strategic prize was Malta. From Sicilian bases, Z.1007bis units flew repeated raids against the island’s airfields, harbours and the convoys that kept it fighting. These were dangerous missions: Malta’s Hurricanes and, later, Spitfires exacted a toll, and the Alcione’s modest defensive battery meant that formation flying and fighter escort were essential to survival.

Across the water in North Africa, Alciones supported the see-saw desert campaigns, bombing British positions, ports and supply lines from Libyan fields. The aircraft’s range let it reach deep into Egypt, and some units flew notably long over-water missions — including attacks directed against the Gibraltar convoy route — that demonstrated the design’s aerodynamic efficiency even as the desert climate chewed through its timber.

The rhythm of these operations was punishing. A typical anti-shipping or Malta mission meant hours over open water, often at the edge of fighter range, with the ever-present risk of an engine failure far from any friendly coast. Navigation over a featureless sea, in an era before modern aids, was itself a serious challenge, and the bombardier-navigator earned his place in the crew. When the enemy was found, the Alcione had to press its attack through anti-aircraft fire and fighters while relying on speed and formation for protection.

Italian bomber crews flew these missions with considerable courage, and the anti-shipping campaign in particular achieved real successes against Allied convoys — though the SM.79 torpedo bombers tend to get the credit. The Alcione contributed to a sustained effort that, for a time, made the central Mediterranean genuinely dangerous for Allied shipping. That it could not be decisive reflected the wider imbalance of the war rather than any failure of the aircraft or its crews.

The Alcione also served in the Balkans. It took part in the April 1941 invasion of Yugoslavia and in the long, bitter war against Greece, operating from Italian and Albanian bases. Further east, a small Italian expeditionary air contingent flew the type on the Eastern Front alongside German forces, where reconnaissance and bombing sorties over the southern Soviet Union added yet another climate — this time bitter cold — to the list of environments the wooden airframe had to endure.

This geographical spread is remarkable for an aircraft so often dismissed as a footnote. In the space of a few years the Alcione operated over the western Mediterranean toward Gibraltar, across the deserts of Libya and Egypt, through the mountains of Greece and the Balkans, and over the steppe of the Eastern Front. Few medium bombers of any nation saw such a range of theatres and climates, and the fact that the type held together across all of them — even imperfectly — says something for the fundamental soundness of Zappata’s design when it was kept in good order.

The Alcione also found a second career as a reconnaissance and transport aircraft. Its range and reasonable speed made it useful for long-distance photo-reconnaissance over the Mediterranean, and some sources even credit Italian aircraft of the type with reconnaissance flights in the general direction of the British Isles during the period of Italian participation alongside the Luftwaffe. As the bomber role became untenable, surviving airframes were increasingly used for the jobs that did not require flying into the teeth of Allied fighter defences.

By 1942–43 the Alcione was increasingly outclassed. Allied fighters were faster and more numerous, Allied bombers heavier, and Italy could not replace losses quickly enough. When the armistice came in September 1943, the surviving fleet fractured: some aircraft served the Allied-aligned Co-Belligerent Air Force, others the ANR of the Italian Social Republic in the north, and a few fell into German hands. None of these operators could keep an ageing wooden bomber viable for long, and by the end of the war the type had effectively vanished from front-line strength.

Armament & payload

The Alcione's bomb bay was the best in Italian service and its four guns were the worst thing about it

The Z.1007 was built around a genuinely good offensive proposition: 1,200 kg carried internally in a clean fuselage, another tonne under the wings if you were willing to pay for it, and the range and ceiling to deliver it a long way from home. Set against that is a defensive fit of four guns, two of them rifle-calibre, with nothing at all firing directly astern — on a five-man crew that had to abandon its flying and navigating stations to man them. In 1940 that was survivable because the Alcione flew higher and faster than most of what came up to meet it. By the autumn of 1942, when Spitfires and Beaufighters were operating from Malta and the RAF had radar direction, it was not survivable at all, and the type spent the rest of its life working after dark. The Alcione never carried a guided weapon, never fired a rocket and never dropped a torpedo in action, though it was fitted for two of the three. Gun fits varied by series, by unit and by month: the ter substituted 12.7 mm weapons at the beam windows, later aircraft received a powered Breda V turret in place of the hand-worked Caproni-Lanciani Delta E, and unit armourers added and moved weapons without troubling the paperwork.

Sourcing caveat. Italian wartime armament records are thinner and less consistent than German or British ones, and the Alcione is not well served in English. Turret types, beam-gun calibres and the presence or absence of a nose gun differ between the standard references for aircraft of the same series, and the internal and external bomb figures quoted here (1,200 kg and 1,000 kg) are the ones on which most sources agree rather than figures traceable to a surviving loading manual. Nothing about the armament can be checked against an aeroplane, because no aeroplane exists.

Variants

The Alcione changed its engines and then its tail, and the wood it was made of decided how many could be built and whether any would survive

Filippo Zappata began the design in 1935 as a landplane derivative of his CANT Z.506 seaplane, and the family resemblance never left it: a long slender fuselage, a wide high-aspect wing and a hull builder's way of putting the structure together. The Aviation Ministry ordered 18 aircraft on 9 January 1936 and 16 more on 23 February 1937, and the prototype flew on 11 March 1937. It handled beautifully and it was too slow, and the three Isotta Fraschini Asso XI V-12s were unreliable enough that the aircraft delivered between February and October 1939 were judged unfit for the front line and used for training. The redesign around three Piaggio P.XI radials flew in July 1939 and became the Z.1007bis, and that aeroplane — longer, wider-winged and heavier — is the Alcione of history.

The tail is the detail everyone notices, and the usual one-line explanation undersells it. The first three production series of the bis had a single fin, and it was not enough: the aeroplane was unsteady in precisely the long, straight, level run a bomb-aimer needs. From Series IV the fin was replaced by twin fins and rudders, and the retractable tailwheel was fixed down at the same time. Both forms flew together in the same wings for the rest of the war, which is why photographs of one squadron in one month show both, and why the Italian references treat monoderiva and bideriva as configurations of one aircraft rather than separate variants.

Now the wood, with the evidence rather than the assertion. The Alcione was built by boatyard method: longitudinal members first, transverse frames second, then a skin of glued strips laid at 45° and crossed at 90° layer on layer. Italian sources are explicit that the process was extremely slow and could only be done by firms with the relevant skills, which is why a bomber Italy badly wanted never reached the output of the metal SM.79. In service the failures were specific and repeatedly documented. During the Greek campaign in the winter of 1940 to 1941 the torrential rain opened the structure up, and ground crews were tied to a cycle of continuous adjustment and re-tightening simply to keep the aircraft rigged. In North Africa and in Russia the reported damage was cracking, separation of joints and surface delamination of the skin — and the consequence was aerodynamic as well as structural, because a delaminated skin adds drag, so a weathered Alcione was slower than the figures in this article say it should have been. The likeliest technical explanation is adhesive: pre-war wooden aircraft were bonded with casein glues, which absorb water and are attacked by fungus, and the de Havilland Mosquito — the wooden aeroplane that is usually produced as the counter-argument — had its own tropical glue crisis in India in 1944 before the switch to synthetic resins was complete. The point is not that wood was a mistake. It saved light alloy that Italy needed for engines and fighters, it gave the Alcione a smoother and more efficient shape than the corrugated SM.79, and it floated after a ditching. The point is that Italy chose an adhesive technology and a build method suited to a temperate climate and a boatyard pace, and then fought a war in the desert.

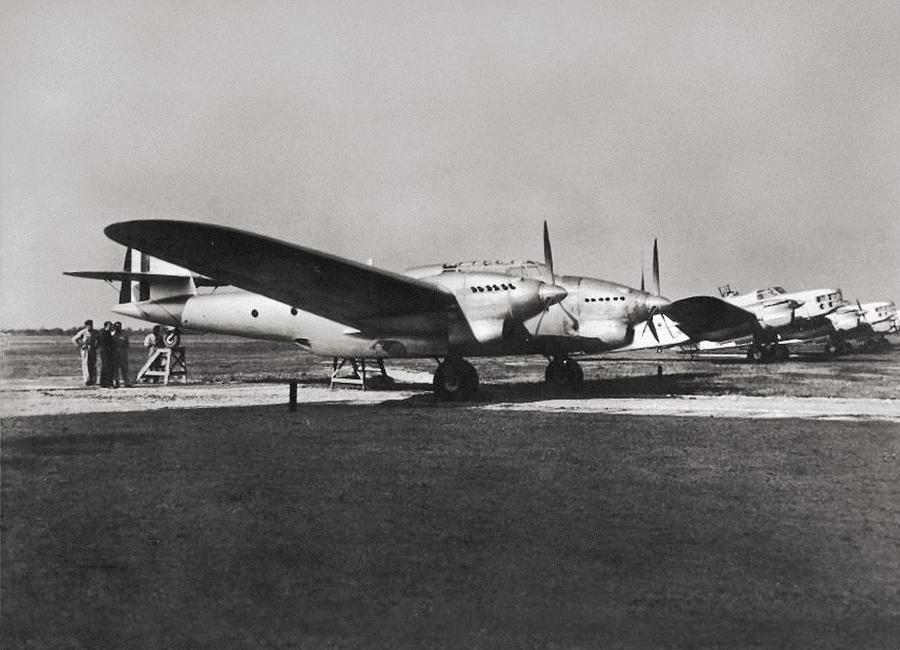

Z.1007 prototype (first flight 11 March 1937, one aircraft)

Three Isotta Fraschini Asso XI RC.15 V-12s of 840 CV with annular radiators, two-bladed wooden propellers, single fin. Judged superior to the competing Z.1011 for handling and manoeuvrability and inferior to its own predicted performance, which triggered the radial-engined redesign.

Z.1007 first production series (delivered February to October 1939, about 34 to 36 built)

Asso engines retained, three-bladed metal propellers substituted. Equipped 50° Gruppo of 16° Stormo from May 1939 and was found unsuitable for operations on grounds of engine unreliability and inadequate defensive armament. Spent its life as a trainer. Sixteen survivors were earmarked in 1942 for conversion to weather reconnaissance with Isotta Fraschini Delta engines; exactly one was converted.

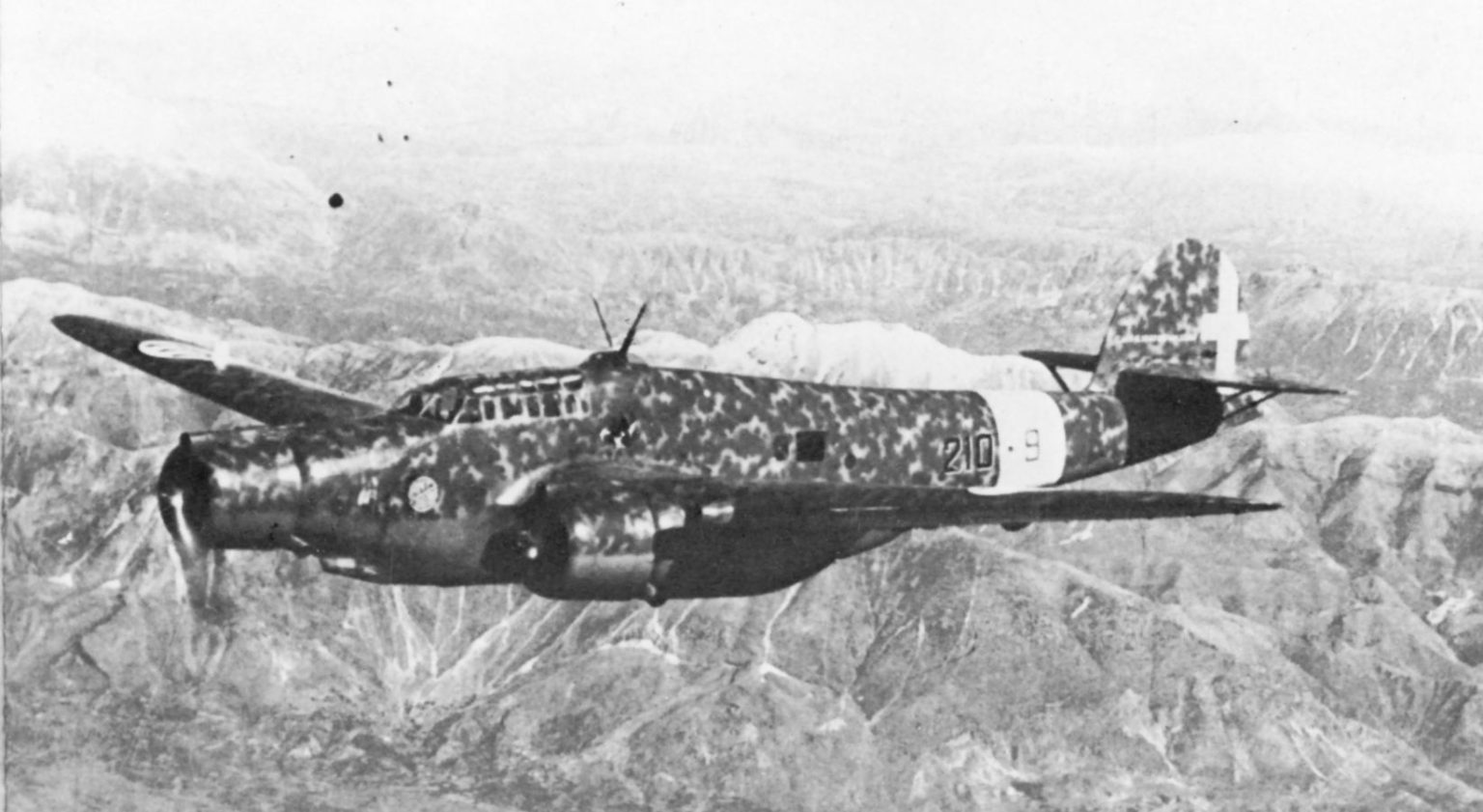

Z.1007bis, Series I to III (prototype flew July 1939; deliveries from 1940)

The definitive aeroplane in its first form: three Piaggio P.XI RC.40 radials of 1,000 CV, longer fuselage, greater span and area, 580 kg heavier empty and 888 kg heavier at maximum weight than the Asso machine. Single fin and fully retractable tailwheel. These are the aircraft of the first Malta raid on 29 August 1940 and of the opening of the Greek campaign.

Z.1007bis, Series IV onward (from 1941, the bulk of production)

Twin fins and rudders in place of the single fin, tailwheel fixed down. Progressive changes across the later series included the electrically driven Breda V dorsal turret in place of the hand-worked Caproni-Lanciani Delta E, and increasingly comprehensive crew armour. This is the standard Alcione of 1941 to 1943 and the aircraft in most surviving photographs and in Rossellini's 1942 film Un pilota ritorna.

Z.1007bis reconnaissance conversions (1940–1943, numbers not separately recorded)

Bay auxiliary tank, six automatic cameras in a ventral gondola and a seventh in the fuselage, sixth crewman. Flown by 175a and later 176a Squadriglia da ricognizione strategica in North Africa, by 51° Gruppo from Sardinia over the convoy routes, and by the six aircraft of 172a Squadriglia sent to Belgium with the Corpo Aereo Italiano.

Z.1007ter (production from 1942; about 50 in Italian accounts, about 150 in English ones)

Piaggio P.XIX of 1,150 to 1,180 CV, 12.7 mm guns replacing the 7.7 mm weapons at the beam windows, improved dorsal turret. 490 km/h at 6,150 m against 458 km/h at 4,600 m, ceiling 9,000 m against 7,500 m, 2,250 km carrying 900 kg of bombs. The best Alcione and much the rarest; the production figure is one of the least settled numbers attached to the type.

Z.1015 (proposed 1938, prototype 1939, one aircraft)

A much more powerful development on the same layout with Piaggio P.XIX RC.35 engines of 1,500 CV, credited with 560 to 563 km/h and 3,000 km. Successfully tested as a torpedo bomber and not put into production. When the air force asked Zappata to strengthen the structure he offered the twin-engined Z.1018 Leone instead, and the Alcione outlived its own replacement.

Z.516 (1940, one aircraft)

Floatplane conversion using the twin floats of the Z.506B, closing the circle back to the seaplane the Alcione had been derived from. Not proceeded with.

Foreign and post-armistice users (1943–1945)

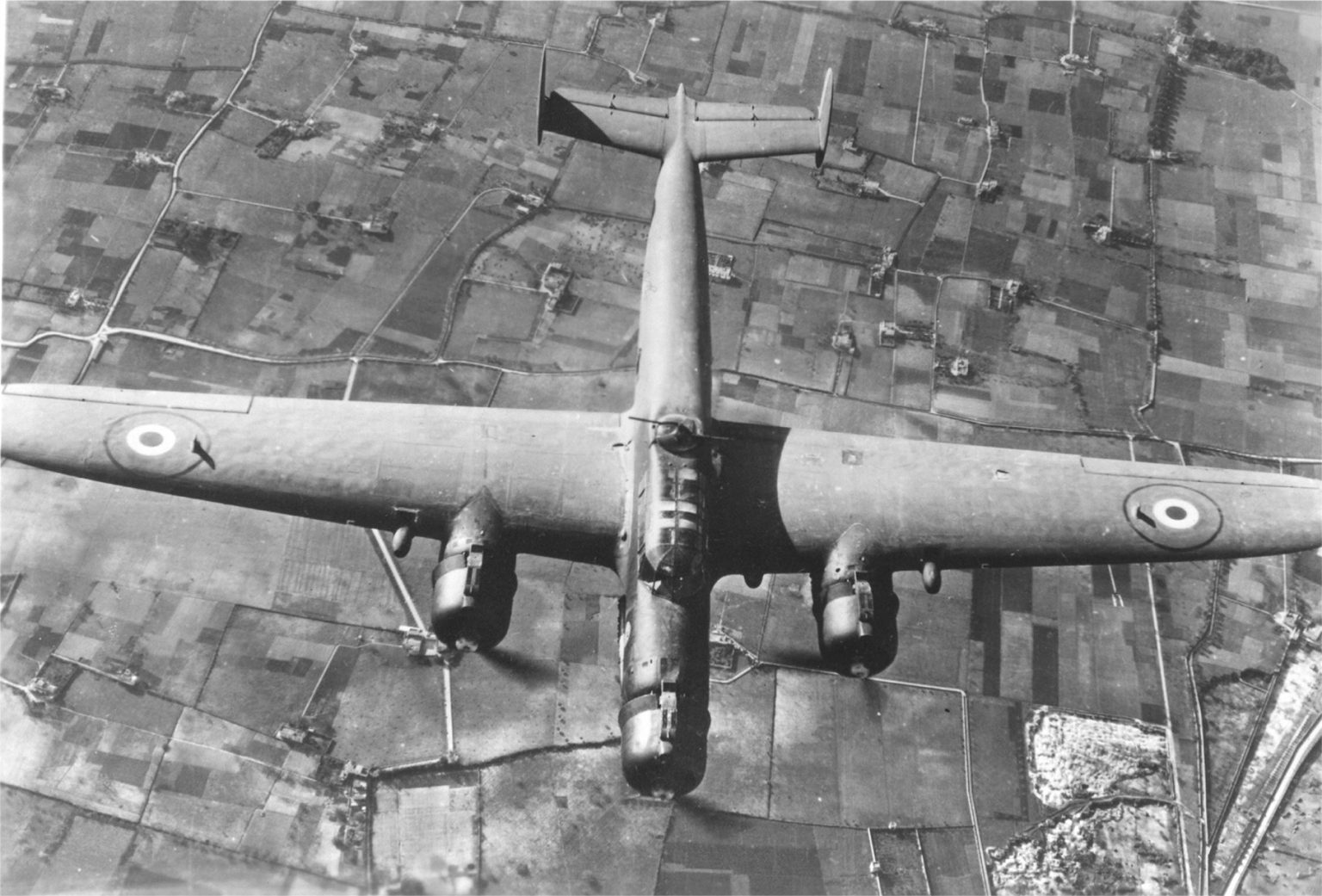

The armistice split the fleet: of 147 bombers left to the Regia Aeronautica, 72 were Alcioni, the largest concentrations at Perugia with 22 and in the Aegean with 19. Aircraft that reached the south formed the Co-Belligerent supply and transport force at Lecce-Galatina, eventually 88° Gruppo, some 20 aircraft, dropping to the Yugoslav partisans until the massacre of 14 May 1944 pushed them onto night operations only; twelve remained at the end of the war, eight of them serviceable. Aircraft in the north were requisitioned by the Luftwaffe or passed to the Aeronautica Nazionale Repubblicana, where they flew training only; three went to the Croatian Air Force Legion in January 1944 as bomber-crew trainers. Small numbers of captured examples were flown by the RAF and the Free French.

Closing note on survivors, stated precisely, because this is one of the starkest cases in the whole of Second World War aviation. Not one CANT Z.1007 of any mark survives anywhere in the world. There is no complete airframe, no substantially complete fuselage, no restored example, no static reproduction and no flying reproduction. Italian sources go further than the usual formula and state that not even individual parts of these large trimotors remain today. The last known airframe stood at Guidonia until 1948 and was then broken up; the 1947 Treaty of Peace forbade Italy to possess bomber aircraft, and the handful of transport-configured survivors had no protected status and no advocate. The reason is the aeroplane itself. A wooden airframe left in the open rots, a wooden airframe on a seabed does not come back in restorable condition, and a wooden airframe in a fuel-starved post-war Europe is firewood. The contrast with Zappata's other work is exact and painful: his CANT Z.506 seaplane is preserved at the Italian Air Force Museum at Vigna di Valle, and the SM.79 the Alcione was meant to replace is represented by survivors in Italy and abroad, but the aeroplane considered by some to have been the best Italian bomber of the war exists only as photographs, drawings and contested numbers. Any claim to the contrary is almost certainly a confusion with the Z.506, the Z.501 or an SM.79.

The CANT Z.1007 Alcione from drawing board to disappearance

CANT Z.1007 Alcione in photographs

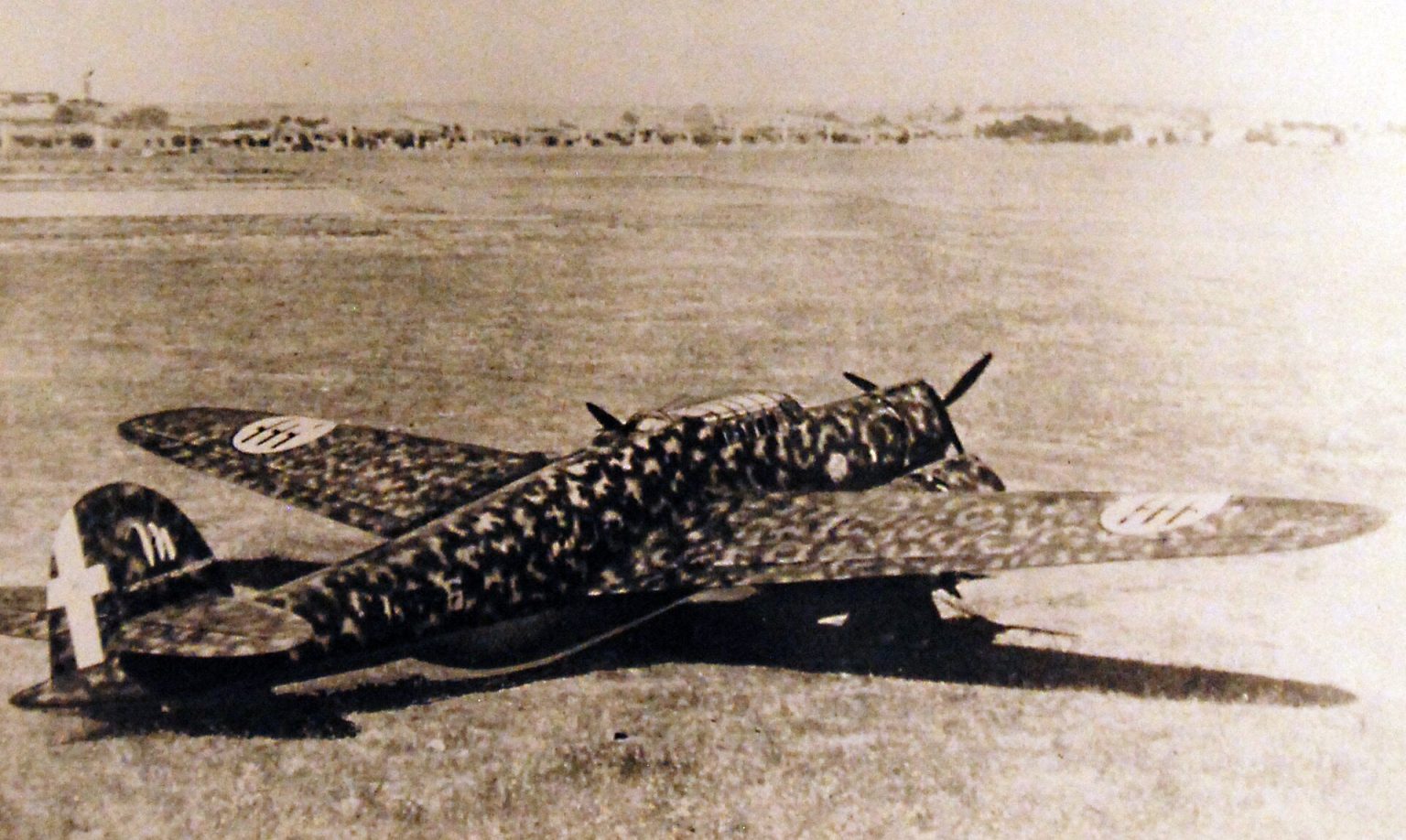

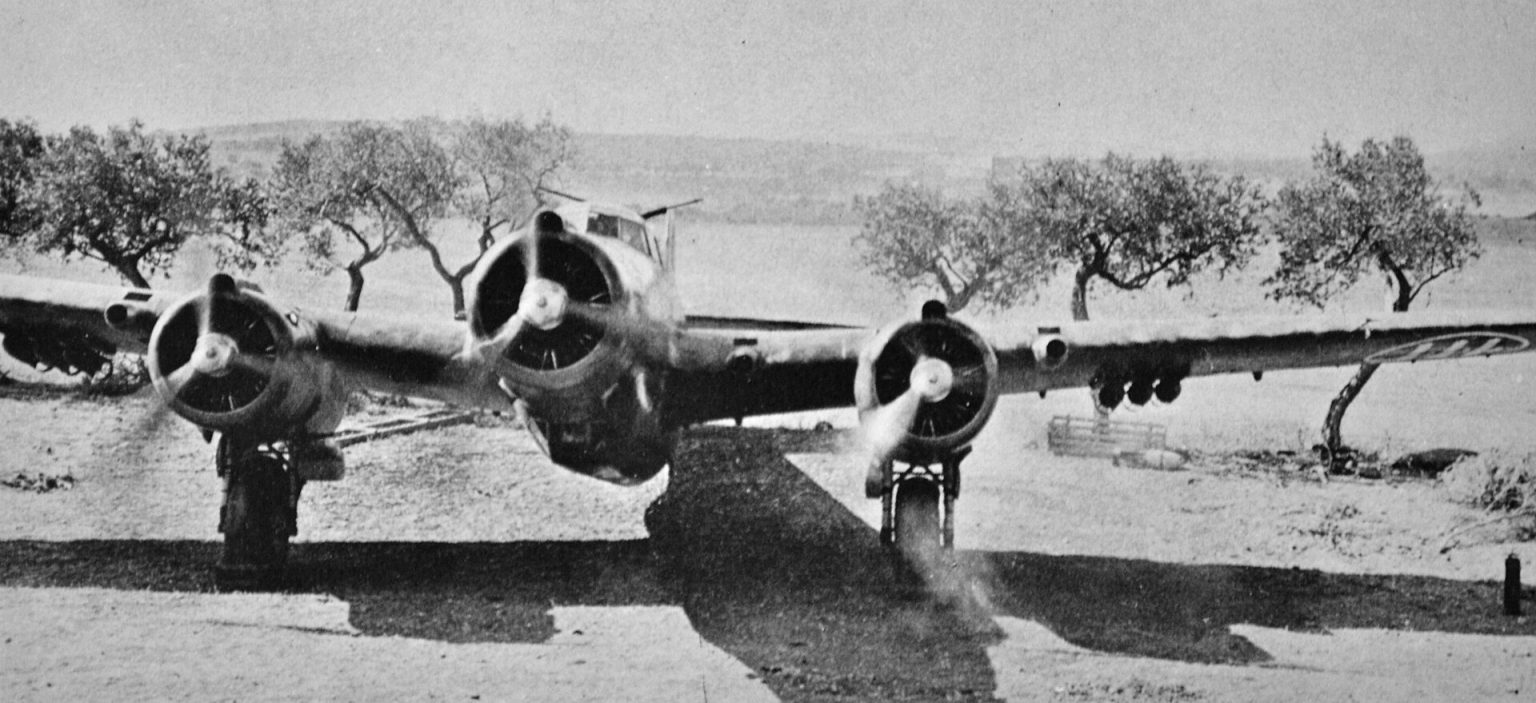

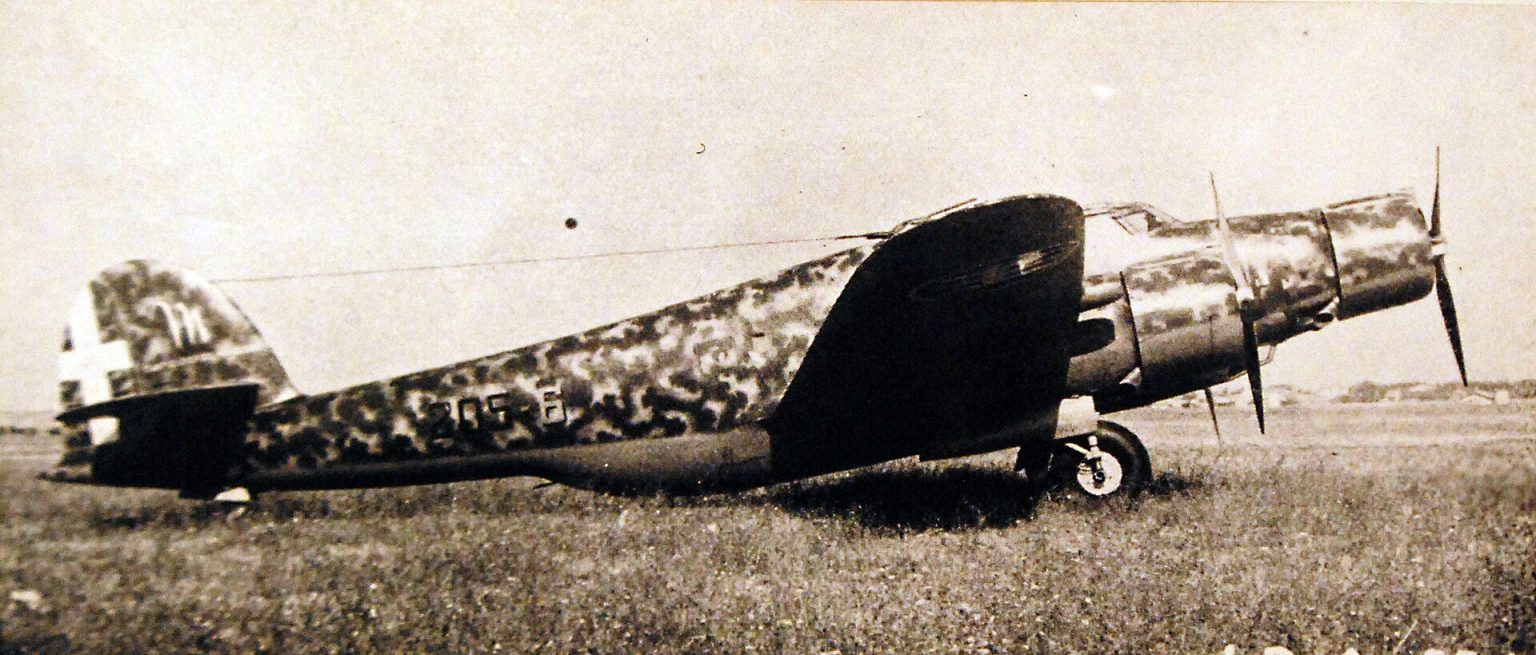

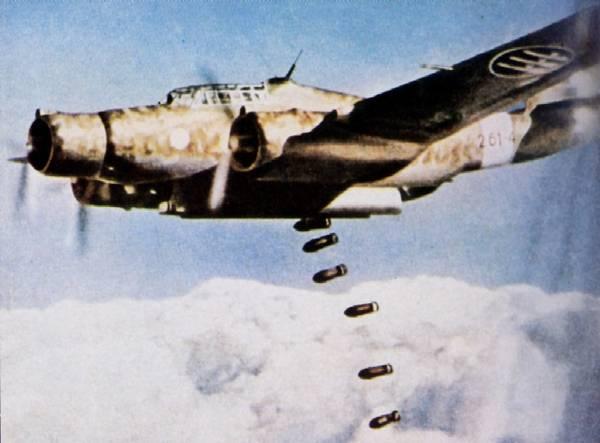

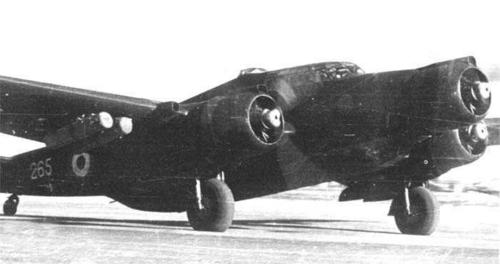

Period photographs of the Alcione in Regia Aeronautica and post-armistice service — the only kind of image that exists, since no aircraft survives to be photographed today. All images are public domain, sourced from museum and archive collections via Wikimedia Commons; credits are given beneath each photograph. Watch for the tail: single- and twin-fin aircraft both appear below.

Where the CANT Z.1007 Alcione flew

The Alcione was an Italian aircraft through and through, but it fought far from home. This map shows its origin, the wartime theatres where it saw service, and — tellingly — an empty “surviving airframes” category, because none remain. Toggle the categories and hover a country for detail. Note that the “theatres” category marks where the fighting took place, not the nationality of the crews: these were the skies the Regia Aeronautica’s Alciones flew and fought in. Some very small theatres, such as the island of Malta, are historically central but too small to render as a coloured country at this map scale — Malta’s siege is covered in detail in the text above.
