Boeing KC-135 Stratotanker
The Tanker That Never Retired

Built for Strategic Air Command in the 1950s, the KC-135 turned American air power into a global reach, refuelled every American air war since Vietnam, and its oldest airframes are now pushing seventy.

1956First flight
803KC-135s built
~376Still with the USAF (2024)
200,000 lbFuel capacity

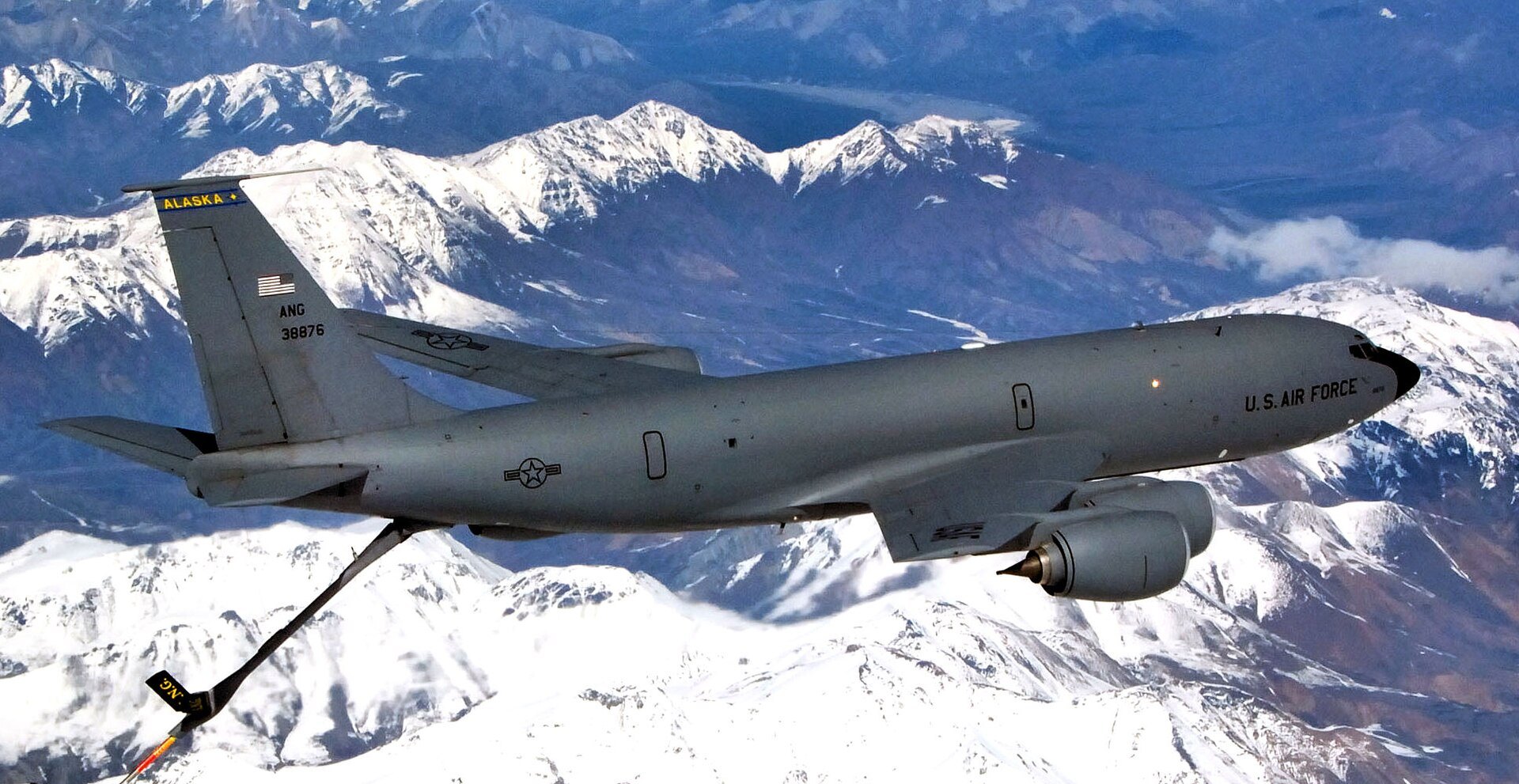

Photo: United States Air Force / Public domain via Wikimedia Commons
RoleStrategic aerial refuelling tanker and transportEra1950s to presentEngine4 × CFM F108 (CFM56) turbofans; originally P&W J57 turbojetsOriginUSA · Boeing (Renton, Washington)StatusIn serviceWant to fly a real military jet?

The Story

The KC-135: how a Cold War bomber escort became the backbone of American air power

In the early 1950s Strategic Air Command had a problem it could not fly around. Its new B-47 Stratojets and the coming B-52 cruised at jet speeds, but the piston-engined KC-97 tankers that were meant to refuel them had to dive to keep up while the bombers slowed almost to the stall. Boeing had gambled its own money on a jet transport demonstrator, the 367-80 or “Dash 80”, which first flew in July 1954. The Air Force ordered a tanker derived from it that same year, and on 31 August 1956 the first KC-135A flew at Renton. Deliveries to the 93rd Air Refueling Squadron at Castle Air Force Base, California, began in June 1957. For the first time the tanker and the bomber flew at the same height and speed.

Production ran until 1965 and produced 803 KC-135s, alongside a wider C-135 family of transports, airborne command posts, reconnaissance and test aircraft. The design was simple: a narrower fuselage than the later Boeing 707 airliner, fuel in the wings and in tanks under the floor, and a single flying boom in the tail steered by a boom operator lying prone and looking aft through a window. The boom could pass about 6,500 lb of fuel a minute. Above the floor the cabin stayed free for cargo or up to 80 passengers. The early J57 turbojets needed water injection for take-off and earned the type a reputation for noise, smoke and long runways.

The KC-135 has outlasted every plan to replace it. A new wing skin programme in the 1970s and 1980s and, above all, the re-engining with CFM56 turbofans that produced the KC-135R in the 1980s gave it a second life: about 50 percent more fuel to offload, much less noise and lower operating costs. It refuelled the air war over Vietnam, the Gulf in 1991, the Balkans, Afghanistan and Iraq, and it is still flying combat support today. In September 2024 the US Air Force still had about 376 on strength, and the KC-46 Pegasus is only gradually taking over. Air Force planners expect a large share of the R-model fleet to keep flying well into the 2030s, which would give some airframes a career of around eighty years.

The bomber crews of 1957 and the fighter pilots of today have plugged into the same tanker.Seven decades on the boom — from SAC alert to the Middle East
01The KC-135’s family: the C-135 airframes that did everything but refuel

The basic C-135 airframe proved so adaptable that Boeing and the Air Force turned it into dozens of specialised aircraft. The C-135 Stratolifter was a pure transport, used by Military Air Transport Service until the C-141 arrived. The EC-135 airborne command posts of Operation Looking Glass kept a general officer and a battle staff aloft around the clock from 1961 to 1990, ready to command SAC’s nuclear forces if ground headquarters were destroyed. The RC-135 family, still in service as the Rivet Joint, Combat Sent and Cobra Ball, gathers electronic and missile intelligence. The WC-135 samples the air for traces of nuclear tests, and the OC-135 flew Open Skies treaty observation flights. Others carried airborne lasers, tracked missiles and spacecraft, or tested new engines.

The best known to the public was NASA’s reduced-gravity aircraft. Flying long parabolas, it gave astronauts, scientists and film crews around 25 seconds of weightlessness at a time, and its effect on the stomach gave it the nickname “Vomit Comet”. One such airframe, 59-1481, is now preserved at Ellington Field in Houston. The KC-135Q was a quieter specialist: 56 tankers were modified to carry the special JP-7 fuel of the SR-71 Blackbird, with separated fuel systems and secure communications. When re-engined they became KC-135Ts, which remain in service.

02The KC-135 abroad: France, Turkey, Chile, Singapore and contractors

Few KC-135s went to foreign air forces, because almost every one was needed at home. The exception was France, which bought 12 C-135F tankers in the early 1960s to give its Mirage IV nuclear bombers the reach to strike the Soviet Union. Re-engined as C-135FRs, they served the French strategic air forces for about six decades and were finally retired in 2023, replaced by the A330 MRTT Phénix.

Later, as the US fleet shrank, refurbished ex-USAF aircraft went abroad. Turkey operates seven KC-135Rs, Chile three KC-135Es, and Singapore flew four KC-135Rs until 2019. Several of the retired French and Singaporean aircraft have since passed to Metrea, a private company that sells air refuelling as a service, and one of them has been wet-leased to India to train Indian Air Force crews. The result is that the 1950s Boeing tanker is now a commercial product as well as a front-line military aircraft.

Design & Engineering

What makes the KC-135 special

01

The flying boom

The KC-135’s refuelling boom is a rigid telescoping tube with small control surfaces, called ruddevators, near its tip. The receiver pilot holds position below and behind the tanker, following director lights under the fuselage, while the boom operator, lying on a couch in the tail and looking through a rear window, flies the boom into the receptacle. It transfers fuel far faster than a hose and drogue, which is why US Air Force bombers and fighters adopted receptacles. For Navy and allied probe-equipped aircraft a short hose and basket, the boom drogue adapter, can be fitted on the ground.

02

The R-model re-engining

The original Pratt & Whitney J57 turbojets made about 13,000 lb of thrust each with water injection and were notoriously loud. From the early 1980s most of the fleet received CFM International F108 turbofans, the military CFM56, rated at about 21,600 lb each. The resulting KC-135R can take off heavier from shorter runways, offload around half as much fuel again as the A model, and is far quieter and cheaper to run. Reserve and Guard aircraft first received ex-airliner TF33 engines and became KC-135Es, later retired.

03

Old airframes, constant upgrades

A KC-135 built in 1957 is still on the Air Force’s books, and the type has survived because it has been rebuilt again and again. New lower wing skins, new engines, glass-cockpit upgrades under the Pacer CRAG and later Block 45 programmes, which removed the navigator’s position, and modern communications have all been added. Corrosion and parts obsolescence are the enemies. The trade-off is clear: maintaining a tanker this old costs more every year, but buying several hundred replacements at once has never been affordable, so the fleet is being thinned slowly rather than retired.

03The KC-135’s variants: from A to R and T
  • KC-135A: original production tanker with J57 turbojets; 732 built.
  • KC-135Q: 56 aircraft modified to carry JP-7 for the SR-71, with separated fuel systems.
  • KC-135E: Guard and Reserve aircraft re-engined with ex-airliner TF33 turbofans; about 157 converted, all retired by 2009.
  • KC-135R: the main modern version with CFM56 (F108) turbofans; more than 400 converted.
  • KC-135T: KC-135Qs re-engined with CFM56s; 54 aircraft.
  • C-135F / C-135FR: 12 tankers built for France; later re-engined.
  • C-135 family: C-135 transports, EC-135 command posts, RC-135 reconnaissance, WC-135 atmospheric sampling, OC-135 Open Skies and NKC-135 test aircraft.
Technical Data

Boeing KC-135R Stratotanker specifications

Specifications

Crew
3 (pilot, co-pilot, boom operator); navigator on older versions
Length
41.53 m (136 ft 3 in)
Wingspan
39.88 m (130 ft 10 in)
Height
12.70 m (41 ft 8 in)
Empty weight
44,630 kg (98,392 lb)
Max take-off weight
146,284 kg (322,500 lb)
Fuel capacity
90,718 kg (200,000 lb)
Cargo
up to 37,600 kg (83,000 lb) or 80 passengers
Powerplant
4 × CFM International F108-CF-100 turbofans, about 96 kN (21,600 lbf) each
Maximum speed
about 933 km/h (580 mph)
Cruise speed
about 850 km/h (530 mph) at 30,000 ft
Range
about 2,400 km (1,300 nmi) with 150,000 lb of transferable fuel
Service ceiling
15,240 m (50,000 ft)
Boom offload rate
about 2,950 kg (6,500 lb) per minute

Costs & production

Unit cost
About US$39.6 million (KC-135R, fiscal 1998 constant dollars, US Air Force fact sheet basis)
Cost per flight hour
Hedged estimate: roughly US$10,000–20,000 per hour depending on what is counted (fuel only or full maintenance and depot costs); US Air Force studies have shown support costs rising steeply as the fleet ages
Production
803 KC-135s built 1955–1965, plus other C-135 family airframes
Programme
Ordered 1954; first flight 1956; in service since 1957; replacement by the KC-46 under way
04The KC-135’s operating costs: why old tankers are expensive

The KC-135 was cheap to buy in the 1950s and has been paid off many times over, but an airframe this old is not cheap to keep. US Air Force studies around the turn of the century found that maintenance and depot costs for the fleet had roughly tripled in a decade, driven by corrosion, fatigue and parts that no longer exist in industry. Each aircraft spends long periods in programmed depot maintenance at Tinker Air Force Base.

The CFM56 re-engining cut fuel burn and maintenance and is often credited with about a quarter less operating cost than the A model, which is one reason the R-model fleet has lasted so long. Published hourly figures vary widely because they include different things: fuel alone for four turbofans is a large share, and full costs including depot work push the total far higher. Any single number should be read as an estimate.

Timeline

The KC-135 from the Dash 80 to the 2020s

1954

Dash 80 flies, tanker ordered

Boeing’s privately funded 367-80 jet demonstrator flies in July; the Air Force orders the first KC-135s.

1956

First flight

The first KC-135A flies on 31 August at Renton, Washington.

1957

Into SAC service

Deliveries begin to the 93rd Air Refueling Squadron at Castle AFB, California, in June.

1961

Looking Glass begins

EC-135 airborne command posts start continuous alert flying for Strategic Air Command, which lasts until 1990.

1964

Young Tiger

KC-135s begin refuelling fighters and bombers over Southeast Asia, a commitment that lasts the whole Vietnam War.

1965

Production ends

The last KC-135A is delivered after 803 tankers.

1966

Palomares collision

A KC-135 and a B-52G collide during refuelling over Spain; the tanker crew are killed and four hydrogen bombs fall.

1984

KC-135R enters service

The first CFM56-powered R models join the fleet, transforming performance and noise.

1991

Desert Storm

KC-135s form the largest part of the tanker force that sustains the Gulf War air campaign.

2013

Shell 77

KC-135R Shell 77 breaks up in flight over Kyrgyzstan after a Dutch roll; three crew die.

2019

Replacement arrives

The first KC-46A Pegasus is delivered, beginning the slow replacement of the KC-135.

2023

France retires its C-135FRs

France stands down the last of the type that served its nuclear forces for six decades.

Stories & Eyewitnesses

Stories & eyewitnesses: the KC-135 from SAC alert to the Middle East

Record

LeMay’s nonstop to Buenos Aires

A brand-new tanker showed what jet range meant.

Read the full story
In November 1957, only months after the type entered service, General Curtis LeMay, by then Air Force Vice Chief of Staff, used KC-135s to make a point about jet range. A KC-135 flew nonstop from Westover Air Force Base in Massachusetts to Buenos Aires, a distance of more than 6,000 miles, and set a distance record for its class. It was a demonstration as much for Congress and the public as for the record books: the tanker that would keep SAC’s bombers in the air could itself cross a hemisphere without stopping. The point was well made. Within a few years hundreds of KC-135s were sitting on alert beside the bombers at SAC bases across the United States.
Combat

Young Tiger over Vietnam

The tanker that kept strike packages alive.

Read the full story
From 1964 KC-135s based in Thailand, Okinawa and Guam flew the Young Tiger refuelling tracks over Southeast Asia. Strike aircraft such as the F-105 and F-4 took on fuel on the way to targets in North Vietnam and again on the way home, often with damaged aircraft streaming fuel. B-52s flying Arc Light missions from Guam depended on tankers too. The tanker crews flew in an area where MiGs and missiles were a real threat, and many fighter pilots credited them with saving aircraft that would otherwise have ditched. The work was relentless, and by the end of the war the KC-135 had made aerial refuelling a routine part of every combat operation rather than a special technique.
People

Casteel’s crew and the Mackay Trophy

One tanker, many thirsty aircraft, one afternoon in 1967.

Read the full story
On 31 May 1967 a KC-135 crew led by Major John H. Casteel was on a refuelling track over the Gulf of Tonkin when a series of US Navy and Air Force aircraft arrived critically short of fuel. The crew refuelled them one after another, including Navy tankers that were themselves passing fuel to fighters at the same time, and moved the tanker towards North Vietnam to meet aircraft that could not reach it. Their actions are credited with saving several aircraft and crews, and the crew received the Mackay Trophy for the most meritorious flight of the year. It remains one of the best-known tanker missions in US Air Force history.
Accident

Palomares, 1966

A refuelling accident that dropped four hydrogen bombs on Spain.

Read the full story
On 17 January 1966 a B-52G on an airborne alert mission was taking fuel from a KC-135 over the Spanish coast near Palomares when the two aircraft collided. The tanker exploded, killing all four of its crew, and the bomber broke up; three of its seven crew died. Four hydrogen bombs fell. Two scattered plutonium when their conventional explosives detonated on impact, one landed intact on land, and one fell into the sea and took a search of nearly three months to recover. The accident showed the risks of keeping armed bombers aloft around the clock, and airborne alert ended soon after a second accident in Greenland in 1968.
People

Looking Glass: thirty years in the air

A command post that never landed for three decades.

Read the full story
From February 1961 until July 1990, an EC-135 airborne command post of Strategic Air Command was always airborne. Codenamed Looking Glass, because it mirrored the command post on the ground, each aircraft carried a general officer and a battle staff able to order SAC’s bombers and missiles to launch if Omaha was destroyed. Aircraft relieved one another in the air, and tankers refuelled them to stretch their sorties. Over almost thirty years the operation is said to have logged hundreds of thousands of accident-free flying hours. The mission passed to the Navy’s E-6 Mercury in the 1990s, but it remains the clearest example of how the C-135 family carried far more than fuel.
Record

The KC-135Q and the Blackbird

A tanker that carried a fuel no other aircraft used.

Read the full story
The SR-71 burned JP-7, a special low-volatility fuel that would not ignite in the heat of Mach 3 flight, and it took off with partly empty tanks to save weight. It needed a tanker almost immediately after take-off and again during long missions. The answer was the KC-135Q: 56 tankers modified with separate fuel systems so they could carry JP-7 for the Blackbird and burn ordinary jet fuel themselves. They were based with the SR-71s at Beale and overseas, and their crews were part of the secret world of strategic reconnaissance. Re-engined as KC-135Ts, these aircraft are still flying long after the last SR-71 retired.
People

The Vomit Comet

The tanker that taught astronauts to float.

Read the full story
NASA flew several modified KC-135s as reduced-gravity research aircraft. Each flight was a long series of roller-coaster parabolas: a steep pull-up, a push over the top that gave around 25 seconds of weightlessness, and a pull-out. A single sortie could fly dozens of them. Astronauts practised moving and working in weightlessness, scientists tested experiments for space, and film crews shot weightless scenes, most famously for the 1995 film Apollo 13. The physical effect on many passengers gave the aircraft its nickname, the Vomit Comet. Airframe 59-1481 is now on display at Ellington Field in Houston, close to the Johnson Space Center where so many of its passengers trained.
Combat

Desert Storm: the tanker bridge

The air war over Iraq ran on tanker fuel.

Read the full story
The coalition air campaign against Iraq in 1991 was possible only because of a vast tanker force, and the KC-135 made up the largest part of it, working alongside the KC-10. Tankers flew orbits over Saudi Arabia and the Gulf around the clock, meeting strike packages on the way in and out. Planners had to fit hundreds of receivers each day into crowded airspace and tankers completed tens of thousands of refuellings. The war confirmed that a modern air campaign is shaped as much by tanker numbers as by fighters or bombers.
Accident

Shell 77, Kyrgyzstan

An old design flaw resurfaced in 2013.

Read the full story
On 3 May 2013 KC-135R Shell 77 took off from the Transit Center at Manas, Kyrgyzstan, to support operations in Afghanistan. A malfunction in the rudder system set up a Dutch roll, a combined yawing and rolling oscillation, and the crew’s efforts to control it made it worse. The aircraft broke up in flight and all three crew were killed. The investigation pointed to the flight control fault, the crew’s training in recovering from Dutch roll and the age of the systems involved. It was a reminder that operating a fleet of aircraft from the 1950s brings risks of its own.
Survivor

The first KC-135, at its home base

Where to see a KC-135 today.

Read the full story
Retired KC-135s and C-135 family aircraft are on display at many US bases and museums. The very first KC-135 built, 55-3118, stands at McConnell Air Force Base in Kansas, home of a large tanker wing. The National Museum of the United States Air Force at Dayton, Ohio, displays KC-135 and EC-135 aircraft, and the former NASA reduced-gravity aircraft 59-1481 is preserved at Ellington Field in Houston. Many more serve as gate guards, and hundreds of airframes have gone to the boneyard at Davis-Monthan, where some are kept as spare parts for the aircraft still flying.
Gallery

The KC-135 in pictures

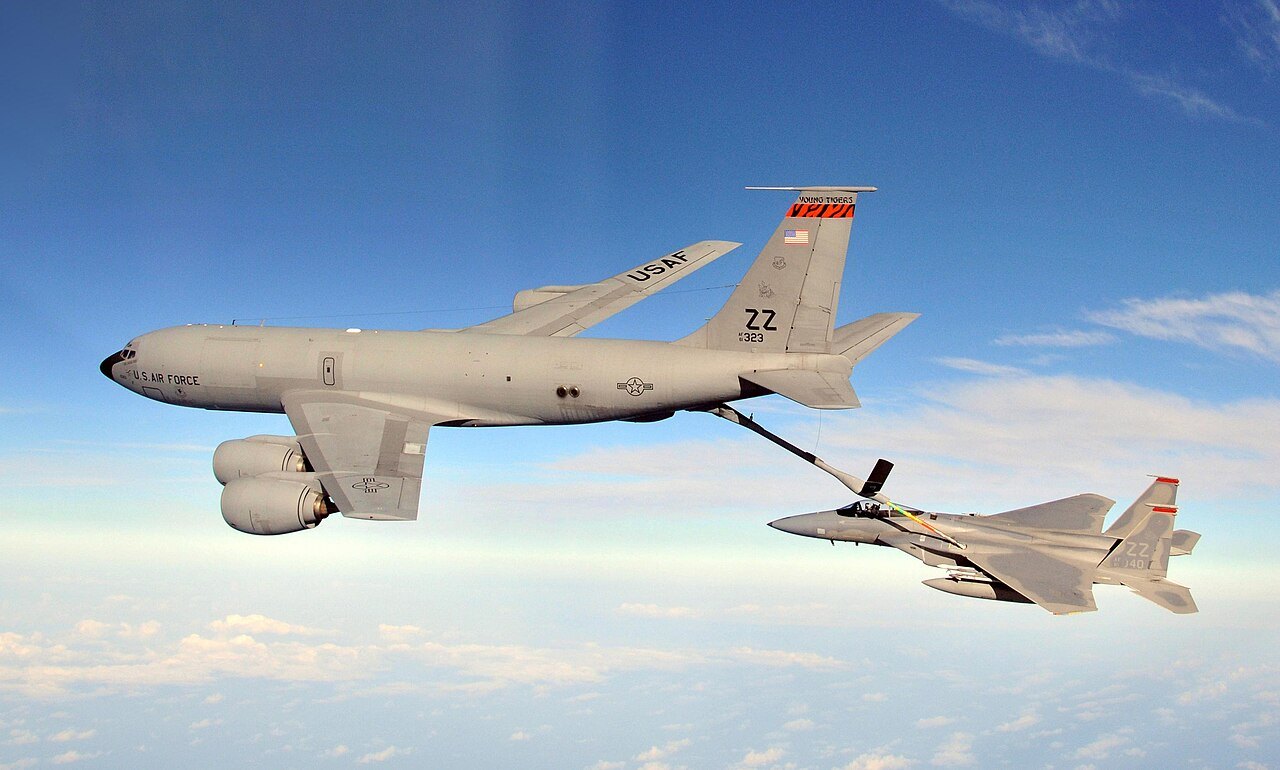

KC-135
KC-135Photo: U.S. Air Force photo/Tech. Sgt. Angelique Perez / Public domain via Wikimedia Commons

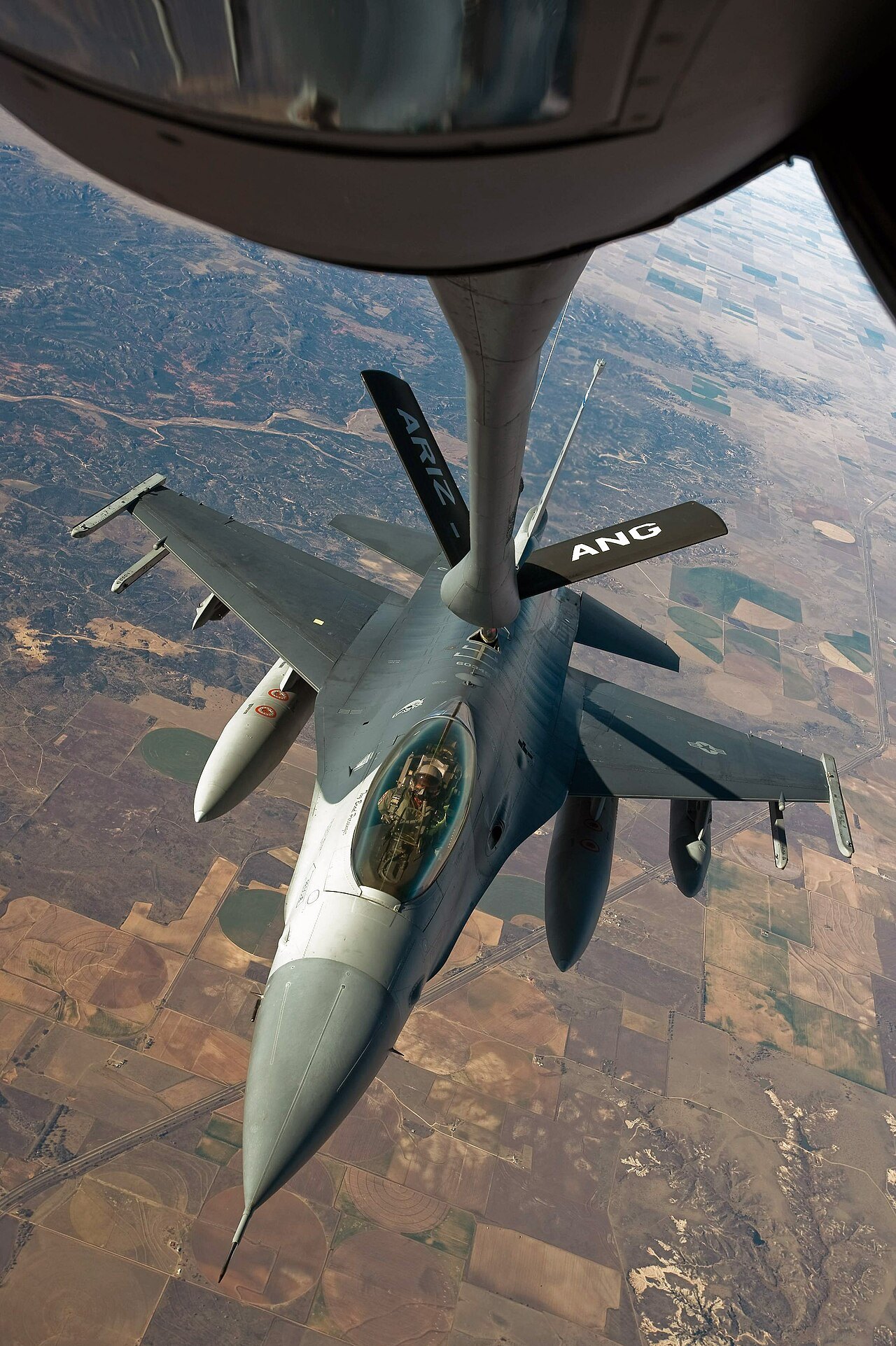

KC-135
KC-135Photo: U.S. Air Force photo/Master Sgt. John Nimmo Sr. / Public domain via Wikimedia Commons

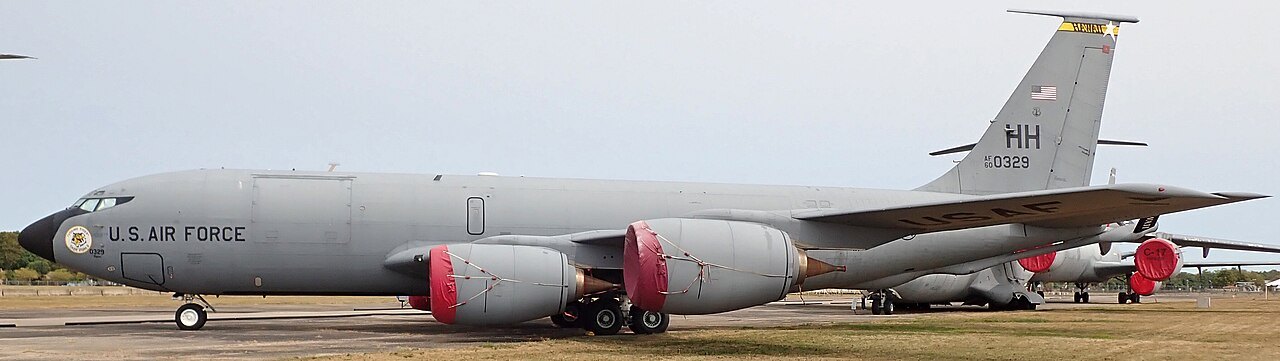

KC-135
KC-135Photo: James St. John / CC BY 2.0 via Wikimedia Commons

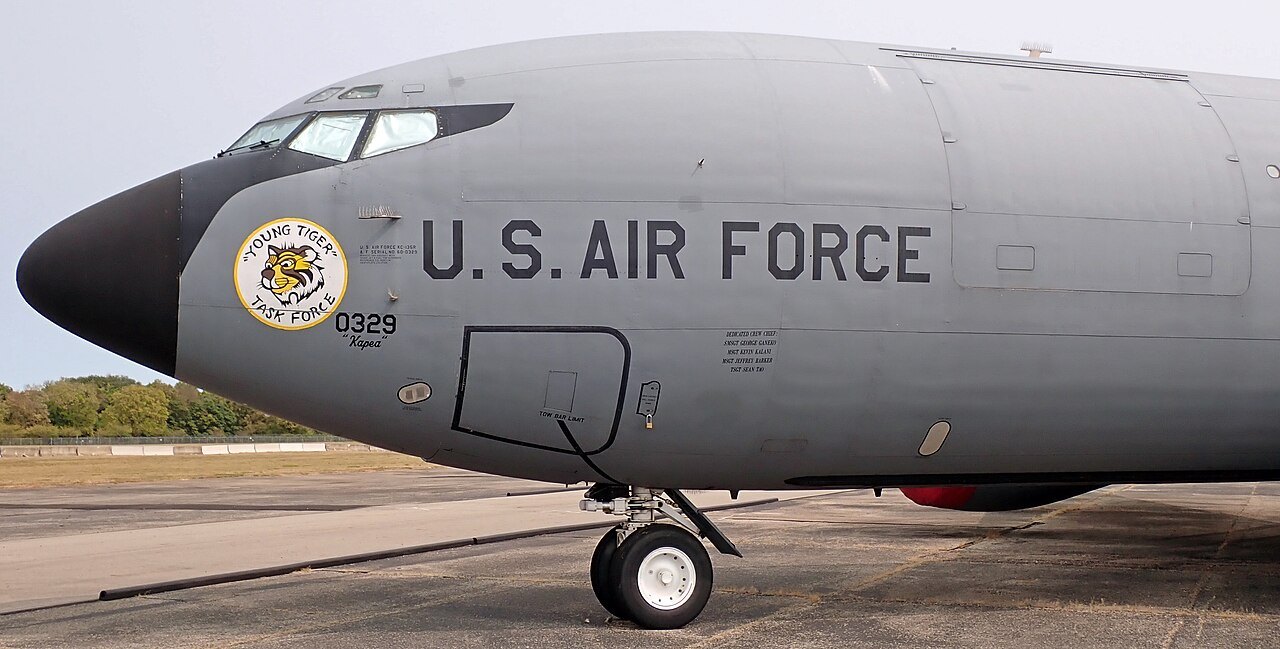

KC-135
KC-135Photo: James St. John / CC BY 2.0 via Wikimedia Commons
Operations

Where the KC-135 flies and flew

Service Record

The KC-135’s record

The KC-135 is a support aircraft, but it has flown in every American air war since Vietnam and in many smaller operations, usually close enough to combat to be at risk. Its record is measured in decades and in fuel rather than in kills.

1957In service since
803Tankers built
~376Still with the USAF in 2024

See how training and combat types compare in the military aircraft statistics database. Figures are approximate.

Questions & Answers

Everything people ask about the KC-135

Can I fly in a Boeing KC-135 Stratotanker?
MiGFlug does not offer flights in the KC-135, but you can fly several genuine military jets today, from the L-39 Albatros to the MiG-21, see MiGFlug’s jet flights.
Is the KC-135 the same as a Boeing 707?
No. Both were derived from Boeing’s 367-80 demonstrator, but the KC-135 has a narrower fuselage and a different structure. They are close relatives rather than the same aircraft.
How old are the KC-135s still flying?
All were built between 1955 and 1965, so the youngest is about 60 years old. Some 1957-built aircraft are still in service.
How much fuel can a KC-135 carry?
About 200,000 lb (90,700 kg) of fuel, most of which can be passed to other aircraft. The same fuel also runs the tanker’s own engines.
Can the KC-135 refuel Navy aircraft?
Yes, with a boom drogue adapter fitted on the ground, or with wing-mounted refuelling pods on some aircraft. Otherwise it uses its flying boom.
What is replacing the KC-135?
The Boeing KC-46 Pegasus, delivered since 2019. The two will fly side by side for many years.
Who else flies the KC-135?
Turkey and Chile operate the type, and the company Metrea flies ex-French and ex-Singaporean aircraft. France and Singapore have retired theirs.
