At a Glance

Bristol Blenheim: key facts

The Story

The Bristol Blenheim: the bomber that was briefly faster than the fighters

Design & Engineering

How the Bristol Blenheim was built to fight

The Blenheim’s speed came from clean aerodynamics and modern construction — but the same airframe that made it fast in 1935 left little margin for the defensive firepower it would need in 1940.

Full Specifications

Bristol Blenheim Mk IV — specifications

Figures are for the long-nose Blenheim Mk IV, the main production bomber version; earlier Mk I and later Mk V figures differ. Contested values are given as approximate.

Baseline: the Blenheim Mk IV as it equipped No. 2 Group in 1940–41 — two Bristol Mercury XV radials, the long asymmetric nose, one fixed wing gun, a two-gun dorsal turret and a rear-firing under-nose barbette — because that is the aeroplane of the Battle of France, of the Channel anti-shipping campaign, and of the loss returns that made the Blenheim notorious. Deltas for the short-nose Mk I, the Mk IF night-fighter, the Mk V Bisley and the Canadian-built Bolingbroke are in grey. Two warnings before the figures. First, published Blenheim numbers are unusually loose: maximum speed for the Mk I appears as 260, 266 and 285 mph in reputable print, service ceiling for the Mk IV as 22,000 and 27,260 ft, and empty weights vary by several hundred pounds depending on whether armour, self-sealing tanks, tropical filters and the extra guns bolted on after 1940 are counted — and by 1941 most operational aircraft carried all of them. Second, and more important, weight grew steadily across the type's life while power barely moved. A 1935 figure and a 1942 figure describe two quite different aeroplanes wearing the same name, and the whole tragedy of the Blenheim is contained in that sentence.

Armament & payload

The Blenheim went to war with a thousand pounds of bombs and three rifle-calibre guns, and both were about half of what it needed

The Blenheim's armament was frozen in 1935, when a bomber that could outrun fighters was thought not to need much defence, and it never truly thawed. The bomb load was 1,000 lb internal — the same as the single-engined Fairey Battle, on twice the engines — carried in a bay whose doors were held shut with elastic cord and shoved open by the bombs themselves. The defensive fit was one fixed .303 in Browning in the port wing, aimed by pointing the aeroplane, and a single hand-worked gun in the dorsal turret. Combat added a second turret gun, a rear-firing under-nose barbette and a free Vickers K in the nose, but every one of those guns fired the same rifle-calibre round that could not reach a Bf 109 before the 109's cannon reached the Blenheim. The offensive load never grew at all in British service. Fits varied enormously by mark, theatre and date: a 1939 Mk I, a 1941 Coastal Command Mk IVF and a 1943 Finnish-built Mk IV had almost nothing in common below the wing line, and squadron armourers improvised constantly.

Sourcing caveat: Blenheim armament fits are unusually badly documented because so much of the type's later fit was retrofitted in the field or by maintenance units rather than on the production line. Turret armament, the presence or absence of the FN.54 barbette, the nose Vickers K, and the exact bomb-fuzing practice all vary between squadrons and between months within the same squadron. Where a figure could not be corroborated it has been left out rather than rounded into place.

Variants

Bristol built a newspaper proprietor a fast private aeroplane, and Britain spent the next eight years trying to turn it into a bomber

The Blenheim began as the Bristol Type 142, a six-passenger executive monoplane commissioned by Lord Rothermere, proprietor of the Daily Mail, who was irritated that the fastest aeroplanes in Europe were German. It first flew at Filton on 12 April 1935 and reached about 307 mph — roughly 50 mph faster than the Gloster Gauntlet then entering RAF service as its newest fighter. Rothermere named it Britain First, presented it to the nation, and the Air Ministry ordered a bomber conversion, the Type 142M, straight off the drawing board to Specification B.28/35. The first Blenheim Mk I flew on 25 June 1936 and deliveries to No. 114 Squadron at Wyton began on 10 March 1937. For about two years it was, plausibly, the best light bomber in the world.

That reputation is the source of the disaster. Because the Type 142 had outrun fighters in 1935, the Air Ministry ordered the Blenheim in enormous quantity — 2,088 on order by September 1939 — and built it under the shadow factory scheme at Avro's Chadderton works and Rootes Securities at Speke, while doing very little to improve it. The Mk IV of 1938 addressed the one complaint everyone agreed on, the observer's hopeless working position in the short "stepless" nose, by extending the nose about three feet and giving the pilot a proper windscreen. That first attempt put the windscreen too far forward and produced glare and distortion, so the nose was lengthened again, the bomb-aimer's floor lowered, and the port roof of the nose scalloped away so the pilot could see past it — which is why a Blenheim IV is visibly asymmetric from the front. It is one of the most honest pieces of aircraft design in the RAF: an ugly local fix to a real problem, applied where it was needed and nowhere else. It also cost speed and about 5,000 ft of ceiling.

Then the war arrived and the arithmetic turned savage. On 14 May 1940, in the counter-attack on the Meuse bridgeheads, 40 of 71 Battles and Blenheims dispatched were lost — proportionally the worst loss the RAF has ever suffered on an operation of that size. No. 82 Squadron was annihilated twice in one summer. On 17 May 1940 it sent twelve Blenheims against German columns near Gembloux without the promised escort; one fell to flak and ten to Bf 109s, twenty-two aircrew were killed and three taken prisoner, and a single aircraft came home. The squadron was rebuilt rather than disbanded and flew again within days. On 13 August 1940 it sent twelve against the airfield at Aalborg in Denmark. One turned back early — its pilot was charged and was killed on another operation before any court martial — and all eleven that reached Denmark were shot down, five by flak and six by Bf 109s of II./JG 77. Twice in three months, the same squadron, eleven out of twelve.

1941 was worse in aggregate if less spectacular in single days. No. 2 Group was set to close the Channel to German coastal traffic — the Channel Stop operation, flown from Manston — and to daylight raids across occupied Europe. Between April and June 1941, 297 Blenheim attacks on shipping cost 36 aircraft; by the year's end, 698 ships had been attacked and 41 sunk for 123 Blenheims lost. On 4 July 1941 Wing Commander Hughie Edwards led fifteen Blenheims of Nos. 105 and 107 Squadrons across Bremen at rooftop height through balloon cables and lost four; he was awarded the Victoria Cross. On 12 August 1941, 54 Blenheims under Wing Commander Nichol of No. 114 Squadron hit the Fortuna and Goldenberg power stations near Cologne and lost twelve, a 22 per cent loss rate against a sustainable figure of under five. Detachments to Malta in 1941 suffered comparably. These were not accidents of tactics; they were the predictable result of sending a 1935 aeroplane with three rifle-calibre guns against 1941 fighters in daylight, and the men who flew them knew it before they took off.

The last British attempt to save the design made things worse. The Type 160, conceived in 1940 as an armoured close-support aeroplane with four guns in a solid nose and named Bisley, was ordered instead as a conventional bomber with a glazed bomb-aiming nose and reverted to the name Blenheim Mk V. Rootes built roughly 940 at Blythe Bridge. It weighed up to 17,000 lb on Mercuries of 950 hp, and it was slower, less manoeuvrable and no better defended than the Mk IV it replaced. On 4 December 1942, near Chougui in Tunisia, Wing Commander Hugh Malcolm of No. 18 Squadron led ten Mk Vs on an unescorted daylight support sortie at First Army's urgent request; one force-landed on the way and all nine that reached the target were destroyed by JG 53 and JG 2. Malcolm was awarded a posthumous Victoria Cross, the first to the RAF in North Africa, and the Malcolm Clubs are named for him. Thirteen squadrons received the Mk V and most kept it only for a few months. It is remembered, fairly, as one of the worst British operational aircraft of the war.

Two foreign chapters end the story better than the British one does. Finland was the Blenheim's first export customer, ordering eighteen Mk Is in 1936, and then bought a manufacturing licence: Valtion lentokonetehdas at Tampere built 55 more, the last completed in September 1944, which makes it the last Blenheim built anywhere. Finland operated 97 in all, 75 Mk Is and 22 Mk IVs, flew 423 sorties in the Winter War and close to 3,000 in the Continuation and Lapland Wars, lost 37 in combat and had its gunners claim eight Soviet aircraft. The Finns called it Pelti-Heikki, Tin Henry, improved the bomb bay, and kept flying it long after everyone else: stored in 1948 under the Paris Peace Treaty, five were reactivated as target tugs in 1951 and the last Finnish Blenheim flight was on 20 May 1958. In Canada, Fairchild Aircraft at Longueuil built the type as the Bolingbroke — originally a coastal-reconnaissance development to Specification G.24/35 whose long-nose navigator station fed directly into the Blenheim Mk IV — and its 626 aircraft flew maritime patrol on both Canadian coasts and, in the IVT trainer version, taught a generation of Commonwealth bomb-aimers and gunners.

Type 142 Britain First (1935, 1 built)

Lord Rothermere's private six-passenger monoplane, all-metal stressed skin, retractable gear, flaps, variable-pitch propellers. First flight 12 April 1935 at Filton; about 307 mph, faster than the RAF's newest fighter. Presented to the nation and evaluated at Martlesham Heath as K7557.

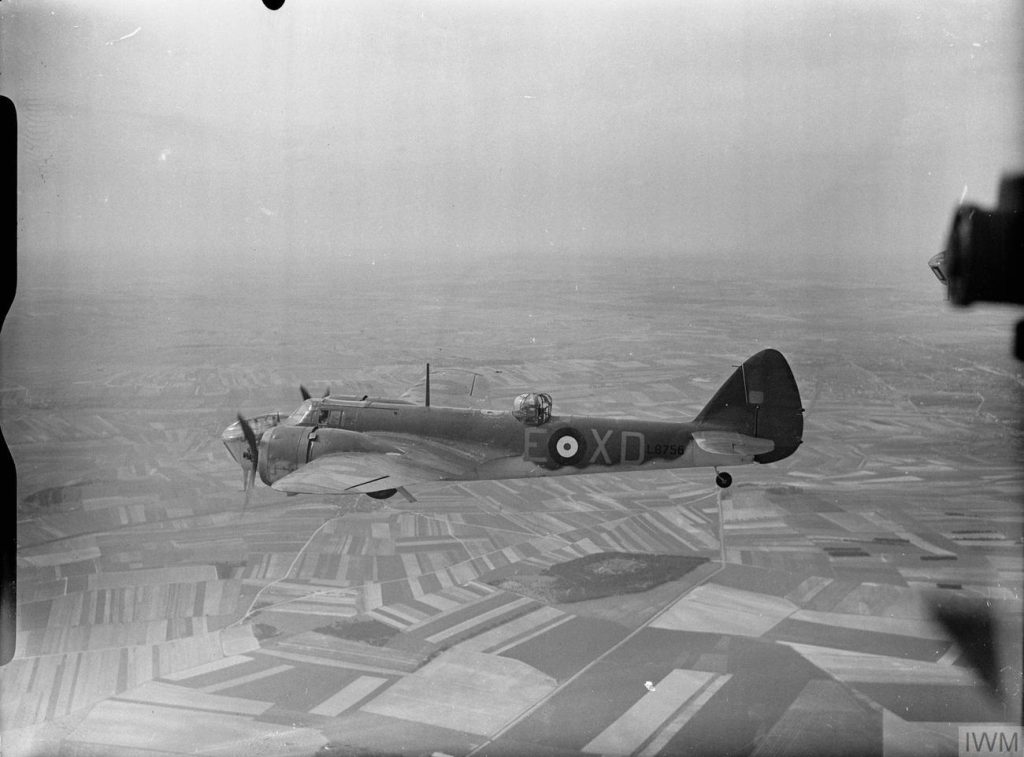

Type 142M Blenheim Mk I (1936–39, 1,351 built in Britain)

The short-nose bomber to Specification B.28/35: wing raised to mid-position over a bomb bay, Mercury VIII engines, the "stepless" glazed nose with no separate windscreen, one wing gun and one turret gun. Built by Bristol at Filton, Avro at Chadderton and Rootes Securities at Speke. In service from 10 March 1937 with No. 114 Squadron.

Blenheim Mk IF (1938–40, ~200 converted)

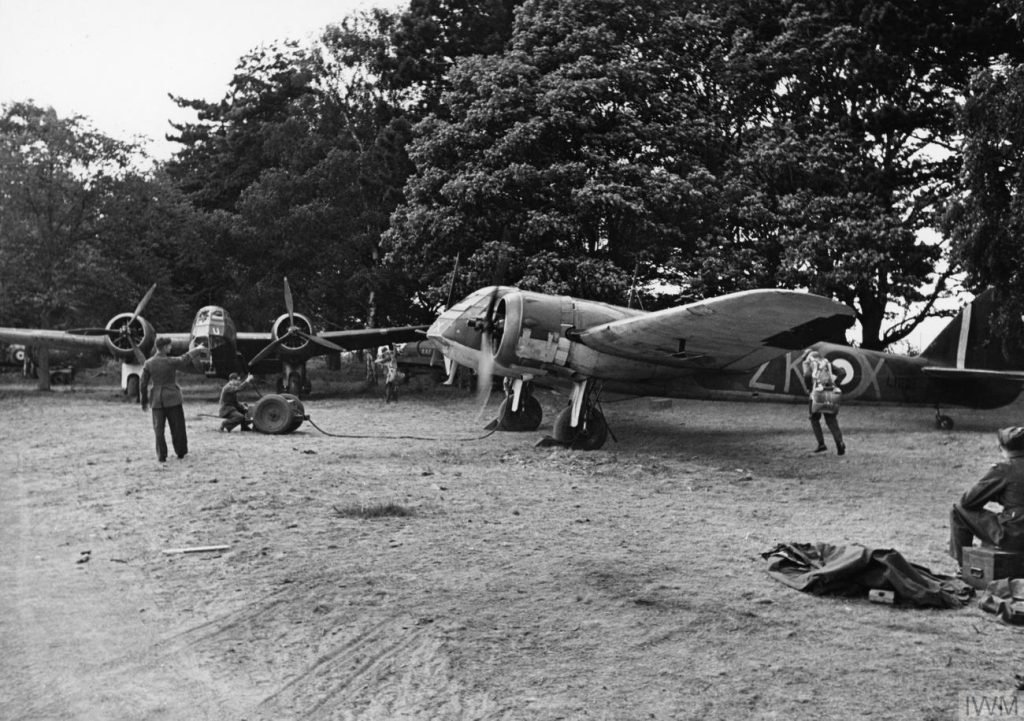

Long-range and night fighter conversion of the Mk I with a ventral pack of four .303 in Brownings. First to No. 600 Squadron AAF in September 1938. Too slow by day; carried the first AI airborne interception radar by night and made the first radar-guided kill in history on 22/23 July 1940. Replaced by the Beaufighter during 1940–41.

Blenheim Mk II and Mk III (1938–39, 1 and 1 built)

Dead ends that mattered. The Mk II raised tankage from 278 to 468 imp gal for a long-range reconnaissance requirement and gained too little speed to justify itself; the Mk III was the nose-lengthening testbed. Both fed into the Mk IV.

Type 149 Blenheim Mk IV (1938–43, 3,307 built)

The definitive British bomber version and the one that did nearly all the fighting: long asymmetric nose with the scalloped port roof, Mercury XV engines, outer-wing tanks and fuel jettison, two-gun dorsal turret and the FN.54 rear-firing under-nose barbette. Built mainly by Avro and Rootes; production ended in June 1943. Ten squadrons and 168 aircraft were operational on 3 September 1939.

Blenheim Mk IVF (1940–42, ~60 converted)

Mk IV with the four-gun ventral pack and, on many aircraft, ASV Mk II radar, used by Coastal Command for convoy protection and long-range shipping patrol. The genuine Blenheim wreck in Greece is one of these.

Type 160 Blenheim Mk V / Bisley (1941–43, ~940 built)

Rootes-built at Blythe Bridge in four sub-series: VA the standard bomber with the glazed nose, VB the armoured close-support machine with a four-gun solid nose, VC a dual-control trainer and VD the tropicalised bomber. Strengthened structure, crew armour, Mercury XXV or XXX of 950 hp, and up to 17,000 lb all-up. Thirteen squadrons in the Middle East and Far East, most for only a few months. Widely and rightly regarded as a failure.

Bolingbroke Mks I to IVT (1939–43, 626 built in Canada)

Fairchild Aircraft, Longueuil, Quebec: 18 Mk I to British standard, 1 Mk II with North American equipment, 1 Mk III on Edo floats, 134 Mk IV with de-icing boots and Canadian instruments, 15 Mk IVW on Pratt & Whitney Twin Wasp Juniors, 1 Mk IVC on a Wright Cyclone, and 457 Mk IVT bombing and gunnery trainers. Flown on maritime patrol from Nova Scotia to British Columbia and throughout the British Commonwealth Air Training Plan.

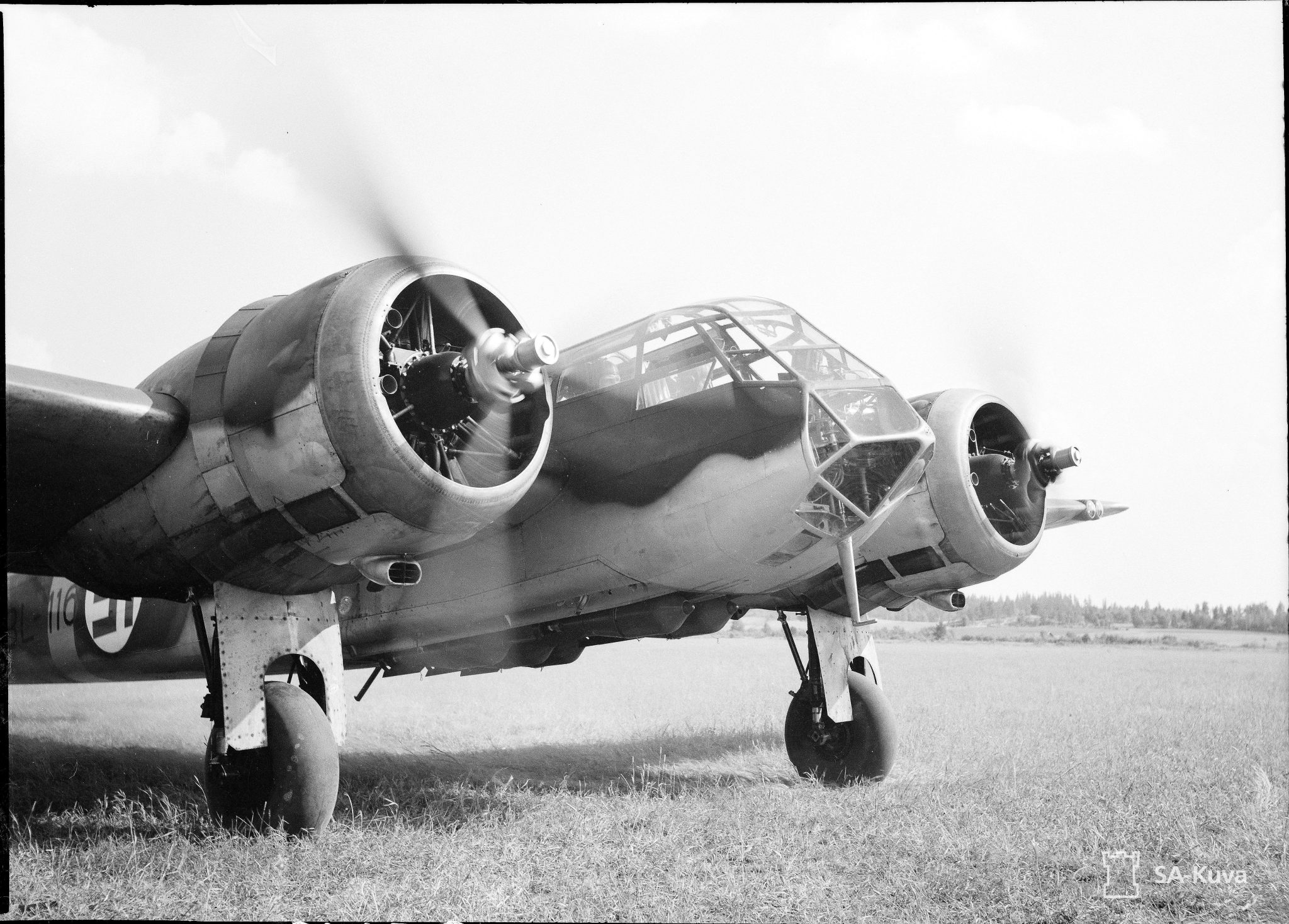

Finnish licence production (1938–44, 55 built by Valtion lentokonetehdas)

Built at Tampere in six delivered series, mixing Mk I and Mk IV standards, with deepened bomb-bay doors and an internal load raised to about 1,800 lb. The final aircraft was completed in September 1944 — the last Blenheim built anywhere in the world. A seventh series of six was cancelled that year.

Yugoslav licence production and other operators (1937–41, 16 of 40 completed)

Ikarus at Zemun built 16 Mk Is before the German invasion of April 1941, with about 24 more in advanced stages; these were used against the invasion and destroyed, and survivors passed to the Croatian air force. Other operators included Romania, Greece, Turkey, Portugal, Free France, South Africa, Australia, New Zealand and India.

Two closing corrections and one count. First, on production: the figure of about 4,400 aircraft that circulates widely, sometimes with Canadian production folded in, cannot be reconciled with the mark-by-mark totals. British production alone runs to roughly 5,600 — 1,351 Mk I, 3,307 Mk IV and about 940 Mk V — and adding 626 Bolingbrokes, 55 Finnish and 16 Yugoslav machines gives something in the region of 6,300. The individual mark figures also wobble: 1,280 and 1,134 appear for the Mk I, 3,297 for the Mk IV, and 902, 940 and 942 for the Mk V. Anyone quoting a single tidy total for the Blenheim is quoting one source rather than reconciling several. Second, on survivors, where the distinction the enthusiast press routinely blurs is worth stating plainly: almost every aeroplane in the world presented today as a Bristol Blenheim is a Canadian-built Bolingbroke. Exactly one complete original Blenheim survives — BL-200, a Finnish licence-built Mk IV of Series VI, on display at the Aviation Museum of Central Finland at Tikkakoski. One further genuine airframe exists as an unrestored relic: a Blenheim Mk IVF of No. 203 Squadron, shot down by friendly fire off Rethymnon on 28 April 1941 and recovered from the sea off Crete in the summer of 1996, now held by the Hellenic Air Force Museum. Everything else is a Bolingbroke. The only airworthy example in the world, G-BPIV of the Aircraft Restoration Company at Duxford, is Bolingbroke IVT RCAF 10201: restored to fly as a Blenheim IV between 1988 and 1993, crash-landed at Duxford on 18 August 2003, and rebuilt over the following decade as a short-nose Mk I, rolled out in May 2014 and flying since that November in the markings of Blenheim IF L6739, YP-Q of No. 23 Squadron. Its predecessor, Bolingbroke IVT 10038, flew as G-BPIV's forerunner G-MKIV in May 1987 and was written off at Denham one month later; its remains are stored at Duxford. The RAF Museum Midlands aircraft at Cosford, catalogued as Blenheim IV L8756 in No. 139 Squadron markings, is Bolingbroke IVT 10001. The Royal Museum of the Armed Forces in Brussels displays Bolingbroke IVT 9895 as a No. 139 Squadron Blenheim, the National Museum of Flight at East Fortune has Bolingbroke IVT 9940, Aerospace Bristol at Filton is restoring Bolingbroke 9048, and the Kent Battle of Britain Museum at Hawkinge has been building a "Blenheim IVF" from the remains of four Bolingbrokes since 2018. Around ten more Bolingbrokes survive in Canada, from Brandon and Winnipeg to Nanton, Ottawa and Hamilton, with two in the United States at Polk City and Tucson. One original Blenheim intact, one original as wreckage, and a fleet of honest Canadian stand-ins.

Reference Data

Bristol Blenheim: structure, engines and production

Background reference data spanning the Blenheim family, from the 1935 prototype to the last licence-built machines.

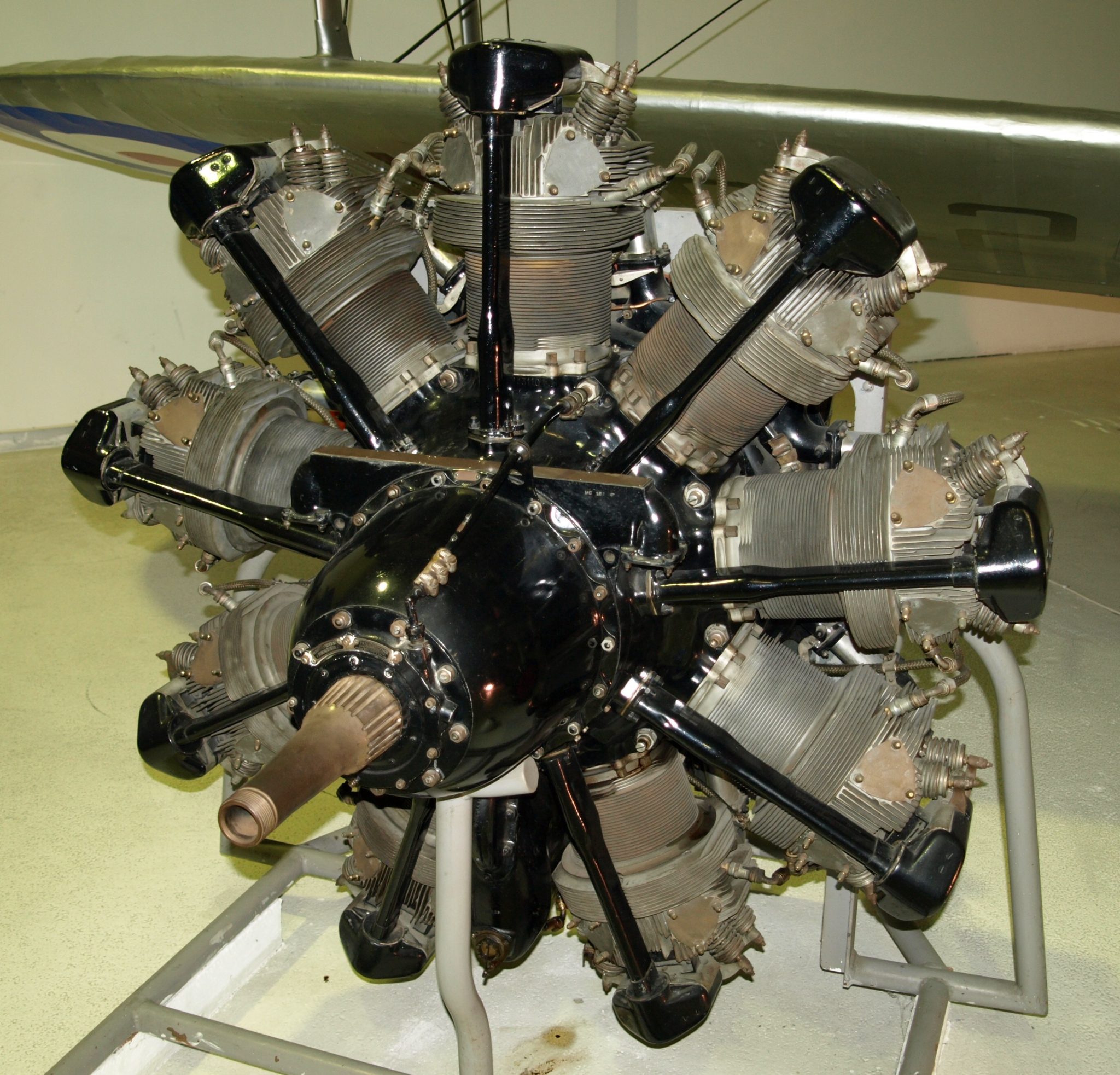

Powerplant & Heritage

Engines, names and the Blenheim’s place in history

Variants

Every major Bristol Blenheim mark

From the fast little Mk I of 1937 to the armoured Mk V and the Canadian-built Bolingbroke, the Blenheim spawned a surprisingly large family. These are the marks that mattered.

Notable Operations

The Bristol Blenheim in action

In Context

The Bristol Blenheim among its contemporaries

In 1937 the Blenheim was fast for a bomber; within three years its light defensive armament and modest bomb load left it outclassed. Set beside its peers — and its own successor — the shift is clear.

Figures are approximate and vary by sub-variant, load and altitude; the Mosquito shows how far fast-bomber design had advanced by 1942.

Timeline

The Bristol Blenheim: a service record

Stories & Eyewitnesses

The Bristol Blenheim in sixteen stories

The Blenheim in Depth

The Bristol Blenheim, mission by mission

Ten closer looks at how the Blenheim actually fought — and what it cost the men who flew it.

More on the Blenheim

The Bristol Blenheim: tactics, technology and legacy

Equipment & Operations

The Bristol Blenheim: crew, kit and the electronic war

Photo Gallery

The Bristol Blenheim in photographs

All images sourced from Wikimedia Commons. Public-domain wartime photographs and openly licensed images, credited individually above.

On Film

The Bristol Blenheim on film

A concise, well-sourced history of the Blenheim — how it began as the fastest thing in the sky and ended as one of the most dangerous aircraft in which to fly.

“Obsolete Wonder Weapon: The Bristol Blenheim” by Ed Nash’s Military Matters — around 44,000 views and 3,300+ likes on an authoritative aviation-history channel.

Operations Map

Where the Bristol Blenheim served

The Blenheim was a truly global aircraft — the RAF's primary type, fought across a dozen theatres, exported and licence-built abroad, and preserved today on two continents. Toggle the categories to explore where it operated.

The Blenheim’s combat record is inseparable from its losses. Flown in daylight without escort against modern flak and fighters, No. 2 Group’s Blenheims endured some of Bomber Command’s worst loss rates, and on the blackest days whole squadrons were destroyed in a single sortie.

The Bristol Blenheim by the numbers

A short, hard-edged summary of what the Blenheim achieved — and what it cost.

Where to See One

Surviving Bristol Blenheims on display

Very few Blenheims survive — but one of them still flies, and others can be seen on the ground in Britain, Finland, Canada and Belgium.

Between them these aircraft — one flying, the rest preserved on the ground — keep the memory of the Blenheim and its crews alive on both sides of the Atlantic.

The Blenheim is easy to caricature as a failure — too slow, too lightly armed, sent to die in daylight. But that judgement misreads both the aircraft and its moment.

Remembering the Bristol Blenheim

Questions & Answers

Bristol Blenheim: your questions answered

Related Aircraft

More from the Aircraft Museum

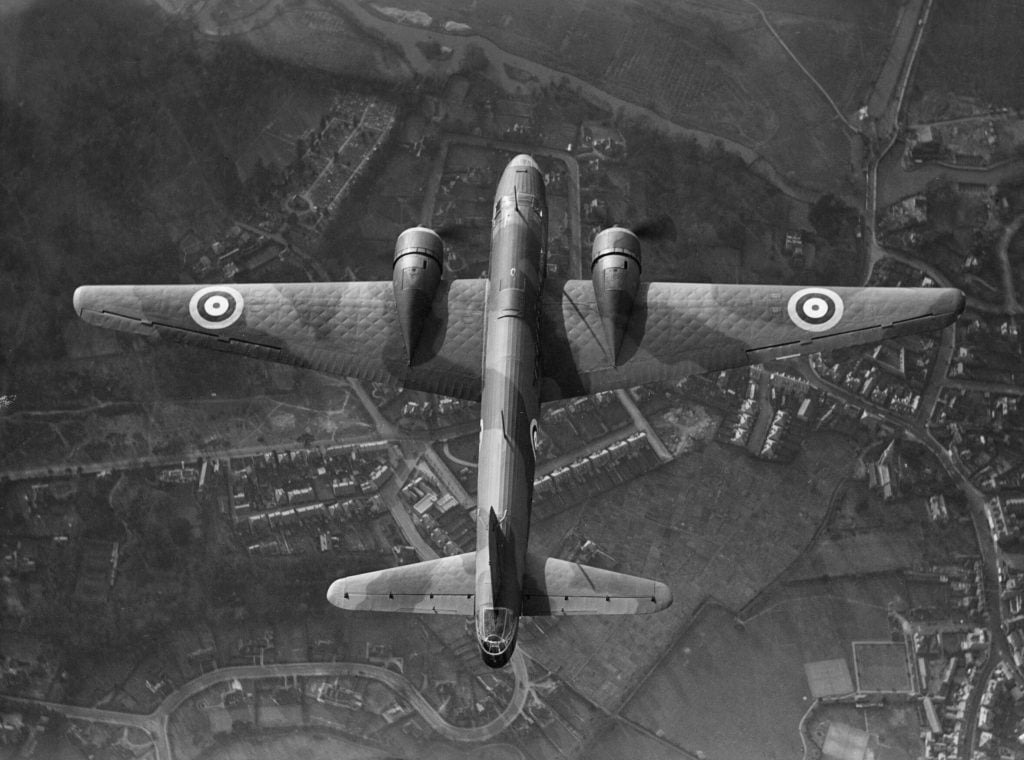

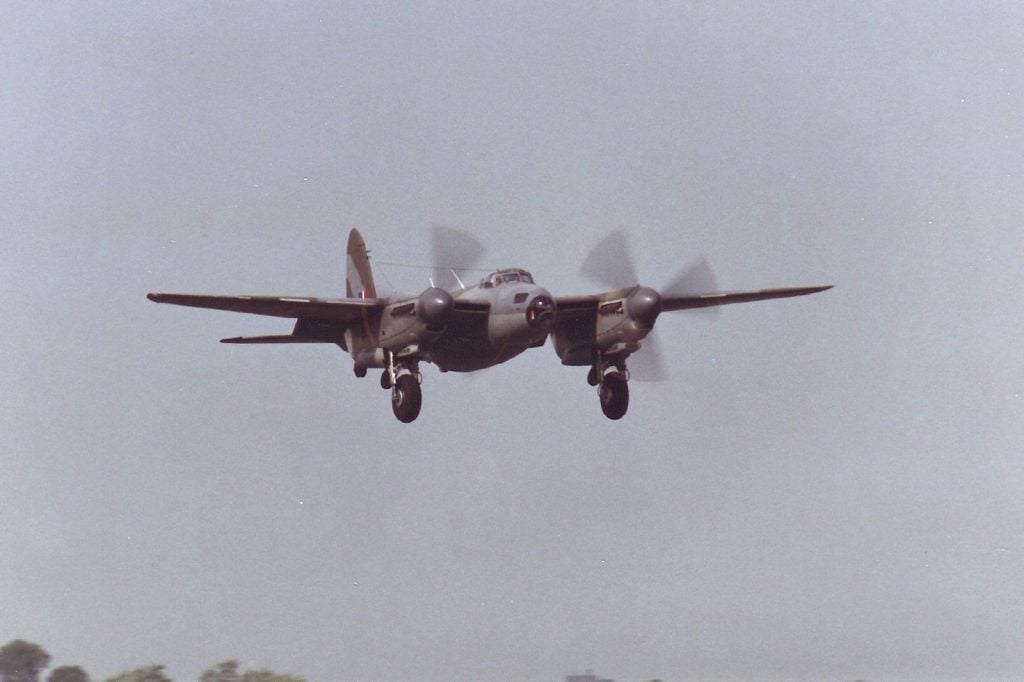

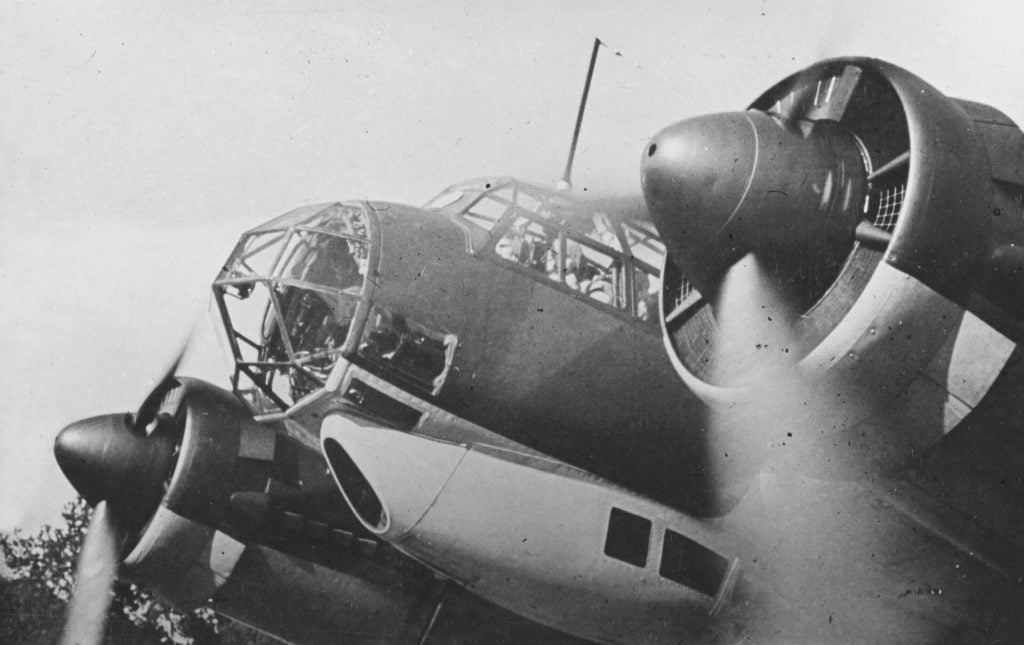

Vickers WellingtonThe geodetic twin that became Bomber Command’s early-war workhorse.de Havilland MosquitoThe wooden wonder that perfected the fast-bomber idea the Blenheim began.Junkers Ju 88Germany’s versatile fast bomber — the aircraft the Blenheim was measured against.
