Mitsubishi A5M
“Claude”
The world’s first monoplane carrier fighter to reach the fleet — Jiro Horikoshi’s open-cockpit, fixed-gear featherweight that won air superiority over China, then handed its lessons straight to the A6M Zero.
The Mitsubishi A5M: the world’s first modern carrier fighter
In the mid-1930s the Imperial Japanese Navy still went to sea with open-cockpit biplane fighters, and it knew the type was living on borrowed time. In 1934 it issued its 9-Shi specification for a land- and carrier-capable monoplane fighter with performance that looked, on paper, almost impossible. Mitsubishi handed the problem to a young engineer named Jiro Horikoshi — the man who would later design the A6M Zero — and his team answered with the Ka-14 prototype, first flown on 4 February 1935. All-metal, low-winged and fitted with a distinctive inverted-gull wing, it reached roughly 450 km/h, comfortably beyond what the Navy had dared to ask for.
The gull wing was smoothed out into a simpler straight wing for production, and in 1936 the aircraft entered service as the Type 96 Carrier Fighter — the A5M, given the Allied reporting name “Claude.” Horikoshi kept it deliberately spare. It flew with an open cockpit and a fixed, spatted undercarriage, on the judgement that retracting gear and an enclosed canopy added weight and complexity a fighter this light did not need. Its entire armament was two 7.7 mm machine guns. What the pilot got in return was a machine that turned, rolled and climbed beautifully and was, by every account, a delight to fly.
Over China in 1937–38 the A5M did exactly what it was built to do: it took air superiority. Flown by superbly trained naval aviators, it outclassed the Chinese Air Force’s Curtiss Hawk biplanes and even the newer Polikarpov I-15 and I-16 monoplanes, and — fitted with drop tanks — escorted Japanese bombers deep inland. That success, and the lessons Horikoshi drew from it, led directly to his next aircraft, the A6M Zero. By the time of Pearl Harbor in December 1941 the Zero had already replaced the A5M in front-line carrier units; the older fighter was by then short-ranged and lightly armed. Many A5Ms were rebuilt as advanced trainers, and a number were expended in kamikaze attacks in the war’s final months. No complete A5M is known to survive today.
01The Mitsubishi A5M’s origins: how the 9-Shi contest produced Japan’s first modern fighter
The 9-Shi (ninth-year-of-Shōwa) requirement of 1934 was audacious for its day: the Navy wanted a monoplane interceptor able to reach around 350 km/h and climb to 5,000 m in well under seven minutes. Horikoshi’s Ka-14 blew past those numbers. Its inverted-gull wing was an attempt to shorten the undercarriage and improve the pilot’s view, but it complicated handling and manufacture, so later prototypes reverted to a straight, elliptical-tipped low wing. The flush-riveted, stressed-skin aluminium structure was itself a leap for Japanese industry. When the type was ordered into production as the Type 96, it made Japan — briefly — the operator of the most advanced shipboard fighter in the world, and it gave Mitsubishi and Horikoshi the design vocabulary they would carry straight into the Zero.
The Type 96 designation followed the Imperial Japanese Navy’s practice of numbering aircraft by the Japanese calendar year of adoption — 1936 being the year 2596, hence “96.” Western intelligence, unaware of the internal Mitsubishi designation A5M, later assigned the reporting name “Claude.” For a brief window the Navy operated what was arguably the most modern shipboard fighter in the world, and the confidence that gave Mitsubishi and Horikoshi is hard to overstate: it turned a firm that had struggled with earlier naval designs into the natural choice for the fighter that would follow.
What makes the Mitsubishi A5M special
A wing sized for the turn
Horikoshi gave the A5M a large, thin, all-metal wing for a very light airframe — an empty weight of little more than 1,200 kg. The result was low wing-loading, a tight turning circle and a fighter that could out-manoeuvre almost anything it met over China.
Fixed gear and an open cockpit — on purpose
The A5M kept a fixed, spatted undercarriage and an open cockpit throughout its life. An enclosed canopy was tried and disliked by pilots; retractable gear was judged not worth the weight. Simplicity kept it light, cheap and easy to maintain aboard ship.
Two rifle-calibre guns
Its armament was just two 7.7 mm machine guns in the cowling — plenty against fabric biplanes in 1937, but slight by 1941. Late variants added a drop tank for range and, experimentally, a heavier gun, but the Claude was always a lightly armed fighter.
02The Mitsubishi A5M’s engine and performance: what a Kotobuki radial delivered
Power came from a Nakajima Kotobuki nine-cylinder air-cooled radial, a licence-developed relative of the Bristol Jupiter. Output grew across the variants — roughly 585 hp in the early A5M1/A5M2a, around 640 hp in the A5M2b, and about 710 hp (Kotobuki 41) in the main-production A5M4. Top speed rose in step to a commonly cited ~440 km/h for the A5M4, with a service ceiling near 9,800 m. These figures vary between sources and should be read as representative rather than exact. What mattered in the air was not outright speed but the combination of light weight, a big wing and a responsive engine, which gave the A5M an exceptional climb and turn for the late 1930s.
Reliability and ease of maintenance mattered as much as raw power. The Kotobuki was a known, well-understood engine, and pairing it with a light airframe gave the A5M a favourable power-to-weight ratio without demanding exotic engineering. That pragmatism — enough performance from proven parts — is a recurring theme in the aircraft’s design, and it is exactly why the A5M could be produced quickly and kept flying aboard ship and from rough forward strips in China.
03The Mitsubishi A5M and the A6M Zero: a direct design lineage
The A5M and the Zero were drawn by the same hand. Jiro Horikoshi led both projects at Mitsubishi, and the Zero was in effect the answer to the question the A5M raised: how to keep the Claude’s manoeuvrability and add the range, firepower and retractable gear that carrier war would demand. The 12-Shi specification that produced the Zero was written while the A5M was proving itself over China, and much of what the Navy learned flying the Claude — the value of long range, of light structure, of trained pilots — was poured into the A6M. The Zero replaced the A5M in front-line units from 1940 onward, but it was built on the Claude’s foundations.
The transition was also human. Squadrons that had learned to fight in the A5M re-equipped with the Zero and carried their hard-won tactics forward, which is one reason the early Zero units were so lethal in 1941–42: their pilots were A5M veterans. In that sense the Claude’s most important legacy was not any single feature carried into the A6M, but the cadre of skilled naval aviators it trained and blooded over China.
Mitsubishi A5M full specifications
Baseline note: the figures below describe the A5M4, Type 96 Carrier Fighter Model 24, the definitive production version and the one that carried the drop tank over China. Deltas for the earlier A5M2 series and for the trainer variants are in grey. Where the record disagrees with itself — and on this aircraft it often does — the disagreement is stated rather than smoothed over.
Dimensions & weights
- Crew
- 1 (A5M4-K trainer: 2, in tandem)
- Length
- 7.565 m (24 ft 10 in)
- Wingspan
- 11.00 m (36 ft 1 in) — unchanged from the second Ka-14 prototype onwards
- Height
- 3.27 m (10 ft 9 in)
- Wing area
- 17.80 m2 (191.6 sq ft)
- Aerofoil
- Mitsubishi B-9 modified — 16 per cent thickness at the root, 9 per cent at the tip
- Empty weight
- 1,216 kg (2,681 lb)
- Loaded weight
- 1,671 kg (3,684 lb)
- Useful load
- 455 kg (1,003 lb) — pilot, fuel, oil, ammunition and any external store, all of it
- Wing loading
- 93.8 kg/m2 (19.2 lb/sq ft), among the lowest of any monoplane fighter of the period and the whole basis of its turning fight
- Power-to-weight
- 0.32 kW/kg (0.192 hp/lb) at loaded weight
- Drop tank
- One 160-litre (35 imp gal / 42 US gal) jettisonable tank on the fuselage centreline — the defining addition of the A5M4
Performance
- Maximum speed
- 435 km/h (270 mph) at 3,000 m (9,840 ft)
- 9-shi specification requirement
- 350 km/h (217 mph) at 3,000 m — the aircraft beat the requirement by a margin nobody expected
- Ka-14 first prototype
- 450 km/h (280 mph) on only 447 kW (600 hp), 4 February 1935; a light, clean prototype figure, not directly comparable with a service A5M4
- Time to 3,000 m
- 3 min 35 s (to 9,840 ft)
- Specified climb
- 5,000 m in 6.5 min (to 16,400 ft) — the 9-shi requirement, comfortably exceeded
- Service ceiling
- 9,800 m (32,150 ft)
- Range
- 1,200 km (746 miles); without the drop tank the escort radius over China collapses, which is precisely why the tank was fitted
- Polikarpov I-16 Type 10
- 448 km/h (278 mph) — faster and far more heavily armed; the A5M's toughest opponent, and an even fight rather than a walkover
- Boeing Model 281 (P-26C)
- 377 km/h (234 mph) — the Chinese fighter the A5M met in the first monoplane-versus-monoplane dogfights in history
- Kawasaki Ki-10-II
- 400 km/h (249 mph) — the Army biplane that the Ki-18 version of this design outran, and which the Army kept anyway on manoeuvrability grounds
- Mitsubishi A6M2
- 533 km/h (331 mph) — the successor, from the same designer, four years later
Propulsion & systems
- Engine
- One Nakajima Kotobuki 41 or 41 KAI nine-cylinder air-cooled radial, a Bristol Jupiter descendant built under licence
- Take-off power
- 529 kW (710 hp)
- Rated power
- 585 kW (785 hp) at 3,000 m (9,840 ft)
- Earlier engines
- Kotobuki 5, 447 kW (600 hp) on the Ka-14 prototype; Kotobuki 2 KAI 1 on the A5M1; Kotobuki 3, 477 kW (640 hp) on the A5M2b. Wikipedia's figure of 633 kW (850 hp) for the A5M1 is almost certainly an error, since it would make the earliest version the most powerful.
- Alternative engine tried
- Hispano-Suiza 12Xcrs, 448 kW (601 hp) V-12 in the A5M3a prototypes, with a 20 mm cannon firing through the propeller hub. Not adopted.
- Propeller
- Three-blade metal on the A5M4; two-blade units on early aircraft
- Cowling
- NACA cowling introduced on the A5M2b, one of the clearest visual breaks in the series
- Cockpit
- Open on almost every aircraft built. An enclosed canopy was tried and rejected by Navy pilots, who valued the view and disliked the glazing.
- Undercarriage
- Fixed, spatted, split-axle — retraction was calculated to save about 10 per cent in drag for only about 3 per cent in top speed, and was judged not worth the weight and complexity. Trainers flew without the spats.
- Naval equipment
- Arrester hook for carrier operation from Akagi, Kaga, Sōryū, Ryūjō, Hōshō, Shōhō and Zuihō
- Protection
- None — no armour, no self-sealing tanks, no fire suppression, minimal radio. The weight discipline that made the A5M brilliant is the same discipline the A6M inherited, and it is the reason both aircraft burned.
- Manufacture
- Mitsubishi Nagoya (780 fighters), Naval Arsenal at Ōmura (161 fighters and 103 trainers), Watanabe (39 fighters)
04The Mitsubishi A5M’s variants: from the A5M1 to the A5M4-K trainer
The Claude evolved steadily. The A5M1 was the initial production model on the Kotobuki 2-KAI. The A5M2a and uprated A5M2b brought more power (the A5M2b briefly trialling an enclosed cockpit that pilots rejected). The A5M3 was an experimental cannon-armed version with an imported Hispano-Suiza engine and only a handful built. The definitive A5M4, with the Kotobuki 41 and a jettisonable drop tank for extended range, was the most numerous. Finally the A5M4-K was a dedicated two-seat advanced trainer that kept many airframes useful long after the type left the front line. Total production is usually given as roughly a thousand aircraft, with ~1,094 a commonly quoted figure — though sources disagree and the number should be treated as approximate.
The A5M4-K trainer deserves special mention. By adding a second seat it kept obsolescent fighters productive as the front line moved on, letting the Navy convert pilots onto high-performance monoplanes cheaply. Many of the airframes that lingered into 1944–45 were trainers of this kind, which is part of why some were available to be expended in the desperate improvised attacks of the war’s final months.
05The Mitsubishi A5M’s cost and production: what the numbers do and don’t tell us
Reliable unit-cost and cost-per-flight-hour figures for a mid-1930s Japanese naval aircraft simply do not survive in any form comparable to modern programme accounting, so this page marks those rows as not reliably recorded rather than inventing them. What is reasonably well established is production scale — on the order of a thousand airframes built by Mitsubishi (with some sub-contracting) between 1936 and the early war years — and the fact that the design’s relative simplicity, fixed gear and modest armament made it comparatively cheap and quick to build, which was part of its appeal to a navy expanding fast in the late 1930s.
It is worth stating plainly what cannot be verified: no trustworthy per-unit price or operating-cost figure for the A5M has come down to us in a form comparable to modern accounting, and this page deliberately does not manufacture one. What can be said is that the design’s simplicity was itself an economic argument — fixed gear, an open cockpit and two guns meant fewer man-hours per airframe at a moment when Japan was expanding its naval air arm as fast as industry allowed.
Armament & payload
The A5M carried two rifle-calibre guns and almost nothing else, and that was deliberate
Two synchronised 7.7 mm machine guns was exactly the armament of the biplanes the A5M replaced, and Jiro Horikoshi kept it because every kilogram spent on guns was a kilogram taken from turn rate and climb. Against Chinese Hawk IIIs and Boeing 281s that judgement was vindicated; against the metal-structured, cannon-and-machine-gun Polikarpov I-16 it was already marginal by 1938. The type's most important store was not a weapon at all but the 160-litre drop tank, which turned a short-legged carrier fighter into an escort that could reach Hankou and back — the single change that most defines the A5M4. Gun designation varies by source: Francillon and most Japanese-aircraft references give the 7.7 mm Type 89, while the current Wikipedia article states the Type 97; both are Vickers-derived Navy guns in the same calibre.
Gun
- Two 7.7 mm Type 89 fixed machine guns in the upper fuselage decking, synchronised to fire through the propeller disc at roughly the 11 and 1 o'clock positions
- The Type 89 was a Japanese Navy development of the Vickers gun, firing a rimmed 7.7 mm (.303 in) round
- The fit was unchanged from the biplane fighters the A5M replaced, and unchanged across the whole production run
- The A5M3a prototypes were the exception: a 20 mm cannon firing through the hub of the Hispano-Suiza 12Xcrs, the only cannon-armed A5M, not adopted
- Two rifle-calibre guns was adequate against fabric-covered biplanes and visibly inadequate against the all-metal I-16, which is the shortfall the A6M was designed to fix
Air-to-air
- Guided air-to-air weapons did not exist anywhere in 1936; the two synchronised guns were the entire air-to-air armament
- What substituted for firepower was position — turn radius, sustained turn rate and climb good enough to get behind an opponent and stay there
- Against the Republic of China Air Force's Boeing 281s the A5M fought the first dogfights in history between all-metal monoplane fighters, and won them
- Against I-16s and I-15bis flown by Chinese regulars and Soviet volunteers — the great battles of 18 February and 29 April 1938 — both sides claimed victory and both claims were wildly inflated
- The A6M's answer, two 20 mm Type 99 cannon plus two 7.7 mm guns, is a direct verdict on this card
Air-to-surface guided
- None. Nothing of the kind existed in any air force during the A5M's front-line career
- Ground attack was done with the eye, the gunsight and a shallow dive, using the two 30 kg bombs described below
- The aircraft had no bombsight, no dive brakes and no provision for one
- Strafing was in practice the more useful attack, and the type spent a good deal of its Chinese war shooting up airfields
Bombs
- Two 30 kg (66 lb) Type 99 high-explosive bombs on underwing racks
- Carried as an alternative to the centreline drop tank, and in practice the tank usually won the argument
- Delivery was by shallow dive on the gunsight; there was no bombsight and no dive-recovery aid
- The load is trivial by any standard, and reflects a fighter that was never meant to do this job
- In the closing months of the war surviving airframes were fitted for kamikaze use, the only time an A5M carried a serious explosive load
Rockets
- None. The A5M carried no rocket armament of any kind at any point in its service life
- No rocket-assisted take-off gear either, despite operating from small carriers such as Hōshō and Ryūjō
- Japanese naval air-to-air rocketry belongs to the last two years of the war, long after the A5M had left front-line units
- The wing stores provision extended only to the two 30 kg bomb racks and nothing heavier
Pods & other stores
- One 160-litre (35 imp gal / 42 US gal) jettisonable drop tank on the fuselage centreline — by a wide margin the most consequential thing the A5M ever carried
- The tank is what allowed A5Ms to escort Mitsubishi G3M bombers deep into China; unescorted G3Ms had been badly mauled, and escorted ones were not
- The A5M4 exists largely because of it: the definitive mark is the A5M2b with a revised engine and the tank added
- No gun pods, camera pods or countermeasures equipment existed for the type
- Radio fit was minimal and frequently removed altogether to save weight, a habit that carried straight into the A6M
Three typical loadouts
- Bomber escort, central China, 1938
- Two 7.7 mm Type 89 guns with full ammunition and the 160-litre drop tank on the centreline, jettisoned on contact. This is the configuration that gave the Imperial Japanese Navy air superiority over China and made the G3M campaign survivable.
- Fighter sweep, Nanking and Shanghai, 1937
- Guns only, no external stores, the aeroplane at its lightest. At 93.8 kg/m2 wing loading and 1,671 kg loaded, this is the A5M as designed: an aircraft that turns inside almost anything and holds its energy in the climb.
- Airfield attack
- Two 30 kg Type 99 bombs on the wing racks in place of the tank, delivered in a shallow dive on the gunsight and followed by strafing passes. A secondary role the airframe tolerated rather than one it was built for.
Sourcing caveat: the gun designation is the main disputed point, Type 89 against Type 97 — the same calibre and the same Vickers ancestry, but not the same weapon; Type 89 is used here on the authority of Francillon and Green. Production sub-totals also fail to reconcile with the usual headline figure, and the number of two-seat conversions is given as both 103 and 104 in the same article. Both issues are set out in the closing note below.
Variants
The A5M is where the Zero begins, virtues and defects together
The 1934 9-shi specification asked for 350 km/h at 3,000 m and a climb to 5,000 m in six and a half minutes. Mitsubishi gave the job to Jiro Horikoshi, whose previous fighter, the 1MF10, had been a failure. The Ka-14 that resulted was an all-metal low-wing monoplane with a thin elliptical inverted gull wing, and on 4 February 1935 it reached 450 km/h on 600 hp. The gull wing was the one idea that did not survive: it caused instability, and the second prototype flew with a conventional levelled centre section and trailing-edge flaps. Almost everything else about the aeroplane was kept, and it went into service in early 1937 as the world's first low-wing monoplane shipboard fighter. That claim needs one qualification, which sources often omit: French parasol monoplanes, the Dewoitine D.1ter and Wibault 74, had operated from Béarn earlier, so the A5M is the first low-wing monoplane carrier fighter rather than the first monoplane of any layout.
The fixed undercarriage is the design decision that people find hardest to accept, and it was not laziness. Retraction was calculated to reduce drag by about 10 per cent but to buy only about 3 per cent in top speed, and Horikoshi judged that the weight, the complexity and the structural penalty in the wing were not worth it. On a 1935 fighter of this size and power, that arithmetic was defensible. The spatted legs cost the A5M some speed and none of the qualities the Navy actually wanted. The same instinct — strip everything that does not directly buy manoeuvrability or range — produced an aeroplane with no armour, no self-sealing tanks and often no radio, and that instinct went straight into the A6M, where it was still winning fights in 1941 and killing pilots by 1943.
In service the A5M did what it was built for. From 1937 it gave the Imperial Japanese Navy air superiority over China, first against Hawk IIIs and Boeing 281s and then, much more evenly, against I-16s flown by Soviet volunteers. It escorted the G3Ms that had been slaughtered without cover. It was already being replaced by the A6M on the first-line carriers before Pearl Harbor, though American intelligence still believed otherwise, and A5Ms from Zuihō and Shōhō fought on into 1942: three SBDs shot down over Kwajalein on 1 February 1942, and the type's last fighter action at the Battle of the Coral Sea on 7 May. The trainers outlived the fighters by years.
- Ka-14 (1935–36 / 6)
- Prototypes with various engines. The first had the inverted gull wing; the second replaced it with a levelled centre section and flaps, and set the production shape.
- A5M1, Model 1 (1936–37)
- First production model, Nakajima Kotobuki 2 KAI 1. Entered service in early 1937 and went straight into the Sino-Japanese War.
- A5M2a, Model 21 (1937)
- More powerful engine, otherwise little changed. The workhorse of the first year of the China fighting.

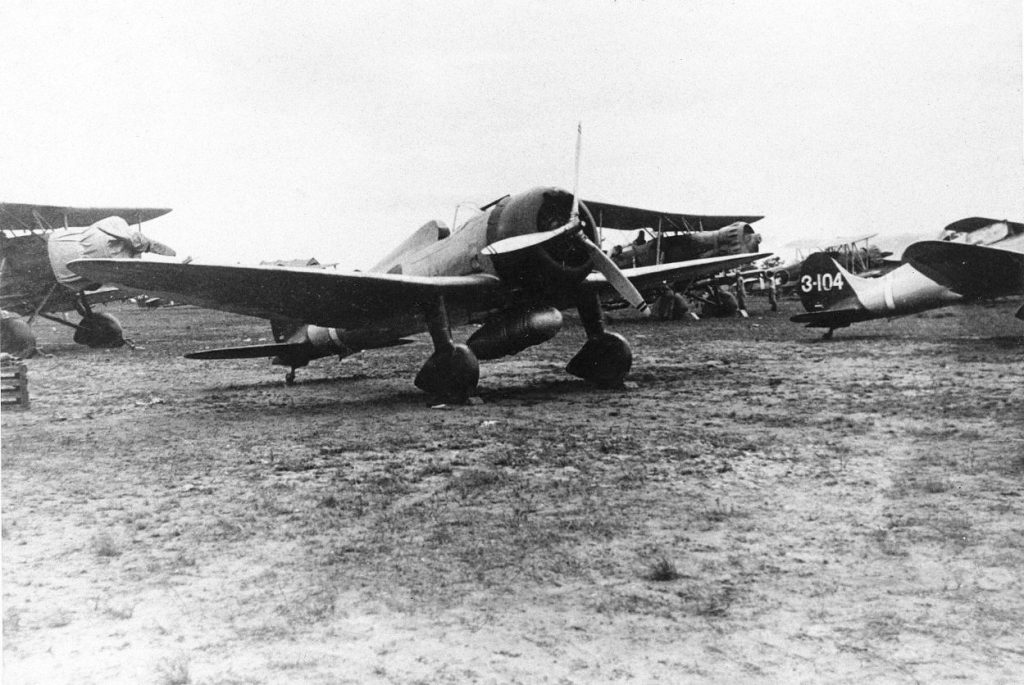

- A5M2b, Model 22 (1937–38)
- Kotobuki 3 of 477 kW (640 hp) and the first NACA cowling. An enclosed cockpit was tried on this mark and disliked by pilots.
- A5M3a (1937 / 2)
- Prototypes with the liquid-cooled Hispano-Suiza 12Xcrs and a 20 mm hub cannon. The only cannon-armed A5M; not adopted.
- A5M4, Model 24, later Model 34 (1938–41)
- Definitive version: A5M2b airframe, Kotobuki 41 or 41 KAI, and the detachable 160-litre drop tank that gave it escort range.
- A5M4-K (1942–44 / 103)
- Two-seat tandem trainer built by the Naval Arsenal at Ōmura, without wheel spats. Remained in use long after the fighters had gone.
- Ki-18 (1935 / 1)
- Single Army evaluation prototype with a Kotobuki 5 of 410 kW (550 hp). Far faster than the Ki-10 biplane and rejected anyway, for reduced manoeuvrability.
- Ki-33 (1936 / 2)
- Improved Ki-18 with a different engine and an enclosed cockpit, submitted against the Army's advanced fighter requirement and beaten by the Nakajima Ki-27.
Production and survivors. The usual total is 1,094 for all variants, but the published sub-totals do not add to it: 780 fighters by Mitsubishi, 161 by the Ōmura Naval Arsenal and 39 by Watanabe come to 980, plus 103 A5M4-K trainers, six Ka-14 prototypes, one Ki-18 and two Ki-33 gives 1,092 — and the same source that gives 103 trainers elsewhere says 104 aircraft were converted to two seats. As for survivors, there is effectively nothing. No complete A5M exists in any museum anywhere, none is airworthy, and no original airframe has been restored. The only known example is a disassembled A5M lying inside the wreck of the transport Fujikawa Maru in Chuuk Lagoon, Micronesia, submerged since 1944 alongside a number of similarly dismantled A6Ms. Full-size static replicas have been built for display and film work, but these are reproductions and should never be confused with original aircraft. The direct ancestor of the most famous fighter Japan ever built survives only underwater.
From monoplane breakthrough to war’s-end trainer
The 9-Shi requirement
The Imperial Japanese Navy issues a demanding specification for an all-metal monoplane fighter, inviting Mitsubishi and Nakajima to compete.
The Ka-14 prototype flies
Jiro Horikoshi’s prototype takes off on 4 February, reaching about 450 km/h with its distinctive inverted-gull wing — far beyond the requirement.
Adopted as the Type 96
A refined, straight-winged version enters service as the Type 96 Carrier Fighter — the A5M, later code-named “Claude” by the Allies.
Combat debut over China
A5Ms deploy in the Second Sino-Japanese War, quickly taking control of the air from the Chinese Air Force.
Air superiority in China
Fitted with drop tanks, A5Ms escort G3M bombers deep inland and outfight Curtiss Hawks and Polikarpov I-15/I-16 fighters.
The Zero arrives
Horikoshi’s A6M Zero — the A5M’s direct successor — enters service and begins replacing the Claude in front-line carrier units.
Passed to the second line
By the Pearl Harbor attack the A5M is largely relegated to training and second-line duties, though some see early-war service.
Trainers and kamikaze
Surviving A5Ms serve as advanced trainers; a number are expended in kamikaze attacks before the war ends. No complete airframe survives.
From the record: twelve Mitsubishi A5M stories
Horikoshi’s first fighter
The man who drew the Zero cut his teeth on the Claude.
Read the full story
Jiro Horikoshi — later world-famous for the A6M Zero — led the Mitsubishi team that produced the Ka-14 prototype in 1935. The A5M was his first fighter design to reach production, and it established the philosophy of light weight, a large wing and clean aerodynamics that he would carry directly into the Zero.
The experience shaped him. Lessons about weight, wing area and the value of a docile stall reappeared, refined, in the Zero — making the A5M the essential first draft of Japan’s most famous fighter.
The inverted-gull experiment
The first prototype had a wing bent like a gull’s.
Read the full story
The Ka-14 first flew with an inverted-gull wing, intended to shorten the fixed undercarriage legs and improve the pilot’s view over the nose. It looked dramatic but complicated both handling and manufacture, and was dropped in favour of a conventional straight low wing on later prototypes and every production A5M.
450 km/h in 1935
The prototype stunned the Navy.
Read the full story
When the Ka-14 reached roughly 450 km/h in early 1935 it comfortably beat the Navy’s demanding 9-Shi target. On its introduction the A5M was arguably the most advanced carrier fighter in the world — a striking position for Japanese aviation industry of the day, though such claims are best hedged.

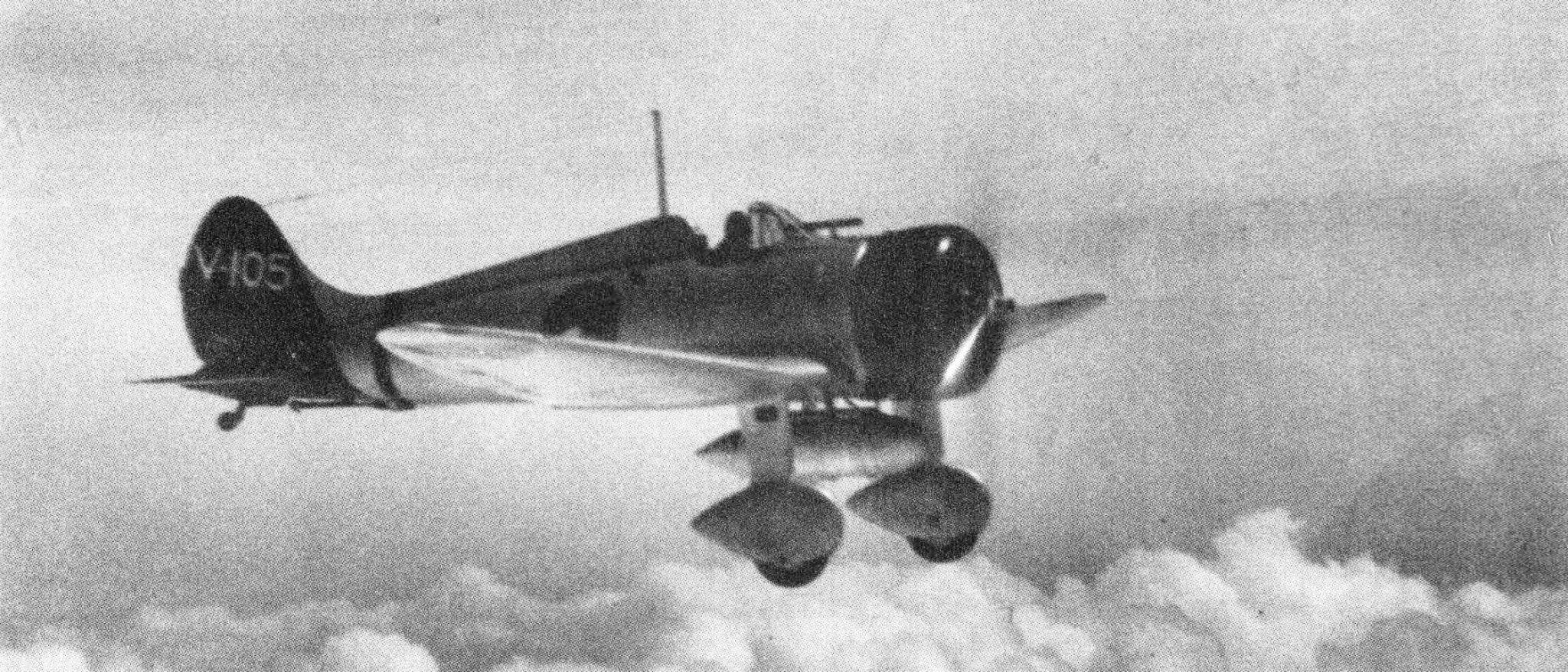

Type 96 for the fleet
A monoplane on the carrier deck at last.
Read the full story
Entering service in 1936 as the Type 96 Carrier Fighter, the A5M gave the Imperial Japanese Navy its first modern monoplane shipboard fighter. It equipped carrier air groups aboard ships such as Akagi, Kaga, Sōryū and Hiryū, as well as land-based naval air groups (kōkūtai).
Air superiority over China
The Claude owned the sky in 1937–38.
Read the full story
In the Second Sino-Japanese War the A5M quickly established air superiority. Flown by superbly trained naval pilots, it defeated the Chinese Air Force’s Curtiss Hawk biplanes and later contended with Soviet-supplied Polikarpov I-15 and I-16 fighters flown by Chinese and volunteer aviators.
Contemporary Japanese accounts describe near-total control of the air over contested zones; as always, such claims are best read with a critical eye, but the operational effect — bombers getting through, Chinese fighters unable to intercept freely — is well attested.
Escorting the bombers inland
Drop tanks turned a short-legged fighter into an escort.
Read the full story
Japanese bombers striking deep into China at first flew beyond fighter cover and paid a heavy price. Fitting the A5M with a jettisonable drop tank extended its reach far enough to escort G3M bombers on long raids — an early lesson in the value of range that fed straight into the Zero’s design.
The tactic was not free: escorting fighters at the limit of their range left little margin for combat, and the strain of long overwater and overland flights in an open cockpit tested pilots as much as machines.
Against the Hawks and Polikarpovs
Biplanes and early monoplanes, all out-turned.
Read the full story
The Claude’s main opponents over China were Curtiss Hawk biplanes and the nimble Polikarpov I-15 biplane and faster I-16 monoplane. The A5M could out-turn the I-16 and outrun the biplanes, but the decisive edge was usually the training and tactics of the naval aviators flying it.
Sakai and the naval aces
Future Zero aces learned their trade on the A5M.
Read the full story
Many naval aviators who later became famous on the Zero — Saburo Sakai among them — first saw combat in the A5M over China. The Claude was where a generation of Imperial Japanese Navy fighter pilots honed the deflection shooting and dogfighting that made the early Zero units so dangerous.
Two guns, and the overclaim problem
Light firepower, and optimistic scoreboards.
Read the full story
With just two 7.7 mm guns, the A5M needed accurate, close-in shooting to down an enemy. As in every air war, victory claims over China ran well ahead of actual enemy losses, and historians treat the more spectacular tallies with caution. Armament that sufficed against fabric biplanes would look dangerously slight against 1941’s all-metal fighters.
Modern researchers cross-checking Japanese claims against Chinese and Soviet records routinely find the real exchange rates less lopsided than wartime tallies suggested — a caution that applies to every air force of the era, not only Japan’s.
From Claude to Zero
The A5M’s DNA is all over the A6M.
Read the full story
The A6M Zero was drawn by the same team, to a specification written while the A5M was fighting in China. The Zero kept the Claude’s light structure and superb manoeuvrability and added retractable gear, an enclosed cockpit, cannon armament and long range — everything the A5M’s combat experience had shown the Navy it needed.
The overlap was deliberate policy: the Navy never wanted to be caught with an obsolete fighter again, and it kept its best design team working the next problem while the current aircraft was still winning.
Replaced, then rebuilt as a trainer
Superseded by 1941, but still useful.
Read the full story
As the Zero took over front-line units from 1940, the A5M slid into second-line and training duties. The purpose-built A5M4-K two-seat trainer kept many airframes flying, passing fighter-handling skills to new pilots well into the war.
Kamikaze, and the last relics
No complete Claude survives today.
Read the full story
In the war’s final year some worn-out A5Ms were expended in kamikaze attacks. None survived intact: what remains today are recovered wrecks and relics — engines, fuselage sections and components — held by museums and collectors, together with reconstructions. There is no airworthy or complete original A5M anywhere in the world.
For enthusiasts and historians this scarcity is poignant. A type that once represented the cutting edge of naval aviation now exists only as fragments — which makes every surviving photograph, instrument and engine cowling a small piece of a nearly vanished story.
The Mitsubishi A5M in pictures
The Mitsubishi A5M in motion
Rex’s Hangar, “A Revolutionary Carrier Fighter | Mitsubishi A5M ‘Claude’” — a detailed type history from one of aviation YouTube’s most respected channels (~220,000 views).
Where the Mitsubishi A5M fought
The A5M was an Imperial Japanese Navy aircraft that was essentially never exported. This map shows its home and manufacturer, the theatres where it saw combat, the powers that armed or flew against it, and where its few surviving relics are held. Toggle the categories to explore.
The Mitsubishi A5M’s war, in numbers
The A5M was a genuine air-superiority fighter in its moment — dominant over China, then eclipsed by the very war it helped begin. Its record is best read through what it achieved and what it deliberately lacked. The figures below are approximate and, where sources disagree, hedged.
See how fighters compare in the MiGFlug combat-statistics database
Everything people ask about the Mitsubishi A5M
Can I fly in a Mitsubishi A5M?
What was the Mitsubishi A5M “Claude”?
Was the A5M really the first monoplane carrier fighter?
How is the Mitsubishi A5M related to the A6M Zero?
Why did the A5M have fixed landing gear and an open cockpit?
How did the Mitsubishi A5M perform in combat?
Do any Mitsubishi A5Ms survive today?
You can’t fly the Mitsubishi A5M.
These, you can.
No complete Claude survives, and none will ever fly again. But the thrill it gave its pilots — light, fast, alive in your hands — is still bookable today. MiGFlug puts you in the cockpit of genuine military jets.
Fly the L-39 AlbatrosThe world’s most-flown jet trainer — aerobatics included
Fly the F-104 Starfighter“The missile with a man in it”
Fly the MiG-21The Cold War’s most-produced jet
Fly the T-33 Shooting StarAmerica’s first jet trainer
Fly the DH VampireA piece of early jet history
Fly the S.211Agile Italian jet trainer
Fly the MB-326The classic Aermacchi jet
Fly the MiG-15The Soviet legend of the Korean WarContinue the tour
Every fact, checked
- Smithsonian National Air and Space MuseumReference material on early carrier fighters and the transition to monoplanes.
- Imperial War MuseumsBackground on the air war in China and the wider Pacific conflict.
- Naval History and Heritage CommandUS Navy historical context on Imperial Japanese Navy carrier aviation.
- The Pacific War Online EncyclopediaDetailed technical and operational entry on the Mitsubishi A5M.
- Saburo Sakai, “Samurai!” (memoir)First-hand account by a naval aviator who flew the A5M in China.
- René J. Francillon, “Japanese Aircraft of the Pacific War”The standard English-language reference on Japanese wartime aircraft.
- Rex’s Hangar — Mitsubishi A5M “Claude”In-depth video type history from a respected aviation channel.
- MiGFlug AfterburnerMiGFlug’s aviation magazine on warbirds, jet flights and air-combat history.
