Nieuport 17
“The scout that gave the Allies the edge in 1916”
Gustave Delage’s nimble French sesquiplane — superb to see from, quick to climb and turn, and flown by half the aces of the age — with one honest flaw built into its lower wing.
The Nieuport 17: how a French sesquiplane gave the Allies their edge in 1916
In the winter of 1915–16 the German Fokker Eindecker, with its synchronised gun firing through the propeller, had made the Western Front deadly for Allied airmen — a period the British press called the “Fokker Scourge.” The first answer came from the little Nieuport 11 “Bebé”, a tiny sesquiplane scout that, alongside the Airco DH.2 and F.E.2b, broke the Eindecker’s grip in the spring of 1916. What the Allies needed next was something with the same agility but more power and more punch. That aircraft was the Nieuport 17.
Designed by Gustave Delage, the 17 was a scaled-up, more powerful development of the Bebé. It kept the distinctive sesquiplane layout — a normal upper wing over a much narrower lower wing built around a single spar — which gave the pilot an almost unobstructed view downward and forward, exactly where a fighter pilot needs to look. On a Le Rhône 9J rotary of around 110 horsepower it climbed fast, turned tightly and handled beautifully. It reached the front with French Escadrille N.57 on 2 May 1916 and was an immediate success.
Its influence outran the French air service. Britain’s Royal Flying Corps and Royal Naval Air Service bought the type to cover the gap before their own scouts matured; Italy and Russia flew it and built it under licence; Belgium and, later, the United States operated it. It became the mount of a startling roster of aces — Charles Nungesser, Albert Ball, Billy Bishop and, early in his career, Georges Guynemer — and for the second half of 1916 it was among the best fighters in the sky.
There was one honest flaw. The slender single-spar lower wing that gave such a fine view could twist and, in a hard dive, even fail. Pilots learned not to hold a high-speed dive too long, the RFC ordered the wings strengthened, and by mid-1917 the newer German Albatros scouts and the arrival of the more robust SPAD pushed the Nieuport sesquiplanes out of the front line. But in its moment, the 17 was exactly the aeroplane the Allies needed.
01The Nieuport 17’s origins: Gustave Delage, the sesquiplane line and the Bebé that came before
Gustave Delage joined Nieuport in January 1914 and gave the firm a family of sesquiplane scouts — aircraft with a full-size upper wing and a much narrower lower wing carried on a single spar. The layout was inspired by the pre-war “one-and-a-half wing” racers and offered two things a fighter pilot craved: a clean view below the aircraft, and low drag for a good climb.
The Nieuport 11 “Bebé” of 1915 proved the concept in combat, helping to break the Fokker Scourge. The Nieuport 17 that followed in 1916 was a refinement rather than a revolution: a slightly larger airframe, a more powerful Le Rhône rotary, rounded wingtips and a cleaner cowling, and provision for a proper synchronised gun. The result kept the Bebé’s agility while adding the speed and firepower the earlier machine lacked.
What makes the Nieuport 17 special
A sesquiplane wing built for the pilot’s eyes

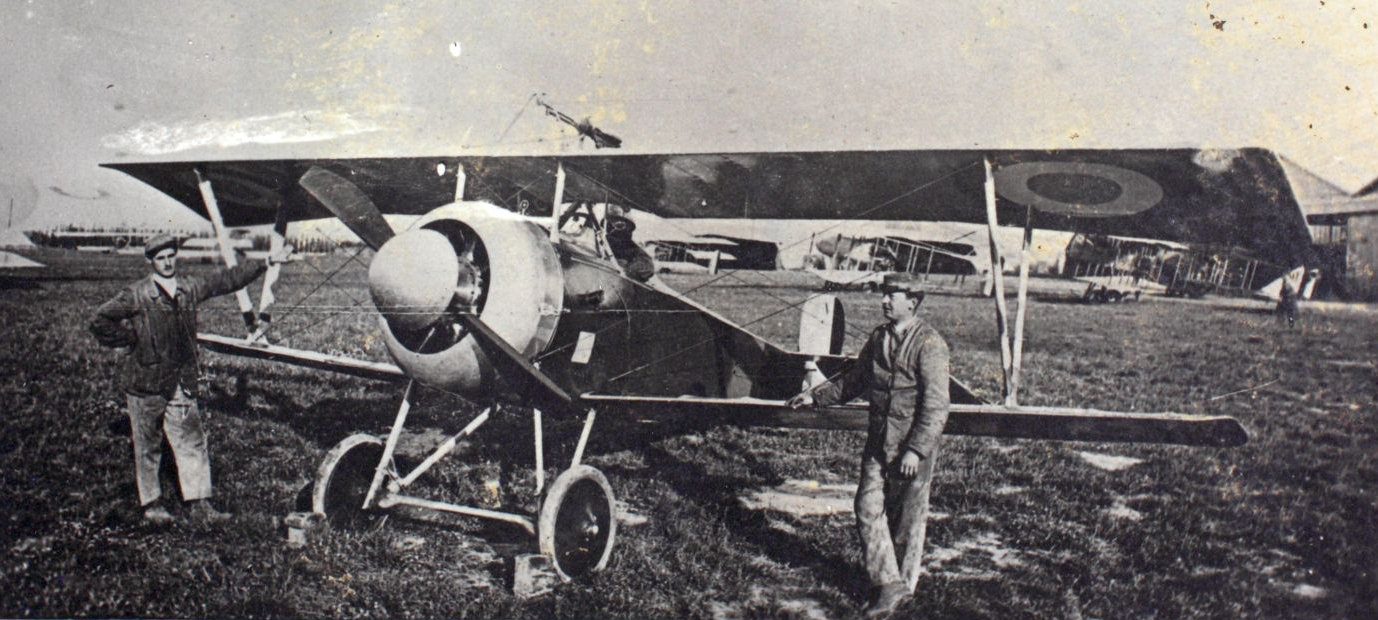

The narrow single-spar lower wing gave the pilot a nearly unobstructed view down and forward, and low drag for a strong climb and tight turn. It was the feature that made the 17 such a natural dogfighter — and, as the trade-off, the source of its one structural weakness.
A light rotary that punched above its weight
The Le Rhône 9J rotary of roughly 110 horsepower (some machines used Clerget rotaries) spun the whole engine with the propeller. Light and compact, it gave the small airframe an excellent power-to-weight ratio — the key to the 17’s climb and manoeuvrability.
A gun you aimed with the aeroplane
French 17s carried a synchronised Vickers firing through the propeller arc; British RFC machines mounted a Lewis gun over the top wing on the Foster rail, which could be pulled down to change drums or fire upward. Either way the pilot aimed by pointing the whole fighter.
02The Nieuport 17’s sesquiplane wing: visibility and climb versus torsional strength

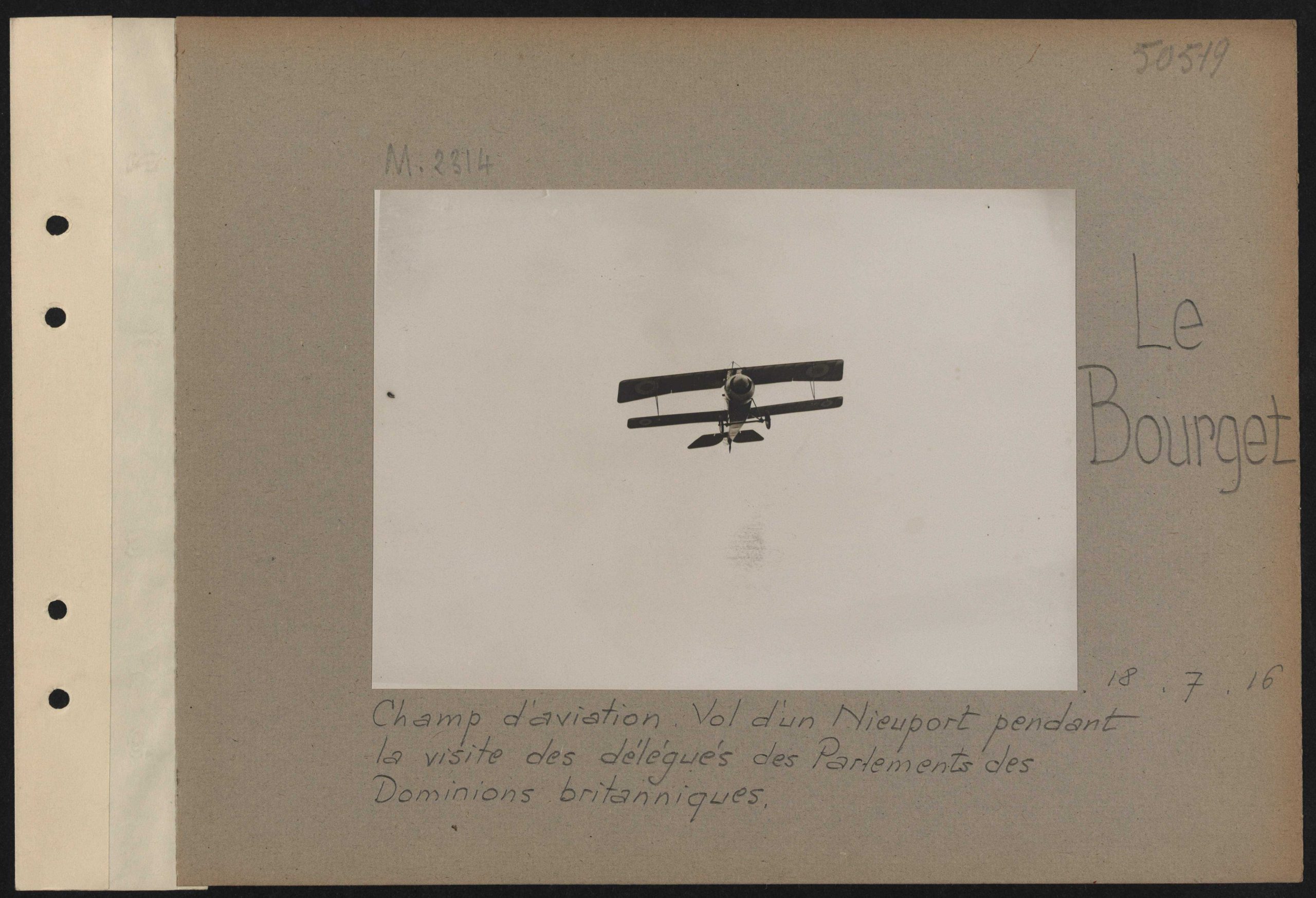

A conventional biplane has two wings of similar chord, braced together into a rigid box that resists twisting. Delage’s sesquiplane deliberately traded that box away: the lower wing was made narrow and hung on a single spar, braced to the upper wing by a distinctive V-strut. The pay-off was excellent downward visibility, light weight and low drag, all of which helped the climb and the turn.
The cost was torsional rigidity. With only one spar and no box structure, the lower wing could flex and twist under aerodynamic load. In gentle flying this was harmless, but it set a hard limit that the design never fully escaped — and which the next expander describes.
03The Nieuport 17’s guns: the Foster mounting, the over-wing Lewis and the French synchronised Vickers
Early Nieuport scouts predated a reliable French gun-synchronising gear, so the RFC mounted a Lewis gun above the upper wing on the Foster mounting — a curved rail that let the pilot slide the gun back and down to swap the 47- or 97-round drum, and, usefully, to fire upward into the belly of an enemy aircraft. It was Albert Ball’s favoured trick.
As synchronisation matured, French Nieuport 17s standardised on a single synchronised Vickers firing through the propeller arc, a lighter and simpler installation. Some machines carried both. Either arrangement kept the armament on the aircraft’s centreline, so aiming meant pointing the whole fighter — the essence of the era’s dogfighting.
04The Nieuport 17’s lower-wing weakness: why the sesquiplanes could shed a wing in a dive
This is the caveat that any honest account of the Nieuport 17 has to include. Because the lower wing carried its loads on a single spar with no box to resist twisting, a prolonged or high-speed dive could let the wing flutter and twist. In the worst cases it failed — typically at the wing root or at the junction of the spar and the V-strut — and a failure there was usually fatal.
Pilots adapted by not holding steep dives, and the Royal Flying Corps ordered lower wings strengthened in 1917. The flaw was not unique to Nieuport: when the German designer Robert Thelen copied the sesquiplane layout for the Albatros D.III, it inherited exactly the same wing-shedding tendency. The lesson — that visibility and climb had been bought with structural margin — helped push front-line units toward the sturdier two-spar SPAD from 1917.
Nieuport 17 specifications
Figures are for the standard Nieuport 17.C1 on the Le Rhône 9J; sources vary and several values are hedged. The near-identical 17bis (Clerget) and 23 differed in detail.
Baseline note: the figures describe the Nieuport 17 C.1 with the 110 hp Le Rhône 9Ja rotary — the aeroplane that reached the front in March 1916 and that Ball, Guynemer, Nungesser and Bishop all flew. Deltas for the smaller Nieuport 11 C.1 "Bébé" (80 hp Le Rhône 9C), the Clerget-engined Nieuport 17bis (130 hp Clerget 9B) and the later Nieuport 24 and 27 (130 hp Le Rhône 9Jb) are in grey. First World War figures came off individual airframes with individual hand-built engines, and the altitude at which a speed was measured is very often not recorded; where a figure here has a stated altitude, it is given, and where it has none, that is said.
Dimensions & weights
- Crew
- 1
- Wingspan, upper
- 8.16 m (26 ft 9 in) — 7.52 m (24 ft 8 in) on the Nieuport 11; 8.21 m (26 ft 11 in) on the 24 and 27
- Wingspan, lower
- 7.80 m (25 ft 7 in) — shorter than the upper, and much narrower in chord. This is the sesquiplane, and the whole aeroplane follows from it
- Length
- 5.80 m (19 ft 0 in) without the optional cône de pénétration propeller spinner, which many squadrons removed because it ran hot
- Height
- 2.40 m (7 ft 10½ in) without the over-wing gun and its mounting
- Wing area
- 14.75 m² (159 sq ft) — both wings together, which is why the type was known in French service simply as the "15 metre Nieuport"
- Aerofoil
- Nieuport Type N
- Wing layout
- Sesquiplane. The upper wing is conventional for 1916 — two spars, full-chord ribs, internal wire cross-bracing. The lower wing has one spar, sitting directly under the rear spar of the upper wing, and the two are joined by a single V-shaped interplane strut on each side
- Incidence
- Adjustable on the ground through a single pivot joint. The arrangement was inherited from the Nieuport 10, where it had been intended to let the lower wing be rotated in flight for low-speed work; that was never used
- Structure
- Four ash longerons, spruce compression struts, diagonal wire bracing and steel plate joints, fabric covered. Tailplane, elevator and rudder built from welded 20 mm steel tube
- Empty weight
- 375 kg (827 lb) — 320 kg (705 lb) for the Nieuport 11
- Loaded weight
- 560 kg (1,235 lb) — about a third of a Bristol Fighter and about two thirds of an S.E.5a
- Wing loading
- 37.9 kg/m² (7.76 lb/sq ft) — low even by 1916 standards, and the arithmetic behind the climb and the turn
Performance
- Maximum speed
- 170 km/h (106 mph). The altitude is not recorded in the source, which is the usual position for French figures of 1916; treat it as a low-level number. The 130 hp Clerget 17bis was quoted at 175 km/h (109 mph) and the Nieuport 24 at 176 km/h (109 mph)
- Climb to 2,000 m
- 5 min 30 sec (6,560 ft)
- Climb to 3,000 m
- 9 min (9,840 ft) — the Nieuport 11 needed 15 min 25 sec and the Fokker E.III took thirty minutes. That gap is the reason the Eindecker stopped mattering
- Service ceiling
- 5,300 m (17,400 ft) — 5,000 m (16,400 ft) on the Nieuport 11; 6,900 m (22,600 ft) on the Nieuport 24
- Endurance
- 1 hr 45 min — the honest measure for a fighter of this generation. Published "ranges" for the type are arithmetic, not operational
- Power loading
- 0.15 kW/kg (0.089 hp/lb)
- Rate of climb
- The type’s outstanding quality in 1916, and the direct dividend of the sesquiplane: the narrow lower wing contributed little lift but also little drag, so the aeroplane climbed like nothing else at the front
- Manoeuvrability
- Light, quick and honest. Ailerons rather than wing warping gave a crisp roll, and the small, low-inertia airframe changed direction faster than a pilot could think. It did not have the Camel’s vicious gyroscopic bite, and beginners survived it
- View from the cockpit
- Exceptional downward and forward, because there is almost no lower wing to look past. For a scout whose day job was finding two-seaters below it, this mattered as much as speed
- Diving speed
- Limited, and this is the aeroplane’s defect. The single lower spar sat behind the wing’s centre of lift, so at high speed the lower wing could twist nose-up, stall, spring back and repeat — a torsional flutter that ended with the wing folding or coming off. Pilots were told not to dive a Nieuport hard, and pilots who forgot were killed
- Competitiveness by mid-1917
- Gone. The Albatros D.III and D.V had more power, two guns and more structure, and the SPAD S.VII was faster and could be dived without fear. French escadrilles began re-equipping with the SPAD from late 1916; the RFC kept Nieuports until enough S.E.5as arrived in early 1918
Propulsion & systems
- Engine
- One Le Rhône 9Ja nine-cylinder air-cooled rotary, 82 kW (110 hp). This is a nominal rating, not a measured output; period French power figures are catalogue numbers and individual engines varied widely
- What a rotary is
- The crankshaft is bolted to the airframe and the entire engine — crankcase, cylinders, propeller — spins around it. That gives superb cooling and a very light engine for its power, at the cost of a large gyroscopic couple that pulls the aeroplane one way in a turn and the other way in the opposite turn
- Engine control
- No throttle in the modern sense. Power was managed on the fuel and air levers, and for landing on the coupe-contact or blip switch, which cut the ignition to some or all cylinders. A Nieuport approaching to land is the sound of an engine being repeatedly switched off and on
- Lubrication
- Castor oil, total loss, flung out of the engine and back over the aeroplane and the pilot. The medicinal effects on aircrew were real and are not a joke invented later
- Propeller
- Two-blade fixed-pitch wood, 2.40 m (7 ft 10½ in) diameter — Éclair 4 or Levasseur 484
- Alternative engines
- Le Rhône 9J on many aircraft, at the same 82 kW (110 hp) rating; 60 kW (80 hp) Le Rhône 9C on the Nieuport 11 and 21, 97 kW (130 hp) Clerget 9B on the 17bis, 97 kW (130 hp) Le Rhône 9Jb on the 24 and 27
- Synchronisation gear
- Alkan-Hamy, standardised as the Système de Synchronisation pour Vickers Type I (moteurs rotatifs). Developed by Sergeant-Mécanicien Robert Alkan and the naval engineer Hamy, first air-tested in a Nieuport 12 on 2 May 1916, and available in numbers exactly when the Nieuport 17 reached the front
- Sights
- Ring-and-bead on French aircraft. Some British machines carried an Aldis non-magnifying telescopic tube; a good many carried nothing more elaborate than the ring
- Photographic equipment
- A 26 cm camera on some aircraft, for the reconnaissance work single-seaters were routinely handed when nothing else was available
- What the pilot did not have
- No radio, no oxygen, no heating, no armour, no parachute. Nieuports regularly worked above 4,500 m in an open cockpit in a leather coat
- First flight
- January 1916
- Service entry
- March 1916. Escadrille N.57 became the first unit wholly equipped on 2 May 1916; by late 1916 the type was in every French fighter escadrille
- Number built
- ~3,600 across the Nieuport 17, 21 and 23, including licence production by Nieuport-Macchi in Italy and Dux in Russia. Breakdowns by individual mark are not reliable
05The Nieuport 17 family: the 17bis, 23, 21, 24 and 27, and licence production abroad
The 17 sat in the middle of a fast-evolving family. The Nieuport 21 was a lower-powered trainer/scout; the 17bis introduced a Clerget rotary and a slightly refined fuselage; the Nieuport 23 was near-identical to the 17 but differed in gun mounting and small fittings, so the two are often counted together. The later 24 and 27 brought rounded fuselages and further refinement before the whole sesquiplane line gave way to the SPAD.
Production was not confined to France. Macchi built Nieuport scouts under licence in Italy, and the Dux works produced them in Russia; Switzerland later built the type under licence as well. Because records are incomplete and the 17 and 23 share a production run, total-built figures in the literature vary widely — a point worth keeping in mind whenever a single number is quoted.
06The Nieuport 17’s costs: 1916 francs and what a flying replica costs today
Per-aircraft procurement prices for the Nieuport 17 are not reliably recorded in surviving sources, and translating 1916 French war-contract francs into modern money is fraught — wartime inflation and the post-war collapse of the franc make any single figure misleading. We have therefore left the unit-cost row as “not reliably recorded.”
What can be said is about flying one today. Operating an airworthy WWI-type replica on a small rotary or radial — hangarage, insurance, fuel and castor oil, and the specialist maintenance a vintage engine needs — is commonly discussed in the vintage-aviation community in the region of a few thousand US dollars per flight hour. The ~$2,000–4,000/hour figure in the table is an unofficial estimate for a modern replica, not a historical cost, and is flagged as such.
Armament & payload
The Nieuport 17 sits exactly on the line between aiming the gun and aiming the aeroplane, and for a year some of them did both
When the Nieuport 17 reached the front in March 1916 the Allies still had no synchronisation gear in service. The aircraft therefore arrived carrying a single Lewis gun above the top wing, firing over the propeller arc, exactly as the Nieuport 11 had. Within months the Alkan-Hamy gear became available and French aircraft were re-armed with a belt-fed Vickers on the fuselage, firing through the arc. Both fits ran side by side for the rest of the type’s front-line life.
The two arrangements were not equivalent, and the two air services drew opposite conclusions from the same evidence. The French treated the over-wing Lewis as a stopgap and replaced it with a Vickers as fast as gears could be delivered: a belt gives you 400-odd rounds instead of 47, and a fuselage gun does not shake the centre section apart. The Royal Flying Corps mostly kept the Lewis on its Foster rail, because early British mechanical synchronisers were genuinely worse than no synchroniser at all, and because a gun outside the propeller arc can fire incendiary ammunition and can be pulled down to shoot upwards. Some aircraft, French and British, carried both.
Nothing else the Nieuport carried amounted to much. It had no bomb racks as standard and was never used as a bomber. The one genuine exception is the Le Prieur rocket, eight cardboard powder rockets on the interplane struts, fired electrically in a 45-degree dive at an observation balloon — a weapon that looks absurd and worked. Fits varied by squadron, by nation and by month more than on almost any other fighter of the war; a photograph is better evidence than a specification for what any individual Nieuport carried.
Gun
- One fixed 7.7 mm (0.303 in) Vickers machine gun on the upper fuselage, belt-fed, firing through the propeller arc — the standard French fit from mid-1916 onward.
- Or one 7.7 mm (0.303 in) Lewis on a Foster mounting above the upper wing centre section, drum-fed, firing over the arc — the standard Royal Flying Corps fit throughout.
- Some aircraft carried both, which is a heavy armament for a 560 kg aeroplane and cost noticeably in climb.
- Russian Nieuport 21s were sometimes armed with a Hotchkiss M1909 instead, on the same over-wing principle.
- One gun was the norm and it was the type’s real weakness by 1917, when the Albatros D.III opposite it carried two.
Ammunition & sights
- Roughly 400 rounds in a belt for the Vickers — enough for a whole patrol, and reloadable in the air only in the sense that a stoppage could be cleared.
- 47-round single drums for the Lewis at first, 97-round double drums later. Two or three spares were stowed in the cockpit; a drum change meant flying with the knees while wrestling a drum overhead in a slipstream.
- Ring-and-bead sights on French aircraft; an Aldis telescopic tube on some British machines.
- The Lewis, firing from an open bolt outside the propeller arc, could safely use Buckingham incendiary ammunition. A synchronised Vickers could not, which is precisely why balloon work stayed with the over-wing gun.
Synchronisation: the Alkan-Hamy gear
- The first French synchroniser, designed by Sergeant-Mécanicien Robert Alkan with the naval engineer Hamy, and closely modelled on the definitive Fokker Stangensteuerung.
- Its one clever difference: the push rod ran inside the Vickers gun, through a redundant steam tube in the water jacket. Supported along its whole length, it could not whip, bend or break the way an external rod could.
- Guns modified for it are recognisable at a glance by the housing for the push-rod spring projecting from the front of the receiver like a second barrel.
- First air-tested in a Nieuport 12 on 2 May 1916 and standardised as the Système de Synchronisation pour Vickers Type I (moteurs rotatifs), arriving in quantity just as the Nieuport 17 did.
- The Nieuport 23 that followed used a different synchroniser, which is why its Vickers sat offset to starboard with the fuel and oil tanks rearranged to suit — the clearest external way to tell a 23 from a 17.
The Foster mounting
- A quadrant-shaped I-beam rail devised in early 1916 by Sergeant Foster of No. 11 Squadron RFC, replacing the awkward double-hinged French over-wing mount used on the Nieuport 11 and 16.
- Its primary purpose was reloading, not tactics: the gun slid back and down the rail in one movement so a seated pilot could reach the breech and change a drum, instead of standing on his seat to do it.
- Its famous secondary use was to hold the gun part-way down the rail and fire forward and upward, attacking a two-seater from below and behind where the observer could not reach. Albert Ball made it his signature and Billy Bishop used it too. The same geometry reappeared as Schräge Musik in German night fighters twenty-five years later.
- Pilots complained of quadrants twisting under rough handling, and many replaced the clock-type return spring with bungee cord.
- The RFC preferred it to the early British mechanical synchronisers on the plain grounds that it worked and they did not.
Le Prieur rockets
- Eight fusées Le Prieur in tubes lashed to the interplane struts, four a side, fired electrically from a cockpit switch. Invented by Lieutenant Yves Le Prieur and first used at Verdun in May 1916.
- Each was a cardboard tube of about 200 g of black powder with a wooden conical head and a triangular blade at the tip, on a pine stick some 3 m long.
- The attack was a 45-degree dive along the length of a German Drachen kite balloon, firing at 100–150 m and holding the dive until the last rocket had gone, because ignition was staggered and unpredictable.
- Accuracy was dreadful and effective range about 115 m, but a hydrogen balloon is a large and inflammable target, and the rockets worked well enough that France, Britain, Belgium and to a lesser extent Germany all used them.
- They faded out through 1917–18 as incendiary ammunition became general and made a gun the better balloon weapon.
What it did not carry
- No bombs. Racks were not a standard fit and the Nieuport 17 was not used as a bomber; the light bombing that S.E.5as and Camels did in 1918 was not this aeroplane’s war.
- No cannon, and no guided weapon of any kind — neither existed.
- No armour, no self-sealing tank, no fire extinguisher. A rotary engine and a fabric aeroplane full of petrol is exactly as flammable as it sounds.
- No parachute, on either side of the line, for a single-seat pilot in 1916.
- No radio, no oxygen and no reliable instruments. A compass, an air-speed indicator, an altimeter and a tachometer were the whole of it.
Three typical loadouts
- French escadrille de chasse, summer 1916
- One synchronised Vickers with roughly 400 rounds, ring-and-bead sight, full fuel for an hour and three quarters. Flown in twos and threes at first and increasingly in formation as the groupes de combat formed — the organisational change that mattered as much as the aeroplane.
- Royal Flying Corps offensive patrol, 1916 into 1917
- One Lewis on the Foster rail with three or four drums, and nothing else. Albert Ball fought this aeroplane alone and at very close range, frequently pulling the gun down the rail to fire up into the belly of a two-seater. Billy Bishop won his Victoria Cross in a Nieuport 17 on 2 June 1917 in a solo attack on a German aerodrome, an action for which there were no witnesses and about which argument has never entirely stopped.
- Balloon attack, Verdun and after
- Gun as fitted, plus eight Le Prieur rockets on the interplane struts. A one-shot sortie: dive at 45 degrees into the balloon line, fire everything, and come home through the concentrated light flak that always surrounded a Drachen. Charles Nungesser and the other balloon specialists did this repeatedly, which is a fair measure of the nerve involved.
Sourcing caveat: performance figures for First World War types are not directly comparable between books. They were taken from single aeroplanes with single hand-built engines on particular days, and French figures of 1916 in particular are usually published with no test altitude at all — which is how the same aircraft is quoted at 165 and 175 km/h by equally careful authors. The figures here follow J. M. Bruce’s Those Classic Nieuports and Davilla and Soltan’s French Aircraft of the First World War, cross-checked against the surviving Nieuport 23 in Brussels and the Royal Air Force Museum. Victory totals throughout are the officially credited ones, and every combatant in this war credited generously.
Variants
The Nieuport V-strutters were one idea, refined nine times, until the idea ran out
Gustave Delage became Nieuport’s chief designer in January 1914 and spent the next four years developing a single configuration. Nieuport had built its reputation on wire-braced monoplanes and those had reached the end of their structural development; the sesquiplane was Delage’s compromise — close to the low drag of a monoplane, with the bracing and the strength of a biplane. The Nieuport 10 of 1914 was the first, the Nieuport 11 the first single-seat fighter, and everything from there to the Nieuport 27 is the same aeroplane with a bigger engine.
The credit for ending the Fokker Scourge belongs to the Nieuport 11 rather than the 17, and it is worth being precise about it. The Bébé reached the French front in January 1916 and ninety were in service within the month; concentrated in dedicated fighter escadrilles at Verdun through February and March, it outclassed the Eindecker in speed, climb and control in every respect, and the Airco D.H.2 and the F.E.2b did the same job on the British sector from February. The Nieuport 17 arrived in March 1916, as the Scourge was closing, and its job was not to win that fight but to hold the advantage the 11 had taken — which it did, comprehensively, for about a year.
The sesquiplane’s defect was structural and it was never really cured. A single spar behind the centre of lift lets the lower wing twist under load; at high speed the twist increases the angle of attack until the wing stalls, springs back and starts again, and the cycle ends with the wing failing. British Nieuports were modified at No. 2 Aeroplane Supply Depot to reduce it, and late French machines were fitted with stronger Nieuport 24 lower wings. The Germans copied the layout anyway — Idflieg had captured Nieuports drawn up and circulated — and the Albatros D.III and D.V inherited the fault in a heavier, more powerful aeroplane where it was worse. Only the Pfalz D.III, which gave its lower wing two spars, escaped it.
- Nieuport 11 C.1 (1916, "Bébé")
- 80 hp Le Rhône 9C, 13.3 m² wing, over-wing Lewis. The aeroplane that broke the Eindecker. 646 built under licence in Italy by Macchi alone.
- Nieuport 16 C.1 (1916)
- An interim 11 with the 110 hp Le Rhône dropped in. More power on the same small airframe made it nose-heavy and raised the wing loading, particularly with a synchronised Vickers fitted — the problem the 17 was designed to solve.
- Nieuport 17 C.1 (1916–17)
- Larger wing and fuselage than the 16, better balanced and aerodynamically cleaner, 110 hp Le Rhône 9Ja. The definitive aeroplane, and for roughly nine months the best fighter at the front on either side.
- Nieuport 21 C.1 (from May 1916)
- Lower-powered version with the 80 hp Le Rhône 9C or 90 hp 9Ga, a horseshoe cowling and no headrest. Intended as an escort and widely used as an advanced trainer; large numbers went to Russia and to the American Expeditionary Forces.
- Nieuport 23 C.1 (1917)
- Structurally a 17 with a different gun synchroniser, which put the Vickers offset to starboard and required the fuel and oil tanks and centre-section rigging to be rearranged. Flown alongside the 17 by French and British squadrons.
- Nieuport 17bis C.1 (late 1916, ~84 with the 23bis)
- 130 hp Clerget 9B, rounded fuselage with stringers, faster at 175 km/h. Fifty were built under licence in Britain by Nieuport & General and went mainly to the Royal Naval Air Service. The related 23bis reverted to a Le Rhône.
- Nieuport 24, 24bis and 27 (1917)
- 130 hp Le Rhône 9Jb, rounded fuselage, revised tail and a stronger lower wing; the 27 added a revised undercarriage. Better aeroplanes than the 17, arriving after the Albatros had already taken the initiative. Many finished the war as trainers, including at Issoudun.
- Licence production (Italy and Russia)

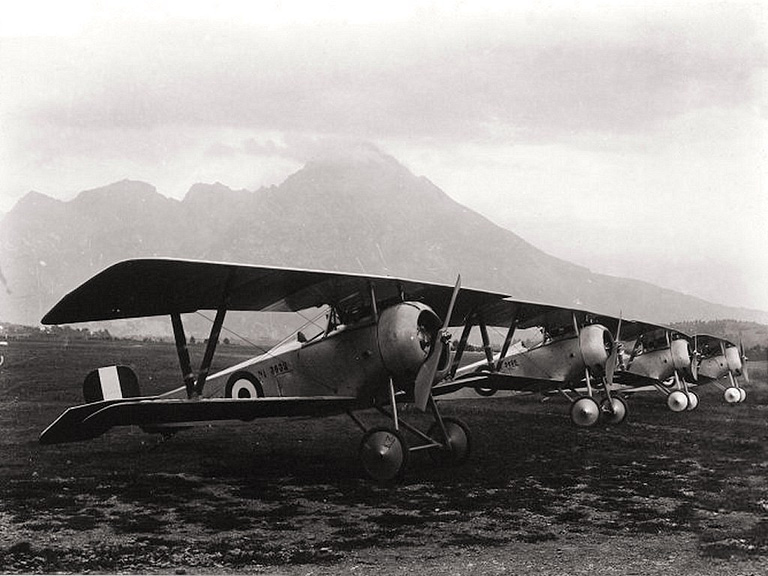

- Nieuport-Macchi built roughly 150 Nieuport 17s for the Corpo Aeronautico Militare; Baracca, Scaroni and Piccio all scored on them. Dux in Russia built 17s and 21s, where inexperience, thin technical support and poor raw materials told badly on quality.
- Siemens-Schuckert D.I and Euler D.I (Germany, 1916–17, unlicensed)
- Idflieg was impressed enough to hand captured Nieuports and detailed drawings to German manufacturers and ask for copies. The SSW D.I was a good enough copy to go into production, by which time it was obsolete and was used mostly as an advanced trainer. The Euler D.I never got past prototypes.
- Export and post-war operators (1917–late 1920s)
- Belgium, Italy, Russia and later the Soviet Union, Romania, Poland, the Netherlands, Switzerland, Denmark, Finland, Estonia, Czechoslovakia, Brazil, Chile, Colombia, Guatemala, Portugal and Siam, where the type was designated B.Kh.2. The AEF bought 175 Nieuport 17s, 197 Nieuport 21s and 50 Nieuport 23s purely for training.
Survivors, and what is actually original: exactly one original airframe from this family is known to survive anywhere in the world — Nieuport 23 serial N5024, restored and on static display at the Royal Museum of the Armed Forces and Military History in Brussels. There is no original Nieuport 17. Nothing from the type flies. Everything you will see flying or displayed under the name Nieuport 17 is a reproduction, and the honest thing is to say so plainly: the Canadian War Museum aircraft in Ottawa was newly built to original drawings, the National Museum of the United States Air Force displays a reproduction in Billy Bishop’s markings, and a large population of flying reproductions exists in Europe, North America and New Zealand, some built from period factory and captured-German drawings and some to 7/8ths scale from commercial kits with steel-tube structures in place of the original wood. A reproduction built from original drawings with a period Le Rhône is still a reproduction; the distinction is worth keeping, because for First World War types almost everything that flies is new.
The Nieuport 17 through the war
Delage joins Nieuport
Gustave Delage takes charge of design at the Société Anonyme des Établissements Nieuport and begins the sesquiplane scout line that will lead to the 17.
The Nieuport 11 “Bebé” enters combat
The tiny sesquiplane scout reaches the front and, with the DH.2 and F.E.2b, begins breaking the Fokker Scourge in early 1916 — proving the layout the 17 will inherit.
Into service with Escadrille N.57
The more powerful Nieuport 17 reaches French squadrons on 2 May 1916 and is an immediate success over Verdun and the Somme.
Adopted by the RFC, RNAS, Italy, Russia and Belgium
The Allies buy and licence-build the type to cover the gap before their own scouts mature; aces including Ball, Bishop, Nungesser and Guynemer make their names on it.
The lower wing catches up with the design
High-speed wing failures prompt the RFC to order lower wings strengthened; the newer Albatros D.III — which copied the sesquiplane — suffers the same trouble.
Superseded by the SPAD and later Nieuports
The sturdier two-spar SPAD S.VII and the refined Nieuport 24 and 27 take over front-line pursuit work as the 17 is outclassed by newer German scouts.
Second-line and post-war service
Surviving and licence-built airframes serve as trainers and with smaller air arms into the 1920s, from the United States to the newly independent states of Europe.
A rare original, a thriving replica
Genuine Nieuport 17s are among the rarest WWI survivors, while airworthy reproductions fly at collections such as Shuttleworth, The Vintage Aviator and Old Rhinebeck.
The Nieuport 17 in the words of those who flew it
Charles Nungesser and the macabre Nieuport
France’s indestructible ace painted his 17 with a skull, coffin and candles — and kept flying through a catalogue of injuries.
Read the full story
Albert Ball and the Foster mounting trick
Britain’s first great ace used the top-wing Lewis to attack from below, firing up into an enemy’s blind spot.
Read the full story

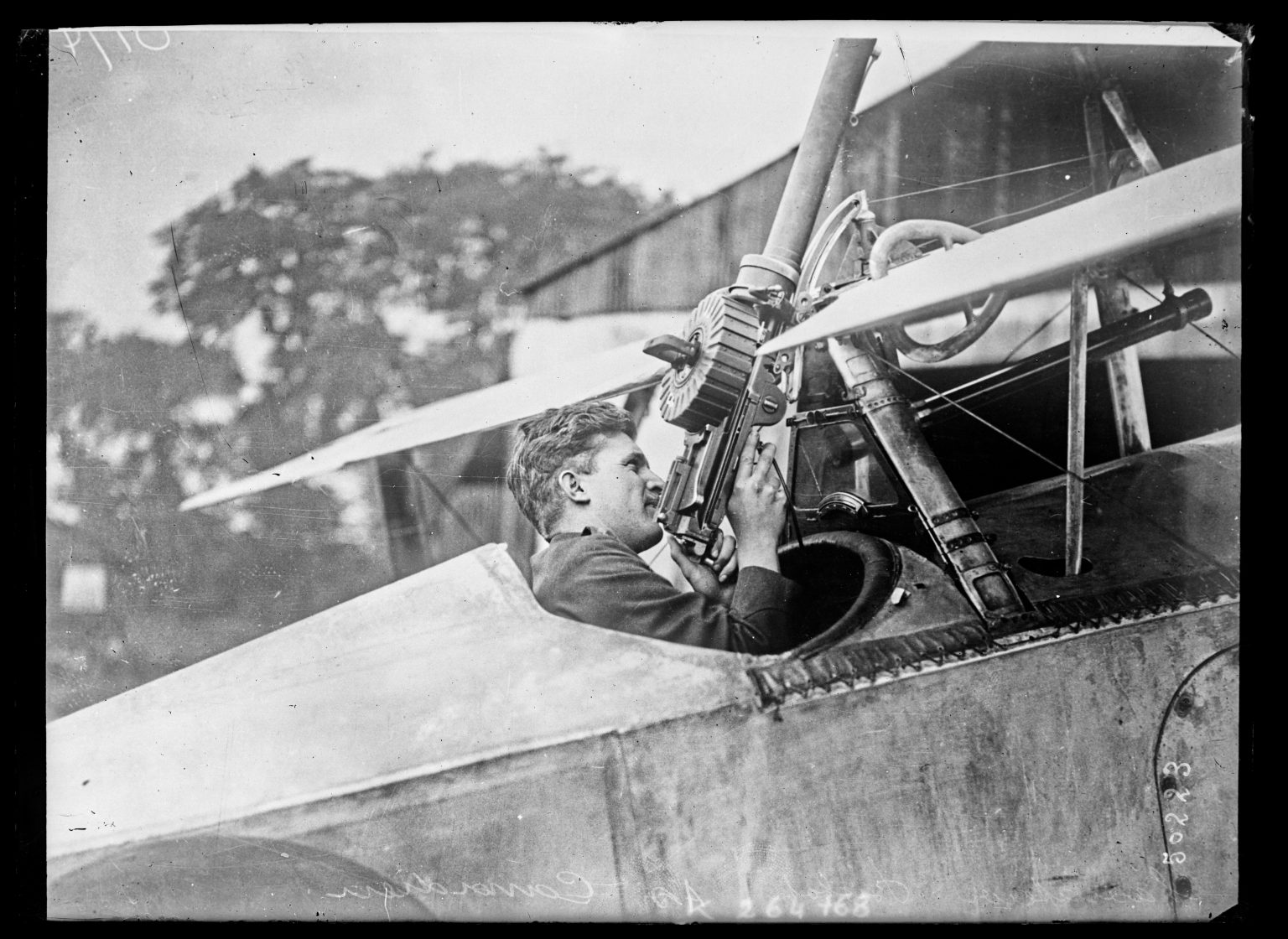

Billy Bishop’s Nieuport summer
The Canadian ran up a formidable score on the 17, culminating in a solo dawn raid that earned the Victoria Cross.
Read the full story
Guynemer’s early Nieuports
Before the SPAD made him a legend, Georges Guynemer honed his craft on Nieuport scouts with the famous Storks.
Read the full story
The Escadrille Lafayette
American volunteers flew Nieuport 17s in French service before their own country entered the war.
Read the full story
Willy Coppens learns his trade
Belgium’s greatest ace started on the Nieuport before making his name against observation balloons.
Read the full story
The wing that could not be trusted in a dive
The feature pilots loved — the clear-view lower wing — was also the one they feared at high speed.
Read the full story
Imitation on the other side of the line
The layout was copied by Albatros — wing weakness and all.
Read the full story
First into service
The unit that took the 17 to war in May 1916.
Read the full story
Macchi and Dux
The 17 was built far beyond France — in Italy and in Russia.
Read the full story
A gentle second career
Forgiving handling made the retired fighter a natural teacher.
Read the full story
Rare originals, living replicas
Almost no genuine 17s remain — but the type flies again in faithful reproductions.
Read the full story
The Nieuport 17 in pictures
The Nieuport 17 in the air
Helmet-camera footage filmed by pilot Rob Gauld-Galliers flying the airworthy Nieuport 17 reproduction G-BWMJ at the La Ferté-Alais display in France — a rare in-cockpit view from a genuine flying Nieuport 17. (Channel: Robert Gauld-Galliers · ~12,500 views.)
Where the Nieuport 17 flew
Designed and built in France, fought over the Western Front, the Italian Alps and the Eastern Front, and built under licence in Italy and Russia — the Nieuport 17 and its near-identical 17bis and 23 siblings served with a dozen air arms. Toggle the categories to see its origin, wartime operators and combat, other and licence operators, and where survivors and replicas are displayed today.
The record the Nieuport 17 left behind
Victory tallies from the First World War are inherently uncertain: claims were often shared, confirmation was inconsistent between air services, and many combats went unrecorded. The figures above are indicative of the type’s standing in 1916, not audited scores.
Nieuport 17: your questions answered
Can I fly in a Nieuport 17?
What made the Nieuport 17 so effective in 1916?
Was the Nieuport 17's lower wing really a weakness?
Which aces flew the Nieuport 17?
Did the Nieuport 17 end the 'Fokker Scourge'?
How many Nieuport 17s were built, and are any left?
You can’t fly the Nieuport 17.
These, you can.
Some legends only live in museums — others are fuelled and waiting. MiGFlug has put civilians in real military jet cockpits since 2004.
Fly the L-39 AlbatrosThe world’s most-flown jet trainer — aerobatics included
Fly the F-104 Starfighter“The missile with a man in it”
Fly the MiG-21The Cold War’s most-produced jet
Fly the T-33 Shooting StarAmerica’s first jet trainer
Fly the DH VampireA piece of early jet history
Fly the S.211Agile Italian jet trainer
Fly the MB-326The classic Aermacchi jet
Fly the MiG-15The Soviet legend of the Korean WarExplore more of the collection
Every fact, checked
- Royal Air Force Museum — The Evolution of the Nieuport FighterDelage’s sesquiplane line and the single-spar lower-wing weakness
- Smithsonian National Air and Space Museum — First World War aviationWWI fighter development and the air war context
- Imperial War Museums — The Birth of Military AviationThe Fokker Scourge and the Allied response of 1916
- Musée de l’Air et de l’Espace, Le BourgetFrench national collection of Nieuport and WWI aircraft
- History of War — Nieuport 17Specifications, service entry and the 1917 wing-strengthening order
- The Shuttleworth CollectionOperator of an airworthy Nieuport in the United Kingdom
- The Vintage Aviator (New Zealand)Builder and operator of flying Nieuport reproductions
- Key Aero — Nieuport 17/23: Facsimile FighterThe type’s design, handling and modern replicas
- C. Shores, N. Franks & R. Guest — Above the TrenchesReference on Allied aces and their Nieuport victories
- J. M. Bruce — The Aeroplanes of the Royal Flying Corps (Military Wing)Detailed account of RFC Nieuport 17 service and armament
